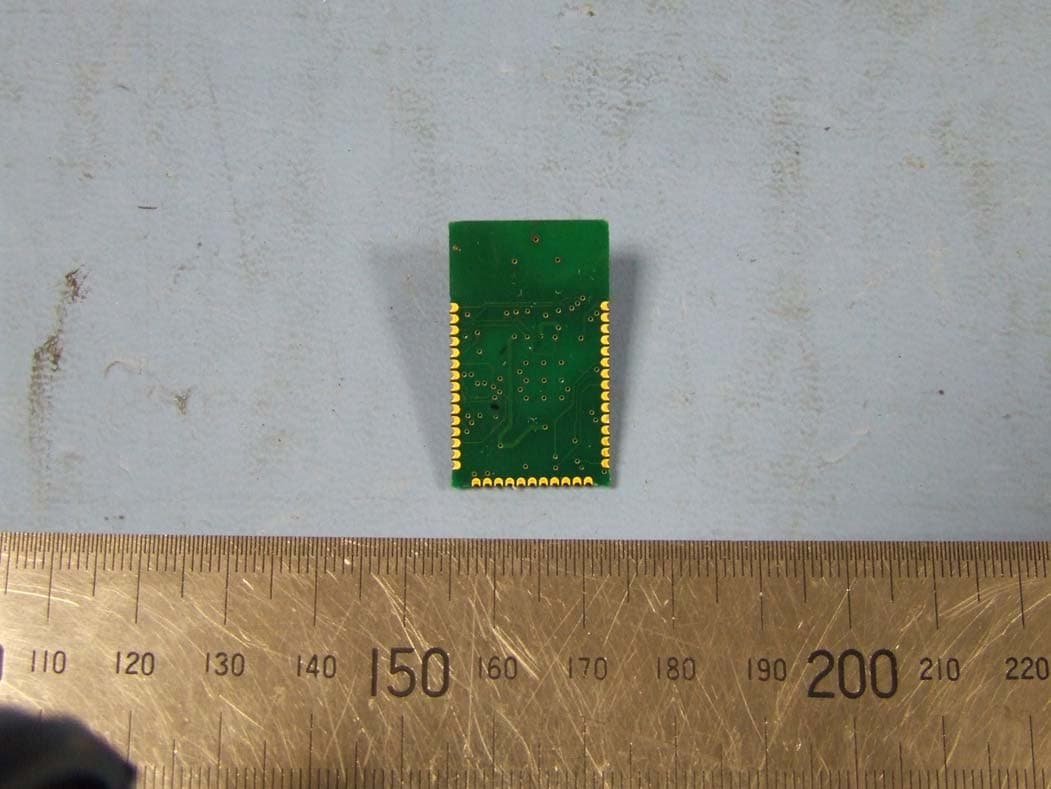

TYOJN5121M6802.15.4/ZigBee Module

Preliminary Data Sheet – JN5121-xxx-Myy IEEE802.15.4/ZigBee Module Family Preliminary - JN-DS-JN5121-xxx-Myy v1.21 © Jennic 2006 Features: Module • 2.4GHz IEEE802.15.4 compliant • 2.7-3.6V operation • Sleep current (with active sleep timer) < 14μA • JN5121-xxx-M00/01/03 Standard module, 0dBm power M00: on board antenna or M01: SMA connector, M03: RP-SMA connector > 400m range o Receiver sensitivity -90dBm o TX current < 45mA o RX current < 50mA o 18x30mm • JN5121-xxx-M02/04 18.5dBm power with LNA and SMA connector, > 4km range Receiver sensitivity -93dBm o TX current < 120mA o RX current < 55mA o 18x40mm Features: Microcontroller • 16MHz 32-bit RISC CPU • 96kB RAM, 64kB ROM • 4-input 12-bit ADC, 2 11-bit DACs, comparator, temperature sensor • 2 Application timer/counters, 3 system timers • 2 UARTs (one for in-system debug) • SPI port with 5 selects • 2-wire serial interface • 21 GPIO • Evaluation kits available with full, unlimited, Software Development Kit Industrial temperature range (-20°C to +70°C) Lead-free and RoHS compliant Overview Overview The JN5121-xxx-Myy is a family of surface mounted modules that enable users to implement IEEE802.15.4 or ZigBee compliant systems with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. The modules use Jennic’s JN5121 wireless microcontroller to provide a comprehensive solution, including all RF components. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators, sensors, considerably simplifying product development. The JN5121-xxx-Myy is a family of surface mounted modules that enable users to implement IEEE802.15.4 or ZigBee compliant systems with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. The modules use Jennic’s JN5121 wireless microcontroller to provide a comprehensive solution, including all RF components. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators, sensors, considerably simplifying product development. Three basic hardware module variants are available: JN5121-xxx-M00 with an integrated antenna, JN5121-xxx-M01/M03 with an antenna connector and JN5121-xxx-M02/M04 with a power amplifier and LNA for extended range. Each of these can be provided pre-programmed with a ZigBee network stack (JN5121-Z01-Myy) or with customer-specific software. Three basic hardware module variants are available: JN5121-xxx-M00 with an integrated antenna, JN5121-xxx-M01/M03 with an antenna connector and JN5121-xxx-M02/M04 with a power amplifier and LNA for extended range. Each of these can be provided pre-programmed with a ZigBee network stack (JN5121-Z01-Myy) or with customer-specific software. Block Diagram Block Diagram Timers UARTs 12-bit ADC, comparator 11-bi t DACs, temp sensor 2-wire serial SPI RAM 96kB 128-bit AES Encrypti on Accelerator 2.4GHz Radi o ROM 64kB RI SC CPU Power Management XTAL O-QPSK Modem IEEE802.15.4 MAC Accelerator 128kB Serial Flash Memory JN5121 chip Power Bal un SMA Connector Bal un Cer ami c Ant enna Bal un SMA Connector PA / LNA External Antenna MO00 Option M01/03 Option M02/04 Option Benefits • Microminiature module solutions • Ready to use in products • Minimises product development time • No RF test required for systems • Compliant with FCC part 15 rules, ETSI ETS 300-328 and Japan ARIB STD-T66 • Production volumes supplied pre-programmed with application software Applications • Robust and secure low power wireless applications • Wireless sensor networks, particularly IEEE802.15.4 / ZigBee systems • Home and commercial building automation • Home networks • Toys and gaming peripherals • Industrial systems • Telemetry and utilities (e.g. AMR) Jennic Contents 1. Introduction 1 1.1. Variants 1 1.2. Regulatory Approvals 1 2. Specifications 2 3. Product Development 3 3.1. JN5121 Single Chip Wireless Microcontroller 3 4. Pin Configurations 4 4.1. Pin Assignment 5 4.2. Pin Descriptions 6 4.3. Power Supplies 6 4.4. SPI Memory Connections 6 5. Electrical Characteristics 7 5.1. Maximum Ratings 7 5.2. Operating Conditions 7 Appendix A Mechanical and Ordering Information 8 A.1 Outline Drawing 8 A.2 Module PCB Footprint 11 A.3 Ordering Information 12 A.4 Accessories 13 A.5 Tape and Reel Information: 14 A.5.1 Tape Orientation and dimensions 14 A.5.2 Cover tape details 14 A.5.3 Leader and Trailer 15 A.5.4 Reel Dimensions: 15 A.6 Related Documents 16 A.7 Federal Communication Commission Interference Statement 16 A.8 Disclaimers 18 A.9 Version Control 18 A.10 Contact Details 19 ii Preliminary - JN-DS-JN5121-xxx-Myy v1.21 © Jennic 2006 Jennic 1. Introduction The JN5121-xxx-Myy module family provides designers with a ready made component which allows IEEE802.15.4 [1] wireless applications, including ZigBee, to be quickly and easily included in product designs. The modules integrate all of the RF components, removing the need to perform expensive RF design and test. Products can be designed by simply connecting sensors and switches to the module IO pins. The modules use Jennic’s single chip IEEE802.15.4 Wireless Microcontroller, allowing designers to make use of the extensive chip development support material. Hence, this range of modules allows designers to bring wireless applications to market in the minimum time with significantly reduced development effort and cost. Three basic modules are available: JN5121-xxx-M00 (standard module with on board ceramic antenna), JN5121-xxx- M01 (standard module with SMA connector for use with external antennae) and JN5121-xxx-M02 (high RF power, improved sensitivity module for extended range applications). Each of these modules can be supplied with a range of protocol stacks, including a simple IE…

Text truncated - open the document above for the full version.

Preliminary Data Sheet – JN5121-xxx-Myy IEEE802.15.4/ZigBee Module Family Preliminary - JN-DS-JN5121-xxx-Myy v1.2 © Jennic 2006 Features: Module
2.4GHz IEEE802.15.4 compliant
2.7-3.6V operation
Sleep current (with active sleep timer) < 14μA
 JN5121-xxx-M00/01/03 Standard module, 0dBm power M00: on board antenna or M01: SMA connector, M03: RP-SMA connector > 400m range o Receiver sensitivity -90dBm o TX current < 45mA o RX current < 50mA o 18x30mm
 JN5121-xxx-M02/04 18.5dBm power with LNA and SMA connector, > 4km range Receiver sensitivity -93dBm o TX current < 120mA o RX current < 55mA o 18x40mm Features: Microcontroller
16MHz 32-bit RISC CPU
96kB RAM, 64kB ROM
4-input 12-bit ADC, 2 11-bit DACs, comparator, temperature sensor
2 Application timer/counters, 3 system timers
2 UARTs (one for in-system debug)
SPI port with 5 selects
2-wire serial interface
21 GPIO
Evaluation kits available with full, unlimited, Software Development Kit Industrial temperature range (-20°C to +70°C) Lead-free and RoHS compliant Overview The JN5121-xxx-Myy is a family of surface mounted modules that enable users to implement IEEE802.15.4 or ZigBee compliant systems with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. The modules use Jennic’s JN5121 wireless microcontroller to provide a comprehensive solution, including all RF components. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators, sensors, considerably simplifying product development. Three basic hardware module variants are available: JN5121-xxx-M00 with an integrated antenna, JN5121-xxx-M01/M03 with an antenna connector and JN5121-xxx-M02/M04 with a power amplifier and LNA for extended range. Each of these can be provided pre-programmed with a ZigBee network stack (JN5121-Z01-Myy) or with customer-specific software. Block Diagram Timers UARTs 12-bit ADC, comparator 11-bit DACs, temp sensor 2-wire serial SPI RAM 96kB 128-bit AES Encryption Accelerator 2.4GHz Radio ROM 64kB RISC CPU Power Management XTAL O-QPSK Modem IEEE802.15.4 MAC Accelerator 128kB Serial Flash Memory JN5121 chip Power Balun SMA Connector Balun Ceramic Antenna Balun SMA Connector PA / LNA External Antenna MO00 Option M01/03 Option M02/04 Option Benefits
Microminiature module solutions
Ready to use in products
Minimises product development time
No RF test required for systems
Compliant with FCC part 15 rules, ETSI ETS 300-328 and Japan ARIB STD-T66
Production volumes supplied pre-programmed with application software Applications
Robust and secure low power wireless applications
 Wireless sensor networks, particularly IEEE802.15.4 / ZigBee systems
Home and commercial building automation
Home networks
Toys and gaming peripherals
Industrial systems
Telemetry and utilities (e.g. AMR)

Response to TCB regarding test fixture. Radiated emissions testing on the Jennic Zigbee modules was carried out using the test jig shown in KTL test report 5G9013GUS2. Prior to performing formal testing, tests were performed on a module fitted to an evaluation board containing a battery supply and display module which attaches to the header connector. A photograph of the board is shown below. Results for radiated emissions from the module varied by less than 2 dB between the test jig used for the formal results and those achieved using the evaluation board. The worst case results being obtained using the test jig. KTL therefore believe that a unit compliant for radiated emissions within the test jig will be compliant if tested in free space. K J Anderson Principal EMC and Radio Engineer

KTL is the trading name of Laboratory Accreditation Solutions Ltd. ver: a18/10 Registered Office: Saxon House, Saxon Way, Priory Park West, Hull, HU13 9PB, UK. Reg No: 5579538 England. KTL Saxon Way Priory Park West Hull HU13 9PB UK Tel +44 (0) 1482 801801 Fax +44 (0) 1482 801806 Email [email protected] To whomever it may concern. The below statements have been made by Jennic Ltd as a request for modular approval: 1. The Modular transmitter has it’s own RF shielding. The shielding provided by the TYOJN5121M6 module ensures that the module does not have to rely on shielding provided by external devices. A picture showing the shielding is provided with this application for FCC registration. The shielding complies with the Part 15 limits this is reflected in the KTL FCC Part 15.247 test report. The shielding prevents coupling between the RF circuitry of the module and any wires/circuits of any device in which the module is installed into. 2. The modular transmitter has buffered modulation/data inputs ensuring compliance with Part 15. 3. The modular transmitter has it’s own power supply regulation ensuring compliance with Part 15. 4. The TYOJN5121M6 module uses a removable antenna, the module employs a unique antenna coupler and only antennas that have been approved with the module are to be used. 5. The TYOJN5121M6 module has been tested in a standalone configuration ensuring compliance with the Part 15 emission limits. This allows the module to be compliant with the Part 15 emission requirements regardless of the host in which the module will be installed into. Evidence showing that the module was assessed in a standalone configuration is provided in the KTL Part 15 test report. 6. The module is labelled with it’s own FCC ID. The ID is TYOJN5121M6. When the module is installed into a host device the host device will always have the following wording on the outside of the host. Contains FCC ID: TYOJN5121M6. 7. The TYOJN5121M6 module transmitter complies with the specific rules / operating requirements applicable to the transmitter. Adequate instructions along with the module to explain the requirements are provided in the TYOJN5121M6 user manual. A copy of these instructions are included in this application for equipment authorization. 8. The TYOJN5121M6 module transmitter must comply with applicable RF exposure requirements.: FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), Section 15.247(b)(4). Information addressing RF Exposure concerns are provided in the installation and operating instructions for users, installers and other interested parties. KTL acting as agents on behalf of Jennic.

JN5121-XXX-M03 Module Labelling This document has been generated in support of the FCCID application for the Jennic module JN5121-XXX-M03. It covers JN5121-000-M03 and JN5121-Z01-M03 products. The following picture shows an example of existing module labelling. The location, on top of the metal screening can, is also demonstrated. JN5121-000-M03 Subsequent to being granted an FCC-ID the following label will be used for JN5121- 000-M03. Product Identification Instructions Label line 1: FCC ID Number Label line 2: Part Name Label line 3: Barcode Label line 4: YYWWTNNNNN (see below) Identifier Description Format YY Year 06(example) WW Week 45(example) T Module type 6 NNNNN Serial Number Note, the R suffix on the part name indicates prototype. FCCID: TYOJN5121M6 YYWWTNNNNN JN5121-000-M03R JN5121-Z01-M03 Subsequent to being granted an FCC-ID the following label will be used for JN5121- Z01-M03. Product Identification Instructions Label line 1: FCC ID Number Label line 2: Part Name Label line 3: Barcode Label line 4: YYWWTNNNNN (see below) Identifier Description Format YY Year 06(example) WW Week 45(example) T Module type 7 NNNNN Serial Number Note, the R suffix on the part name indicates prototype. The label material = Polyimide Label adhesive = Acrylic Fibre FCCID: TYOJN5121M6 YYWWTNNNNN JN5121-Z01-M03R

Preliminary Data Sheet – JN5121-xxx-Myy IEEE802.15.4/ZigBee Module Family Preliminary - JN-DS-JN5121-xxx-Myy v1.21 © Jennic 2006 Features: Module
2.4GHz IEEE802.15.4 compliant
2.7-3.6V operation
Sleep current (with active sleep timer) < 14μA
 JN5121-xxx-M00/01/03 Standard module, 0dBm power M00: on board antenna or M01: SMA connector, M03: RP-SMA connector > 400m range o Receiver sensitivity -90dBm o TX current < 45mA o RX current < 50mA o 18x30mm
 JN5121-xxx-M02/04 18.5dBm power with LNA and SMA connector, > 4km range Receiver sensitivity -93dBm o TX current < 120mA o RX current < 55mA o 18x40mm Features: Microcontroller
16MHz 32-bit RISC CPU
96kB RAM, 64kB ROM
4-input 12-bit ADC, 2 11-bit DACs, comparator, temperature sensor
2 Application timer/counters, 3 system timers
2 UARTs (one for in-system debug)
SPI port with 5 selects
2-wire serial interface
21 GPIO
Evaluation kits available with full, unlimited, Software Development Kit Industrial temperature range (-20°C to +70°C) Lead-free and RoHS compliant Overview The JN5121-xxx-Myy is a family of surface mounted modules that enable users to implement IEEE802.15.4 or ZigBee compliant systems with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. The modules use Jennic’s JN5121 wireless microcontroller to provide a comprehensive solution, including all RF components. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators, sensors, considerably simplifying product development. Three basic hardware module variants are available: JN5121-xxx-M00 with an integrated antenna, JN5121-xxx-M01/M03 with an antenna connector and JN5121-xxx-M02/M04 with a power amplifier and LNA for extended range. Each of these can be provided pre-programmed with a ZigBee network stack (JN5121-Z01-Myy) or with customer-specific software. Block Diagram Timers UARTs 12-bit ADC, comparator 11-bit DACs, temp sensor 2-wire serial SPI RAM 96kB 128-bit AES Encryption Accelerator 2.4GHz Radio ROM 64kB RISC CPU Power Management XTAL O-QPSK Modem IEEE802.15.4 MAC Accelerator 128kB Serial Flash Memory JN5121 chip Power Balun SMA Connector Balun Ceramic Antenna Balun SMA Connector PA / LNA External Antenna MO00 Option M01/03 Option M02/04 Option Benefits
Microminiature module solutions
Ready to use in products
Minimises product development time
No RF test required for systems
Compliant with FCC part 15 rules, ETSI ETS 300-328 and Japan ARIB STD-T66
Production volumes supplied pre-programmed with application software Applications
Robust and secure low power wireless applications
 Wireless sensor networks, particularly IEEE802.15.4 / ZigBee systems
Home and commercial building automation
Home networks
Toys and gaming peripherals
Industrial systems
Telemetry and utilities (e.g. AMR)

LT001874/SMB Confidential Page 1  Jennic Ltd 2005 REGISTERED IN ENGLAND 3191371 Jennic TECHNOLOGY FOR A CHANGING WORLD JENNIC LTD FURNIVAL STREET SHEFFIELD S1 4QT UNITED KINGDOM TELEPHONE: +44 (0) 114 281 2655 FACSIMILE: +44 (0) 114 281 2951 E MAIL: [email protected] WEB: www.jennic.com 25 October 2006 SOFTWARE ISSUES FOR MODULES JN5121-000-M03 AND JN5121-Z01-M03 Dear Sir This module submission, relates to Jennic module products JN5121-000-M03 and JN5121-Z01- M03. This document will justify why both modules can be covered by one FCC-ID, and therefore be covered by one submission. This document will cover: 1. Description of modules and the difference 2. Explanation of the PHY and MAC layer 3. Explanation of the Zigbee network layer 4. Software for compliance testing DESCRIPTION OF MODULES AND THE DIFFERENCES The two modules both have the same bill of materials, including the PCB (ref 1029 v3.0), antenna connection and radio/ microcontroller device (JN5121). The microcontroller has a common PHY and MAC software element to both modules. The JN5121-Z01-M03 module also has a Zigbee Network software layer. LT001874 Version 2.0 Confidential Page 2  Jennic Ltd 2004 EXPLANATION OF THE PHY AND MAC LAYER The end-user can only control the radio within the JN5121 device using the software functions within the PHY and MAC layer. The control straight to the PHY Layer is limited to selecting the channel and reducing the operating power from the standard setting. All other control occurs via the MAC layer. These software functions are hard coded and can not be altered by the end user. Therefore, any application developed on the module will exhibit the same RF characteristics. The interaction of the application and the PHY and MAC layers is demonstrated in the following diagram. Full details of the MAC layer are provided in the 802.15.4 MAC Software reference Manual (JN-RM-2002-Stack_Software). Application MAC Layer PHY Layer partial PLME Radio LT001874 Version 2.0 Confidential Page 3  Jennic Ltd 2004 EXPLANATION OF THE ZIGBEE NETWORK LAYER The JN5121-Z01-M03 module has a Zigbee Network Layer in addition to the PHY and MAC layer software. The end-user’s application code controls radio operation via the Zigbee Network layer. This can then interface to the radio through the MAC and PHY layer, in the same way that an application does without the presence of the Zigbee network layer. Therefore, any application developed on the module will exhibit the same RF characteristics as an application developed without the Zigbee Network layer. The interaction of the layers is demonstrated in the following diagram. At the PHY level, the Network layer can only influence the frequency of occurance of packets. All other parameters – packet length, output power, transmit frequency are under control of the IEEE 802.15.4 MAC layer as per the JN5121-000-M03 module. Zigbee Network Layer MAC Layer PHY Layer partial PLME Radio Application LT001874 Version 2.0 Confidential Page 4  Jennic Ltd 2004 SOFTWARE FOR COMPLIANCE TESTING As required by FCC regulations, the test reports associated with this submission were achieved by the use of special test software to configure the radio in the same manner that the MAC and PHY layers do, with the exception of allowing access to some extra test modes such as the continual transmit modes with modulated or un-modulated signals. Therefore, they are representative of the radio performance that will be achieved by end-users of these two module products. Yours sincerely, Stephen Bate

Brand Model Number Type Gain Connector Type Antenna Factor ANT-2.4-CW-RCL Knuckle Antenna 2.90dBi RP-SMA Antenna Factor ANT-2.4-CW-RCT-RP Knuckle Antenna 2.20dBi RP-SMA Centurion WCR2400-SMRP Knuckle Antenna 1.0dBi RP-SMA Centurion WRR2400-SMRP Knuckle Antenna 1.3dBi RP-SMA Nearson S141AH-2450 Knuckle Antenna 2.0dBi RP-SMA Nearson T145AH-2.4/4.9/5.X-S Knuckle Antenna 2.0dBi RP-SMA GigaAnt* 2010B6090-01 Swivel 4.4dBi RT-SMA *N.B Currently there is not a RP-SMA connector version of this Antenna. Once the RP-SMA version of this antenna is available t his will be offered as an option in the USA. This antenna was used during testing as this antenna has the highest gain.

Specifications subject to change without notice. 3425 N.44 th Street, LINCOLN, NE 68504 USA SALES PHONE: 800.228.4563 PHONE: 402.467.4491 • FAX: 402.467.4528 www.centurion.com • [email protected] Copyright  2004 Centurion Wireless Technologies, Inc. All Rights Reserved Specifications: ƒ ½ wave coaxial dipole ƒ Clutch allows 360º rotation ƒ Flexible element ƒ FCC Part 15 compliant polarized connector Frequency 2.4 – 2.5 GHz Polarization Vertical MMCX 1.0 dBi SMA 2.0 dBi Gain SMRP 1.0 dBi Nominal Impedance 50 ohms VSWR 1.5:1 max at resonance RF Power Handling 50 watts Size (Length) 8cm Temperature Range -40° to +80°C Drop Test 1M Connectors: Model # Part # Connector WCR2400-MMCX WCR2400MMCX MMCX Straight WCR2400-SMA WCR2400SMA SMA-Male WCR2400-SMRP WCR2400SMRP RP-SMA-Male (gold) WCRb – 1/17/05 WCR Model Number: WCR2400 External Antenna – Connector Mount 10 cm 8 cm Azimuth WCR2400MMCX Elevation WCR2400MMCX

Product Specification Product Specification Titanis 2.4 GHz Swivel SMA Antenna Rev : AE030054-B / April 18 2005 Titanis 2.4 GHz Swivel SMA Antenna 2 (7)Subject to changes without prior notice 1. FEATURES -Designed for 2.4 GHz applications [Bluetooth TM , WiFi TM (802.11b/g), Zigbee TM , WiMedia TM etc.] - Also available as reversed thread (left) to meet FCC regulation part 15 - Intended for SMA mounting - Supplied in bulk 2. DESCRIPTION - Development tools - Test equipment - Instruments - Access points and gateways - Printers 3. APPLICATION The Titanis antenna is intended for use with all 2.4 GHz applications. The antenna is fitted with an SMA male connector and a blade, made of a flexible material that can be rotated 360 degrees. No external matching net is required. Titanis is available as standard SMA and reversed thread SMA. TABLE OF CONTENT 1. Features ......................................................................................................................................................................... 2 2. Description ..................................................................................................................................................................... 2 3. Application ...................................................................................................................................................................... 2 4. General data ................................................................................................................................................................... 3 5. Model names .................................................................................................................................................................. 3 6. Electrical characteristics ................................................................................................................................................. 3 7. Electrical performance .................................................................................................................................................... 4 7.1 Voltage Standing Wave Ratio ............................................................................................................................... 4 7.2 Radiation patterns ................................................................................................................................................ 4 7.3 3D-Radiation ........................................................................................................................................................ 4 8. Antenna Dimensions ....................................................................................................................................................... 5 9. Electrical interface .......................................................................................................................................................... 5 9.1 Connection ........................................................................................................................................................... 5 9.2 Electrical performance test set-up ........................................................................................................................ 5 10. Reliability ...................................................................................................................................................................... 6 10.1 Temperature and Humidity ................................................................................................................................. 6 10.2 Judgement standard .......................................................................................................................................... 6 11. Hazardous Material Reguration Conformance .............................................................................................................. 6 12. Packaging ..................................................................................................................................................................... 7 12.1 Shelf storage recommendation .......................................................................................................................... 7 12.2 Packaging characteristics .................................................................................................................................. 7 12.3 Bag label information ......................................................................................................................................... 7 13. Contact information ...................................................................................................................................................... 7 Rev : AE030054-B / April 18 2005 Titanis 2.4 GHz Swivel SMA Antenna 3 (7)Subject to changes without prior notice 5. GENERAL DATA 20 10 Bxxxx - 01 4. MODEL NAMES Antenna Family -External Technology -Metal Drawing No. 6. ELECTRICAL CHARACTERISTICS emaNtcudorPzHG4.2sinatiT .oNelcitrA )dradnatS(10-4484B0102 )daerhtesreveR(10-0906B0102 ycneuqerFzHG5.2-4.2 noitaziraloPraeniL erutarepmetgnitarepOCged58+ot04- ecnadepmImhO05 thgieWmarg4.7 epytannetnAleviwS scitsiretcarahC *snoitidnoC niMpyTxaM niaGkaePiBd0.4iBd1.4iBd4.4 )dleifraen(rebmahcD3niderusaeM,zHG5.2-4.2ycneuqerF ycneiciffE%08%58%09 RWSV1:1.11:2.11:3.1rezylanAkrowteNniderusaeM,zHG5.2-4.2ycneuqerF draobecnerefertnAagigehtnodesaberaelbatsihtnidedivorpatadllaetoN* Rev : AE030054-B / April 18 2005 Titanis 2.4 GHz Swivel SMA Antenna 4 (7)Subject to changes without prior notice 7.3 Radiation patterns XY- Plane XZ- Plane YZ- Plane To t a l polarization 7.1 Voltage Standing Wave Ratio 7. ELECTRICAL PERFORMANCE 7.2 3D-Radiation Vertical polarization Horizontal polarization Rev : AE030054-B / April 18 2005 Titanis 2.4 GHz Swivel SMA Antenna 5 (7)Subject to changes without prior notice 8. ANTENNA DIMENS…

Text truncated - open the document above for the full version.

Polar Plots and VSWR Graph Antenna Factor575 S.E. Ashley Place Grants Pass, OR 97526-3237 www.antennafactor.com 541-956-0931 (phone) 541-471-6251 (fax) Rev 04-27-06 Typical VSWR ANT-2.4-CW-RCL DATA SHEETS Product DimensionsDescription Features Electrical Specifications Ordering Information AzimuthElevation -50.0 -40.0 -30.0 -20.0 -10.0 0.0 -45.0 -35.0 -25.0 -15.0 -5.0 5.0 0.24” (6.0) 0.31” (8.0) 0.42” (10.6) The RCL Series is useful in products where additional height above the product’s case is needed or a slightly wider operational bandwidth is desired. The 2.45GHz version has a center-fed 1/2-wave element with an internal ground reference. Right-angle mount Excellent performance Omni-directional pattern Fully weatherized Rugged & damage-resistant Part 15 compliant RP-SMA connector Available in black or custom colors Use with plastic or metal enclosures Center Freq. Bandwidth Wavelength VSWR Impedance Gain Connector Electrical specifications and plots measured on 4.00” x 4.00” reference ground plane ANT-2.4-CW-RCL CENTER 2 450.000MHz SPAN 1 000.000MHz S11 SWR 1.470 3.46” (88.0) 2.45GHz 120MHz 1/2-wave <1.7 typ. at center 50 ohms 2.90dBi RP-SMA Absolute Gain of AUT -50.0 -40.0 -30.0 -20.0 -10.0 0.0 0 90 180 270 90° 270° 180° 0° Antenna Antenna Factor575 S.E. Ashley Place Grants Pass, OR 97526-3237 www.antennafactor.com 541-956-0931 (phone) 541-471-6251 (fax) ANT-2.4-CW-RCL DATA SHEETS Azimuth Radiation Pattern Elevation Radiation Pattern Absolute Gain of AUT -45.0 -35.0 -25.0 -15.0 -5.0 5.0 0 90 180 270 90° 270° 180° 0° Antenna Measurement Antenna Polarity: Vertical Test Antenna Polarity: Vertical Maximum Absolute Gain: -0.50dBi Measurement Antenna Polarity: Horizontal Test Antenna Polarity: Horizontal Maximum Absolute Gain: 2.90dBi 4.00” (101.6) 4.00” (101.6) GROUND PLANE ON BOTTOM LAYER Antenna Test Fixture The adjoining diagram shows the dimensions of the fixture on which the stated pattern and gain measurements were made. This does not mean that your product must conform to this size or antenna orientation, althou…
