TYOJN5139M3

NXP Laboratories UK Ltd

JN5139-000-M03 IEEE802.15.4 Wireless Transmitter

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Apr 18, 2007
Application Purpose: Original Equipment
Date of Application: Apr 18, 2007
Equipment Note: JN5139-000-M03 IEEE802.15.4 Wireless Transmitter
Frequency Range: 2400.00000000 - 2483.50000000
Company: NXP Laboratories UK Ltd
Country: United Kingdom

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Block Diagram

Cover Letter(s)

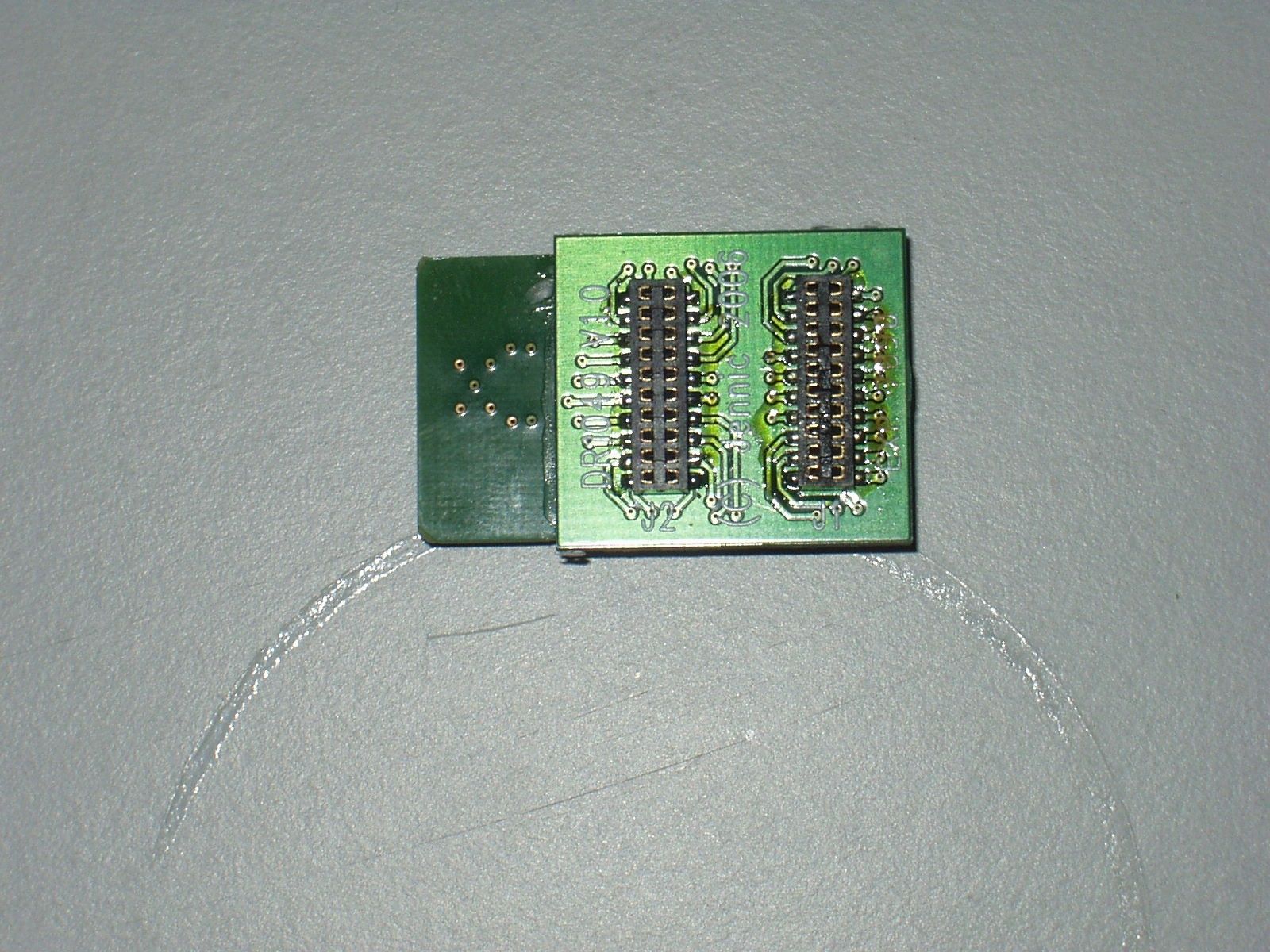

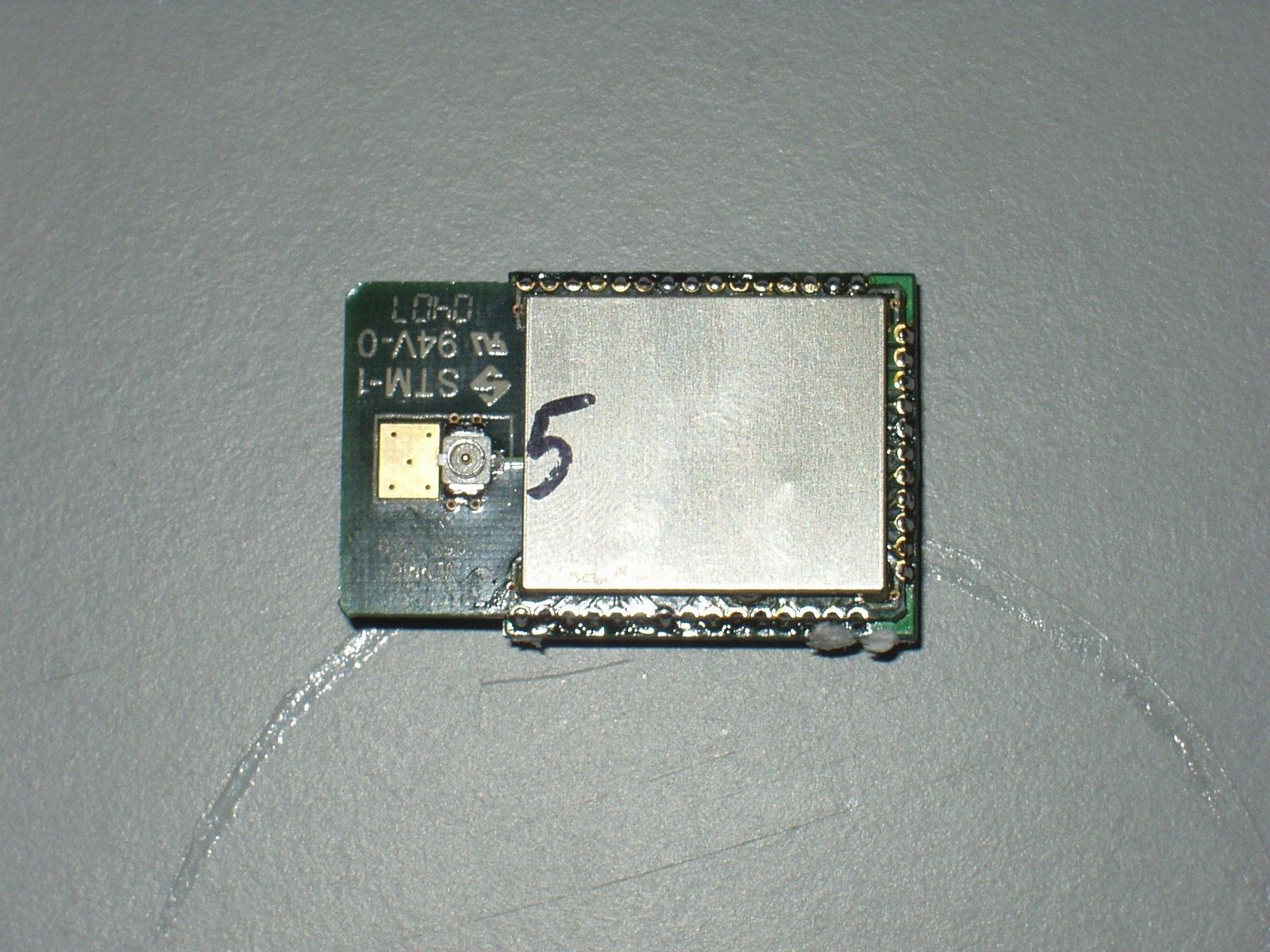

External Photos

ID Label/Location Info

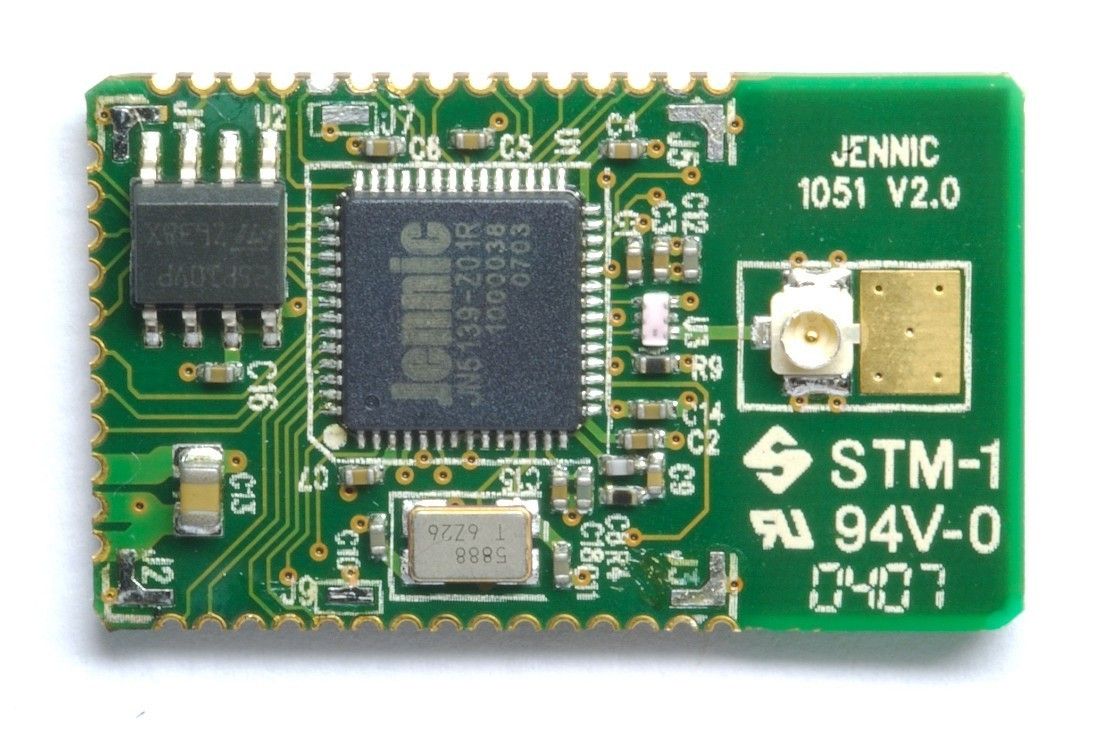

Internal Photos

Operational Description

Parts List/Tune Up Info

RF Exposure Info

Schematics

Test Report

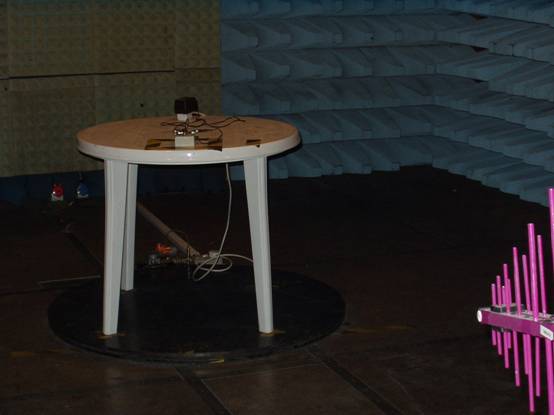

Test Setup Photos

Contact Information

Applicant

Conrad Farlow

[email protected]+44 114 281 2655Fax: +44 114 281 2951

Technical Contact

Jennic Ltd.Conrad Farlow

[email protected]+441142814527

Furnival Street · United Kingdom

Test Firm

R.N. Electronics Ltd.Roger Ray

[email protected]44-1277-352219Fax: 44-1277-352968

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	3.00 mW

Modular Type

Single Modular Approval

Grant Notes

Output power listed is conducted. Modular Approval for mobile RF Exposure conditions, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Approval is limited to OEM installation only. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no instructions to remove or install the device. The only antennas approved for use with this module are those documented in the filings under this FCC ID.
