TYYGLK01Taximeter

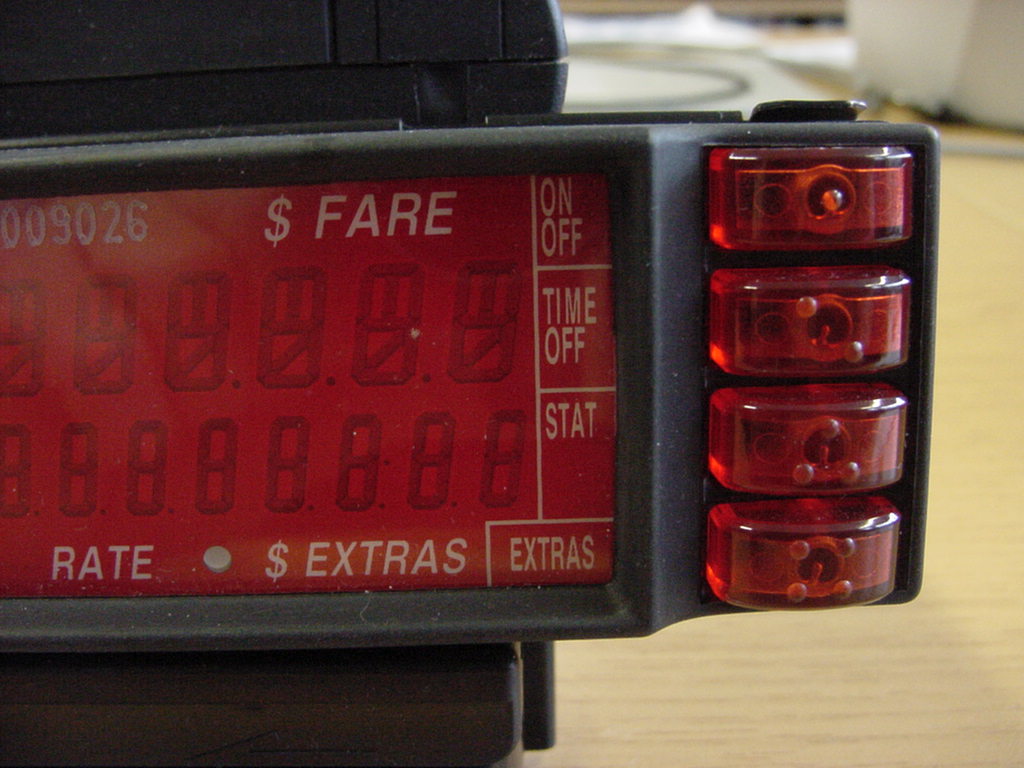

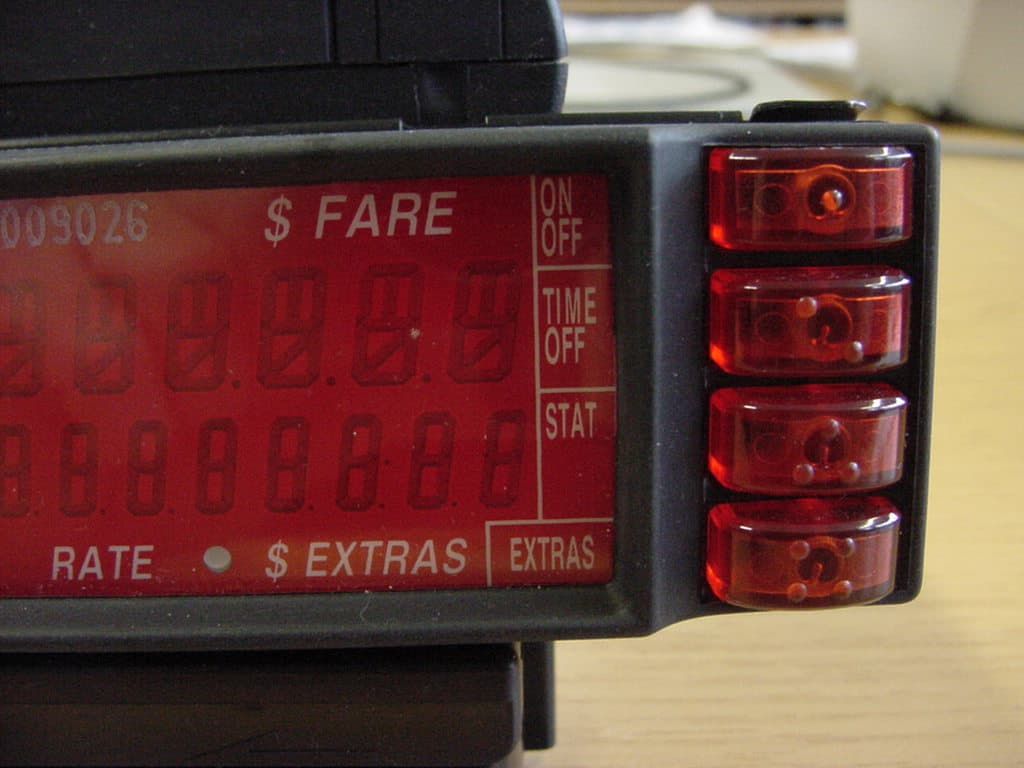

The Gleike Taximeter, the met er that is so easy to Use! Starting the meter, Extra and Preauthorization • PB1 to start the meter – the display will say “HIRED” • PB4 to add extras • Credit Card Preauthorization (only if requested) ¾ PB3 → push once for $10, twice for $20, 3x $30, 4x $40, 5x $50 ... ¾ Swipe the credit card ) If the antenna and the credit card logo keep blinking ask for another card or Cash because the preauthorization is refused. Time off, 50% Suburb • PB2 to go to Time Off, • PB4 for suburbs and enter the 50% ¾ PB 1 → $1 (short push) or $10 (long push) ¾ PB 2 → 1 quarter ¾ PB 3 → 1 nickel ) PB 2 and 3 at the same time → reset to $0.00 ) PB 4 → enter the amount Cash payments • No receipt → PB1 once • With receipt → PB1 twice • Late receipt request in “Vacant” mode → PB4 once. Credit Card payments (When you are in Time Off) • Swipe the credit card even if you already swiped the card for the Preauthorization • Present the first receipt (“Driver Copy”) of the receipt on this clipboard to the passenger in a nice way. • The passenger just ente rs the tip and signs • Add the tip on the meter: ¾ PB 1 → $1 (short push) or $10 (long push) ¾ PB 2 → 1 quarter ¾ PB 3 → 1 nickel ) PB 2 and 3 at the same time → reset to $0.00 ) PB 4 → enter the amount • Give the second receipt (“Customer Copy”) to the passenger • Save your “Driver Copy” signed – with a receipt copy if requested- to be paid • Make a copy of the customer recei pt for yourself by pressing PB4 The Gleike Taximeter, the met er that is so easy to Use! Starting the meter, Extra and Preauthorization • PB1 to start the meter – the display will say “HIRED” • PB4 to add extras • Credit Card Preauthorization (only if requested) ¾ PB3 → push once for $10, twice for $20, 3x $30, 4x $40, 5x $50 ... ¾ Swipe the credit card ) If the antenna and the credit card logo keep blinking ask for another card or Cash because the preauthorization is refused. Time off, 50% Suburb • PB2 to go to Time Off, • PB4 for suburbs and enter the 50% ¾ PB 1 → $1 (short push) or $10 (long push) ¾ PB 2 → 1 quarter ¾ PB 3 → 1 nickel ) PB 2 and 3 at the same time → reset to $0.00 ) PB 4 → enter the amount Cash payments • No receipt → PB1 once • With receipt → PB1 twice • Late receipt request in “Vacant” mode → PB4 once. Credit Card payments (When you are in Time Off) • Swipe the credit card even if you already swiped the card for the Preauthorization • Present the first receipt (“Driver Copy”) of the receipt on this clipboard to the passenger in a nice way. • The passenger just ente rs the tip and signs • Add the tip on the meter: ¾ PB 1 → $1 (short push) or $10 (long push) ¾ PB 2 → 1 quarter ¾ PB 3 → 1 nickel ) PB 2 and 3 at the same time → reset to $0.00 ) PB 4 → enter the amount • Give the second receipt (“Customer Copy”) to the passenger • Save your “Driver Copy” signed – with a receipt copy if requested- to be paid • Make a copy of the customer recei pt for yourself by pressing PB4 Important notes • Warning: Changes or modifications made to this equipment not expressly approved by Gleike Inc. may void the FCC authorization to operate this equipment. • FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to corr ect the interference by one or more of the following measures: ¾ Reorient or relocate the receiving antenna. ¾ Increase the separation between the equipment and receiver. ¾ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ¾ Consult the dealer or an experien ced radio/TV technician for help. Information or trouble: (773)489-4142

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 February 3 rd 2006 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Company requests confidentiality for the following products: FCC ID Number Product Title/Model TYYGLK01 Gleike Taximeter For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” The above exhibits contain Company trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. Note: we would appreciate that the internal photos remain confidential, because our product is a taximeter. A taximeter is a metrological device whose features are strictly defined by the National Institute of Standards and Technology (NIST). A taximeter shall never be opened by anybody, except by its manufacturer and regulation authorities. When it is on the field, the taximeter is protected against fraudulent openings by seals that are placed by the city representatives. Making the internal photos being public would increase the risk of defraud on our device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Francois SENDRA Company: Gleike Inc. Address: 1206 Fairfield Road - Glencoe, IL 60022 Phone: 1 773 489 41 42 Email: [email protected]

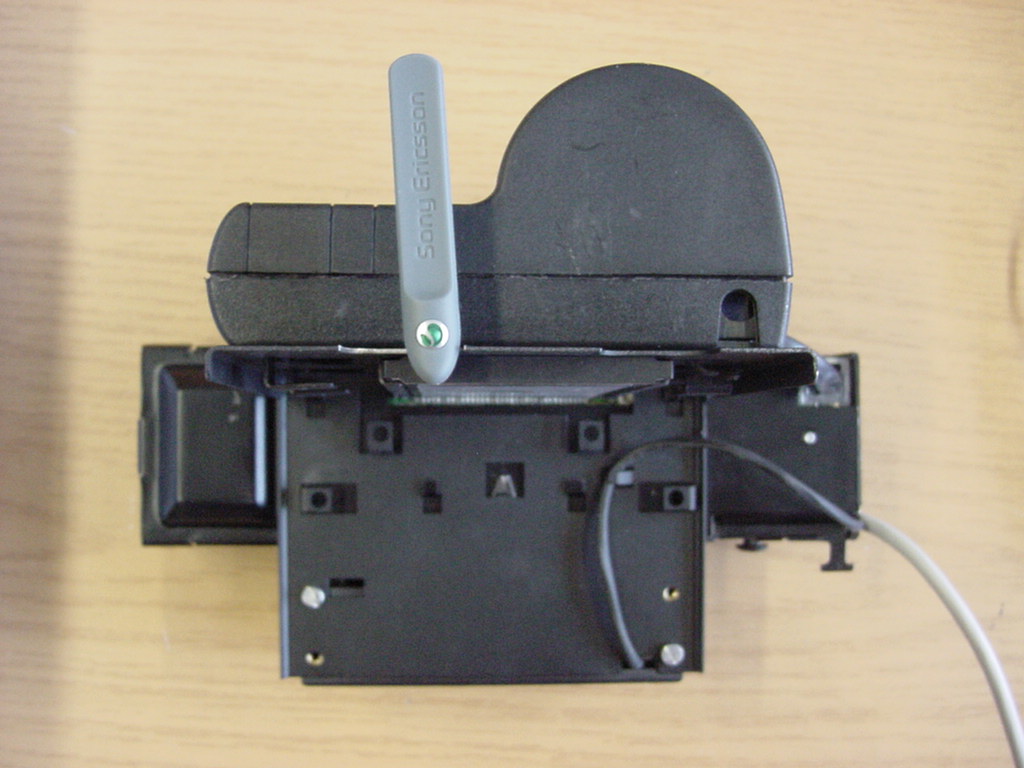

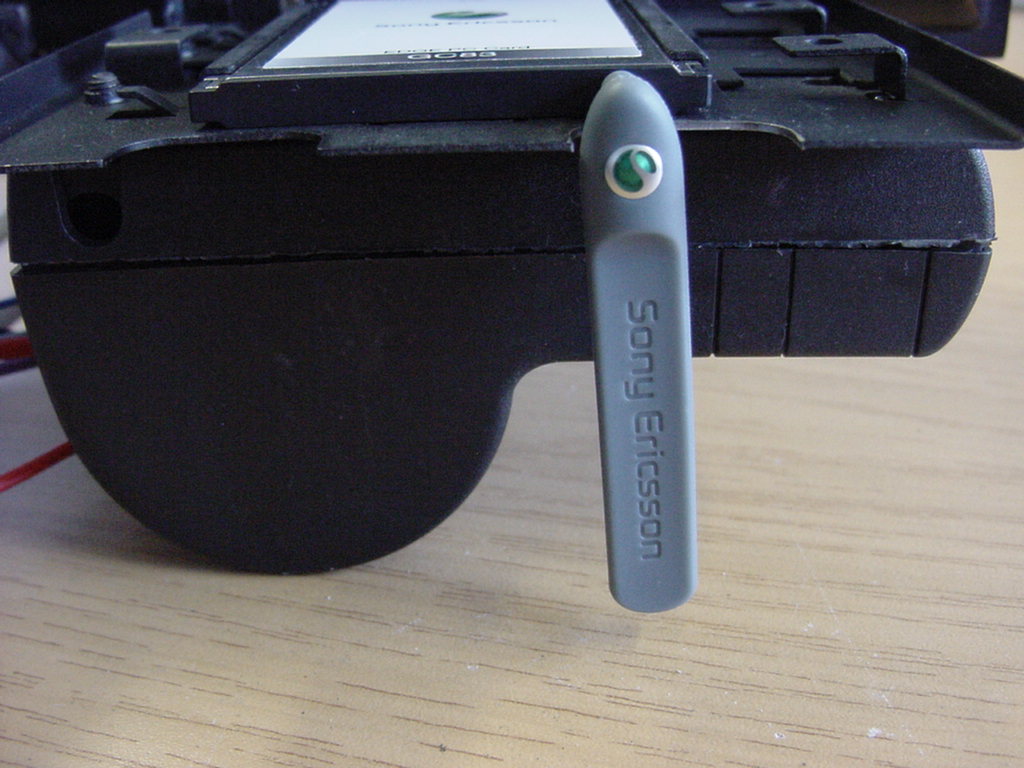

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 88 of 98 6 Annex C: External Photographs of the Equipment Photo No 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 89 of 98 Photo No 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 90 of 98 Photo No 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 91 of 98 Photo No 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 92 of 98 Photo No 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 93 of 98 Photo No 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 94 of 98 Photo No 7: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 95 of 98 Photo No 8: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 96 of 98 Photo No 9: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 97 of 98 Photo No 10: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 98 of 98 Photo No 11:

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 1 of 98 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-4172-01-01/05 Applicant : Gleike Inc. Type : Gleike taximeter Test Standard : FCC Part 22, 24 RSS132, 133 FCC ID : TYYGLK01 Certification No. IC : CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4172-01-01/05 Date: 2006-02-16 Page 2 of 98 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 2.1.2 GSM 850 ....................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output .......................................................................................................................................... 8 3.1.2 Radiated Emissions..................................................................................................................................... 12 3.1.3 Receiver Radiated Emissions ...................................................................................................................... 30 3.1.4 Block Edge Compliance EDGE - mode .................................................................................................... 34 3.1.5 Occupied Bandwidth EDGE - mode ........................................................................................................... 37 3.2 PART GSM 850 .................................................................................................................................................. 44 3.2.1 RF Power Output ........................................................................................................................................ 44 3.2.2 Radiated Emissions..................................................................................................................................... 48 3.2.3 Receiver Radiated Emissions ...................................................................................................................... 66 3.2.4 Block Edge Compliance EDGE - mode ...................................................................................................... 70 3.2.5 Occupied Bandwidth................................................................................................................................... 73 4 USED TESTEQUIPMENT ...................................................................................................................................... 80 5 ANNEX B: PHOTOGRAPHS OF TEST SITE ..................................................................................................... 84 6 ANNEX C: EXTERNAL PHOTOGRAPHS OF THE EQUIPMENT................................................................. 88 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4172-01-01/05 Date: 2006-02-16 Page 3 of 98 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: D…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_635FCC22-24_2004 FCC Part 22, 24 / RSS 132, 133 Model: FAF-1031011-BV FCC ID: PY7FF031011 IC ID: 4170B-FF031011 Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 2 (81) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 3 (81) 1.3 Details of applicant Name : Sony Ericsson Mobile Communications AB Street : Maplewood, Chineham Business Park City / Zip Code : Basingstoke, Hampshire RG24 8YB Country : United Kingdom Contact : Michael Bower Telephone : +44 7808 944467 Tele-fax : +44 1252 551697 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2004-03-08 Date of test : 2004-03-08/17/22, 2004-04-05 1.5 Test item Manufacturer : Applicant Marketing Name : GC83 Model No. : FAF-1031011-BV Description : PC – Card Radio module for GSM 850/1800/1900 MHz FCC-ID : PY7FF031011 IC-ID : 4170B-FF031011 Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK and 8-PSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : Detachable external Stub Antenna with hinge, 360°, 50Ω (unique connector) Power supply : Powered by the Laptop PC battery via PCMCIA connector Output power : 27.90dBm (616.6mW) max. ERP for GSM 850 29.06dBm (805.37mW) max. EIRP for PCS 1900 Extreme vol. Limits : Low Voltage: 3.0V / High Voltage = Normal Voltage: 3.6V Extreme temp. Tolerance : Low Temperature: -30°C / High Temperature: +55 ° 1.6 Test standards FCC Part 22,24 / RSS 132, 133 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 4 (81) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2004-04-29 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2004-04-29 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 5 (81) 2.2 Test report TEST REPORT Test report no.: EMC_635FCC22-24_2004 Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 6 (81) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 22.913(a) / § 24.232 (b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 17 OCCUPIED BANDWIDTH §2.1049(h)(i) 20 EMISSION BANDWIDTH §24.238(b) 27 EMISSION LIMITS TRANSMITTER §2.1051 / §24.238 34 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 65 CONDUCTED SPURIOUS EMISSIONS § 2.1057 / §24.238 71 CONDUCTED EMISSIONS § 15.107/207 79 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 80 BLOCK DIAGRAMS 81 Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 7 (81) POWER OUTPUT § 22.913(a) / § 24.232 (b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Universal Radio Communication tester (CMU 200) to ensure max. power transmission and proper modulation. This paragraph contains conducted output power, EIRP & ERP measurements for the EUT. In all cases, the peak output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 824.2 MHz, 836.6 MHz and 848.8 MHz (bottom, middle and top of operational frequency range) for GSM-850 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) for PCS-1900 Test report no.: EMC_635FCC22-24_2004 Issue date: 2004-04-29 Page 8 (81) Conducted (GSM-850) Limits: Power Control Level Nominal Peak Output Power Tolerance (dB) 5 ≤33dBm (2W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Frequency (MHz) Average Power during burst (dBm) 824.2 31.72 836.6 32.03 848.8 32.32 Conducted (PCS-1900) Limits: Power Control Level Nominal Peak Output Power Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Frequency (MHz) Average Po…

Text truncated - open the document above for the full version.

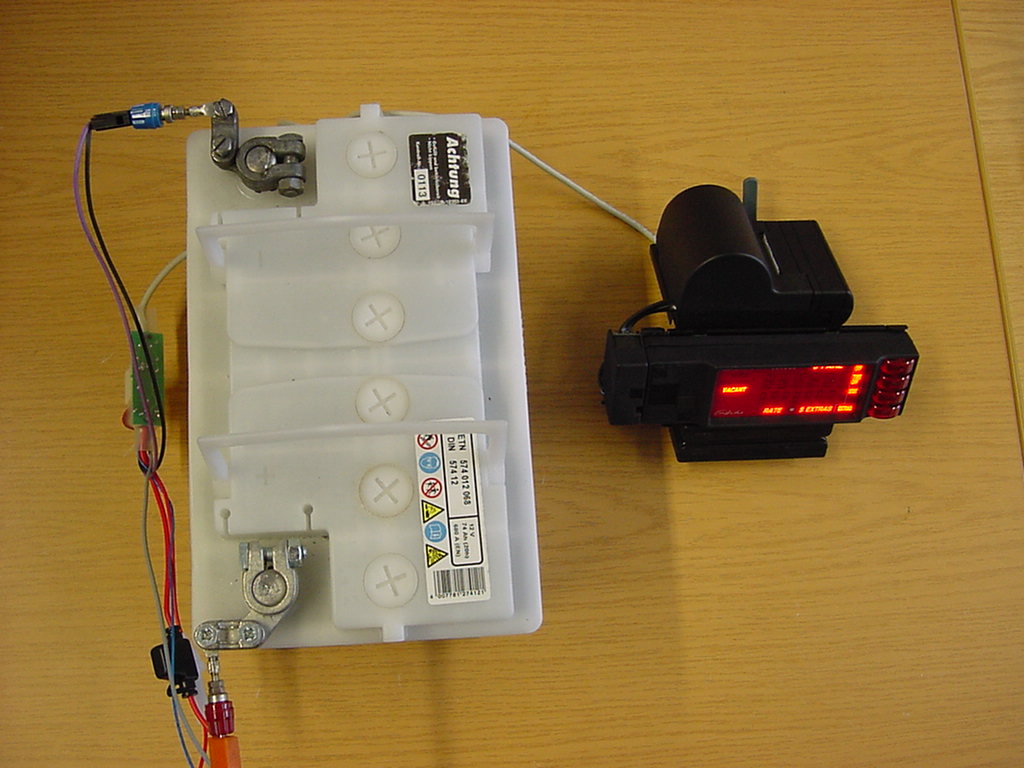

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 84 of 98 5 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 85 of 98 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 86 of 98 Photo 3 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4172-01-01/05 Date: 2006-02-16 Page 87 of 98 Photo 4 (Radiated Emissions):
