U2I-ZB110Locator

Zoombak Services Dog Locator www.zoombak.com COPYRIGHTS © 2007 Zoombak. All rights reserved. Zoombak is a trademark of Zoombak, LLC. NOTICES This document neither grants any license nor conveys any rights with respect to the subject matter hereof or otherwise. Zoombak expressly retains all intellectual and other property rights with respect to this document and all matters set forth herein. This document is neither an offer nor an acceptance. Neither party will be obligated with respect to the subject matter hereof unless and until such party has entered into a definitive agreement, and then only in accordance with the terms of such agreement. Some technical assertions of capability included herein are estimates based on limited information gathered from past experience. TRADEMARKS Zoombak™ and the Zoombak logo are trademarks owned by Zoombak, LLC and protected in the United States and other countries. Zoombak Dog Locator V. 1.0 Table of Contents Introduction 1 Getting Started 2 Key Functions 2 Zoombak Dog Locator Package Contents 3 Using the Dog Locator 4 Charging the Battery 4 Battery Life 5 Powering the Dog Locator ON/OFF 6 Monitoring the Dog Locator Status 6 Placing the Locator on Your Dog 7 Safety and Warranty Information 8 Safety Information 8 FCC Regulations 9 Zoombak Locator Disposal and Recycling 10 Reduction of Hazardous Materials (RoHS) 10 Specific Absorption Rate (SAR) 10 Warranty Information 11 Service After Expiration of Warranty 11 Warranty Limitations 11 Water Resistance 11 Contacting Customer Care 12 Specifications and Certifications 13 Dog Locator Specifications 13 Certifications 14 AC Wall Charger Specifications 14 Important Coverage Information 14 Introduction Thank you for purchasing the Zoombak Dog Locator. Zoombak is focused on the development and marketing of breakthrough mobile communications solutions that leverage the power of wireless technology and location-based services to provide people with new ways to connect to each other and their world. This Guide will introduce you to all of the features of your Zoombak Dog Locator device. If you have any questions, please contact Zoombak Customer Care at 1-866-951-0101 or visit our website at www.zoombak.com. Puede encontrar una versión en español de esta guía en: www.zoombak.com/spanish. In addition to this Zoombak Dog Locator User Guide, included in your package is a Zoombak Dog Locator Quick Start Guide. The Quick Start Guide will briefly walk you through activating your service, using your service, and setting up your safety zones and alerts. For more detailed instructions on using your service, please visit www.zoombak.com. Please read this Zoombak Dog Locator User Guide and the accompanying Quick Start Guide before setting up your account prior to use. Activation and use of the Zoombak Locator are subject to Zoombak’s customer agreement, plans, terms and conditions, which can be found at www.zoombak.com/terms. The Zoombak Dog Locator User Guide is divided into five main sections: • Section 1. Getting Started • Section 2. Using the Dog Locator • Section 3. Safety and Warranty Information • Section 4. Contacting Customer Care • Section 5. Specifications and Certifications Getting Started This section addresses two primary areas: • Zoombak Dog Locator Features • Zoombak Dog Locator Package Contents Key Functions • USB Charger Jack—Connects the Zoombak Dog Locator to the AC Wall Charger (included) • Locator Status LED Indicator—Allows you to monitor (at a glance) the power and battery status of your Zoombak Dog Locator Zoombak Dog Locator Package Contents When you purchase the Zoombak Dog Locator, the package should contain the following: • Zoombak Dog Locator • Zoombak Dog Locator Pouch (to attach the Locator to your dog’s collar) • AC Wall Charger • Zoombak Dog Locator Quick Start Guide • Zoombak Dog Locator User Guide If any of these items are missing from your package, please contact Zoombak Customer Care at 1-866-951-0101. Using the Dog Locator This section addresses five primary areas: • Charging the Battery • Battery Life • Powering the Dog Locator ON/OFF • Monitoring the Dog Locator Status • Placing the Locator on Your Dog Charging the Battery Before using the Zoombak Dog Locator for the first time, you will need to fully charge the battery. Follow these simple instructions to charge the battery. The initial battery charge time will be 6 hours; each subsequent battery charge will be approximately 4 hours. 1. Remove the Zoombak Dog Locator and AC Wall Charger from the Zoombak Dog Locator package. 2. Plug the AC Wall Charger into a wall outlet. 3. Attach the Zoombak Dog Locator to the AC Wall Charger via the USB Charger Jack on the Zoombak Dog Locator. 4. The Locator Status LED Indicator will glow amber (yellow), indicating that the Zoombak Dog Locator is charging. 5. Once the Locator Status LED Indicator glows green, this will signal that the Zoombak Dog Locator is fully charged. Battery Life Mode Battery Life Standby Up to 120 hours or 5 days Active Locator Service Up to 150 Location Requests Battery life depends on several factors including temperature, network, signal strength and Locator service features used. Location requests include the following Zoombak Locator service features: “Find Now,” “Safety Zones” mode and “Continuous Tracking” mode. When your Zoombak Locator indicates low battery (blinking amber LED), recharge your battery as defined in the section of this User Guide titled “Charging the Battery.” Rechargeable batteries have a limited number of charge cycles and may eventually need to be replaced. The Zoombak Locator battery is not user replaceable; it can only be replaced by an authorized service provider. For more information, go to: www.zoombak.com. Powering the Dog Locator ON/OFF In order to power the Zoombak Dog Locator on or off, follow these simple instructions: 1. Power ON—Press and hold the Power Button until the Locator Status LED Indicator begins to glow (approximately two second…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 December 28, 2009 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Sporton International Inc. December 28, 2009 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Sporton International Inc._hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: Locator Model name: ZB-110 We affirm that between SIEMIC and __Sporton Internationl Inc.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Roy Wu Contact information / address: No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C.

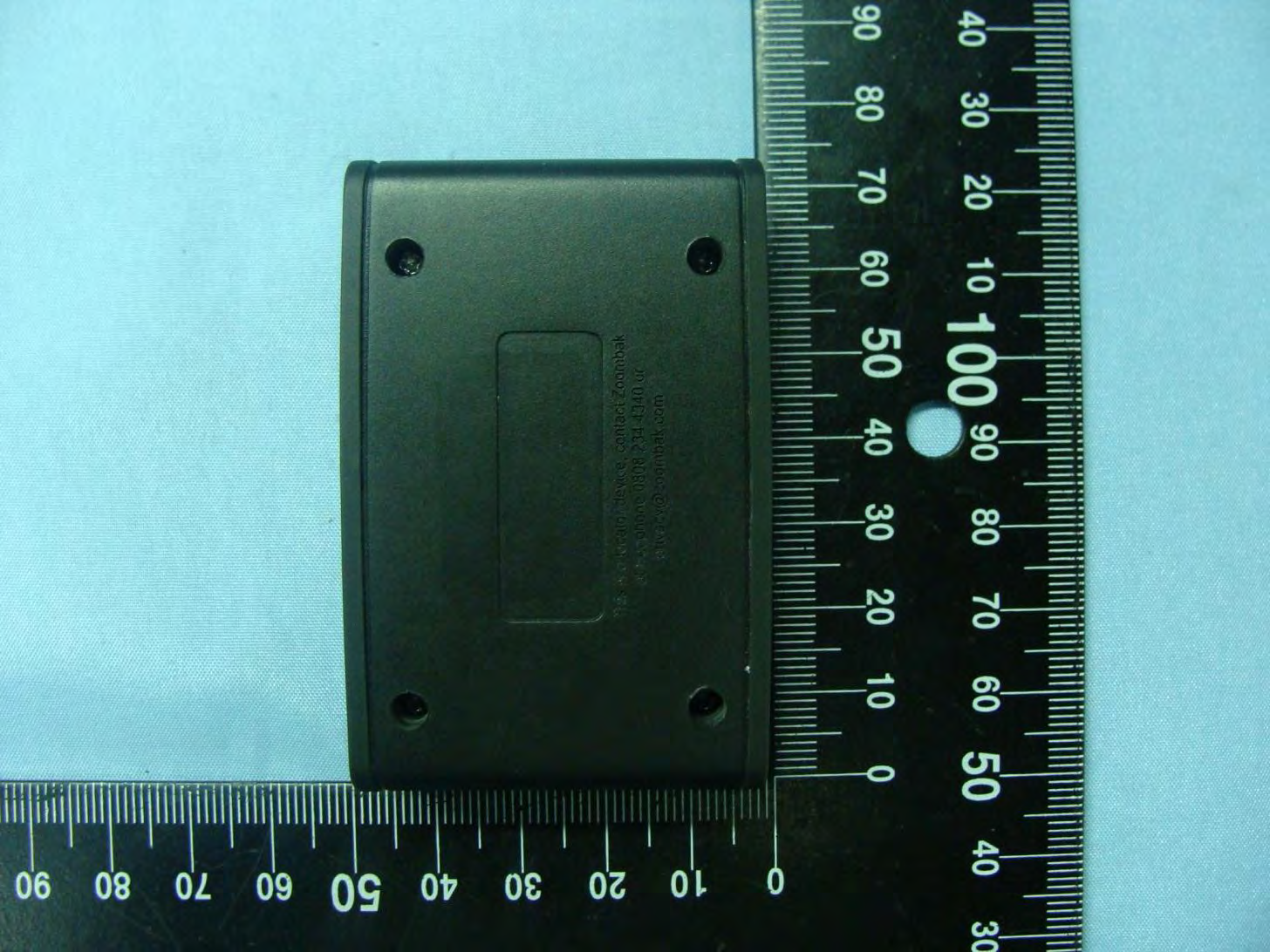

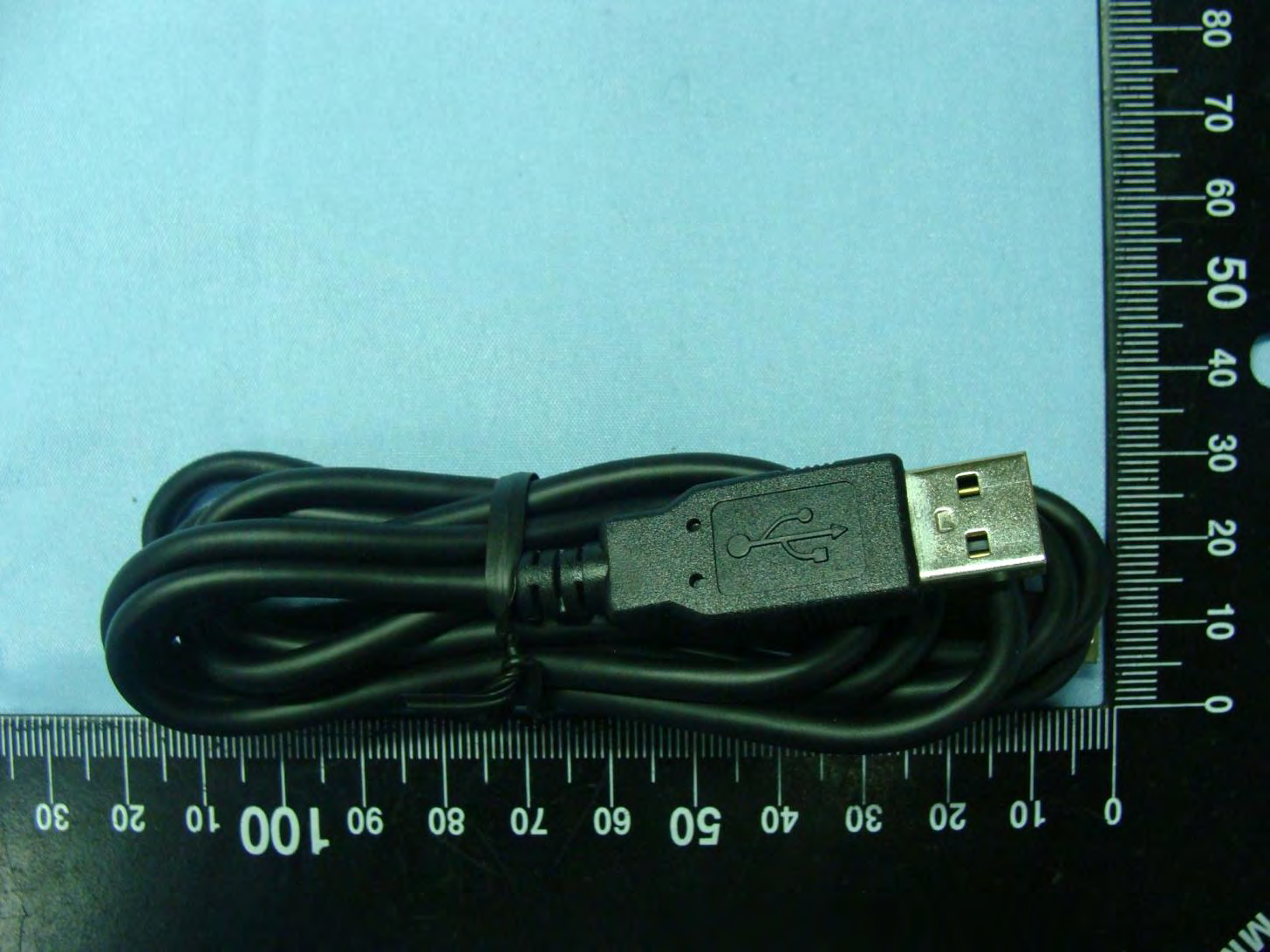

Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 1 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 1. External Photograph of EUT Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 2 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 3 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 4 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 5 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 6 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 720510 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 7 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 2. Photograph of Accessory Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 8 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 9 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 10 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110

ZB-110 5.2V 1A Max 29.4 12.4 S/N: ABCD000001 IMEI:123456789012345

GR-521 LABEL LOCATION LABELSAMPLE : LOCATION :

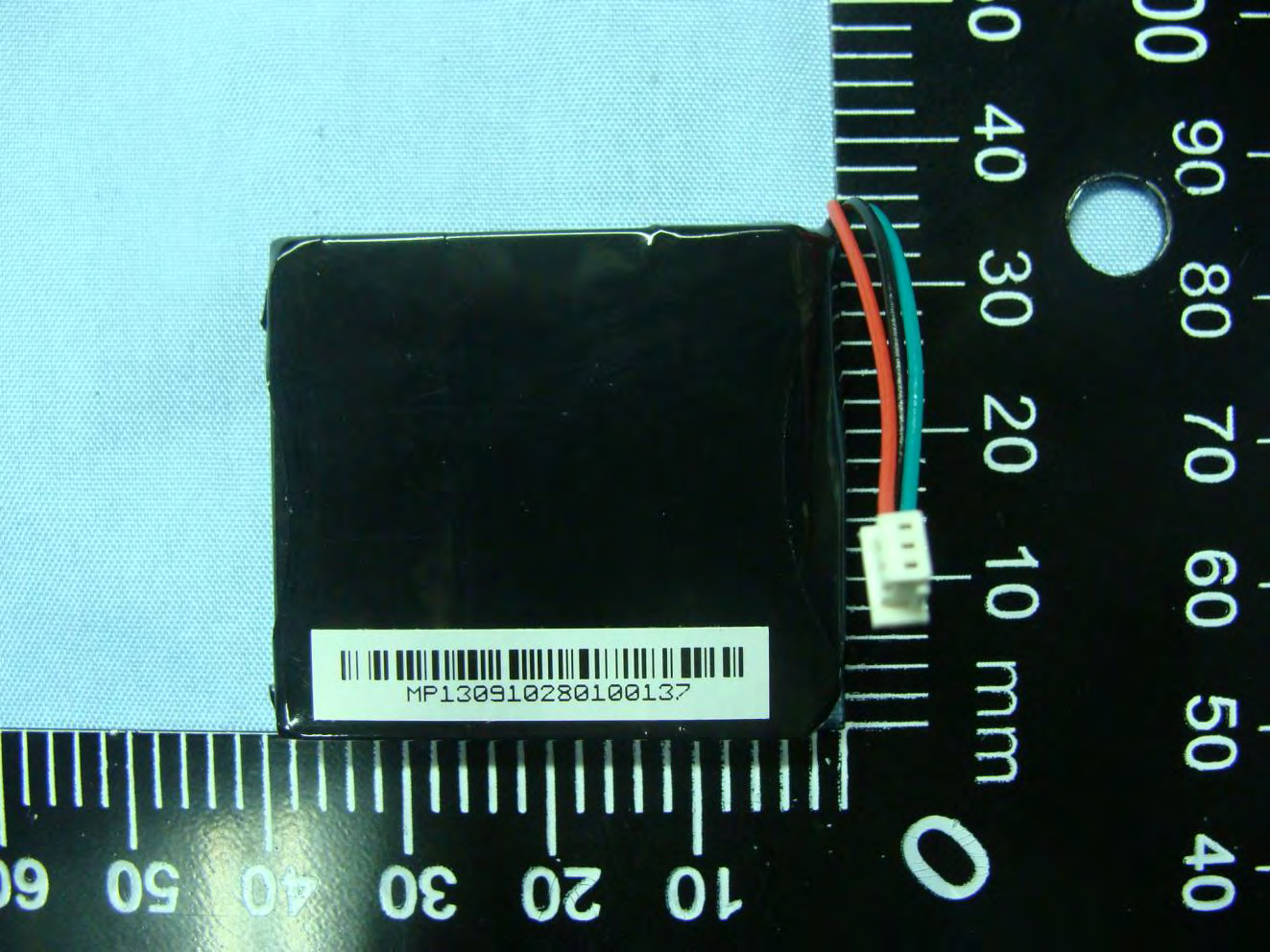

Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 11 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 3. Internal Photograph of EUT Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 12 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 13 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 14 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 15 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 16 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 17 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 18 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 19 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 GPS Antenna Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 20 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 WWAN Antenna Photographs of EUT Report No.: EP910601 Model Name: ZB-100 SPORTON INTERNATIONAL INC. Page Number : 21 of 21 TEL : 886-3-327-3456 Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 720510 WWAN Antenna

SPORTON INTERNATIONAL INC. Page Number : D1 of D2 TEL : 886-3-327-3456 Report Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 FCC SAR Test Report Report No. : FA910601 Appendix D. Product Photos SPORTON INTERNATIONAL INC. Page Number : E1 of E1 TEL : 886-3-327-3456 Report Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 FCC SAR Test Report Report No. : FA910601 Appendix E. Test Setup Photos Face of the DUT with Phantom 1.5 cm Gap Bottom of the DUT with Phantom 1.5 cm Gap

SPORTON INTERNATIONAL INC. Page Number : 1 of 30 TEL : 886-3-327-3456 Report Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 FCC SAR Test Report Report No. : FA910601 FCC SAR Test Report APPLICANT : HOLUX Technology, Inc. EQUIPMENT : Locator BRAND NAME : HOLUX MODEL NAME : ZB-110 FCC ID : U2I-ZB110 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Jan. 06, 2009 and completely tested on Dec. 01, 2009. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 FCC SAR Test Report Report No. : FA910601 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 9 4.1 Introduction ....................................................................................................................................................... 9 4.2 SAR Definition .................................................................................................................................................. 9 5. SAR Measurement System .......................................................................................................................................10 5.1 E-Field Probe................................................................................................................................................... 11 5.1.1 E-Field Probe Specification ................................................................................................................... 11 5.1.2 E-Field Probe Calibration .......................................................................................................................12 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................12 5.3 Robot ...............................................................................................................................................................12 5.4 Measurement Server .......................................................................................................................................13 5.5 Phantom ..........................................................................................................................................................14 5.6 Device Holder ..................................................................................................................................................15 5.7 Data Storage and Evaluation ...........................................................................................................................17 5.7.1 Data Storage ..............................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/1 System Check_835MHz_091201 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_091201 Medium parameters used: f = 835 MHz; σ = 0.978 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.08, 6.08, 6.08); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.07 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.2 V/m; Power Drift = -0.039 dB Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 0.981 mW/g; SAR(10 g) = 0.649 mW/g Maximum value of SAR (measured) = 1.06 mW/g 0 dB = 1.06mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/01 System Check_1900MHz_091201 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_091201 Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.52, 4.52, 4.52); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.49 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.5 V/m; Power Drift = 0.00446 dB Peak SAR (extrapolated) = 5.81 W/kg SAR(1 g) = 3.85 mW/g; SAR(10 g) = 2.09 mW/g Maximum value of SAR (measured) = 4.4 mW/g 0 dB = 4.4mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/1 #01 GSM850_GPRS10_Face_1.5cm_Ch189 DUT: 910601 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:4 Medium: MSL_850_091201 Medium parameters used: f = 836.4 MHz; σ = 0.98 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.08, 6.08, 6.08); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch189/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.750 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.6 V/m; Power Drift = -0.134 dB Peak SAR (extrapolated) = 0.892 W/kg SAR(1 g) = 0.680 mW/g; SAR(10 g) = 0.480 mW/g Maximum value of SAR (measured) = 0.723 mW/ g 0 dB = 0.723mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/1 #03 GSM850_GPRS10_Bottom_1.5cm_Ch128 DUT: 910601 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: MSL_850_091201 Medium parameters used: f = 824.2 MHz; σ = 0.966 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.08, 6.08, 6.08); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch128/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.45 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.5 V/m; Power Drift = -0.030 dB Peak SAR (extrapolated) = 1.88 W/kg SAR(1 g) = 1.33 mW/g; SAR(10 g) = 0.885 mW/g Maximum value of SAR (measured) = 1.44 mW/ g 0 dB = 1.44mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/1 #03 GSM850_GPRS10_Bottom_1.5cm_Ch128_2D DUT: 910601 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:4 Medium: MSL_850_091201 Medium parameters used: f = 824.2 MHz; σ = 0.966 mho/m; ε r = 53.4; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.08, 6.08, 6.08); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch128/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.45 mW/g Ch128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.5 V/m; Power Drift = -0.030 dB Peak SAR (extrapolated) = 1.88 W/kg SAR(1 g) = 1.33 mW/g; SAR(10 g) = 0.885 mW/g Maximum value of SAR (measured) = 1.44 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/1 #08 GSM1900_GPRS10_Face_1.5cm_Ch810 DUT: 910601 Communication System: PCS; Frequency: 1909.8 MHz;Duty Cycle: 1:4 Medium: MSL_1900_091201 Medium parameters used: f = 1910 MHz; σ = 1.55 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.52, 4.52, 4.52); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch810/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.301 mW/g Ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.6 V/m; Power Drift = 0.134 dB Peak SAR (extrapolated) = 0.426 W/kg SAR(1 g) = 0.317 mW/g; SAR(10 g) = 0.211 mW/g Maximum value of SAR (measured) = 0.336 mW/ g 0 dB = 0.336mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/1 #08 GSM1900_GPRS10_Face_1.5cm_Ch810_2D DUT: 910601 Communication System: PCS; Frequency: 1909.8 MHz;Duty Cycle: 1:4 Medium: MSL_1900_091201 Medium parameters used: f = 1910 MHz; σ = 1.55 mho/m; ε r = 51.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.52, 4.52, 4.52); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch810/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.301 mW/g Ch810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.6 V/m; Power Drift = 0.134 dB Peak SAR (extrapolated) = 0.426 W/kg SAR(1 g) = 0.317 mW/g; SAR(10 g) = 0.211 mW/g Maximum value of SAR (measured) = 0.336 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/12/1 #06 GSM1900_GPRS10_Bottom_1.5cm_Ch661 DUT: 910601 Communication System: PCS; Frequency: 1880 MHz;Duty Cycle: 1:4 Medium: MSL_1900_091201 Medium parameters used: f = 1880 MHz; σ = 1.51 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.52, 4.52, 4.52); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch661/Area Scan (51x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.297 mW/g Ch661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12 V/m; Power Drift = -0.105 dB Peak SAR (extrapolated) = 0.352 W/kg SAR(1 g) = 0.253 mW/g; SAR(10 g) = 0.161 mW/g Maximum value of SAR (measured) = 0.273 mW/g Ch661/Zoom Scan (5x5x7)/Cube 1: Measurement gr…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL INC. Page Number : 1 of 42 TEL : 886-3-327-3456 Report Issued Date : Dec. 28, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U2I-ZB110 FCC RF Test Report Report No. : FG910601 FCC RF Test Report APPLICANT : HOLUX Technology, Inc. EQUIPMENT : Locator BRAND NAME : HOLUX MODEL NAME : ZB-110 FCC ID : U2I-ZB110 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) CLASSIFICATION : PCS Licensed Transmitter (PCB) Tx/Rx FREQUENCY RANGE : GSM850 : 824.2 ~ 848.8 MHz / 869.2 ~ 893.8 MHz GSM1900 : 1850.2 ~ 1909.8 MHz / 1930.2 ~ 1989.8 MHz MAX. ERP/EIRP POWER : GSM850 (GPRS 8) : 0.90 W GSM1900 (GPRS 8) : 0.90 W EMISSION DESIGNATOR : 242KGXW The product was received on Jan. 06, 2009 and completely tested on Dec. 02, 2009. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. S…

Text truncated - open the document above for the full version.
