U32GMRS7015FRS/ GMRS Combination Scanning Receiver

xxx-xxxx 1 of 28 General Mobile Radio Service (GMRS) Model : GMRS7015RC Customer Service 1-800-290-6650 Draft 02-15 -07 Owner's Manual HI LORX DW VOX SCAN SCANNER SCANNER MODE VOX S xxx-xxxx 2 of 28 2 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTER- FERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UN- DERSIRED OPERATION. xxx-xxxx 3 of 28 CAUTION SAFETY INFORMATION Your wireless hand-held portable transceiver contains a low power transmitter. When the PTT button is pushed (or the VOX mode is enabled) it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. Important:To maintain compliance with the FCC’ s RF exposure guidelines hold the transmitter at least 1 inch (2.5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away. If you wear the handset on your body while using the headset accessory, use only the Audiovox supplied carry clip for this product and ensure that the antenna is at least 1 inch (2.5 centimeters) from your body when transmitting. Use only the supplied antenna. Do not use your transceiver with a damaged antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. Performance: Your transceiver will only achieve its maximum operating range when communicating with other transceivers across open and flat areas or between elevated points. Normally occurring environmental factors such as buildings, trees, terrain and weather, or interference from other radio or electrical equipment, may have adverse effects on the transceiver’s effective range. These are not indicative of a fault condition. Avoid placing the GMRS7015RC radio transceiver for prolonged periods of time in direct sunlight or temperatures below -4 °F(-20°C) or above 140°F (60°C). Place the rubber cover on jacks when not in use. 3 xxx-xxxx 4 of 28 WARNINGS: Battery Care Never attempt to charge alkaline or dry cell batteries, as batteries may burst causing personal injury and damage to the product. If rechargeable batteries are used, such as Nickel Metal Hydride (NiMH), use only the supplied Audiovox-approved rechargeable batteries. Use of the Audiovox charger (also supplied) with other brands of batteries is not recommended, as battery charging times will vary with different brands. Refer to the Manufacturer’s instructions for charging other brands of batteries. Battery Disposal In general, if handled improperly, batteries pose a risk of fire or burns. Do not disassemble, crush, puncture, short external contacts, or dispose of the batteries in fire or water. Dispose of the batteries in a environmentally safe manner and recycle whenever possible. FCC WARNING Replacement or substitution of transistors, diodes or other parts of a unique nature, with parts other than those recommended by the manufacturer, may cause a violation of the technical regulations of Part 15 of FCC Rules. GMRS LICENSE: USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN FCC GMRS LICENSE. AN INDIVIDUAL 18 YEARS OF AGE OR OLDER, WHO IS NOT A REPRESENTATAIVE OF A FOREIGN GOVERNMENT, IS ELIGIBLE TO APPLY FOR A GMRS SYSTEM LICENSE. YOU WILL NEED TWO FORMS FROM THE FCC: FCC FORM 159, AND FCC FORM 605 (MAIN FORM AND SCHEDULE F). YOU CAN FIND THE FORMS ONLINE AT: HTTP://WWW.FCC.GOV/FORMPAGE.HTML, OR CALL 1-800-418-3676. 4 xxx-xxxx 5 of 28 5 1.Battery Door 2.Monitor/Backlight Button 3.Detachable Carry Clip 4.Push-To-Talk (PTT) Button 5.Antenna 6.External Speaker(SPK)/Micro- phone (MIC)/Charge (CHG) Jack 7.Built-in Speaker 8.Liquid Crystal Display (LCD) Model GMRS7015RC (FCC License Required) 9.Built-in Microphone 10.Up Channel/Volume Button 11.Down Channel/Volume Button 12.MODE/SCANNER Button 13.Power On/Off & SCAN Button 14.VOX Button 15.White Flashlight LED 16.Flashlight Enable Button 17.Battery Charging Contacts 1 2 3 4 5 8 11 9 12 6 14 10 13 7 3 (REF) 1 (REF) 17 16 15 HI LORX DW VOX SCAN SCANNER SCANNER MODE 128-7624 6 of 28 6 Model GMRS7015RC DISPLAY 1.Beep Tone Indicator: Icon appears when beep button confirmation tone is selected; icon disappears when tone is off. 2.Key Lock Indicator: Icon appears when the keypad is locked. This function disables keys such as channel up/down, SCAN and MODE. 3.Monitor Indicator: Icon appears when the Monitor (M) button is pressed and the channel monitor function is activated. 4.Signal Strength Indicator: Icon appears when a signal is being transmitted. The icon consists of five bars to indicate transmit signal power level. 5.HI/LO Indicators: Power level indicator appears when the transmit power is set to desired output power on the GMRS channels. 6.Large Segment Display: Indicates the channel number in GMRS/ 11. Scan Indicator: This function allows the user to scan a channel (and tone code, if present) in GMRS/FRS mode or to scan a frequency to search for a valid signal in SCANNER mode. 8.RogerBeep Tone On/Off Indicator: This icon appears when the Roger Beep tone is on, and disappears when tone is not in use. 9.Battery Level Indicator: Icon indicates the battery charge level. 10.Signal Receive Indicator: RX icon appears when a signal is being received. HI LORX DW VOX SCAN SCANNER 1 2 3 4 5 6 7 8 9 10 11 12 13 14 7.Voice Activated Transmission (VOX) Indicator: This function allows hands free conversation. The indicator appears when the VOX mode is activated. FRS mode or the frequency in SCANNER mode in use xxx-xxxx 7 of 28 7 13.Small Segment Display: Displays the CTCSS tone option for each main channel from 01-38 or frequency. 12.Dual Watch Mode Indicator: Indicator appears when dual watch mode is active. 14.Scanner Mode Indicator : Icon will be steady when i…

Text truncated - open the document above for the full version.

TTI TTI International Limited Unit 1106-1110, 11/F, Star House, 3 Sailsbury Road, Tshimshatsui, Kowloon, Hong Kong Tel : (852) 6236 7320 or 2302 1020 Fax : (852) 2302 1069 CONFIRMATION STATEMENT DATE : April 04, 2007 F ederal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We confirm that the model no.GMRS7015RC (FCC ID : U32GMRS7015) does not have a capability of tuning the frequencies assigned or readily being altered by the user to operate to the Domestic public Cellular Radio Telecommunications Service in part 15.121 of the Commission’s Rules. In this circuitry, the frequency generation is PLL type so that the frequencies shall be tuned and controlled by the CPU. The used CPU also does not have a capability to cover the cellular frequencies. Even if CPU is change to receive the cellular frequencies, the VCO cannot cover the cellular frequencies. Also the CPU is a die bonded and wired to the PC board and “hardened” with a black epoxy that covers the CPU, it is impossible user to modify or change the CPU. Therefore this unit still remains the state in which the unit cannot receive any cellular frequencies. This is to certify that the conditions mandated in part 15.121 have been met. Sincerely, N.T.KIM / Managing Director

Mar 12, 2007 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: U32GMRS7015 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Technical Description U32GMRS7015 - Technical Description.PDF Schematics Diagram(s) U32GMRS7015 - Schematic.PDF BLOCK DIAGRAM U32GMRS7015 - BLOCK DIAGRAM.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, N.T. KIM

GMRS7015RC NAME LABEL DATE : MAR 12, 2007 (REV. 00) 1 of 1 1:1 * NOTE 1. TEXT : WHITE 2. BACKGROUND : BLACK 3. MATERIAL : POLYESTER T=0.2 * Location * BARCODE LABEL 37.5 11.0 30.0 6.0 FM TRANSCEIVERFCC ID : U32GMRS7015 MODEL NO. : GMRS7015RC MADE IN CHINA FM TRANSCEIVERFCC ID : U32GMRS7015 MODEL NO. : GMRS7015RC MADE IN CHINA

GMRS7015RC NAME LABEL DATE : MAR 12, 2007 (REV. 00) 1 of 1 1:1 * NOTE 1. TEXT : WHITE 2. BACKGROUND : BLACK 3. MATERIAL : POLYESTER T=0.2 * Location * BARCODE LABEL 37.5 11.0 30.0 6.0 FM TRANSCEIVERFCC ID : U32GMRS7015 MODEL NO. : GMRS7015RC MADE IN CHINA FM TRANSCEIVERFCC ID : U32GMRS7015 MODEL NO. : GMRS7015RC MADE IN CHINA

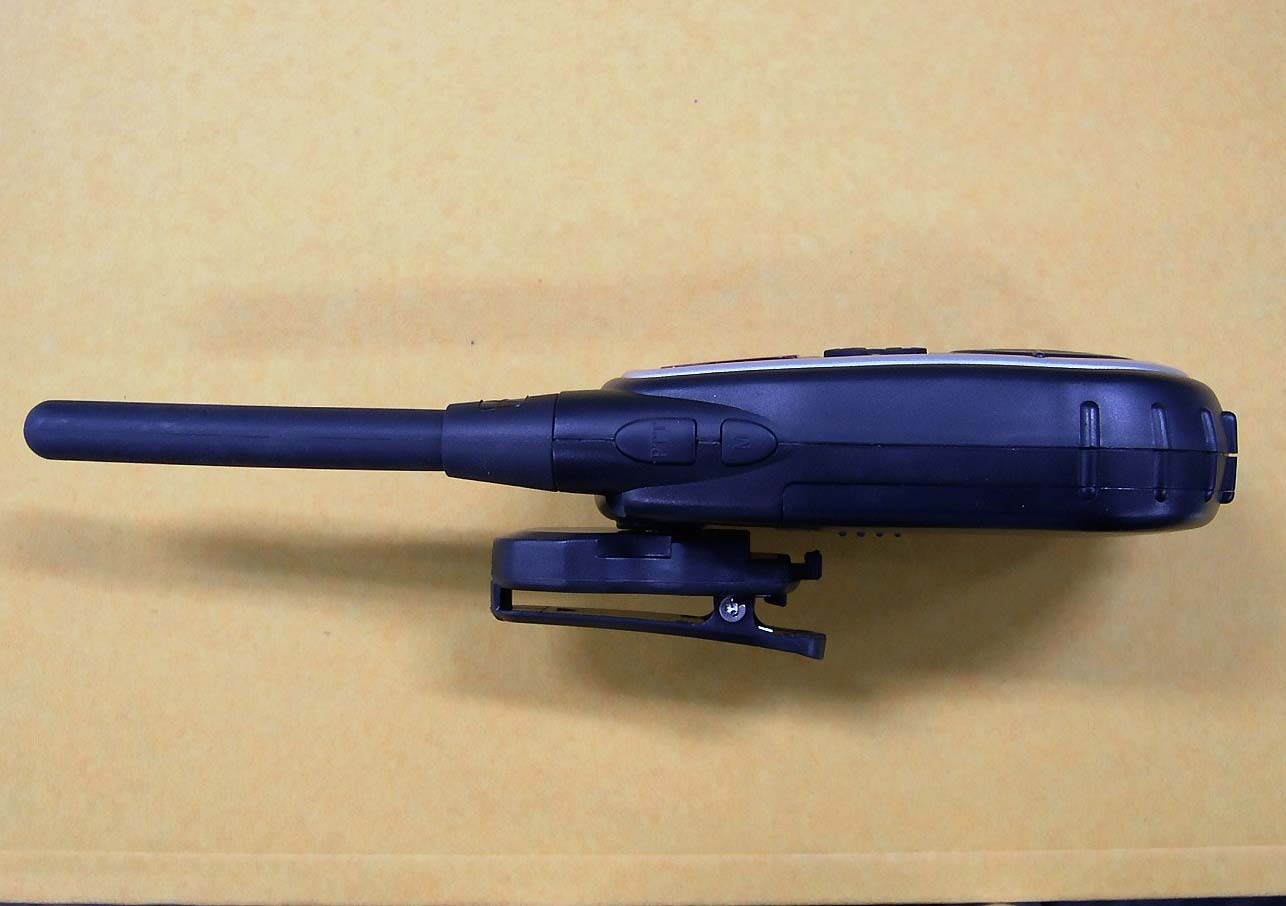

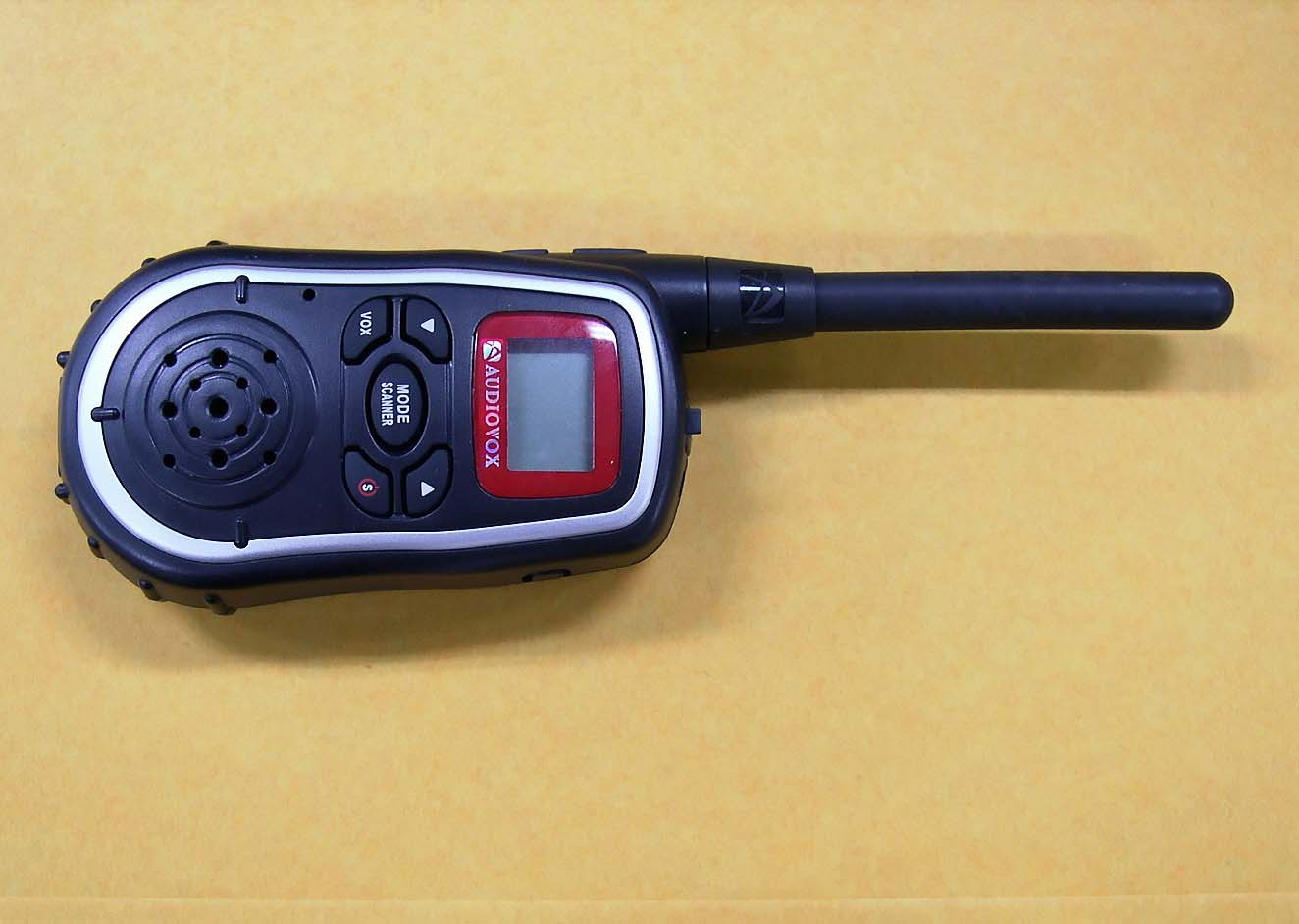

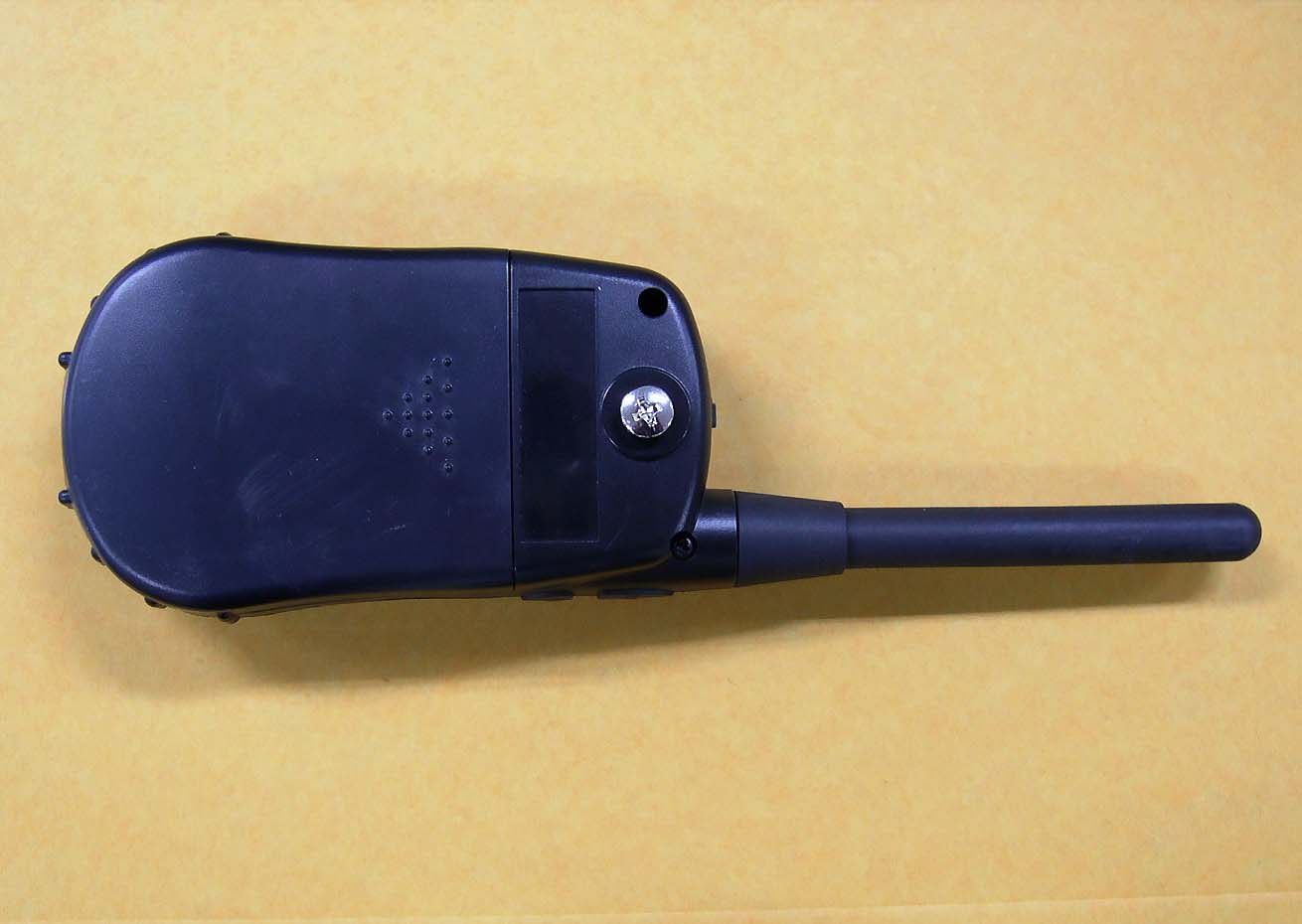

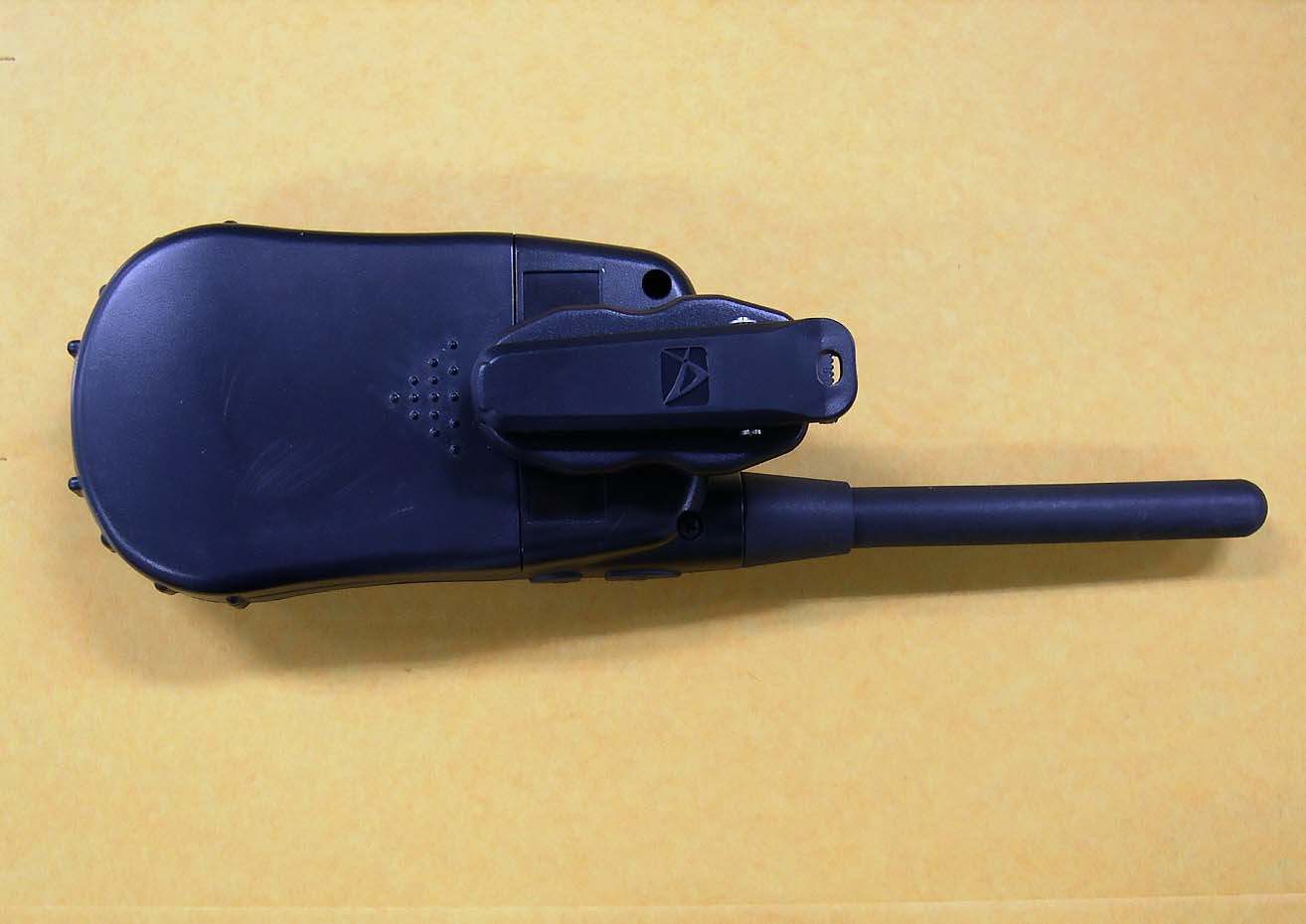

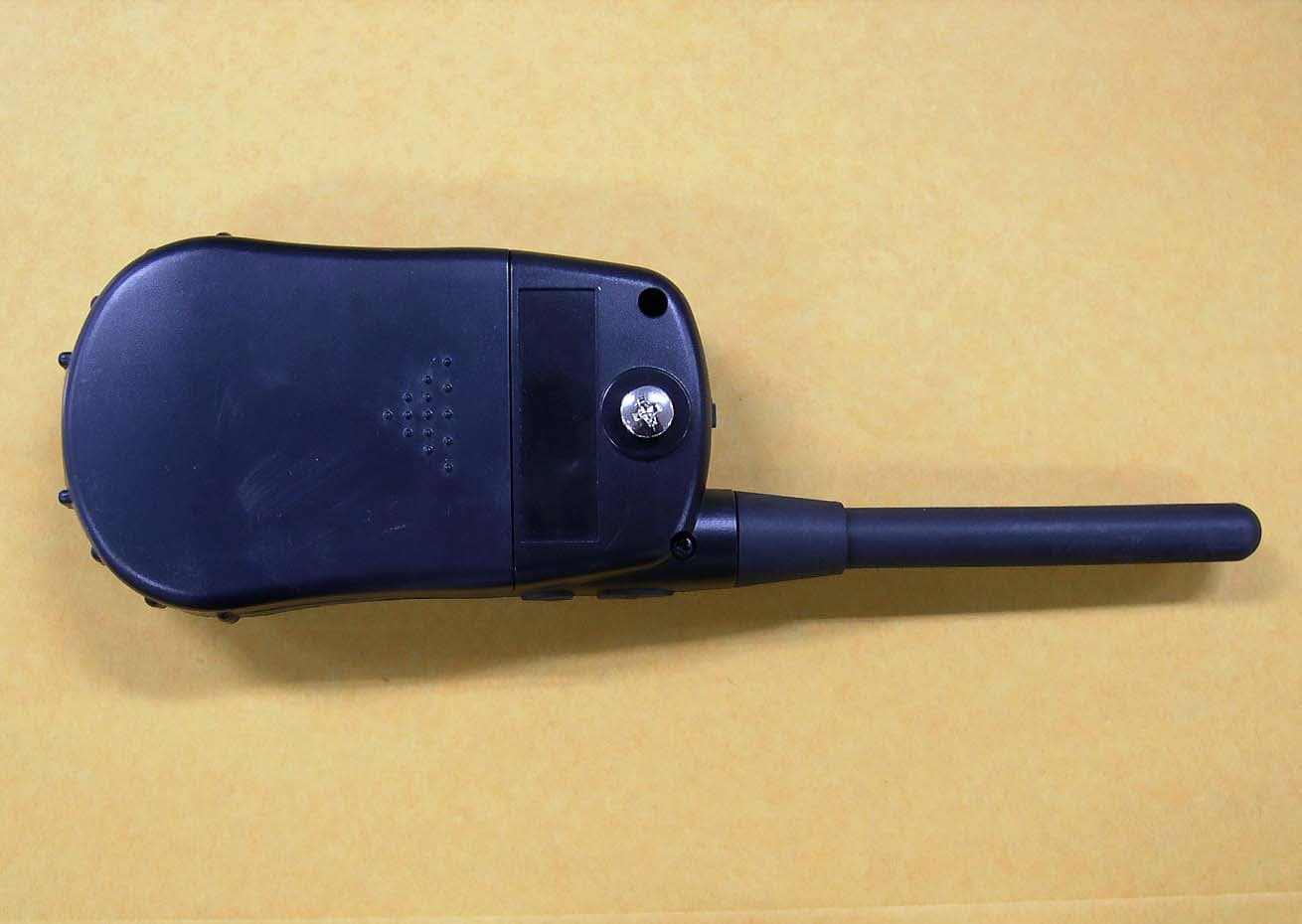

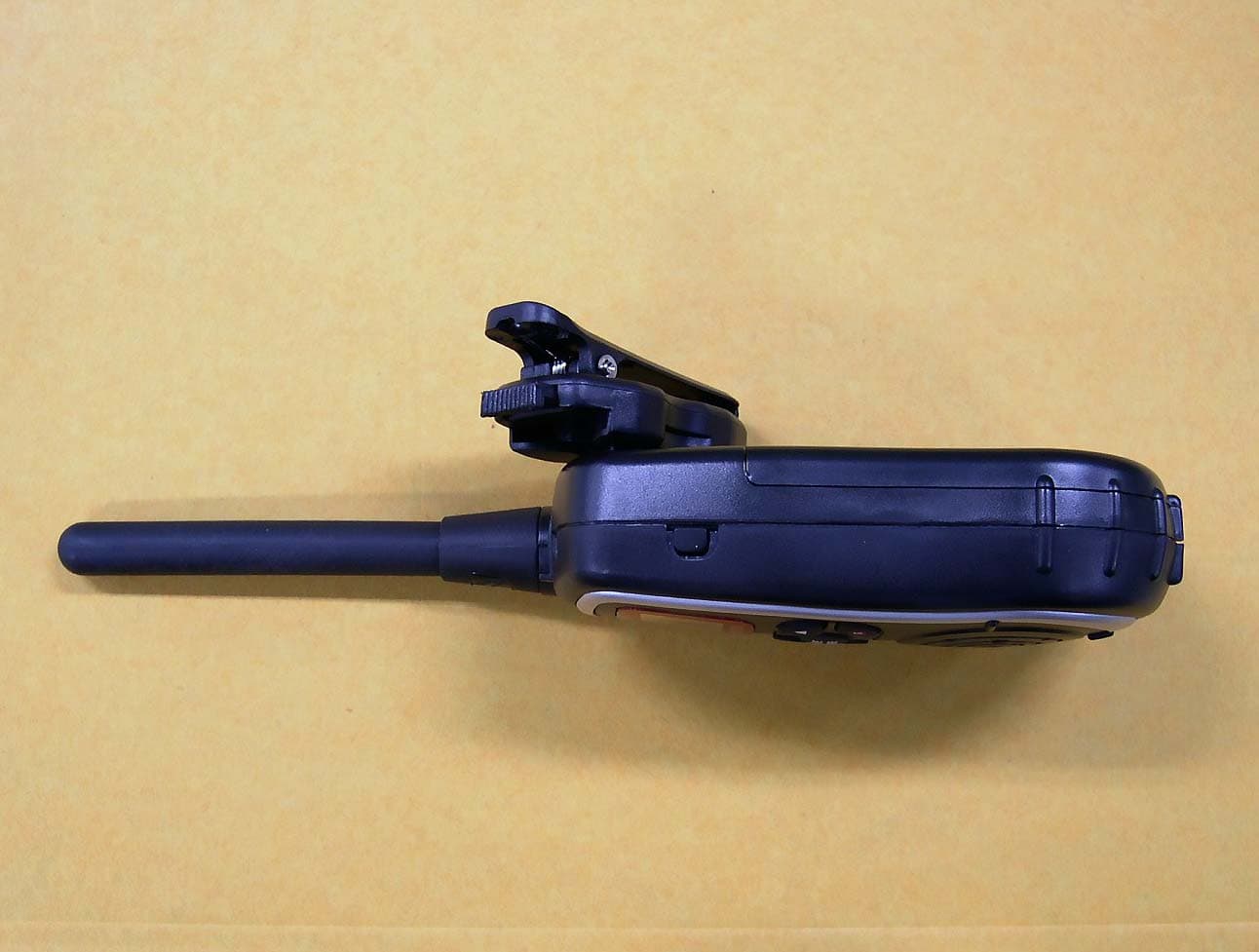

THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] TTI International Limited U32GMRS7015 cover THRU Test Report Product Name: GMRS/FRS Combination MODEL NO:GMRS7015RC FCC ID:U32GMRS7015 Applicant: TTI International Limited Unit 1106-1110, 11/F., Star House, 3 Salisbury Road, Tsimshatsui, Kowloon, HongKong Date Receipt:02/27/2007 Date Tested: 03/08/2007 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] TTI International Limited U32GMRS7015 TABLE OF CONTENTS LIST APPLICANT: TTI INTERNATIONAL LIMITED FCC ID: U32GMRS7015 TEST REPORT CONTAINING: PAGE 1....... TABLE OF CONTENTS LIST PAGE 2-3......TEST EQUIPMENT LIST PAGE 4.........TEST PROCEDURE PAGE 5-7.......RADIATED EMISSIONS TEST DATA PAGE 8-10......38dB REJECTION RATIO PAGE 11-13.....POWERLINE CONDUCTED PLOTS EXHIBITS CONTAINING: BLOCK DIAGRAMS SCHEMATICS INSTRUCTION MANUAL SAMPLE OF FCC ID LABEL AND SKETCH OF LOCATION TEST SETUP PHOTOS EXTERNAL PHOTOS INTERNAL PHOTOS CIRCUIT DESCRIPTION THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] TTI International Limited U32GMRS7015 TEST Equipment List No Description Manufacturer Model No. Serial No. Due Cal. 1 Test Receiver Rohde & Schwarz ESVS10 830489/001 2007.04.23 2 Test Receiver Rohde & Schwarz ESHS 10 825832/014 2007.08.25 3 Test Receiver Rohde & Schwarz ESVS 10 826008/014 2006.05.24 4 Spectrum Analyzer Hewlett Packard 8566B 2311A02394 2007.06.17 5 Spectrum Display Hewlett Packard 85662A 2542A12429 2007.06.17 6 Quasi-peak Adapter Hewlett Packard 85650A 2521A00887 2007.06.17 7 RF Preselector Hewlett Packard 85685A 2648A00504 2007.06.17 8 Preamplifer Hewlett Packard 8449B 3008A00375 2007.04.23 9 Preamplifer Hewlett Packard 8447F 3113A05367 2007.05.09 10 Preamplifer Hewlett Packard 8447F 2805A02570 2005.12.12 11 Preamplifer A.H. Systems PAM-0118 164 2007.04.01 12 Biconical Antenna Eaton Corp. 94455-1 0977 2007.04.01 13 Biconical Antenna EMCO 3104C 9111-2468 2006.06.07 14 Log Periodic Antenna EMCO 3146 2051 2007.05.11 15 Log Periodic Antenna EMCO 3146 8901-2320 2006.03.28 16 Horn Antenna A.H. Systems SAS-571 414 2007.03.17 17 Horn Antenna A.H. Systems SAS-571 781 2006.01.07 18 Loop Antenna Rohde & Schwarz HFH2-Z2.335.4711.52 826532/006 2007.01.31 19 Dipole Antenna Rohde & Schwarz VHAP 574 2007.12.12 20 Dipole Antenna Rohde & Schwarz VHAP 575 2007.12.12 21 Dipole Antenna Rohde & Schwarz UHAP 546 2007.12.12 22 Dipole Antenna Rohde & Schwarz UHAP 547 2007.12.12 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] TTI International Limited U32GMRS7015 23 Signal Generator Rohde & Schwarz SMS 872165/100 2006.04.23 24 Signal Generator Rohde & Schwarz SMX 825459/030 2007.06.15 25 Spectrum Monitor Rohde & Schwarz EZM 862304/007 None 26 Panorama Monitor Rohde & Schwarz EPN 883707/207 None 27 Spectrum Analyzer Advantest Corp. R3261C 61720208 2007.06.05 28 Spcetrum Analyzer Hewlett Packard 8591A 3205A02641 2007.12.12 29 LISN EMCO 3825/2 9111-1912 2007.12.12 30 LISN Solar 8012-50-R-24 8379121 2007.04.25 31 LISN Kyoritsu KNW-242 8-923-2 2007.05.28 32 Plotter Hewlett Packard 7475A 2210A02802 None 33 Modulation Analyzer Hewlett Packard 8901B 3438A05094 2007.05.19 34 Waveform Generator Hewlett Packard 33120A US34001190 2007.05.23 35 Audio analyzer Hewlett Packard 8903B 3011A12915 2007.05.23 36 Universal counter Hewlett Packard 5343A 3020A02978 2007.05.23 37 Frequency Counter Tektronic CMC251 TW52489 2007.04.23 38 Temperature & Humidity Chamber TABAI EZPEC CORP.MC711P 112000492 2006.08.27 39 Antenna Mast EMCO 1070-3 9109-1617 None 40 Turn Table EMCO 1080-1,2 9203-1762 None 41 Positioning Controller EMCO 1090 9111-1054 42 Antenna Power Supply Rohde & Schwarz HZ-9 920127 None 43 Pulse Limiter Rohde & Schwarz ESH3-Z2 881052 None 44 Coaxial Take-up Reel EMCO 100817 9109-1684 None THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] TTI International Limited U32GMRS7015 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of THRU LAB & ENGINEERING. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100kHz and the video bandwidth was 300kHz. The ambient temperature of the UUT was 9.4 with a humidity of 82%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] TTI International Limited U32GMRS7015 APPLICANT: TTI INTERNATIONAL LIMITED FCC ID: U32GMRS7015 NAME OF TEST: RADIATION INTERFERENCE RU…

Text truncated - open the document above for the full version.

THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] TTI International Limited U32GMRS7015 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] TTI International Limited U32GMRS7015 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] TTI International Limited U32GMRS7015 THRU Lab & Engineering. 477-6, Hager-Ri, Yoju-Up, Yoju-Gun Kyunggi-Do,469-803, Korea T820318835092F820318835169 email [email protected] TTI International Limited U32GMRS7015
