U3EUMTS850IBTSUMTS 850 iBTS

Subject: Request for Confidentiality FCC ID:U3EUMTS850iBTS To Whom It May Concern: In accordance with §0.459 of CFR 47, ALCATEL-LUCENT Corporation requests confidentiality for the following items 1. Block Diagram (Exhibit 4) 2. Schematic Diagram (Exhibit 5) 3. User manual (Exhibit 7). 4. Part List (Exhibit 9) 5. Operational Description (Exhibit 11). These items contain detailed system and equipment description and related information about the product which ALCATEL-LUCENT Corporation considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, ALCATEL-LUCENT Corporation also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best Regards, Luc Moulin UMTS Product Approvals Manager ALCATEL-LUCENT France Site de Chateaufort 78775 MAGNY-LES-HAMEAUX Cedex FRANCE Tel.:+33 13 944 5609 [email protected] On behalf of ALCATEL-LUCENT Corporation

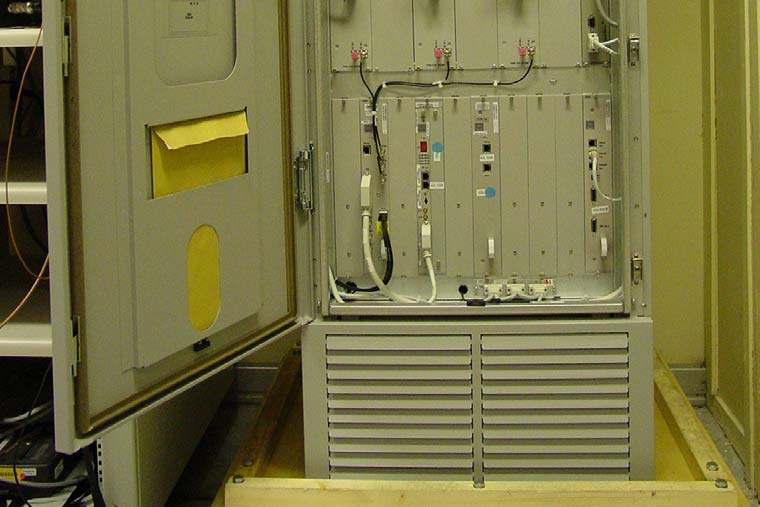

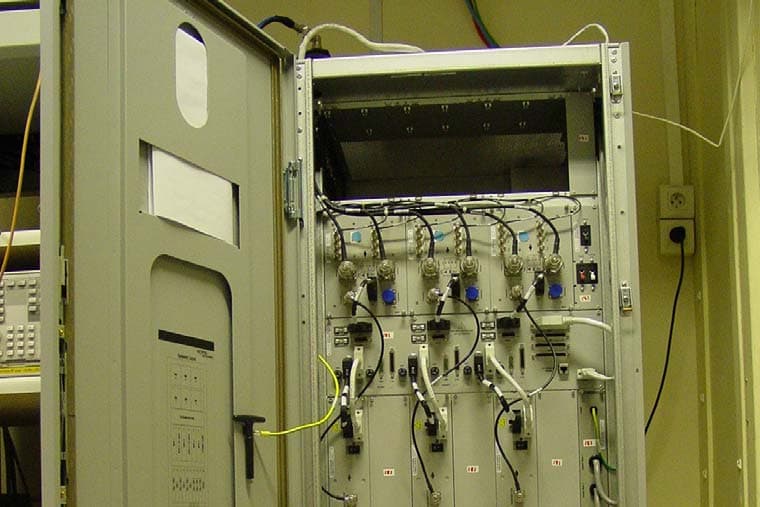

UMTS Indoor2 iBTS pictures Figure 1 : Front view, opened door Figure 2 : Front view, closed door Figure 3 : Left side view Figure 4 : Back side view Figure 5 : Right side view

UMTS Outdoor2 iBTS pictures Figure 1 : Front view, opened doors Figure 2 : Front view, closed doors Figure 3 : Left side view Figure 4 : Back side view Figure 5 : Right side view

Regulatory Label on UMTS INDOOR2 iBTS & UMTS OUTDOOR2 iBTS FCC Id : U3EUMTS850iBTS Description of Label Area on UMTS INDOOR2 iBTS & UMTS OUTDOOR2 iBTS Label area on INDOOR2 and OUTDOOR2 UMTS INDOOR2 iBTS UMTS OUTDOOR2 iBTS

xTRM Band05 RADIO BOARD PICTURES xTRM Radio Board (Top) xTRM Radio Board (Bottom) xTRM Logical Board (Top) xTRM Logical Board (Bottom)

This fax is for the addressee only and may contain confidential and/or proprietary information. If it has reached you in error, please inform us immediately. MEMO To: To Whom It May Concern From: Product Approvals Team Date: 23 / February / 2007 cc: Subject: Health protection and BTS Radiation hazards Reference: ALU/PA/07006 1. Introduction This memo provides inputs with regard to the assessments of Health protection and radiation hazards expected from ALCATEL-LUCENT UMTS OUTDOOR2 iBTS and UMTS INDOOR2 iBTS compliant with the North American requirements (FCC OET Bulletin 65) through calculation as described below. 2. Radiation hazards a. iBTS radiations The maximum radiated power level authorized by the EMC specifications is : • –36 dBm (or E=2.7 mV/m) for frequencies between 30 MHz and 1 GHz, • –30 dBm (or E=5.4 mV/m) for frequencies above 1 GHz. According to FCC OET bulletin 65, the power density is linked to the E field by the relation S=E²/3770. As a consequence, the maximum power density radiated by the iBTS will be : • S=1.9*10 -9 mW/cm² for frequencies between 30 MHz and 1 GHz, • S=7.9*10 -9 mW/cm² for frequencies above 1 GHz. The North American Maximum Permissible Exposure (MPE) levels for general population (uncontrolled exposure areas) are defined in the table below : Frequency range (MHz) MPE (S, mW/cm²) 30 – 300 0.2 300 – 1500 f/1500 1500 – 12750 1.0 MEMO b. Radiation of a system Considerations : • BTS configured with 1 Power Amplifier (PA) by sector, PA configured at maximum output power (45 Watts). • DDM losses # 1.2 dB • Feeder losses # 0.5 dB. • Antenna gain G=18 dBi # 63. The power delivered to the antenna (per PA) is given by P=PA_power – DDM_losses – Feeder_losses # 44.8 dBm (or 30.4 Watts). As described in FCC OET Bulletin 65, the power density can be estimated by S=P*G/4πR² where R is the distance to the source (the antenna). The Maximum Permissible Exposure (MPE) level for uncontrolled access locations is S = 0.57 mW/cm² at the frequency of UMTS 850 signal. As a consequence, the safe distance approach is with the aforementioned considerations R = 5.17 m. This distance is the one at which the limit level will be reached in the main beam of the antenna and would usually be achieved by the fact that this antenna is mounted on a pole. 3. Conclusion As demonstrated before, it is deemed that ALCATEL-LUCENT UMTS OUTDOOR2 iBTS and UMTS INDOOR2 iBTS complies with the general requirements (FCC OET bulletin 65) for health protection. It should also be noted that exposures inside a building can be expected to be reduced by at least 10 to 20 dB due to the attenuation caused by building materials in the wall and roof of the building (source : FCC OET Bulletin 65). Products Approvals Team ALCATEL-LUCENT This fax is for the addressee only and may contain confidential and/or proprietary information. If it has reached you in error, please inform us immediately.

Radio Test Report for the qualification of the UMTS 850 iBTS according to FCC Part 22 Document number: UMT/BTS/DJD/021942 Document issue: V01.01 / EN Document status: Standard Date: 09/Mar/2007 Passing on or copying of this document, use and communication of its contents not permitted without Alcatel·Lucent written authorization Copyright  2007 Alcatel-Lucent, All Rights Reserved Printed in France UNCONTROLLED COPY: The master of this document is stored on an electronic database and is “write protected”; it may be altered only by authorized persons. While copies may be printed, it is not recommended. Viewing of the master electronically ensures access to the current issue. Any hardcopies taken must be regarded as uncontrolled copies. ALCATEL-LUCENT CONFIDENTIAL: The information contained in this document is the property of Alcatel- Lucent. Except as expressly authorized in writing by Alcatel-Lucent, the holder shall keep all information contained herein confidential, shall disclose the information only to its employees with a need to know, and shall protect the information from disclosure and dissemination to third parties. Except as expressly authorized in writing by Alcatel-Lucent, the holder is granted no rights to use the information contained herein. If you have received this document in error, please notify the sender and destroy it immediately. without notice. Nortel Networks assumes no responsibility for errors that might appear in t.All other brand and Radio Test Report for the qualification of the UMTS 850 iBTS according to FCC Part 22 Passing on or copying of this document, use and communication of its contents not permitted without Alcatel·Lucent written authorization UMT/BTS/DJD/021942 V01.01 / EN Standard 09/Mar/2007 Page 2/44 PUBLICATION HISTORY 09/Mar/2007 Issue 01.01 / EN, Standard Document creation A. H. DIMASSI Radio Test Report for the qualification of the UMTS 850 iBTS according to FCC Part 22 Passing on or copying of this document, use and communication of its contents not permitted without Alcatel·Lucent written authorization UMT/BTS/DJD/021942 V01.01 / EN Standard 09/Mar/2007 Page 3/44 CONTENTS 1. INTRODUCTION............................................................................................................................4 1.1. OBJECT .................................................................................................................................4 1.2. SCOPE OF THIS DOCUMENT ..............................................................................................4 1.3. AUDIENCE FOR THIS DOCUMENT......................................................................................4 2. RELATED DOCUMENTS ..............................................................................................................5 2.1. APPLICABLE DOCUMENTS .................................................................................................5 2.2. REFERENCE DOCUMENTS .................................................................................................5 3. TEST RESULTS ............................................................................................................................6 3.1. INTRODUCTION ....................................................................................................................6 3.2. MEASUREMENT RESULTS ..................................................................................................6 3.3. MAXIMUM OUTPUT POWER ................................................................................................6 3.3.1 FCC REQUIREMENTS ...................................................................................................6 3.3.2 TEST RESULTS .............................................................................................................7 3.3.3 TEST PROCEDURE .......................................................................................................7 3.4. FREQUENCY ERROR ...........................................................................................................8 3.4.1 FCC REQUIREMENTS ...................................................................................................8 3.4.2 TEST RESULTS .............................................................................................................8 3.4.3 TEST PROCEDURE .......................................................................................................8 3.5. OCCUPIED BANDWIDTH......................................................................................................9 3.5.1 FCC REQUIREMENTS ...................................................................................................9 3.5.2 TEST RESULTS .............................................................................................................9 3.5.3 TEST PROCEDURE .....................................................................................................11 3.6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS.........................................................12 3.6.1 FCC REQUIREMENTS .................................................................................................12 3.6.2 TEST RESULTS ...........................................................................................................12 3.6.3 TEST PROCEDURE .....................................................................................................39 3.7. CONCLUSION......................................................................................................................40 3.8. MEASUREMENT EQUIPMENT LIST...................................................................................40 4. TECHNICAL STATUS OF THE MODULES CONSTITUTING THE TESTED EQUIPMENT .....41 5. ABBREVIATIONS AND DEFINITIONS.......................................................................................43 5.1. ABBREVIATIONS ...........................................................…
