U42MULTICODETR002Remote Control Transmitter

USER MANUAL Digital Transmitter Model#CE002 CAUTION: This device complies with part15 of the FCC Rules. Operation is subject to the following two conditions :(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Please take a moment to read the following instructions and you will find that setting your new transmitter will be quite an easy matter. ACCESSING THE CODE SWITCH On the model#CE002 the entire front lower half of the transmitter is removable. Grasp the front lower half of the case mear the bottom on both sides and pull upward away from the transmitter, this will disengage the lower end. Then pull downward to remove the lower cover, this will expose both the code switch and battery compartment. SELECTING A CODE You may set your transmitter to any code you desire but be sure that the code you set matches the code that has been set on your radio receiver. The digital code is determined by the positions of the 10 small switches numbered 1 through 10 located in the ceceiver and transmitter. Any combination of ON(closed) or OFF(open) positions can be selected by using a small screwdriver or ball point pen. (NOTE: The switches are in the “ON” position when the side next to the number is pressed in) In setting your own personal code we strongly urge that several coding schemes be avoided: ALL ON; ALL OFF: 2,4,6,8,10 ON; 1,3,5,7,9 ON. These positions are similar to our or other manufacturer’s test positions, or are frequently used. Once the code has been set, check the operation and replace the hatches. TRANSMITTER INSTALLATION The transmitter is completely self contained, including battery, and can be operated while mounted in the car. It is supplied with a clip for attaching to the sun visor, if desired. If the clip is used attach to the case by sliding it into the recess provided on the back of the transmitter until the small dimples fit into the holes in the clip. TRANSMITTER BATTERY REPLACEMENT Replacement battery-9 volt The battery in the transmitter can be checked or changed by removing the front lower half of the transmitter. Refer to the directions under “Accessing the code switch” for battery replacement. TO REPLACE OR ADD A SET A replacement or new transmitter or receiver may be purchased by specifying the model number and the RF frequency designated on the identification label. The RF frequency is set at the factory and must not be adjusted in the field. The digital code can be matched to the companion receiver or transmitter by following the above procedure. OPERATIONAL CHECK To check operation, move back a reasonable distance(about 20meters) and press the transmitter button. Operation should be reliable at this distance but environment and location of both the transmitter and receiver will affect the range. If the transmitter is stowed well out of signt, it may be necessary to remove it from its mounting and hold near the windshield. Try different locations and positions. If operation is still unsatisfactory, the problem may be isolated by: 1, Checking the door operator. If the door will not open when the wall button is pressed, the problem is likely to be the operator. If the door will open by pressing the wall button, but not when the radio control button is pressed, the problem is probably in the radios. 2, Raplacing the transmitter battery. If after performing the above operational checks, the controls still do not function, they should be returned to your dealer for repair or replacement. CAUTION: Any changes of modifications in intentional or unintentional radiators which are not expressly approved by IMX Globle coulld void the user’s authority to operate this equipment. This appliest to intentional and unintentional radiators certified per part 15 of the FCC rules and regulations.

Battery 9V Voltage transmitting switch SW1 Power output for indicator LEDR1 Stable voltage 5V Output C4、 U1 IC reposition R2、EC1 IC surge C5、R5 WORKING PROCEDURE: Power filter L1 Working voltage 9V is transtted to LED and R1 by switch SW1, after processed by C4,U1 then provide stable 5V voltage to IC EM78P156; R2,EC1 is to provide voltage to IC needed for reposition; C5,R5 provide surge signal to IC EM78P156; Inductance L1 works as power filter, provide stable voltage to VC,C1,C2,C3,R3,R6,R4,Q1 for amplify frequency, transmit the signal sent by IC EM78P156 out. Amplify frequency and transmit signal VC、C1、C2、C3 、R3、R6、R4、Q1 （300MHz） IC：EM78P156 ANT

IMX GLOBAL CORPORATION P.O.BOX 428. ALIEF, TEXAS 77411-0428, USA Phone: 1-713-298-7621 Fax: 1-281-277-4183 E-mail: [email protected] AGENCY AUTHORIZATION LETTER FCC ID: U42MULTICODETR002 Date: Mar 28, 2007 To whom it may concern: We, the undersigned, hereby authorize SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD of China to act on our behalf, as our agent in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification, Any act carried out by SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, ALLEN LAW / DEREDTOR IMX GLOBAL CORPORARION Phone: 1-713-298-7621 FAX: 1-281-277-4183 E-mail: [email protected]

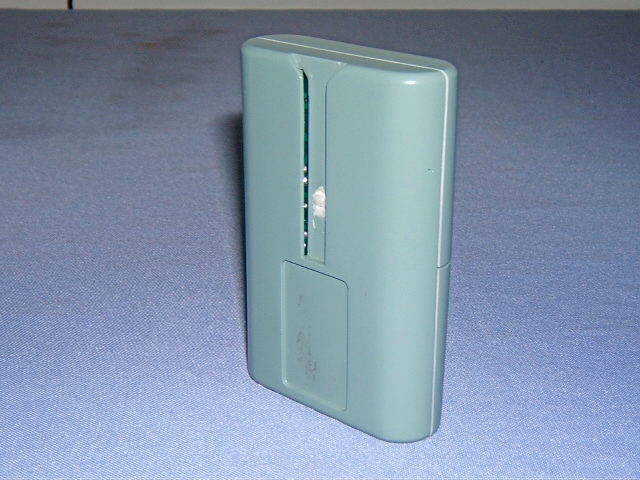

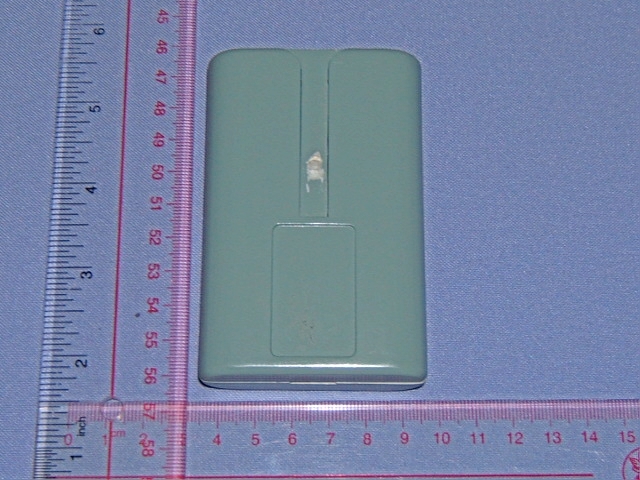

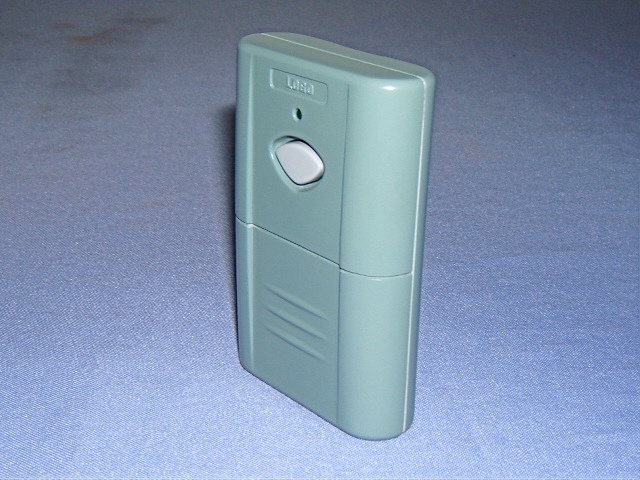

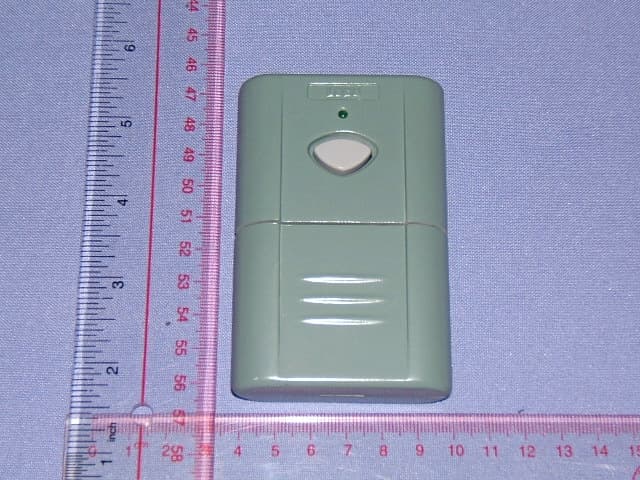

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07030002 FCC ID: U42MULTICODETR002 DATE: 04/17/2007 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07030002 FCC ID: U42MULTICODETR002 DATE: 04/17/2007

The label of Transmitter Label material: Plastic sticker Label location: indicated as above 2.The Label of Transmitter 20mm 35mm Transmitter of garage door controller Model No.: CE002 FCC ID: U42MULTICODETR002 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07030002 FCC ID: U42MULTICODETR002 DATE: 04/17/2007 Internal Photos of EUT Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07030002 FCC ID: U42MULTICODETR002 DATE: 04/17/2007

Theory of Operation WORKING PROCEDURE: Working voltage 9V is transtted to LED and R1 by switch SW1, after processed by C4,U1 then provide stable 5V voltage to IC EM78P156; R2,EC1 is to provide voltage to IC needed for reposition; C5,R5 provide surge signal to IC EM78P156; Inductance L1 works as power filter, provide stable voltage to VC,C1,C2,C3,R3,R6,R4,Q1 for amplify frequency, transmit the signal sent by IC EM78P156 out.

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07030002 FCC ID: U42MULTICODETR002 DATE: 04/17/2007 Page 1 of 27 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF TRANSMITTER FCC ID: U42MULTICODETR002 MODEL No.: CE002 BRAND NAME: N/A REPORT NO: WE07030002 ISSUE DATE: April 17, 2007 Prepared for IMX GLOBAL CORPORATION P.O. BOX 428, ALIEF, TEXAS 77411-0428, USA Prepared by SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD d.b.a. SHENZHEN HUATONGWEI INTERNATIONAL INSPECTION CO., LTD HUATONGWEI BUILDING, KEJI RD. 12 S., HIGH-TECH PARK, NANSHAN DISTRICT, SHENZHEN, GUANGDONG, P.R.CHINA TEL: 86-755-26748099 FAX: 86-755-26748005 Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07030002 FCC ID: U42MULTICODETR002 DATE: 04/17/2007 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: IMX GLOBAL CORPORATION P.O. BOX 428, ALIEF, TEXAS 77411-0428, USA Product Description: Transmitter Brand Name: N/A Model Number: CE002 Listed Model N/A Serial Number: N/A File Number: WE07030002 Date of Test: Mar 28, 2007 ~ Apr 14,2007 We hereby certify that: The above equipment was tested by SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved By Reviewed By Jimmy Li / Executive Manager Tracy Qi / RF Engineer SHENZHEN HUA TONG WEI SHENZHEN HUA TONG WEI INTERNATIONAL INSPECTION CO., LTD INTERNATIONAL INSPECTION CO., LTD Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07030002 FCC ID: U42MULTICODETR002 DATE: 04/17/2007 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION............................................................................................................. 5 1.1 PRODUCT DESCRIPTION........................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S)...................................................................................................... 5 1.3 TEST METHODOLOGY...............................................................................................................................5 1.4 TEST FACILITY.......................................................................................................................................... 5 1.5 SPECIAL ACCESSORIES............................................................................................................................ 5 1.6 EQUIPMENT MODIFICATIONS.................................................................................................................... 6 1.7. LABORATORY ACCREDITATIONS AND LISTINGS........................................................................................ 6 2. SYSTEM TEST CONFIGURATION............................................................................................... 8 2.1 EUT CONFIGURATION.............................................................................................................................. 8 2.2 EUT EXERCISE......................................................................................................................................... 8 2.3 TEST PROCEDURE.................................................................................................................................... 8 2.4 LIMITATION................................................................................................................................................ 8 2.5 CONFIGURATION OF TESTED SYSTEM..................................................................................................... 9 3. DESCRIPTION OF TEST MODES................................................................................................ 9 4. CONDUCTED EMISSIONS TEST （NOT APPLICABLE TO THIS DEVICE）................. 10 4.1 MEASUREMENT PROCEDURE:................................................................................................................ 10 4.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)....................................................................... 10 4.3 MEASUREMENT EQUIPMENT USED:....................................................................................................... 11 4.4 MEASUREMENT RESULT:........................................................................................................................ 11 5. RADIATED EMISSION TEST....................................................................................................... 12 5.1 MEASUREMENT PROCEDURE................................................................................................................. 12 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)....................................................................... 12 5.3 MEASUREMENT EQUIPMENT USED:....................................................................................................... 13 5.4 FIELD STRENGTH CALCULATION............................................................................................................ 13 5.5 MEASUREMENT RESULTS...................................................................................................................... 14 6. 20DB OCCUPIED BANDWIDTH................................................................................................. 15 6.1 MEASUREMENT PROCEDURE................................................................................................................. 15 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)........................................................…

Text truncated - open the document above for the full version.

Shenzhen Huatongwei International Inspection Co., Ltd REPORT NO: WE07030002 FCC ID: U42MULTICODETR002 DATE: 04/17/2007 Radiated Emission Setup Photo
