U44-PTX5USElectronic Choker Release System

User Manual – North America Version 1.1 - 2 - . . . . . Copyright Copyright © 2007 Fortronics™ Limited. All rights reserved. The information contained in this manual are copyrighted and all rights are reserved by Fortronics™ Limited. Fortronics™ Limited reserves the right to make periodic modifications of this product without obligation to notify any person or entity of such revision. Copying, duplicating, selling, or otherwise distributing any part of this product or accompanying documentation/software without the prior consent of an authorized representative of Fortronics™ Limited is strictly prohibited. All brands and product names in this publication are registered trademarks or trademarks of their respective holders. . . . . . This material is preliminary Information furnished by Fortronics™ Limited in this specification is believed to be accurate. Fortronics™ Limited makes no warranty, express, statutory, and implied or by description, regarding the information set forth herein. Fortronics™ Limited reserves the right to change specifications at any time and without notice. Fortronics™ Limited ’s products are intended for use in normal commercial and industrial applications. Applications requiring unusual environmental requirements such as military, medical life-support or life-sustaining equipment are specifically not recommended without additional testing for such application. . . . . . Safety Precautions Proper operation of this will result in user exposure to radiation well below that described by international and local authorities. To comply with FCC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at locations where there is at least 20cm separation distance between the antenna and all persons. DO NOT hold the unit such that the antenna is very close to, or touching, exposed parts of the body, especially the face or eyes, while transmitting. DO NOT key the transmitter when not actually desiring to transmit DO NOT allow children to play with any radio equipment containing a transmitter DO NOT operate the transmitter near unshielded electrical blasting caps or in an explosive environment unless it is a type especially qualified for such use . . . . . Service Precautions The modules contain CMOS devices that may be damaged by electrostatic discharge (ESD). Electrostatic charges up to 35,000 volts may be present at the workbench and on synthetic clothing. Since CMOS devices may be damaged by charges as low as 50volts, it is imperative that proper ESD safe practices be followed when working on the units. . . . . . Unauthorized Modifications The units have been designed to comply with strict radio frequency performance regulations. In order to continue good performance and prevent interference with other users and electrical equipment, it is imperative that no changes or alterations be made to the units without the express approval of Fortronics™ Limited. User Manual – North America Version 1.1 - 3 - . . . . . Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. . . . . . Information to the User Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. . . . . . Revision Date Description Version 1.0 7/Dec/04 - Initial Release Version Version 1.1 1/May/07 - Changes applicable to North American Market. Manual redesign User Manual – North America Version 1.1 - 4 - I I N N D D E E X X 1 The Fortronics™ Electronic Choker Bell system 2 Specifications 3 Installation 3.1 Main Transmitter 3.2 Attaching Choker Bell to Choker Bell Wire 3.3 System ID 3.4 Choker Bell Electronics – Encapsulated in the Choker Bell Block 4 Operation 4.1 Choker Bell Tester 4.2 Locating Lost Choker Bells – Locator System 4.3 Portable Transmitter 4.4 Yarder Operation 4.5 Choker setters 5 Service Advice 5.1 Servo Motor Test and Replacement 5.2 Fitting New Batteries 5.3 Low temperature (sub Zero) conditions 5.4 Servo Motor Switch Test 6 Choker Bell Maintenance 7 Fault Finding 7.1 Fault Finding 8 Parts List and Illustrations 9 About Fortronics User Manual – North America Version 1.1 - 5 - The Fortronics™ Electronic Choker Bell system Our electronic Choker Bell has been designed to make a difference to the safety and efficiency of timber recovery between felling and yarding. It works by giving forestry contractors a remote-release option that allows the operator to be safely separated from the most hazardous part of the recovery process. With the simple press of a button, the Choker Bell releases the Choker Wire as soon as the log has been dragged to its required position. This removes a man from a dangerous situation among unstable timber, and leaves the Choker Bell ready for the next haul. System Overview Specifically desig…

Text truncated - open the document above for the full version.

EMCT Authorisation 190707.doc Andrew Cutler EMC Technologies (NZ) Ltd 47 MacKelvie Street, Grey Lynn Auckland New Zealand Ph: + 64 93600 862 Fax: + 64 93600 861 19 th July 2007 EMC Technologies are hereby authorised to act on Fortronics Ltd behalf in attaining FCC type approval of the Fortronics™ Electronic Choker System. Yours sincerely Ross J Lumsden Managing Director Fortronics Ltd

FCC confidentiality request 190707.doc Federal Communications Commission 19 th July 2007 To whom it may concern CONFIDENTIALITY REQUEST Reference rule sections 0.457 (d) (ii) and pursuant to rule section 0.459 (a) confidentiality is requested as follows. Specific Information: Block Diagrams Schematic / Circuit diagrams Part lists Operational Descriptions This information contains trade secret information which is not routinely made available to the public or to our competitors. Disclosure of this information could result in an unfair advantage to our competitors. It should be treated as strictly confidential for the duration of the Grant of Equipment Authorisation. Yours sincerely Ross J Lumsden Managing Director Fortronics Ltd

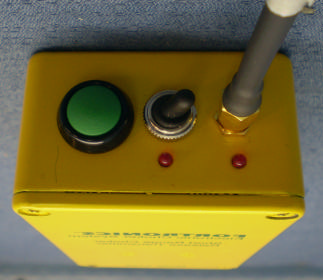

EMC Technologies (NZ) Ltd Test Report No 70801.1 Report date: 22 August 2007 ______________________________________________________________________________________________________________________________________ _______________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Phone: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 22 of 25 This report may not be reproduced except in full 10. PHOTOGRAPH (S) External views

5 th February 2008 Labeling Specification The following labels will be applied to the Fortronics product. Label Material: Jac solid aluminium foil with AL170 adhesive (Self adhesive). Printing Ink: Printed in green with PMS 349 using Marabu Marcaster screen printing ink rated at 7-8 on the blue wool scale. Font style: Arial Bold. Label size: 38mm wide and 15mm high for the Choker Bell, all others are 38mm wide and 28mm high Choker Bell example NOTE: For the Choker Bell, it is not practical to place the full statement on the device. The full statement is placed in the user and Technical manuals. [Section 15.19(a)(5).] Other Label examples 5 th February 2008 Labeling Specification The following labels will be applied to the Fortronics product. Label Material: Jac solid aluminium foil with AL170 adhesive (Self adhesive). Printing Ink: Printed in green with PMS 349 using Marabu Marcaster screen printing ink rated at 7-8 on the blue wool scale. Font style: Arial Bold. Label size: 38mm wide and 15mm high for the Choker Bell, all others are 38mm wide and 28mm high Choker Bell example NOTE: For the Choker Bell, it is not practical to place the full statement on the device. The full statement is placed in the user and Technical manuals. [Section 15.19(a)(5).] Other Label examples

EMC Technologies (NZ) Ltd Test Report No 70801.1 Report date: 22 August 2007 ______________________________________________________________________________________________________________________________________ _______________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Phone: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 23 of 25 This report may not be reproduced except in full Internal views EMC Technologies (NZ) Ltd Test Report No 70801.1 Report date: 22 August 2007 ______________________________________________________________________________________________________________________________________ _______________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Phone: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 24 of 25 This report may not be reproduced except in full

EMC Technologies (NZ) Ltd Test Report No 70801.1 Report date: 22 August 2007 ______________________________________________________________________________________________________________________________________ _______________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Phone: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 20 of 25 This report may not be reproduced except in full Radio Frequency Hazard Information As per Section 1.1310 and Section 2.1091 certification of this transmitter is sought using the Controlled / Occupational exposure limits as detailed in OST/OET Bulletin Number 65 as it is to be used in a mobile environment where the use of the transmitter will be employment related. Calculations have been made using the General Public/Uncontrolled Exposure limits. Minimum safe distances have been calculated below. Power density, W/m 2 = E 2 /3770 - Occupational / Controlled Exposure limit will be 1.46 mW/cm 2 (f/300 = 440 MHz/300) - General Population / Uncontrolled exposure limit will be 0.29 mW/cm 2 (f/1500 = 440 MHz/1500) The minimum distance from the antenna at which the MPE is met is calculated from the equation relating field strength in V/m, transmit power in watts, transmit antenna gain, transmitter duty cycle and separation distance in metres: E, V/m = (√ (30 * P * G)) / d Controlled Uncontrolled E = 1.46 mW/cm 2 = E 2 /3770 E = 0.29 mW/cm 2 = E 2 /3770 E= √1.46*3770 E= √0.29*3770 E = 74.2 V/m E = 33.1 V/m The rated maximum transmitter power = 70 microwatts (-11.5 dBm). Transmitter operated using a quarter wave whip antenna with a gain of 2.15 dBi (1.64). The transmitter is keyed using a manual keypad and would typically be used with a duty cycle of 50%. Controlled Uncontrolled d = √ (30 * P * G*DC) / E d = √ (30 * 7e-5 * 1.64 * 0.5) / 74.2 d = √ (30 * 7e-5 * 1.64 * 0.5) / 33.1 d = 0.0002 metres or 0.02 cm d = 0.001 metres or 0.1 cm Result: Complies

EMC Technologies (NZ) Ltd Test Report No 70801.1 Report date: 22 August 2007 ______________________________________________________________________________________________________________________________________ _______________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Phone: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 1 of 25 This report may not be reproduced except in full TEST REPORT Fortronics PTX5 Choker Release Transmitter tested to the Code of Federal Regulations (CFR) 47 Part 90 –Private Land Mobile Services for Fortronics Ltd This Test Report is issued with the authority of: ______________________________________ Andrew Cutler - General Manager EMC Technologies (NZ) Ltd Test Report No 70801.1 Report date: 22 August 2007 ______________________________________________________________________________________________________________________________________ _______________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Phone: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 2 of 25 This report may not be reproduced except in full Table of Contents 1. CLIENT INFORMATION 3 2. DESCRIPTION OF TEST SAMPLE 3 3. COMPLIANCE STATEMENT AND RESULT SUMMARY 4 4. TEST SAMPLE DESCRIPTION 5 5. TEST CONDITIONS 6 6. ATTESTATION 7 7. TEST RESULTS 8 8. TEST EQUIPMENT USED 21 9. ACCREDITATIONS 21 10. PHOTOGRAPH (S) 22 EMC Technologies (NZ) Ltd Test Report No 70801.1 Report date: 22 August 2007 ______________________________________________________________________________________________________________________________________ _______________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Phone: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 3 of 25 This report may not be reproduced except in full 1. CLIENT INFORMATION Company Name Fortronics Ltd Address Unit 3, 78 Austin Street Onekawa City Napier Country New Zealand Contact Mr Ross Lumsden 2. DESCRIPTION OF TEST SAMPLE Brand Name Fortronics Model Number PTX5 Product Choker Release Transmitter Manufacturer Fortonics Ltd Designed in New Zealand Manufactured in New Zealand Serial Number Not serialised FCC ID U44-PTX5US EMC Technologies (NZ) Ltd Test Report No 70801.1 Report date: 22 August 2007 ______________________________________________________________________________________________________________________________________ _______________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Phone: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 4 of 25 This report may not be reproduced except in full 3. COMPLIANCE STATEMENT AND RESULT SUMMARY The Fortronics PTX5 Choker Release Transmitter complies with the limits defined in 47 CFR Part 90 and 47 CFR Part 2 when tested in-accordance with the test methods described in 47 CFR Part 2. CLAUSE TEST PERFORMED RESULT 90.203 Certification required Complies 2.1046 RF power output Noted 90.205 Power and antenna height limits Complies 2.1047 Modulation Characteristics Noted 2.1047(a) Low pass filter response Not applicable 2.1047(b) Modulation limiting characteristics Not applicable 90.211(a) Modulation characteristics Complies 2.1049 Occupied bandwidth Noted 2.202 Bandwidths Noted 90.207 Types of emissions Complies 90.209 Bandwidth limitations Complies 90.210 Emission masks Complies 2.1051 Spurious emissions at antenna terminals Complies 2.1053 Field strength of spurious radiation Complies 2.1055 Frequency stability Noted 90.213 Frequency stability Complies 90.214 Transient frequency behaviour Complies 1.1310 Radio frequency radiation exposure limits Complies EMC Technologies (NZ) Ltd Test Report No 70801.1 Report date: 22 August 2007 ______________________________________________________________________________________________________________________________________ _______________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Phone: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 5 of 25 This report may not be reproduced except in full 4. TEST SAMPLE DESCRIPTION The sample tested has the following specifications: Rated Transmitter Output Power 70 uW (-11.5 dBm) Transmitter Frequency 462.8125 MHz FCC Bands Part 90: As per section 90.267 Group C Industrial / Business Pool Emission Designators / Modes of operation 12k00A1D Power Supply Internal Lithium Battery at 6.0 Vdc EMC Technologies (NZ) Ltd Test Report No 70801.1 Report date: 22 August 2007 ______________________________________________________________________________________________________________________________________ _______________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Phone: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 6 of 25 This report may not be reproduced except in full 5. TEST CONDITIONS Standard Temperature and Humidity Temperature Range: 15°C - 30°C Humidity Range: 40% - 75% Standard Test Power Source Standard Test Voltage: 6.0 Vdc. Extreme Temperature High Temperature: + 50°C maintained. Low Temperature: - 30 °C maintained. Extreme Test Voltages High Voltage: 6.9 Vdc Low Voltage: 5.1 Vdc EMC Technologies (NZ) Ltd Test Report No 70801.1 Report date: 22 August 2007 ______________________________________________________________________________________________________________________________________ _______________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Phone: +64…

Text truncated - open the document above for the full version.

EMC Technologies (NZ) Ltd Test Report No 70801.1 Report date: 22 August 2007 ______________________________________________________________________________________________________________________________________ _______________ EMC Technologies (NZ) Ltd STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, NZ Phone: +64 9 360 0862 Fax: +64 9 360 0861 POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand E-mail: [email protected] Page 25 of 25 This report may not be reproduced except in full Radiated emissions test set up
