U46-CDM2030CDMA Mobile Phone

1 U USER MANUAL 1 Phone Layout ................................................................................................. 2 1.1 Keys ........................................................................................................ 2 1.2 Main screen icons ................................................................................... 3 2 Specifications List ........................................................................................... 4 3 Essential Topics .............................................................................................. 5 4 Getting started ................................................................................................ 7 5 Basic operations ............................................................................................. 8 6 Using the menu .............................................................................................. 9 6.1 Messages ............................................................................................. 10 6.2 Call History ........................................................................................... 10 6.3 Contacts ............................................................................................... 11 6.4 Audio Player ......................................................................................... 12 6.5 Camera ................................................................................................. 12 6.6 WAP ..................................................................................................... 13 6.7 Tools ..................................................................................................... 13 6.8 Games .................................................................................................. 14 6.9 Settings ................................................................................................. 14 7 Safety and Warranty ...................................................................................... 15 7.1 Safety Information for Wireless Handheld Phones ............................... 15 7.2 Safety Information for FCC RF Exposure ............................................. 21 7.3 SAR Information .................................................... 錯誤! 尚未定義書籤。 7.4 Hearing Aid Compatibility (HAC) for Wireless Telecommunications Devices ........................................................................... 錯誤! 尚未定義書籤。 7.5 FDA Consumer Update ........................................................................ 22 7.6 Avoid Potential Hearing Loss ................................................................ 32 7.7 FCC Compliance Information ................................. 錯誤! 尚未定義書籤。 7.8 12 month Limited Warranty ................................................................... 35 2 1 Phone Layout 1 Receiver 2 Camera 3 Speaker 4 Micro-USB 5 Earphone jack Note：Picture is for reference purposes only. 1.1 Keys Switch on/Switch off the telephone (long keypress) End call Return to the main screen 1 2 3 4 5 3 Pick up Send a call Access call memory (Redial) (short keypress) Left softkey Right softkey Navigation key Confirm an option (press the middle of the key) Access main menu(short keypress) From main screen - Short keypress: ＊ - Long keypress: lock/unlock the phone In Edit mode: - Short keypress: access the Symbols table From main screen - Short keypress: # - Long keypress: activate/deactivate the vibrator In Edit mode: - Short keypress: change input methods From main screen - Short keypress: 0 + P In Edit mode: - space or zero 1.2 Main screen icons Signal strength received by the antenna Alarm clock There is (are) unread message(s). Vibrate icon Battery level indicator (This icon indicates full battery). Ring icon Vibrate first then ring Mute Icon Keypad locked 4 2 Specifications List Phone Type Specification CDM2030 Dimensions 105×43.5×14mm Weight 71g Screen Display Resolution 1.77" TFT, 128（RGB）X160 Card Type No UIM Card Applicable System CDMA 800MHz/1900MHz Contact Capacity 500 sets in the phone SMS Capacity 100 pieces for inbox and 100 pieces for outbox in mobile phone Call Records 20 each for missed, answered and dialed calls Receiving Call Vibration Support Preset Ringing Tone Type 5 ringing tones Preset SMS Tone Type 5 tones Call Time Support Speed Dial Support MP3 Support Camera Support Input Methods Support Date and Time Display Support Alarm/Calculator Support Games Support 5 Caller Number Display Support 3 Essential Topics ★ Communication Control Keys The ‘Calling’ key is used for making a call (after a number has been entered); or for viewing recent call records. The ‘End’ key is used for ending a call (during dialing and communication state), or for exiting menu under menu state to return to standby menu. Pressing and holding this key switch on or off the phone. Functional Keys and Soft Keys Direction keys of up, down, left and right direction are used for browsing menus, lists, options or content compiled. Under standby state, the up-direction key is used as shortcut key for Camera; the down-direction key is used as shortcut key for Settings; the left-direction key is used as shortcut key for write text message; the right-direction key is used as shortcut key for Contacts. Under standby state, the left soft key is a shortcut key for accessing main menu and the right soft key is a shortcut key for Contacts. The functions of the two soft keys under other states are closely related to the phone’s current state. Under standby state, you can press and hold the key ‘#’ to switch between silent and general mode; press center & ‘*’ key in a row to lock keypad. Standard keypad 6 Keys from ‘0’ to ‘9’, and key ‘＊’ and ‘#’ are used for dialing, inputting password, English letters, symbols etca and inputting Spanish. ■ Note: After the phone’s standby interface maintains for period of time (time length is set by the user), the phone will turn off the backlight…

Text truncated - open the document above for the full version.

TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Date: December 9, 2010 Statement We , TELEEPOCH Limited , states that our device, FCC ID: U46-CDM2030, has no space to put the label except the battery compartment of this device. The label will put under the battery compartment and it is visible to the users as they purchase the products and install the battery. Sincerely yours, Yuzhou Liu

TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Date: December 9, 2010 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: U46-CDM2030 To Whom It May Concern: We , TELEEPOCH Limited, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Yuzhou Liu,

Rev. 1/1/03 TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Date: December 9, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: U46-CDM2030 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: CDM2030_Schem.pdf) Block Diagram (file: CDM2030_BlkDia.pdf) Parts List (file: CDM2030_PartsLst.pdf) Operation Description (file: CDM2030_OpDes.pdf) Tune up Procedure (file: CDM2030_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Yuzhou Liu

TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Date: December 9, 2010 Power of Attorney To whom it may concern, Please be notified that I, Yuzhou Liu, have designated Roy Wu in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: U46-CDM2030 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Company Name: TELEEPOCH Limited Te l : +86 755 86029809 Fax: +86 755 86029993 E-Mail: [email protected]

1/1 TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Date: December 9, 2010 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : U46-CDM2030 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180  External Photos (file: CDM2030_ExtPho.pdf) days:  Internal Photos (file: CDM2030_IntPho.pdf)  Test Setup Photos (file: CDM2030_Tsup.pdf)  User Manual (file: CDM2030_UserMan.pdf) The application contains technical information, which TELEEPOCH Limited. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Yuzhou Liu

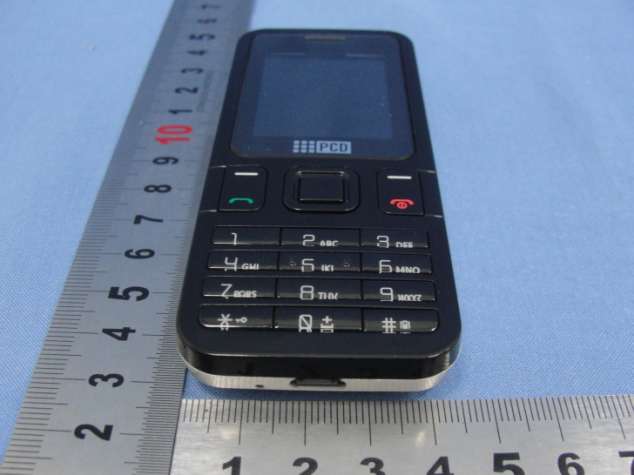

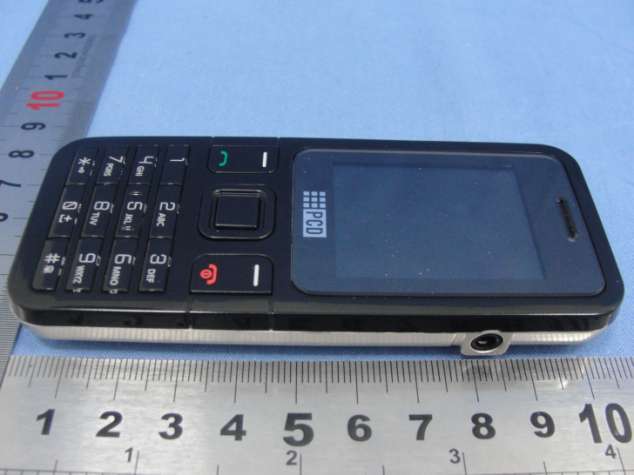

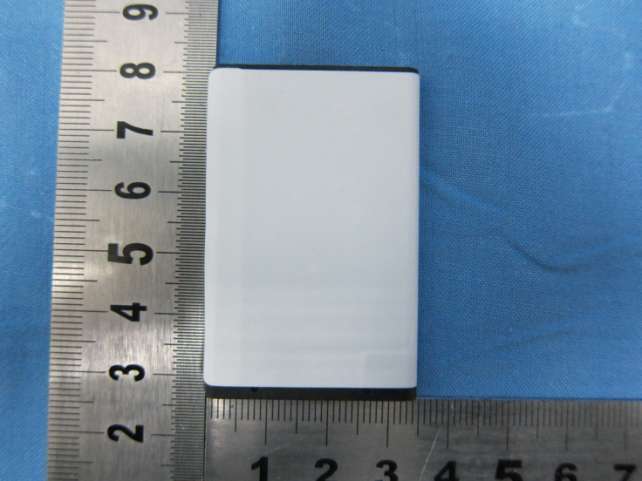

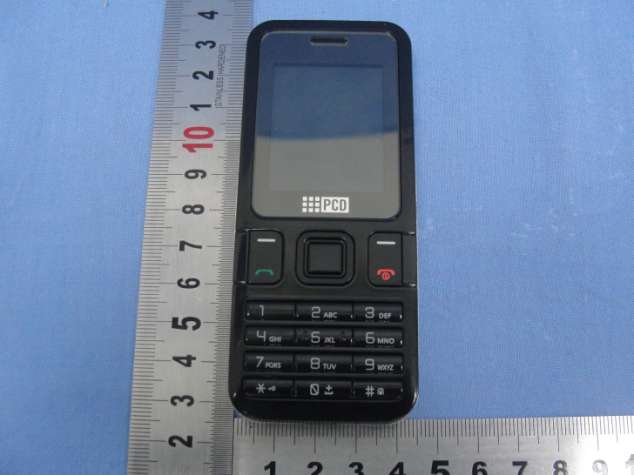

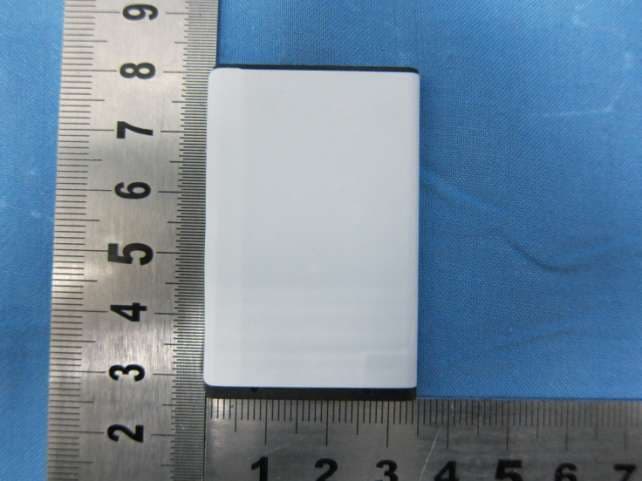

Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 1. External Photograph of EUT Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 720510 Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 List of Accessory: Specification of Accessory AC Adapter Brand Name Not Stated Model Name Not Stated Battery Brand Name Not Stated Model Name Not Stated Earphone Signal Line Type 1.73 meter non-shielded cable without ferrite core USB Cable Signal Line Type 1.02 meter shielded cable without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030

Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 3. Internal Photograph of EUT Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 720510 Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP0D0329 Brand Name: PCD / Model Name: CDM2030 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 19 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 21, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 02 FCC ID : U46-CDM2030 GPS Antenna <Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 12, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CDM2030 FCC SAR Test Report Report No. : FA0D0329 FCC SAR Test Report APPLICANT : TELEEPOCH Limited EQUIPMENT : CDMA Mobile Phone BRAND NAME : PCD MODEL NAME : CDM2030 FCC ID : U46-CDM2030 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Dec. 03, 2010 and completely tested on Dec. 29, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 31 TEL : 86-0512-5790-0158 Report Issued Date : Jan. 12, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CDM2030 FCC SAR Test Report Report No. : FA0D0329 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 6 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................15 5.7.1 Data Storage .....................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2010/12/28 System Check_Head_835MHz_101228 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_101228 Medium parameters used: f = 835 MHz; σ = 0.902 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.04 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.3 V/m; Power Drift = 0.0025 dB Peak SAR (extrapolated) = 1.51 W/kg SAR(1 g) = 0.989 mW/g; SAR(10 g) = 0.643 mW/g Maximum value of SAR (measured) = 1.06 mW/g 0 dB = 1.06mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2010/12/29 System Check_Body_835MHz_101229 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_101229 Medium parameters used: f = 835 MHz; σ = 0.971 mho/m; ε r = 56.3; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.999 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 31.7 V/m; Power Drift = -0.00109 dB Peak SAR (extrapolated) = 1.37 W/kg SAR(1 g) = 0.925 mW/g; SAR(10 g) = 0.611 mW/g Maximum value of SAR (measured) = 0.998 mW/g 0 dB = 0.998mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2010/12/29 System Check_Head_1900MHz_101229 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_101229 Medium parameters used: f = 1900 MHz; σ = 1.44 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.39, 7.39, 7.39); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.64 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.2 V/m; Power Drift = 0.00786 dB Peak SAR (extrapolated) = 7.55 W/kg SAR(1 g) = 3.96 mW/g; SAR(10 g) = 2.05 mW/g Maximum value of SAR (measured) = 4.42 mW/g 0 dB = 4.42mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2010/12/29 System Check_Body_1900MHz_101229 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_101229 Medium parameters used: f = 1900 MHz; σ = 1.53 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.26, 7.26, 7.26); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.43 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.2 V/m; Power Drift = -0.00606 dB Peak SAR (extrapolated) = 7.31 W/kg SAR(1 g) = 3.87 mW/g; SAR(10 g) = 1.98 mW/g Maximum value of SAR (measured) = 4.35 mW/g 0 dB = 4.35mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2010/12/28 #01 CDMA2000 BC0_RC3 SO55_Right Cheek_Ch1013 DUT: 0D0306 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_835_101228 Medium parameters used: f = 824.7 MHz; ı = 0.893 mho/m; İ r = 40.8; ȡ = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅ˆˁˆʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˅ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.08 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 30.1 V/m; Power Drift = -0.103 dB Peak SAR (extrapolated) = 1.28 W/kg SAR(1 g) = 0.974 mW/g; SAR(10 g) = 0.697 mW/g Maximum value of SAR (measured) = 1.03 mW/g 0 dB = 1.03mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2010/12/28 #02 CDMA2000 BC0_RC3 SO55_Right Tilted_Ch1013 DUT: 0D0306 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_835_101228 Medium parameters used: f = 824.7 MHz; ı = 0.893 mho/m; İ r = 40.8; ȡ = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅ˆˁˆʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˅ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.729 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.7 V/m; Power Drift = 0.107 dB Peak SAR (extrapolated) = 0.945 W/kg SAR(1 g) = 0.654 mW/g; SAR(10 g) = 0.477 mW/g Maximum value of SAR (measured) = 0.693 mW/g 0 dB = 0.693mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2010/12/28 #03 CDMA2000 BC0_RC3 SO55_Left Cheek_Ch1013 DUT: 0D0306 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_835_101228 Medium parameters used: f = 824.7 MHz; ı = 0.893 mho/m; İ r = 40.8; ȡ = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅ˆˁˆʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁ˅ʳк DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010/11/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010/11/18 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (41x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.28 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 32.6 V/m; Power Drift = -0.104 dB Peak SAR (extrapolated) = 1.49 W/kg SAR(1 g) = 1.14 mW/g; SAR(10 g) = 0.810 mW/g Maximum value of SAR (measured) = 1.19 mW/g 0 dB = 1.19mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Date: 2010/12/28 #03 CDMA2000 BC0_RC3 SO55_Left Cheek_Ch1013_2D DUT: 0D0306 Communication System: CDMA2000; Frequency: 824…

Text truncated - open the document above for the full version.
