U46-CM370MVCDMA Mobile Phone

1 CM370-MV USER MANUAL 2 1. Safety and Cautions......................................3 2. Phone Layout..............................................4 3. Specifications List ........................................5 4. Essential Topics...........................................7 5. Getting started.............................................9 6. Basic operations..........................................11 7. Using the menu...........................................12 7.1 Messages..............................................13 7.2.Call History.............................................14 7.3 Contacts.................................................14 7.4Audio Player.............................................16 7.5Camera....................................................16 7.6 WAP......................................................16 7.7 Tools......................................................16 7.8 Games.....................................................17 7.9 Settings...................................................17 3 1. Safety and cautions ◆ Switch off the phone in the vicinity of chemical plants, gas station, and other explosive objects. ◆Keep the phone away from the children. ◆Please switch off your phone as instructed where notices are present. ◆Switch off the phone before boarding on the plane and don’t switch on the phone during flight. ◆Please strictly conform to your local legal regulations during a drive. When hands free function is available, please use the hands free calling device to ensure safety. Please park the car at the roadside for communication only if in emergency. ◆Take special care when using the mobile pone in the vicinity of devices like pacemaker, hearing aids and electro-medical equipments, which may be interfered by the mobile phone. When using other medical equipments, please consult the vendors of these equipments or doctors for relevant information. ◆ No guarantee for the accessories and fitments not produced by the original factory. ◆ Never attempt to disassemble the phone by unauthorized persons. Contact the authorized service center in your region in case of any trouble with your mobile phone. ◆Recharging the phone without battery being installed is prohibited. ◆Charge the phone in well-ventilated environment and keep it away from inflammable and explosive objects. ◆To avoid demagnetization, keep the handset away from magnetic 4 substances such as magnetic discs or credit cards. ◆ Ensure to keep the handset away from to liquid. Take the battery off and contact the authorized service center if the handset soaked or eroded. ◆ Avoid using the phone in too high or too low temperature environment. Never expose the phone directly under sunlight or in high humidity or dusty environment. ◆Don’t use liquids or damp cloth with strong detergents to clear the handset. ◆Avoid dropping, crashing or excessively squeezing the phone or it maybe subject to damages of different degrees. ◆The original factory will not take any responsibility in the case of noncompliance with the above advices or improper use of the phone. ◆Please send used batteries to specific locations. Don’t dispose the batteries into dustbins. 2. Phone Layout 1 3 4 2 5 Note：Picture is for reference purposes only. 1 Receiver 2 USB 3 Camera 4 Speaker 2.1 Keys Switch on/Switch off the telephone (long keypress) End call Return to the main screen Pick up Send a call Access call memory (Redial) (short keypress) Navigation key Confirm an option (press the middle of the key) Access main menu(short keypress) From main screen Left softkey Right softkey 6 - Short keypress: ＊ P - Long keypress: lock/unlock the phone In Edit mode: - Short keypress: access the Symbols table From main screen - Short keypress: # - Long keypress: activate/deactivate the vibrator In Edit mode: - Short keypress: change input methods From main screen - Short keypress: 0 In Edit mode: - space or zero 2.2 Main screen icons Signal strength received by the antenna Alarm clock There is (are) unread message(s). Vibrate icon Battery level indicator (This icon indicates full battery). Ring icon Vibrate first then ring Mute Icon 7 Keypad locked 3. Specifications List Phone Type Specification CM370MV Dimensions 106 X 46 X 13mm Weight 65g Screen Display Resolution 1.77"TFT,Resolution:128*160pixels Card Type NO RUIM card Applicable System 800MHz Contact Capacity 500 sets in the phone SMS Support MMS Support LMS Support MP3 Support MP4 Support Camera Support T-Flash Support Alarm Support Calculator Support Stopwatch Support Gallery Support World Time Support Calendar Support Schedule Support 4.Essential Topics ◆ Communication Control Keys The ‘Calling’ key is used for making a call (after a number has been entered); or for viewing recent call records. The ‘End’ key is used for ending a call (during dialing and communication 8 state), or for exiting menu under menu state to return to standby menu. Pressing and holding this key switch on or off the phone. ◆Functional Keys and Soft Keys Direction keys of up, down, left and right direction are used for browsing menus, lists, options or content compiled. Under standby state, the up-direction key is used as shortcut key for Camera; the down-direction key is used as shortcut key for Settings; the left-direction key is used as shortcut key for write text message; the right-direction key is used as shortcut key for Contacts. Under standby state, the left soft key is a shortcut key for accessing main menu and the right soft key is a shortcut key for Contacts. The functions of the two soft keys under other states are closely related to the phone’s current state. Under standby state, you can press and hold the key ‘#’ to switch between silent and general mode; press center & ‘*’ key in a row to lock keypad. ◆Standard keypad Keys from ‘0’ to ‘9’, and key ‘＊’ and ‘#’ are used for dialing, inputting password, English letters, symbols etc and inputting Spanish. ■ Note: After the phone’s standby interfac…

Text truncated - open the document above for the full version.

TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Date: May 17, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: U46-CM370MV To Whom It May Concern: We, TELEEPOCH Limited , hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Yuzhou Liu

TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Date: May 17, 2011 Power of Attorney To whom it may concern, Please be notified that we, TELEEPOCH Limited, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: U46-CM370MV If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Yuzhou Liu Tel: +86 755 86029809 Fax: +86 755 86029993 E-Mail: [email protected]

Rev. 1/1/03 TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: U46-CM370MV Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: CM370MV_Schem.pdf) Block Diagram (file: CM370MV _BlkDia.pdf) Parts List (file: CM370MV _PartsLst.pdf) Operation Description (file: CM370MV _OpDes.doc) Tune Up Procedure (file: CM370MV _TunPro.doc) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Yuzhou Liu

Rev. 1/1/03 TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID: : U46-CM370MV To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: CM370MV _ExtPho.pdf)  Internal Photos (file: CM370MV _IntPho.pdf)  Test Setup Photos (file: CM370MV _Tsup.pdf)  User Manual (file: CM370MV _UserMan.pdf) The application contains technical information, which TELEEPOCH Limited. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Yuzhou Liu

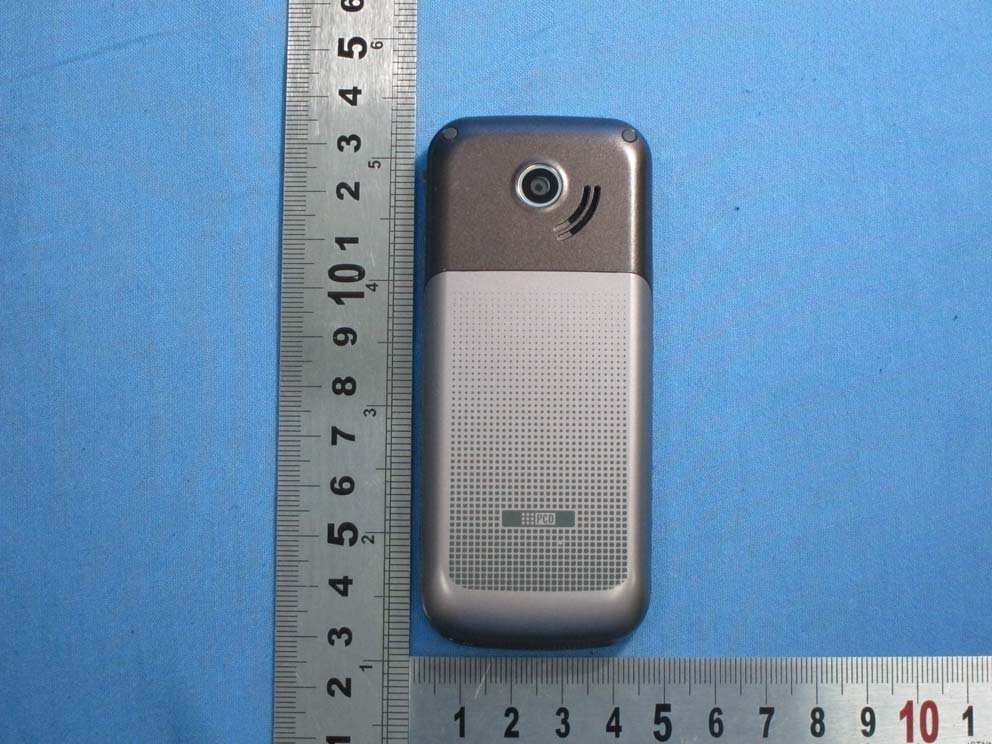

Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV 1. External Photograph of EUT Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV List of Accessory: Specification of Accessory AC Adapter Brand Name PCD Model Name ZDA050050US Battery Brand Name PCD Model Name BTR370B Earphone Signal Line 1.54m non-shielded With core USB Cable Signal Line 1.20m non-shielded without core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 18 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 19 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV

Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 20 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV 3. Internal Photograph of EUT Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 21 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 22 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 23 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 24 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 25 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV WWAN Ant enna Photographs of EUT Report No.: EP131537 Br a n d N a m e : PCD / M od e l N a m e : CM 3 7 0 M V SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 26 of 26 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 30 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV FCC SAR Test Report Report No. : FA131537 FCC SAR Test Report APPLICANT : Teleepoch Limited EQUIPMENT : CDMA mobile phone BRAND NAME : PCD MODEL NAME : CM370MV FCC ID : U46-CM370MV STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Mar. 15, 2011 and completely tested on Mar. 22, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 30 TEL : 86-0512-5790-0158 Report Issued Date : May 11, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-CM370MV FCC SAR Test Report Report No. : FA131537 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................15 5.7.1 Data Storage ...................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-22 System Check_Head_835MHz_110322 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_110322 Medium parameters used: f = 835 MHz; σ = 0.903 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.64 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.8 V/m; Power Drift = -0.0014 dB Peak SAR (extrapolated) = 3.63 W/kg SAR(1 g) = 2.44 mW/g; SAR(10 g) = 1.62 mW/g Maximum value of SAR (measured) = 2.63 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-22 System Check_Body_835MHz_110322 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110322 Medium parameters used: f = 835 MHz; σ = 0.978 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.65, 8.65, 8.65); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.79 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53 V/m; Power Drift = 0.0023 dB Peak SAR (extrapolated) = 3.89 W/kg SAR(1 g) = 2.6 mW/g; SAR(10 g) = 1.71 mW/g Maximum value of SAR (measured) = 2.81 mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-22 #06 CDMA2000 BC0_RC3 SO55_Right Cheek_Ch777 DUT: 131401 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: HSL_835_110322 Medium parameters used: f = 848.31 MHz; σ = 0.917 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch777/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.58 mW/g Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 32.3 V/m; Power Drift = 0.00855 dB Peak SAR (extrapolated) = 1.97 W/kg SAR(1 g) = 1.41 mW/g; SAR(10 g) = 1 mW/g Maximum value of SAR (measured) = 1.48 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-22 #06 CDMA2000 BC0_RC3 SO55_Right Cheek_Ch777_2D DUT: 131401 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: HSL_835_110322 Medium parameters used: f = 848.31 MHz; σ = 0.917 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch777/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.58 mW/g Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 32.3 V/m; Power Drift = 0.00855 dB Peak SAR (extrapolated) = 1.97 W/kg SAR(1 g) = 1.41 mW/g; SAR(10 g) = 1 mW/g Maximum value of SAR (measured) = 1.48 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-22 #02 CDMA2000 BC0_RC3 SO55_Right Tilted_Ch1013 DUT: 131401 Communication System: CDMA2000; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL_835_110322 Medium parameters used: f = 825 MHz; σ = 0.893 mho/m; ε r = 41.8; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch1013/Area Scan (51x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.754 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.1 V/m; Power Drift = 0.00585 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.678 mW/g; SAR(10 g) = 0.466 mW/g Maximum value of SAR (measured) = 0.738 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-3-22 #08 CDMA BC0_RMC SO55_Left Cheek_Ch777 DUT: 131401 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: HSL_835_110322 Medium parameters used: f = 848.31 MHz; σ = 0.917 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.67, 8.67, 8.67); Calibrated: 2010-11-23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Buil…
