U46-D3USB Wireless EVDO Modem

1 1 Wireless Internet USB Modem User’s Manual 2 2 Table of Contents 1．Introduction of the Wireless Internet USB Modem ·········· 3 1.1 Introduction ··························································································· 3 1.2 Safety Warnings and Precautions ·································································· 3 1.3 Scope of Use ·························································································· 4 1.4 Operating Environment for the Application Software ·········································· 4 1.5 Product Features ····················································································· 4 1.6 Product Specifications ··············································································· 4 2. Installation Instructions ········································· 4 2.1 Package Inspections ················································································· 4 2.2 Appearance ··························································································· 5 2.3 Hardware Installation ··············································································· 5 2.4 Software Installation ················································································ 5 2.5 Application ···························································································· 9 2.6 Safely Remove the Wireless Internet Modem ·················································· 9 2.7 Uninstalling the Software ·········································································· 9 3. Functional Operation ············································· 11 3.1 Description of the Interface ········································································ 11 3.1.1 Main Window ··············································································· 11 1. Functional Button Section: ···································································· 11 2. System Information Section： ································································ 12 3.1.2 Minimize Icon Description ································································· 12 1. Icon Tray Description ··········································································· 12 2. Icon Tray Use: ···················································································· 12 3.2 Internet Connection················································································· 12 1. Network Connection: ··········································································· 12 2. Disconnect from a Network: ·································································· 13 3. V iew Online Statistics ·········································································· 13 3.3 Receive a Message ·················································································· 13 3.4 Settings ······························································································· 13 3.5 Activation ····························································································· 14 3.6 Help ··································································································· 15 3 3 1．Introduction of the Wireless Internet USB Modem 1.1 Introduction The Wireless internet USB Modem is based on the CDMA 1X/EVDO network wireless internet modem. It utilizes the USB interface and it can be easily inserted into a USB port on a computer. Through the CDMA 1X/EVDO mobile network, both text receipt and data services can be received at any time, from any location.* 1.2 Safety Warnings and Precautions Personal Use  Use of RF devices, including this wireless internet modem, may possibly cause interference on electronics with inadequate shielding, such as certain electronic systems in motorized vehicles. When necessary, please inquire to the manufacturer about said equipment before using this wireless internet modem.  Please note the following when using this wireless internet modem with certain medical devices, such as hearing aids and pacemakers: Maintain a distance of 20 cm between the wireless internet modem and such medical devices. Turn off the wireless network modem when necessary. If you have any other questions, please inquire to the manufacturer of the device for more information before using the wireless internet modem.  Please note that use of the wireless internet modem may be restricted in locations with special requirements, such as hospitals, storage facilities for oil products, or places such as chemical factories where explosive materials are produced or processed. Please cease use of the wireless internet modem when requested.  Please keep the wireless internet modem out of children’s reach. This is not a toy. Damage or injury may result from misuse. Your Wireless Internet USB Modem  This wireless internet USB modem is to be used only with its original accessories, or accessories as approved by the manufacturer. Use of any other unapproved accessories may affect the usability and performance of the wireless internet modem and may violate the terms and conditions of the warranty for this product, and may violate national regulations relating to communication terminal products.  Please avoid using this device near metal structures or devices that emit electromagnetic waves, as they can affect signal reception.  This device is not water resistant. Please keep dry and store in a cool, dry location.  Please do not use this device immediately after significant temperature changes as condensation can occur on the inside and outside of the device. Please wait for the condensation to clear before use.  Please handle this device carefully. Please do not drop, bend, or strike the device, as it may become permanently damaged.  This device contains no user-serviceable parts. Please do not open. Repairs can only be made by qualified professionals.  Recommended operating e…

Text truncated - open the document above for the full version.

Teleepoch Limited 2/F,R2-A North Gate, Shenzhen High-Tech Industrial Nan Shan District, Shenzhen, Guangdong, China Tel: +86 0755 86029809 ; Fax: +86 0755 86029993 Date: October 5, 2010 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: U46-D3 To Whom It May Concern: We, Teleepoch Limited, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Yuzhou Liu

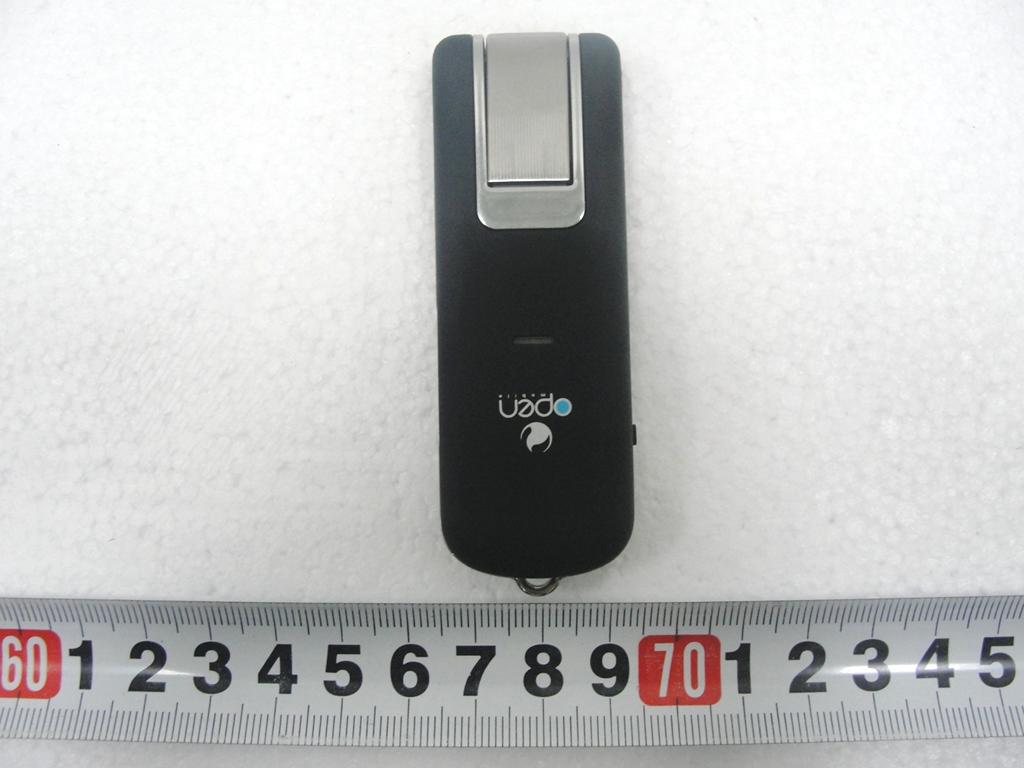

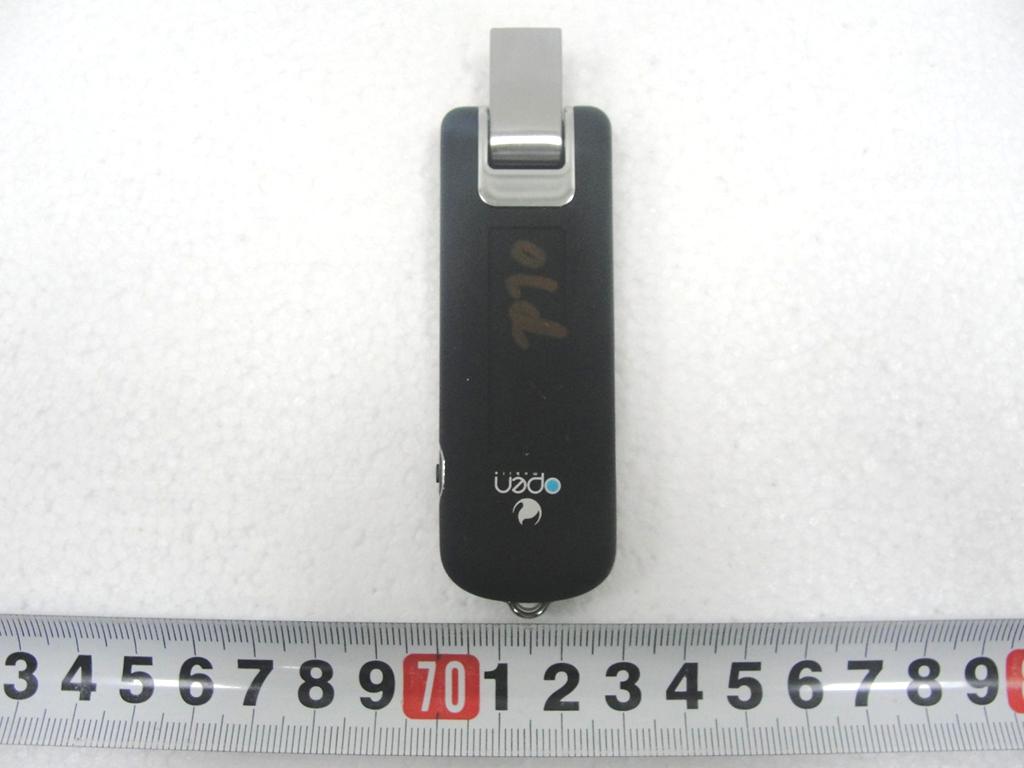

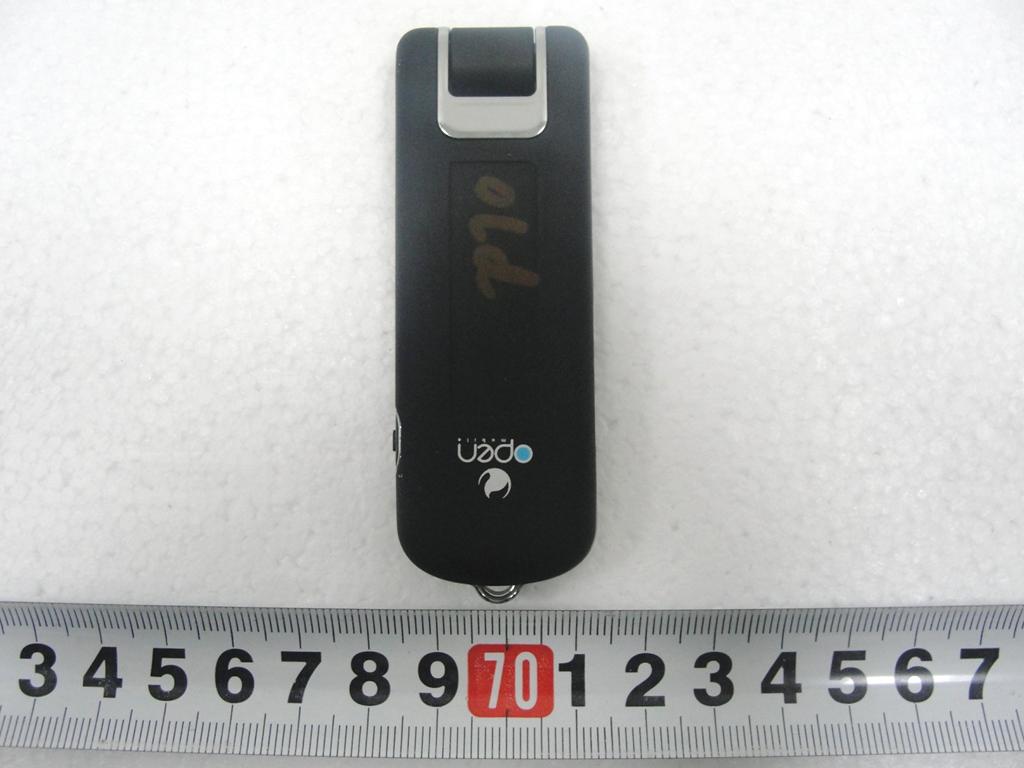

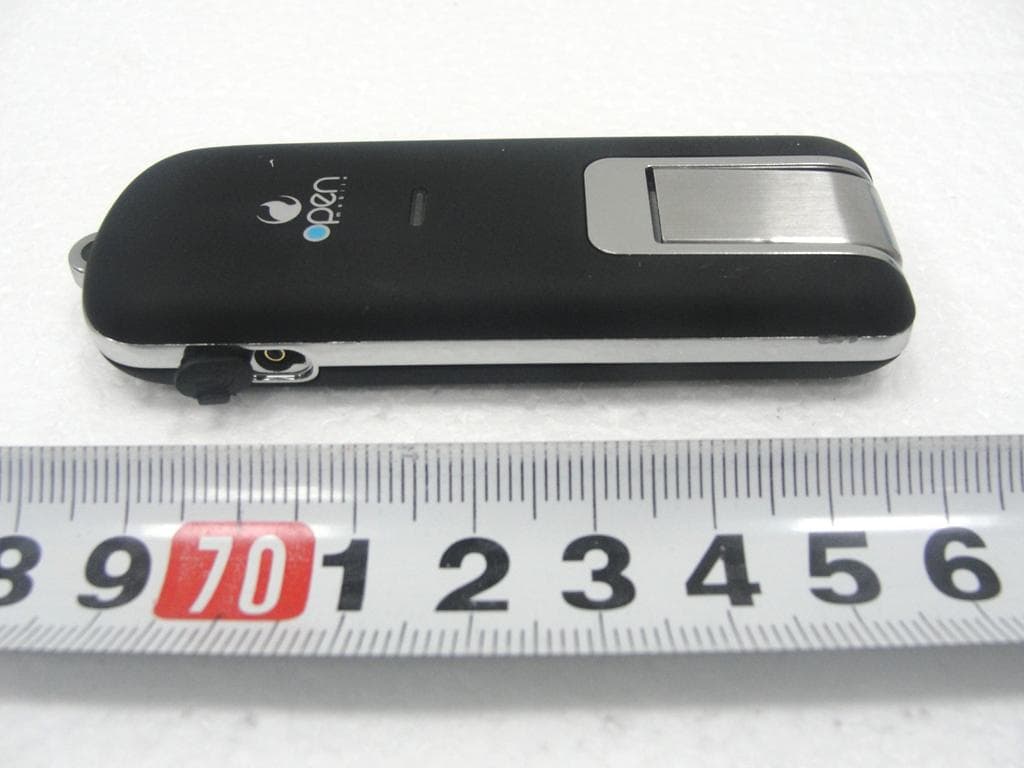

Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 1 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 1. External Photograph of EUT Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 2 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 3 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 4 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 5 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 6 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 7 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 8 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 720510

Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 9 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 2. Internal Photograph of EUT Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 10 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 11 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 12 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 13 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 14 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 15 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 16 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 WWAN Antenna <Rx> Photographs of EUT Report No.: EP080435 Model (Brand) Name: AI 100 (Open Mobile) / Hele 6085 (MobiPCS) SPORTON INTERNATIONAL INC. Page Number : 17 of 17 TEL : 886-3-327-3456 Report Issued Date : Oct. 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : U46-D3 720510 WWAN Antenna <Tx/Rx>

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 30, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-D3 FCC SAR Test Report Report No. : FA080435 FCC SAR Test Report APPLICANT : Teleepoch Limited EQUIPMENT : USB Wireless EVDO Modem MODEL (BRAND) NAME : AI 100 (Open Mobile) / Hele 6085 (MobiPCS) FCC ID : U46-D3 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Aug. 04, 2010 and completely tested on Sep. 27, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 28 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 30, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-D3 FCC SAR Test Report Report No. : FA080435 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................15 5.7.1 Data Storage ....…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 9/27/2010 System Check_Body_835MHz_100927 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_100927 Medium parameters used: f = 835 MHz; σ = 0.971 mho/m; ε r = 56; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid Temperature : 21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 31.7 V/m; Power Drift = -0.00112 dB Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 0.927 mW/g; SAR(10 g) = 0.612 mW/g Maximum value of SAR (measured) = 1.000 mW/g 0 dB = 1mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 9/27/2010 System Check_Body_1900MHz_100927 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_100927 Medium parameters used: f = 1900 MHz; σ = 1.51 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Ambient Temperature : 23.6 °C; Liquid Temperature : 21.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(7.04, 7.04, 7.04); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM1; Type: SAM; Serial: TP-1477 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.57 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.5 V/m; Power Drift = -0.035 dB Peak SAR (extrapolated) = 7.55 W/kg SAR(1 g) = 4.01 mW/g; SAR(10 g) = 2.06 mW/g Maximum value of SAR (measured) = 4.57 mW/ g 0 dB = 4.57mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 9/27/2010 #08 CDMA2000 BC0_RTAP 153.6_Horizontal Up_0.5cm_Ch777 DUT: 071206 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: MSL_850_100927 Medium parameters used: f = 848.31 MHz; σ = 0.983 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid Temperature : 21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch777/Area Scan (31x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.779 mW/g Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.6 V/m; Power Drift = -0.087 dB Peak SAR (extrapolated) = 1.81 W/kg SAR(1 g) = 0.640 mW/g; SAR(10 g) = 0.370 mW/g Maximum value of SAR (measured) = 0.641 mW/ g 0 dB = 0.641mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 9/27/2010 #09 CDMA2000 BC0_RTAP 153.6_Horizontal Down_0.5cm_Ch777 DUT: 071206 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: MSL_850_100927 Medium parameters used: f = 848.31 MHz; σ = 0.983 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid Temperature : 21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch777/Area Scan (41x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.784 mW/g Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.3 V/m; Power Drift = -0.086 dB Peak SAR (extrapolated) = 1.12 W/kg SAR(1 g) = 0.677 mW/g; SAR(10 g) = 0.412 mW/g Maximum value of SAR (measured) = 0.718 mW/ g 0 dB = 0.718mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 9/27/2010 #09 CDMA2000 BC0_RTAP 153.6_Horizontal Down_0.5cm_Ch777_2D DUT: 071206 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: MSL_850_100927 Medium parameters used: f = 848.31 MHz; σ = 0.983 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid Temperature : 21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch777/Area Scan (41x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.784 mW/g Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.3 V/m; Power Drift = -0.086 dB Peak SAR (extrapolated) = 1.12 W/kg SAR(1 g) = 0.677 mW/g; SAR(10 g) = 0.412 mW/g Maximum value of SAR (measured) = 0.718 mW/ g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 9/27/2010 #10 CDMA2000 BC0_RTAP 153.6_Vertical Front_0.5cm_Ch777 DUT: 071206 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: MSL_850_100927 Medium parameters used: f = 848.31 MHz; σ = 0.983 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid Temperature : 21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch777/Area Scan (31x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.329 mW/g Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.8 V/m; Power Drift = 0.100 dB Peak SAR (extrapolated) = 0.515 W/kg SAR(1 g) = 0.276 mW/g; SAR(10 g) = 0.166 mW/g Maximum value of SAR (measured) = 0.298 mW/g Ch777/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.8 V/m; Power Drift = 0.100 dB Peak SAR (extrapolated) = 0.349 W/kg SAR(1 g) = 0.234 mW/g; SAR(10 g) = 0.152 mW/g Maximum value of SAR (measured) = 0.259 mW/g 0 dB = 0.259mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 9/27/2010 #11 CDMA2000 BC0_RTAP 153.6_Vertical Back_0.5cm_Ch777 DUT: 071206 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: MSL_850_100927 Medium parameters used: f = 848.31 MHz; σ = 0.983 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid Temperature : 21.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(8.22, 8.22, 8.22); Calibrated: 11/23/2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2009/11/16 - Phantom: SAM2; Type: SAM; Serial: TP-1479 - Measurement SW : DASY5, V5.2 Build 162; SEMCAD X Version 14.0 Build 57 Ch777/Area Scan (31x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.450 mW/g Ch777/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.85 V/m; Power Drift = -0.102 dB Peak SAR (extrapolated) = 0.749 W/kg SAR(1 g) = 0.372 mW/g; SAR(10 g) = 0.211 mW/g Maximum value of SAR (measured) = 0.397 mW/ g 0 dB = 0.397mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 9/27/2010 #12 CDMA2000 BC0_RTAP 153.6_Tip_0.5cm_Ch777 DUT: 071206 Communication System: CDMA2000; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: MSL_850_100927 Medium parameters used: f = 848.31 MHz; σ = 0.983 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Ambient Temperature : 23.5 °C; Liquid …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F1 of F6 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 30, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-D3 FCC SAR Test Report Report No. : FA080435 Appendix F. FCC 3G SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the 3.1.2.3.4. A detailed analysis of the output power verification is provided as the table below: Function Type Reverse Traffic Channel Test Mode Radio Configuration Service Option Data Rates (kbps) Power Control Low Ch Mid. Ch High Ch Forward Traffic Channel (Fwd) Reverse Traffic Channel (Rvs) 1013 384 777 CDMA2000 Cellular FCH 1 1 1 55 Full All Up 23.19 23.01 23.38 3 3 3 55 Full All Up 23.22 23.09 23.34 3 3 3 32 Full All Up 23.29 23.06 23.40 FCH+SCH 3 3 3 32 FCH:Full,SCH 9.6 All Up 23.27 23.08 23.41 EVDO Rev.0* Subtype:0 RTAP 153.6 All Up 23.24 23.03 23.50 EVDO Rev.A* Subtype:0 RETAP 4096 All Up 23.37 23.01 23.35 Function Type Reverse Traffic Channel Test Mode Radio Configuration Service Option Data Rates (kbps) Power Control Low Ch Mid. Ch High Ch Forward Traffic Channel (Fwd) Reverse Traffic Channel (Rvs) 25 600 1175 CDMA2000 PCS FCH 1 1 1 55 Full All Up 22.55 23.27 23.54 3 3 3 55 Full All Up 22.71 23.30 23.44 3 3 3 32 Full All Up 22.68 23.23 23.67 FCH+SCH 3 3 3 32 FCH:Full,SCH 9.6 All Up 22.60 23.21 23.56 EVDO Rev.0* Subtype:0 RTAP 153.6 All Up 22.80 23.44 23.84 EVDO Rev.A* Subtype:0 RETAP 4096 All Up 22.70 23.35 23.40 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F2 of F6 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 30, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-D3 FCC SAR Test Report Report No. : FA080435 CDMA2000 Setup Configuration: Setup Configuration 1. The EUT was connected to System Simulator, Agilent 8960. Refer to the drawing of Setup Configuration. 2. The RF path losses were compensated into the measurements. 3. A call was established between EUT and System Simulator with following setting: a. For 1xRTT, set the Radio Configuration and the Service Option b. For 1xEV-DO, set the Protocol Release and Data Rate c. Set the Power Control to All Up Bits 4. The transmitted maximum output power was recorded. 1xRTT setting for Radio Configuration 1 with Service Option 55 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : F3 of F6 TEL : 86-0512-5790-0158 Report Issued Date : Sep. 30, 2010 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-D3 FCC SAR Test Report Report No. : FA080435 1xRTT setting for Radio Configuration 3 with Service…
