U46-M570ACDMA Mobile Phone

1 Mobile Phone User Guide 2 Contents 1. Safety and Cautions ....................................................................................................................................... 5 2. Look and Feel ................................................................................................................................................. 6 3. Getting Started ............................................................................................................................................... 8 Box contents ................................................................................................................................................................... 8 Installing the battery ................................................................................................................................................... 8 Charging your battery ................................................................................................................................................. 8 MicroSD Card Loading ................................................................................................................................................. 9 4. Essential Topics .......................................................................................................................................... 10 Communication Control keys ................................................................................................................................. 10 Navigation keys and Soft keys ................................................................................................................................ 10 Standby screen............................................................................................................................................................. 10 The Keypad ................................................................................................................................................................... 10 Backlight ........................................................................................................................................................................ 10 Alert modes ................................................................................................................................................................... 10 5. Display Icons ................................................................................................................................................ 11 6. Basic Operations ......................................................................................................................................... 12 Turning on the phone ................................................................................................................................................ 12 Turning off the phone ................................................................................................................................................ 12 Answering a call .......................................................................................................................................................... 12 Dialing a phone number ........................................................................................................................................... 12 Rejecting an incoming call ....................................................................................................................................... 12 Dialing a number from call history ....................................................................................................................... 12 Ending a call .................................................................................................................................................................. 12 Dialing a number from Contacts ............................................................................................................................ 12 Adding a Contact ......................................................................................................................................................... 13 Silencing a ring ............................................................................................................................................................ 13 Adjusting the volume during a call ....................................................................................................................... 13 Missed call ..................................................................................................................................................................... 13 7. Using the Menu ............................................................................................................................................ 13 Accessing the main menu ......................................................................................................................................... 13 Returning to the previous menu ............................................................................................................................ 13 Returning to the standby screen from anywhere in the menu .................................................................... 13 8. Messages ........................................................................................................................................................ 14 New text Message (SMS) ........................................................................................................................................... 15 Inbox ............................................................................................................................................................................... 15 Outbox ..................................................................................…

Text truncated - open the document above for the full version.

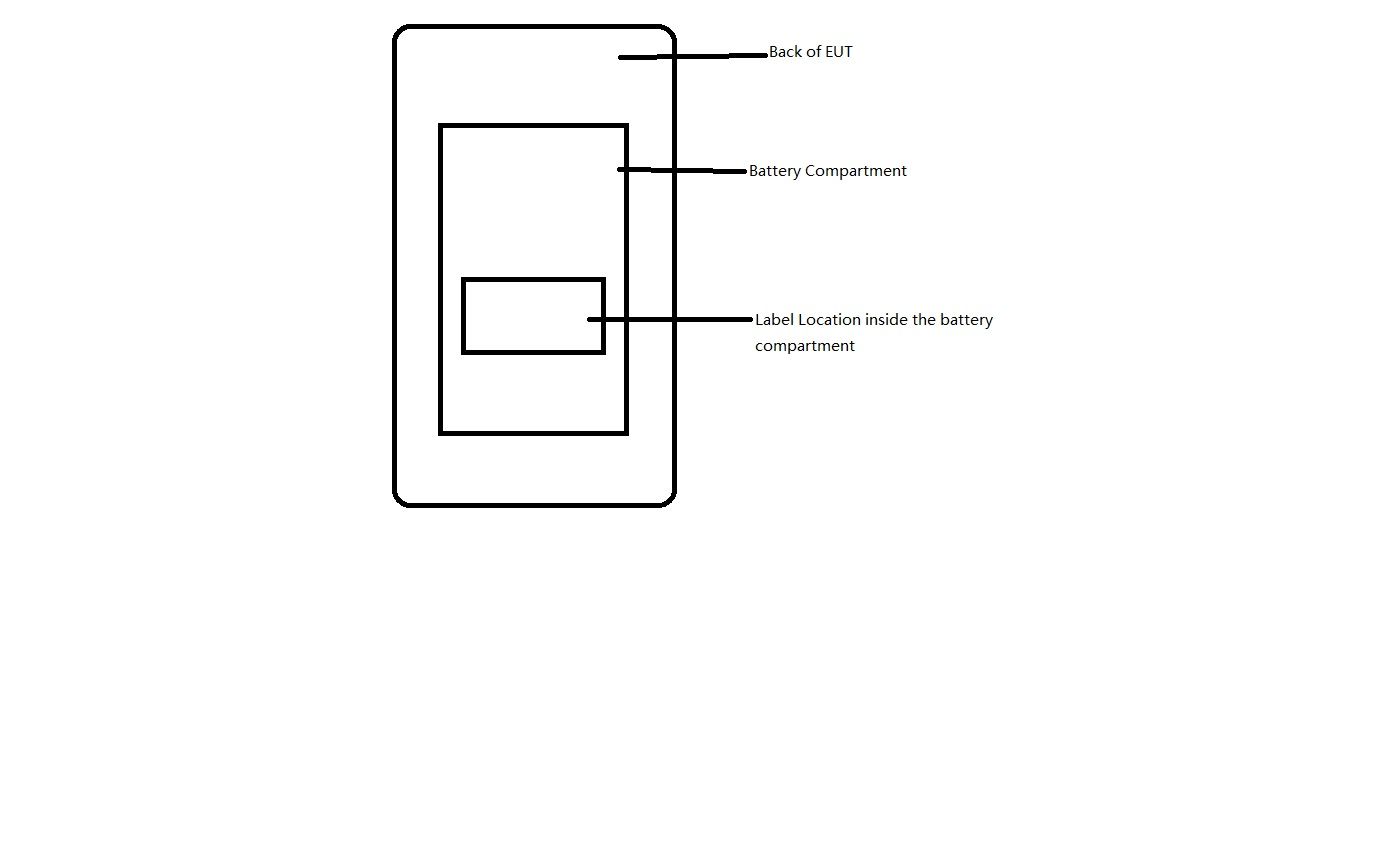

TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Date: May 27, 2011 Statement We, TELEEPOCH Limited , states that our device, FCC ID: U46-M570A , has no space to put the label except the bottom of this device. The label will put on the bottom of the device and it is visible to the users as they purchase the products. Sincerely yours, Yuzhou Liu

TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Date: May 27, 2011 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: U46-M570A To Whom It May Concern: We, TELEEPOCH Limited , hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Yuzhou Liu

TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Date: May 27, 2011 Power of Attorney To whom it may concern, Please be notified that we, TELEEPOCH Limited . , have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: U46-M570A If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Yuzhou Liu Company: TELEEPOCH Limited . , TEL: +86 755 86029809 FAX: +86 755 86029993 E-mail: [email protected]

Rev. 1/1/03 TELEEPOCH Limited 2/F, R2-A North Gate, Shenzhen High-Tech Industria Nanshan District, Shenzhen Tel: +86 755 86029809 Fax: +86 755 86029993 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID: : U46-M570A To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos (file: M570 _ExtPho.pdf)  Internal Photos (file: M570 _IntPho.pdf)  Test Setup Photos (file: M570 _Tsup.pdf)  User Manual (file: M570 _UserMan.pdf) The application contains technical information, which TELEEPOCH Limited deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Yuzhou Liu

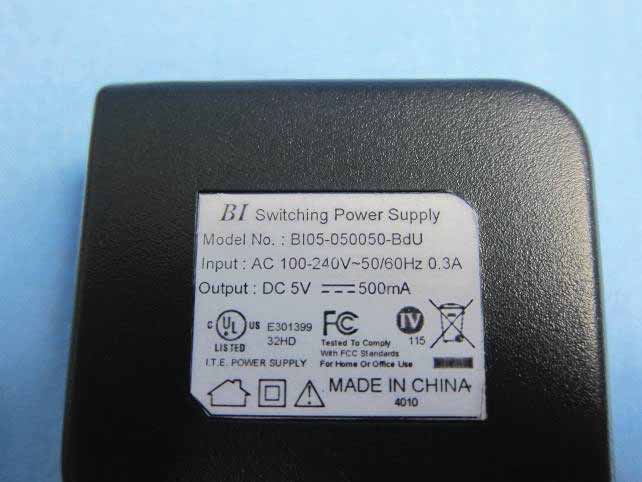

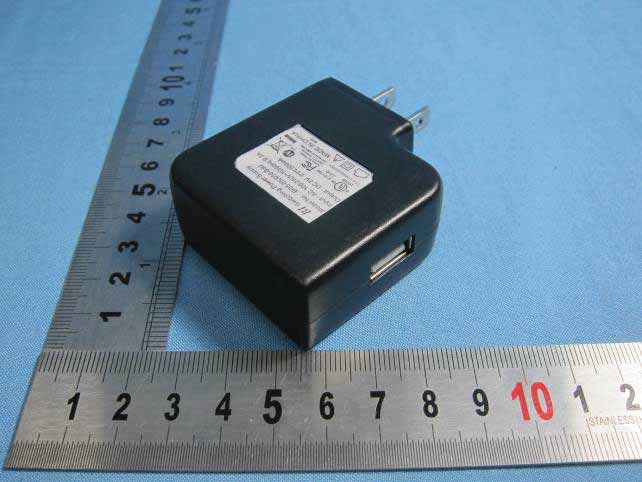

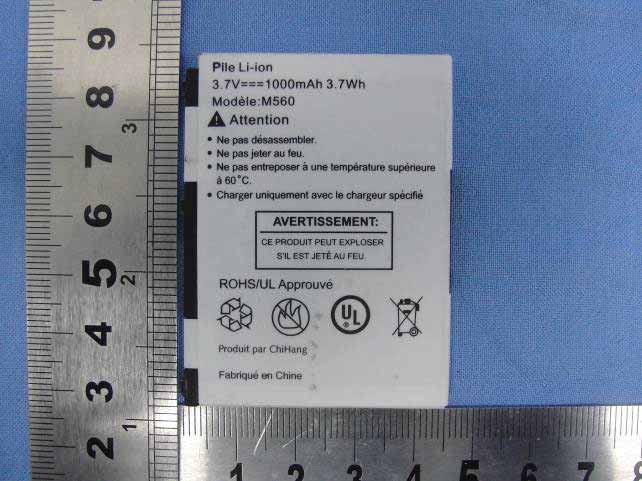

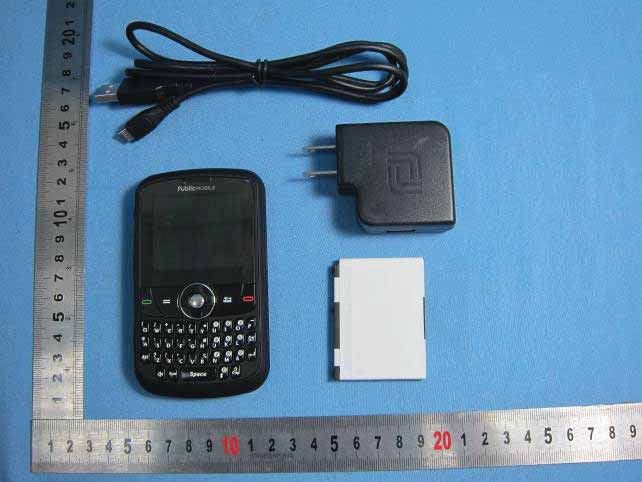

Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A 1. External Photograph of EUT Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 3 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 4 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 5 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 6 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 7 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 8 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 9 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A List of Accessory: Specification of Accessory AC Adapter Brand Name BI Model Name BI05-050050-BdU Battery Model Name M560 USB Cable Signal Line 1meter, non-shielded cable, w/o ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 10 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 22 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A

Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 11 of 17 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A 3. Internal Photograph of EUT Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 12 of 17 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 13 of 17 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 14 of 17 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 15 of 17 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A Bluetooth Antenna Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 16 of 17 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A WWAN Antenna Photographs of EUT Report No.: EP0N0835-01 Brand Name: OPEN MOBILE\PUBLIC MOBILE / Model Name: M570 SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 17 of 17 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A GPS Antenna

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 1 of 31 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A FCC SAR Test Report Report No. : FA0N0835-01 FCC SAR Test Report APPLICANT : TELEEPOCH Limited EQUIPMENT : CDMA Mobile Phone BRAND NAME : OPEN MOBILE \ PUBLIC MOBILE MODEL NAME : M570 FCC ID : U46-M570A STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Apr. 19, 2011 and completely tested on Apr. 26, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (KUNSHAN) INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL (KUNSHAN) INC. No. 3-2, PingXiang Road, Kunshan, Jiangsu Province, P.R.C. SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : 2 of 31 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A FCC SAR Test Report Report No. : FA0N0835-01 Table of Contents Revision History .................................................................................................................................................................3 1.Statement of Compliance ...........................................................................................................................................4 2.Administration Data ....................................................................................................................................................5 2.1Testing Laboratory .............................................................................................................................................5 2.2Applicant ............................................................................................................................................................5 2.3Manufacturer .....................................................................................................................................................5 2.4Application Details .............................................................................................................................................5 3.General Information ....................................................................................................................................................6 3.1Description of Device Under Test (DUT) ............................................................................................................6 3.2Product Photos ..................................................................................................................................................6 3.3Applied Standards .............................................................................................................................................7 3.4Device Category and SAR Limits ......................................................................................................................7 3.5Test Conditions ..................................................................................................................................................7 3.5.1Ambient Condition ...................................................................................................................................7 3.5.2Test Configuration ....................................................................................................................................7 4.Specific Absorption Rate (SAR) .................................................................................................................................8 4.1Introduction ........................................................................................................................................................8 4.2SAR Definition ...................................................................................................................................................8 5.SAR Measurement System .........................................................................................................................................9 5.1E-Field Probe...................................................................................................................................................10 5.1.1E-Field Probe Specification ....................................................................................................................10 5.1.2E-Field Probe Calibration ....................................................................................................................... 11 5.2Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3Robot ............................................................................................................................................................... 11 5.4Measurement Server .......................................................................................................................................12 5.5Phantom ..........................................................................................................................................................13 5.6Device Holder ..................................................................................................................................................14 5.7Data Storage and Evaluation ...................................................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (KUNSHAN) INC. Page Number : A1 of A1 TEL : 86-0512-5790-0158 Report Issued Date : May 26, 2011 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : U46-M570A FCC SAR Test Report Report No. : FA0N0835-01 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-25 System Check_Head_835MHz_110425 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_110425 Medium parameters used: f = 835 MHz; ı = 0.91 mho/m; İ r = 41.8; ȡ = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅ˆˁˆʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˆʳк DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.81, 5.81, 5.81); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.4 V/m; Power Drift = 0.0034 dB Peak SAR (extrapolated) = 3.48 W/kg SAR(1 g) = 2.32 mW/g; SAR(10 g) = 1.52 mW/g Maximum value of SAR (measured) = 2.51 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-25 System Check_Body_835MHz_110425 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_110425 Medium parameters used: f = 835 MHz; ı = 0.977 mho/m; İ r = 54.4; ȡ = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅ˆˁˇʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˈʳк DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(5.79, 5.79, 5.79); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.7 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.7 V/m; Power Drift = 0.027 dB Peak SAR (extrapolated) = 3.7 W/kg SAR(1 g) = 2.5 mW/g; SAR(10 g) = 1.64 mW/g Maximum value of SAR (measured) = 2.7 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-25 System Check_Head_1800MHz_110425 DUT: Dipole 1800 MHz Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800_110425 Medium parameters used: f = 1800 MHz; ı = 1.44 mho/m; İ r = 41.1; ȡ = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅ˆˁˆʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˇʳк DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.94, 4.94, 4.94); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM1; Type: SAM; Serial: TP-1479 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.7 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.4 V/m; Power Drift = 0.084 dB Peak SAR (extrapolated) = 18.5 W/kg SAR(1 g) = 10.3 mW/g; SAR(10 g) = 5.42 mW/g Maximum value of SAR (measured) = 11.6 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-25 System Check_Body_1800MHz_110425 DUT: Dipole 1800 MHz Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: MSL_1800_110425 Medium parameters used: f = 1800 MHz; ı = 1.55 mho/m; İ r = 52.2; ȡ = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅ˆˁˆʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˈʳк DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.52, 4.52, 4.52); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.9 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 81.8 V/m; Power Drift = 0.00273 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 9.89 mW/g; SAR(10 g) = 5.24 mW/g Maximum value of SAR (measured) = 11.2 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-25 System Check_Head_1900MHz_110425 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_110425 Medium parameters used: f = 1900 MHz; ı = 1.42 mho/m; İ r = 39.7; ȡ = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅ˆˁˇʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˇʳк DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.73, 4.73, 4.73); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1210; Calibrated: 2010-11-18 - Phantom: SAM3; Type: SAM; Serial: TP-1477 - Measurement SW: DASY5, V5.2 Build 157; SEMCAD X Version 14.0 Build 57 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.3 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 84.9 V/m; Power Drift = 0.039 dB Peak SAR (extrapolated) = 18 W/kg SAR(1 g) = 9.61 mW/g; SAR(10 g) = 4.96 mW/g Maximum value of SAR (measured) = 10.8 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2011-4-25 System Check_Body_1900MHz_110425 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_110425 Medium parameters used: f = 1900 MHz; ı = 1.51 mho/m; İ r = 53.9; ȡ = 1000 kg/m 3 ˔̀˵˼˸́̇ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅ˆˁˈʳкˎʳʳ˟˼̄̈˼˷ʳ˧˸̀̃˸̅˴̇̈̅˸Κ˅˄ˁˉʳк DASY5 Configuration: - Probe: ES3DV3 - SN3071; ConvF(4.3, 4.3, 4.3); Calibrated: 2010-6-22 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE…

Text truncated - open the document above for the full version.

SPORTON INT TEL : 86-0512- FAX : 86-0512 FCC ID : U46- Append Conducte The EUT wa A detailed a Function Type CDMA2000 Cellular Function Type CDMA2000 PCS Function Type CDMA2000 BC14 TERNATIONAL -5790-0158 -5790-0958 M570A FCC SA dix F. F ed Output as tested acc analysis of th Reverse Traffic Channel FCH F-SCH SCH Reverse Traffic Channel FCH F-SCH SCH Reverse Traffic Channel FCH F-SCH SCH L (KUNSHAN) I AR Test Re FCC CDM t Power: cording to th he output pow Test Mode Ch 1 3 3 3 Test Mode C 1 3 3 3 Test Mode C 1 3 3 3 NC. eport MA2000S e requireme wer verificatio Radio Confi Forward Traffic hannel (Fwd)C 1 3 3 3 Radio Conf Forward Traffic hannel (Fwd)C 1 3 3 3 Radio Conf Forward Traffic hannel (Fwd)C 1 3 3 3 SAR Mea nts of the FC on is provide iguration Reverse Traffic Channel (Rvs) 1 3 3 3 figuration Reverse Traffic Channel (Rvs) 1 3 3 3 figuration Reverse Traffic Channel (Rvs) 1 3 3 3 asuremen CC 3G proce ed as the tab Service Option Da 55 55 32FCH 32FCH Service Option Da 55 55 32 FCH: 32 FCH: Service Option Da 55 55 32 FCH: 32 FCH: Page Num Report Issu Report Vers Re nt Proced edures and th le below: ata Rates (kbps) C Full Full :Full,SCH 9.6 :Full,SCH 9.6 ata Rates (kbps) C Full Full Full,SCH 9.6 Full,SCH 9.6 ata Rates (kbps) C Full Full Full,SCH 9.6 Full,SCH 9.6 mber : F1 ued Date : Ma sion : Re eport No. : FA dures he 3.1.2.3.4. Power Control Low 101 All Up 23.3 All Up 23.3 All Up 23.3 All Up 23.2 Power Control L…

Text truncated - open the document above for the full version.
