U4MML350GCOMPUTER SERVER

HP ProLiant ML350 G5 Server - Theory of Operation Overview System Architecture Standard features Overview Building on a tradition of excellence, the HP ProLiant family introduces the fifth generation HP ProLiant ML350 server. The HP ProLiant ML350 G5 server provides Dual-Core performance, enterprise level management, and highly available redundant options in a modular server form factor. The new ProLiant ML350 G5 is available with the Intel Xeon 5300 series Quad core processors and 5000/5100 series dual core processors; these new processors include a 8 MB Level 2 cache, up to a 1333 MHz front side bus, and ultra-low power consumption providing outstanding performance and value for the most demanding server environments. top System Architecture HP Proliant ML350 G5 servers have a well-balanced system architecture for unprecedented performance and technology improvements Figure 1: HP Proliant ML350 G5 system architecture block diagram MCH - Memory Controller Hub. It is the system bus arbortration controller. ESB2 - Enterprise South Bridge #2. ESB2 is the System I/O controller. top Standard features Processors: Dual-Core and Quad-Core Intel Xeon 5000 sequence processors with up to 8 MB Level 2 cache for blazing performance; systems support up to 2 processors 1333/1066/667 MHz front side bus (FSB). Intel 5000Z chipset. Memory: Eight PC2-5300 FB-DIMMs (DDR2 667) sockets with Online-Spare support for cost-effective memory configuration and expansion. Up to 16 GB of memory, supported by (8) slots of PC2-5300 Fully Buffered DIMMs (DDR2-667); 4:1 interleaving; and online spare Up to 32 GB of memory supported on Quad-Core (5300 series) models NOTE: Memory DIMMs in systems with the Front Side Bus (FSB) running at 1333 MHz will run at 667 MHz and in systems with a FSB running at 1066 MHz or 667 MHz the memory DIMMs will run at 533 MHz. Storage Controllers: Entry Models: Smart Array E200i Controller (integrated SAS/SATA Hot-Plug Controller with RAID 0/1 support). Base Modes: Smart Array E200i Controller with 128 MB BBWC included. 128 MB BBWC optional upgrade kit for RAID 5 support also available. Internal Drive Support: Up to eight SFF (2.5") or six LFF (3.5") Hot Plug Serial Attached SCSI (SAS) or Serial-ATA (SATA) hard drives. Maximum of 4.50 TB of internal storage capacity (using Hot-Plug SATA drives). Network Controller: Embedded NC373i Multifunction Gigabit Network Adapter with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional ProLiant Essentials Licensing Kit. Expansion Slots: Six total expansion slots. One 64-bit/133 MHz PCI-X; two 64-bit/100 MHz PCI-X; three x8 PCI Express (x4 speed). Optional PCI-X Expander provides additional two 64-bit/100 MHz PCI- X slots by converting a single PCI Express slot USB Ports: Six USB 2.0 ports: (2) front; (2) rear; (2) internal. Redundancy: Optional Hot plug redundant power supplies. Support for optional redundant system fans. Management: Integrated Lights-Out 2 (iLO 2) standard for remote management. Support for ROM-Based Setup Utility (RBSU) and redundant ROM. Systems Insight Manager, SmartStart, and Automatic Server Recovery 2 (ASR-2). HP Power Meter and Power Regulator for ProLiant, delivering integrated power consumption monitoring and server level, policy based power management for industry leading energy efficiency and savings on system power and cooling costs. Deployment/Serviceability: Optional parallel and second serial port available without using a PCI slot. Tool-free chassis entry and component access. Tool-free motherboard removal. Universal rail solution supporting both square and round hole rack environments. Warranty: Protected by HP Services and a worldwide network of resellers and service providers. Three-year Next Business Day, onsite limited global warranty. Certain restrictions and exclusions apply. Pre-Failure Notification on processors, memory, and SAS hard drives. SATA hard drives have a one-year warranty. top HP ProLiant ML350 G5 Server - System Views Front View Rear View Internal View Front View Figure 1: ML350 G5 Server - Front View Figure 2: Front Panel Components Item Description 1 Removable media bays (4) 2 CD-ROM drive 3 Floppy disk drive (optional) 4 Hot-plug hard drive bays 5 USB connectors (2) Figure 3: Front panel LEDs and buttons Item Description Status 1 System power LED Green = Power on Amber = System shut down, but power still applied Off = No power 2 External health LED (power supply) Green = Normal Amber = Power redundancy failure Red = Critical power supply failure 3 NIC 1 activity LED Green = Network link Flashing = Network link and activity Off = No link to network. If power is off, view status on the rear panel RJ-45 LEDs 4 NIC 2/iLO activity LED Green = Network link Flashing = Network link and activity Off = No link to network. If power is off, view status on the rear panel RJ-45 LEDs 5 UID LED Blue = Activated Flashing = System remotely managed Off = Deactivated 6 UID button - 7 Internal health LED Green = Normal Amber = System degraded. Red = System critical. Off = Normal (when in standby mode) 8 Power On/Standby button - top Rear View Figure 4: Rear View Item Description 1 Video connector 2 Serial connector 3 USB connectors (2) 4 RJ-45 Ethernet connector (iLO 2 management) 5 RJ-45 Ethernet connector (data) 6 PCI Express x8 slots (x4 routed) 7 PCI-X slots (100 MHz) 8 PCI-X slot (133 MHz) 9 Optional redundant hot-plug power supply bay 10 Mouse connector 11 Keyboard connector Item Description 12 Power cord connector Figure 5: Rear panel LEDs and buttons Item Description Status 1 UID LED and button Blue = Activated Flashing blue = Remote inquiry Off = Deactivated 2 iLO 2/data activity LED Green or flashing = Network activity Off = No network activity 3 iLO 2/data link LED Green = Linked to network Off = Not linked to network 4 10/100/1000 NIC activity LED Green or flashing = Network activity Off = No network activity 5 10/100/1000 NIC link LED Green = Linked to network Off = Not li…

Text truncated - open the document above for the full version.

HP Proliant ML350G5 Series Block Diagrams FIGURE 1 - EUT Block Diagram

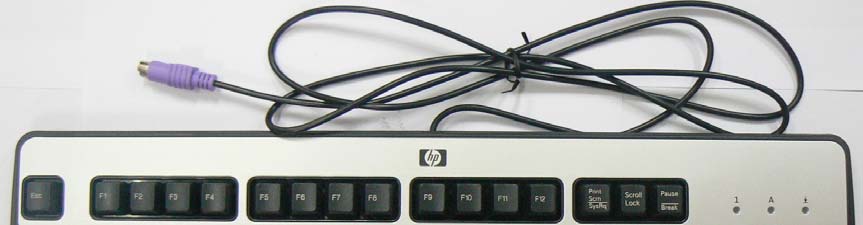

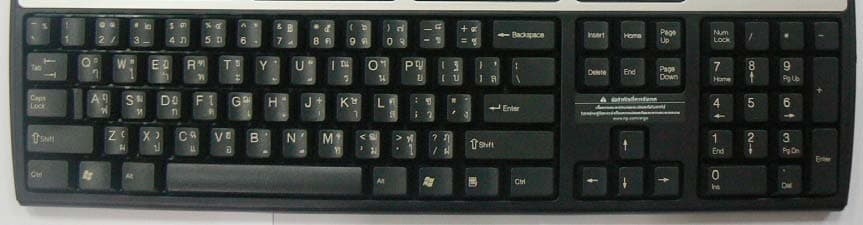

HP ProLiant ML350G5 Series External Photos Front Rear Left Right FIGTURE 1 – CUP Case Front Rear Left Right FIGTURE 2 – LCD Monitor FIGTURE 3 - Mouse FIGTURE 4 - Key board

HP ProLiant ML350G5 Series FCC ID label location information FIGURE 1 - FCC ID Label Location

HP ProLiant ML350G5 Series FCC ID label sample PROLIANT MODEL: ML350G5 SERIES FCC ID: TWTML350G5 This device complies with part 15 of the FCC rule Operation is subject to the Following two conditions: [1] this device may not cause harmful interference. And [2] this device must accept any interference received including in That may cause undesired operation. PROLIANT MODEL: ML350G5 SERIES FCC ID: TWTML350G5 This device complies with part 15 of the FCC rule Operation is subject to the Following two conditions: [1] this device may not cause harmful interference. And [2] this device must accept any interference received including in That may cause undesired operation. U4MML350G FIGURE 1 - FCC ID Label

HP ProLiant ML350G5 Series Internal Photos FIGURE 1 - CPU case FIGURE 2 - Power Supply Front Rear FIGURE 3 - Main Board Front Rear FIGURE 4 - CPU Front Rear FIGURE 5 - Hard Disk Front Rear FIGURE 6 – RAM FIGURE 7 - DVD-Rom Front Rear FIGURE 8 – External Hard disk Slot Front Rear FIGURE 9 – ROM Front Rear FIGURE 10 – Switching Power Supply Socket

REPORT No. 013 / 50-24 Page 1 of 29 This test report is test results from the EUT only, not the product’s quality certificate. It shall not be reproduced except in full without the written approval of testing laboratory. Electrical and Electronic Products Testing Center National Science and Technology Development Agency, Ministry of Science and Technology PTEC Building, King Mongkut’s Institute of Technology Ladkrabang, Chalongkrung Road, Ladkrabang, Bangkok, Thailand 10520 Tel. +66-2739-2188..96, Fax +66-2739-2199, website www.ptec.or.th PTEC-02-03-013 REV.15/15-08-06 T T E E S S T T R R E E P P O O R R T T EUT Number: 50-145 Equipment Under Test: Computer Server Trade Name: HP Model: HP ProLiant ML350 Serial Number: CN7707025H Customer: Hewlett-Packard (Thailand) Ltd. 2 nd -3 rd Floor, U Chu Liang Building, 968 Rama IV Road, Silom, Bangrak Bangkok 10500 Manufactured by: Hewlett-Packard (Thailand) Ltd. Receipt Date: 28 February 2007 Date of Test: 2-6 March 2007 Issued Date of Report: 16 March 2007 Approved by ______________________________ MR. Montri Pannarut Operation Manager REPORT No. 013 / 50-24 Page 2 of 29 This test report is test results from the EUT only, not the product’s quality certificate. It shall not be reproduced except in full without the written approval of testing laboratory. Electrical and Electronic Products Testing Center National Science and Technology Development Agency, Ministry of Science and Technology PTEC Building, King Mongkut’s Institute of Technology Ladkrabang, Chalongkrung Road, Ladkrabang, Bangkok, Thailand 10520 Tel. +66-2739-2188..96, Fax +66-2739-2199, website www.ptec.or.th PTEC-02-03-013 REV.15/15-08-06 CONTENTS 1. SUMMARY OF TESTING 3 2. TEST PLAN AND DEVIATIONS FROM STANDARD 4 2.1 Test Plan 4 2.2 Deviations from standard 4 3 TEST CONDITIONS 5 3.1 Operation Mode 5 3.2 Uncertainty Application 5 3.3 Equipment Classifications 7 3.4 Protection Classifications 7 3.5 Performance Criteria of Test Specification 7 3.6 EUT Function Monitoring 7 4 TEST SYSTEM CONFIGURATION 7 4.1 EUT Exercise Software 7 4.2 EUT Modifications 7 5. EUT DESCRIPTION 8 5.1 EUT Specification 8 5.2 EUT Configuration 9 5.3 Peripherals Description 9 5.4 Cables Description 9 6 TEST SETUP AND RESULT 10 6.1 Test Item : Conducted Emission 10 6.2 Test Item : Radiated Disturbance 13 7 APPENDIX 17 REPORT No. 013 / 50-24 Page 3 of 29 This test report is test results from the EUT only, not the product’s quality certificate. It shall not be reproduced except in full without the written approval of testing laboratory. Electrical and Electronic Products Testing Center National Science and Technology Development Agency, Ministry of Science and Technology PTEC Building, King Mongkut’s Institute of Technology Ladkrabang, Chalongkrung Road, Ladkrabang, Bangkok, Thailand 10520 Tel. +66-2739-2188..96, Fax +66-2739-2199, website www.ptec.or.th PTEC-02-03-013 REV.15/15-08-06 1. SUMMARY OF TESTING This product was tested and complied according to following specification standard: FCC Part 15 Radio frequency devices Test Item Test Specification Test Method Result Conducted Emission FCC Part 15 Subpart B Section 15.107(a) ANSI C63.4-2003 PASS Radiated Disturbance FCC Part 15 Subpart B Section 15.109(a) ANSI C63.4-2003 PASS REPORT No. 013 / 50-24 Page 4 of 29 This test report is test results from the EUT only, not the product’s quality certificate. It shall not be reproduced except in full without the written approval of testing laboratory. Electrical and Electronic Products Testing Center National Science and Technology Development Agency, Ministry of Science and Technology PTEC Building, King Mongkut’s Institute of Technology Ladkrabang, Chalongkrung Road, Ladkrabang, Bangkok, Thailand 10520 Tel. +66-2739-2188..96, Fax +66-2739-2199, website www.ptec.or.th PTEC-02-03-013 REV.15/15-08-06 2. TEST PLAN AND DEVIATIONS FROM STANDARD 2.1 Test Plan No. Test Item Input Voltage Mode Test Port Test Specification 1 Conducted Emission 110 Vac 60 Hz A AC Main FCC Part 15 Subpart B Section 15.107(a) 2 Radiated Disturbance 110 Vac 60 Hz A Enclosure FCC Part 15 Subpart B Section 15.109(a) 2.2 Deviations from standard - REPORT No. 013 / 50-24 Page 5 of 29 This test report is test results from the EUT only, not the product’s quality certificate. It shall not be reproduced except in full without the written approval of testing laboratory. Electrical and Electronic Products Testing Center National Science and Technology Development Agency, Ministry of Science and Technology PTEC Building, King Mongkut’s Institute of Technology Ladkrabang, Chalongkrung Road, Ladkrabang, Bangkok, Thailand 10520 Tel. +66-2739-2188..96, Fax +66-2739-2199, website www.ptec.or.th PTEC-02-03-013 REV.15/15-08-06 3 TEST CONDITIONS 3.1 Operation Mode A: Run Burn in Software (PC. Performance Test). 3.2 Uncertainty Application 3.2.1 Uncertainty application according to CISPR 16-4-2:2003 for Conducted Emission , Radiated Disturbance and Disturbance Power Testing. Compliance or Non-Compliance with a disturbance limit was determined in the following manner If U lab is less than or equal to U cispr in table 1, then: - Compliance is deemed to occur if no measured disturbance exceeds the disturbance limit. - Non-Compliance is deemed to occur if any measured disturbance exceeds the disturbance limit. If U lab is greater than U cispr in table 1, then: - Compliance is deemed to occur if no measured disturbance, increased by ( U lab - U cispr ), exceeds the disturbance limit. - Non-Compliance is deemed to occur if any measured disturbance, increased by ( U lab -U cispr ), exceeds the disturbance limit. Table 1 – Values of U cispr Abbreviation Testing system Frequency range U lab U cispr U lab - U cispr CE Conducted Emission 9 kHz - 150 kHz 3.02 4.00 -0.98 CE Conducted Emission 150 kHz - 30 MHz 3.61 3.60 -0.01 RE Radiated Disturbance 30 MHz – 1000 MHz 4.78 5.20 -0.42 PE Disturbance Power 30 MHz – 300 MHz 2.50 4.50 -2.00 REPORT No. 013 / 50-24 Page 6 of 29 This test…
