U4VIPRO2000Digital Satellite Receiver

User’s Guide DIGITAL SATELLITE RECEIVER I PRO 2000 2 This device complies with part 15 of the FCC Rules, Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ◎Reorient or relocate the receiving antenna. ◎Increase the separation between the equipment and receiver. ◎Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ◎Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user's authority to operated the equipment under FCC rules. UBSTUSA . ADDRESS : 444 kingsley Dr suite#318 Los Angeles CA 90020 DIGITAL SATELLITE RECIEVER FCC ID : MODEL NO : I PRO 2000 POWER : Input Voltage 90 - 250V AC @ 50Hz/60Hz±5% The socket-outlet shall be installed near the equipment and shall be easily accessible. 3 "IMPORTANT SAFETY INSTRUCTIONS", or the equivalent. The safety instructions shall include, as applicable to the particular apparatus, the information and warnings listed below: 1)Read these instructions. 2)Keep these instructions. 3)Heed all warnings. 4)Follow all instructions. 5)Do not use this apparatus near water. 6)Clean only with a dry cloth. 7)Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions. 8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9)Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11)Only use the attachments/accessories specified by the manufacturer. 12)Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13)Unplug this apparatus during lightning storms or when unused for long periods of time. 14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 4 5 SYSTEM SPECIFICATION 1) SYSTEM CAPACITY Fully MPEG2, DVB complaint 2) DEMODULATION QPSK demodulation and FEC decoding in accordance with DVB prETS 300 421 Symbol rate (Rs) 2 < Rs < 45 Mbaud 3) VIDEO DECODER MPEG-2 Main Profile @ Main Level With Letter Box filter Data rate up to 15Mbits/s Video Formats 4:3, 16:9 4) AUDIO DECODER MPEG-1 layer I and II, Musicam Stereo Channel, Dual Mono, Joint Stereo Channel, Mono Spdif with AC-3 5) PROCESSOR RESSOURCES Microprocessor STi5100 AUC(STM) SDRAM Memory 64Mbyte (DDR-RAM, 133MHz) Flash memory 8Mbyte (4Mbit x16) 6) LNB INPUT Input Frequency 950 to 2150 Mhz Digital signal input level -65 to -25 dBm LNB supply 13.5±0.5V / 18.5±0.7V, max.750mA Band switch control 22KHz (Microprocessor control) Connector 2 x F-Type, 3/8-32UNEF-2A (1 Input / 1 Loop through) 7) Component Outputs (YUV) Connector type : 3 x RCA (Y Pb Pr) Output impedance 75Ωunbalanced 6 SYSTEM SPECIFICATION 8) S-VHS Output Video format Y,C Output impedance 75W unbalanced 9) AUDIO OUTPUT Connector type2 x RCA (Left and Right) Output impedance600Ωunbalanced 10) Digital Audio Output Connector type 1 x Optic Output type Spdif encoded signals with ac-3 Sampling frequency rate 32 , 44.1 or 48khz 11) RF MODULATOR RF Output Signal NTSC M Video Carrier Frequency61.25 ±90 ㎑US 3 CH 67.25 ±90 ㎑US 4 CH 12) RS232 SERIAL DATA PORT Connector 9 pin DB9(M) Data protocol RS232C interface 13) USB USB 2.0 interface Connector typeA type 14) ETHERNET Connector type RJ45 IEEE 802.3 / 802.3u standards 10 BASE-T and 100 BASE - TX support 7 SYSTEM SPECIFICATION 15) POWER SUPPLY Type Switching mode Main input voltage 90 - 250V AC @ 50Hz/60Hz±5% Nominal power consumption 40W 16) CONNECTORS 1 LNB Input / 1 Loop through output (2F-type) 2 x Audio L/R (RCA) 1 x Video SIGNAL (RCA) 3 x YUV (RCA) 1 x RS-232 (9-pin D-sub male) 1 x RF Modulator (2F-type : IEC169-24) 1 x S-VHS (4-pin Mini-Din) 1 x Digital Audio Output (optic) 1x USB A-type 1x R J45 Type Ethernet 1 x AC Power Switch

CPU STi5100 AUC FRONT IR Receiver FLASH ROM (8MByte) DDR SDRAM (64MByte) S/C- READER SMART CARD SMPS +5V +3.3V +12V +30V TS IN RS-232 +7V +22 950~2150MHz TUNER LINK IC QPSK FEC AGC & PLL ETHERNET USB 2.0 YUV RCA (V,A) VIDEO AUDIO D/A RF MOD (CH3,4) OPTIC SPDIF S-VHS 133MHz 18.44MHz 25MHz

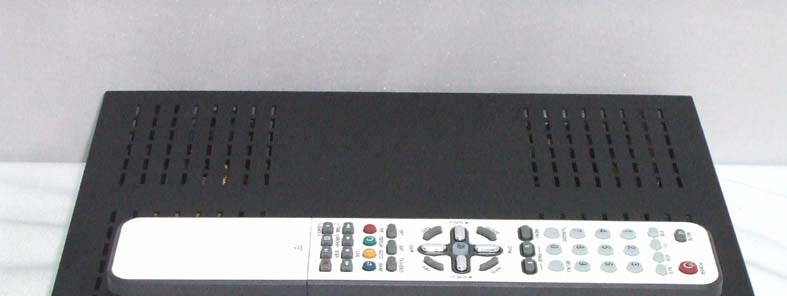

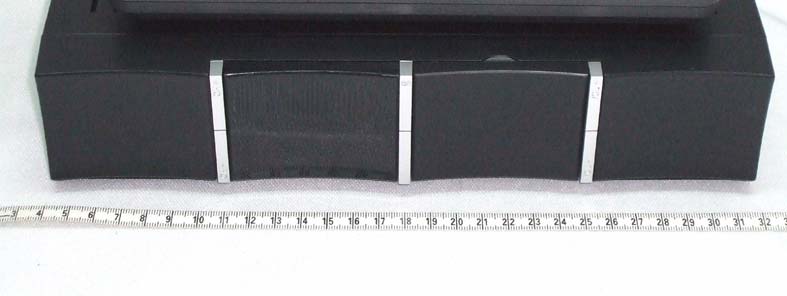

Appendix C. External Photographs Report no. ETLE070307.133, Page C1 of C1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Front view of EUT Rear view of EUT

Appendix A. FCC ID Label and Location Report no. ETLE070307.133, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. SATFOX Corp. DIGITAL SATELLITE RECEIVER FCC ID : U4VIPRO2000 Model No. : I PRO 2000 POWER : AC 90 V – 250 V, 50 Hz/60 Hz, 30 W Serial No. : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer : (HENG DI) Hyundai Digital Technology (Shenzhen) Co., Ltd. Made in China Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE070307.133, Page D1 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of Inside Appendix D. Internal Photographs Report no. ETLE070307.133, Page D2 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of main board Appendix D. Internal Photographs Report no. ETLE070307.133, Page D3 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of main board Appendix D. Internal Photographs Report no. ETLE070307.133, Page D4 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of power board Appendix D. Internal Photographs Report no. ETLE070307.133, Page D5 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of power board Appendix D. Internal Photographs Report no. ETLE070307.133, Page D6 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of front board Appendix D. Internal Photographs Report no. ETLE070307.133, Page D7 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of front board Appendix D. Internal Photographs Report no. ETLE070307.133, Page D8 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of sub board Appendix D. Internal Photographs Report no. ETLE070307.133, Page D9 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of sub board Appendix D. Internal Photographs Report no. ETLE070307.133, Page D10 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Tuner Appendix D. Internal Photographs Report no. ETLE070307.133, Page D11 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of tuner board Appendix D. Internal Photographs Report no. ETLE070307.133, Page D12 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of tuner board Appendix D. Internal Photographs Report no. ETLE070307.133, Page D13 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 RF modulator Appendix D. Internal Photographs Report no. ETLE070307.133, Page D14 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of RF modulator board Appendix D. Internal Photographs Report no. ETLE070307.133, Page D15 of D15 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of RF modulator board

Operational Description Digital Satellite Receiver (I PRO 2000) General Specification 1) SYSTEM CAPACITY Fully MPEG2, DVB complaint 2) DEMODULATION QPSK demodulation and FEC decoding in accordance with DVB prETS 300 421 Symbol rate (Rs) 2 < Rs < 45 Mbaud 3) VIDEO DECODER MPEG-2 Main Profile @ Main Level With Letter Box filter Data rate up to 15Mbits/s Video Formats 4:3, 16:9 4) AUDIO DECODER MPEG-1 layer I and II, Musicam Stereo Channel, Dual Mono, Joint Stereo Channel, Mono Spdif with AC-3 5) PROCESSOR RESSOURCES Microprocessor STi5100 AUC(STM) SDRAM Memory 64Mbyte (DDR-RAM, 133MHz) Flash memory 8Mbyte (4Mbit x16) 6) LNB INPUT Input Frequency 950 to 2150 Mhz Digital signal input level -65 to -25 dBm LNB supply 13.5±0.5V / 18.5±0.7V, max.750mA Band switch control 22KHz (Microprocessor control) Connector 2 x F-Type, 3/8-32UNEF-2A (1 Input / 1 Loop through) Operational Description 7) Component Outputs (YUV) Connector type : 3 x RCA (Y Pb Pr) Output impedance 75Ω unbalanced 8) S-VHS Output Video format Y,C Output impedance 75W unbalanced 9) AUDIO OUTPUT Connector type 2 x RCA (Left and Right) Output impedance 600Ω unbalanced 10) Digital Audio Output Connector type 1 x Optic Output type Spdif encoded signals with ac-3 Sampling frequency rate 32 , 44.1 or 48khz 11) RF MODULATOR RF Output Signal NTSC M Video Carrier Frequency 61.25 ± 90 ㎑ US 3 CH 67.25 ± 90 ㎑ US 4 CH 12) RS232 SERIAL DATA PORT Connector 9 pin DB9(M) Data protocol RS232C interface 13) USB USB 2.0 interface Connector type A type 14) ETHERNET Connector type RJ45 IEEE 802.3 / 802.3u standards 10 BASE-T and 100 BASE - TX support Operational Description 15) POWER SUPPLY Type Switching mode Main input voltage 90 - 250V AC @ 50Hz/60Hz±5% Nominal power consumption 40W 16) CONNECTORS 1 LNB Input / 1 Loop through output (2F-type) 2 x Audio L/R (RCA) 1 x Video SIGNAL (RCA) 3 x YUV (RCA) 1 x RS-232 (9-pin D-sub male) 1 x RF Modulator (2F-type : IEC169-24) 1 x S-VHS (4-pin Mini-Din) 1 x Digital Audio Output (optic) 1x USB A-type 1x R J45 Type Ethernet 1 x AC Power Switch

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL Inc. FCC TEST REPORT Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This DIGITAL SATELLITE RECEIVER, Model I PRO 2000 has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B: I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Chon Sik, Kim / Chief Engineer ETL Inc. #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 PRODUCT : DIGITAL SATELLITE RECEIVER MODEL/TYPE NO : I PRO 2000 BRAND NAME : NEO SAT FCC ID : U4VIPRO2000 APPLICANT : SATFOX Corp. 1100 North Magnolia suite i El Cajon CA 92020 United States Attn.: BOBBY SANZ / CEO MANUFACTURER : (HENG DI) Hyundai Digital Technology(Shenzhen) Co., Ltd. 1-5 Floors, No. A, Zhangqihuangsheng Industrial Park Polao Village, Kukeng Guanlan Town, Baoan District, Shenzhen City, Guangdong Province, P.R. China FCC CLASSIFICATION : TV interface device FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TEST REPORT No. : ETLE070307.133 DATES OF TEST : March 07, 2007 to March 08, 2007 REPORT ISSUE DATE : March 08, 2007 TEST LABORATORY : ETL Inc. ( FCC Registration Number : 95422) Report no. ETLE070307.133, Page 2 of 25 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 5.4 Antenna Power Conduction Measurement 5.5 Output Signal Level Measurement 5.6 Output Terminal Conducted Spurious Emission Measurement 5.7 Transfer Switch Measurement 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual Report no. ETLE070307.133, Page 3 of 25 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : DIGITAL SATELLITE RECEIVER z Model Number : I PRO 2000 z FCC ID : U4VIPRO2000 z S/N : N/A z FCC Rule Part(s) : FCC Part 15 Subpart B z Test Procedure : ANSI C63.4-2003 z FCC Classification : TV interface device z Dates of Tests : March 07, 2007 to March 08, 2007 z Place of Tests : ETL Inc. Testing Lab. (FCC Registration Number : 95422) Radiated Emission test; #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea z Test Report No. : ETLE070307.133 Applicant Name : SATFOX Corp. Address : 1100 North Magnolia suite i El Cajon CA 92020 United States Attention : BOBBY SANZ / CEO Report no. ETLE070307.133, Page 4 of 25 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the ETL Inc The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the SATFOX Corp., Model: I PRO 2000. Report no. ETLE070307.133, Page 5 of 25 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the SATFOX Corp., Model: I PRO 2000. 2.2 General Specification 1) SYSTEM CAPACITY Fully MPEG2, DVB complaint 2) DEMODULATION QPSK demodulation and FEC decoding in accordance with DVB prETS 300 421 Symbol rate (Rs) 2 < Rs < 45 Mbaud 3) VIDEO DECODER MPEG-2 Main Profile @ Main Level With Letter Box filter Data rate up to 15Mbits/s Video Formats 4:3, 16:9 4) AUDIO DECODER MPEG…
