U58CC602800MHz CDMA Mobile Phone

1-1 Chapter 1 Quick Start Congratulations on purchasing your phone. This chapter provides you with information to get you started using your new phone quickly. Tornado Reference Guide 錯誤 ! 尚未定義樣式。 1-2 Powering the Phone On and Off (If any background/introduction information is needed, type it here.) To turn the phone on 1. Press “ End ”key for a while without release To turn the phone off 1. Press “ End ” key for a while without release Sequoia Reference Guide 錯誤 ! 尚未定義樣式。 1-3 Making, Answering, and Ending a Call (If any background/introduction information is needed, type it here.) To make a call 1. Enter the phone number you want to call in idle state. 2. Press the “Send” button 3. Press the “End” button To answer a call 1. Press the “Send” button 2. To end the call, press the “End” button Locking the Keypad 1. In idle state, press “ * ” for a while, do not release. 2. Enter “ 123 ” to unlock. Tornado Reference Guide 錯誤 ! 尚未定義樣式。 1-4 Parts of the Phone The illustration below shows the main components of your phone. (in the text boxes in the picture below, type in names of the major components) LCD screen Send End Earpiece Soft key Soft key Up/down/left/right key Lock key and select symbol Select input method Microphone Keypad Side face Back face Sequoia Reference Guide 錯誤 ! 尚未定義樣式。 1-5 (type in descriptions of the phone’s components in the table below) Key Description Up/down and left/right key Use up/down/left/right key to navigate in menus Send key Use this key to dial, or answer a call End key Use this key to end a call, or turn power on/off Soft key (left) Use this key to select or confirm something Soft key (right) Use this key to cancel something Alphanumeric keypad Use these keys to input numbers, or characters Tornado Reference Guide 錯誤 ! 尚未定義樣式。 1-6 Screen Icons (Insert all of the screen icons in the table below--or instead of using the table, insert a sample LCD screen with call-outs showing each of the possible screen icons) When the phone is powered on, the following icons may display: Icon Description Indicate the strength of rssi Indicate the alarm is set Indicate the level of battery Indicate call forward enabled Indicate the phone is in a call Indicate new message’s arrival Indicate new urgent message Indicate voice mail Indicate phone is in roaming Indicate all kinds of phone mode Only vibrate No ring Ring Ring and vibrate Sequoia Reference Guide 錯誤 ! 尚未定義樣式。 1-7 Navigating Through the Menus The top two levels of the phone menus are shown below. (Insert pictures of the icons in front of each menu item) 1 Contact 1 List 2 New 3 Search 4 Multicopy 5 Erase All 6 Speed Dial 7 Memory State 8 My Number 9 Send all as vCards 2 Messages 1 Write Message 2 Inbox 3 Outbox 4 Phone Box 5 Templates 6 Erase Msgs 7 Voice Mail 8 Settings 9 Mutimedia Box 10 Memory Status 3 Call Logs 1 Missed 2 Incoming 3 Outgoing 4 Erase Lists 5 Call Timers 4 Tools Tornado Reference Guide 錯誤 ! 尚未定義樣式。 1-8 1 Schedule 2 Alarm Clock 3 Calculator 4 Tip Calculator 5 Stop Watch 5 Settings 1 Ringers 2 Profiles 3 Display 4 Security 5 Call Setup 6 Phone Info 7 Keyguard 8 Network Service 6 Amusement 1 KongMingChess 7 UIM Tools Sequoia Reference Guide 錯誤 ! 尚未定義樣式。 1-9 (Type in instructions below for which buttons to use to navigate through the menus and select menu items) To navigate through the menus 1. Press up or down to navigate 2. Press left soft key to enter 3. Press right soft key to back Tornado Reference Guide 錯誤 ! 尚未定義樣式。 2-10 Chapter 2 Contacts “Contacts” is a list of your contacts. Each contact can contain three phone numbers, address, email, URL, and note. Using the Keypad to Enter Information you can use keypad to enter something. There is a cursor, which looks like “|”, at the right side of current character. left key right key ↑ Up ↓ Down Alphanumeric keys Cursor To enter text Input area left length Left soft key Right soft key Sequoia Reference Guide 錯誤 ! 尚未定義樣式。 2-11 4. Press alphanumeric key to insert text before cursor. 5. If you make a mistake, you can press the right soft key “Erase” to delete current character before cursor. 6. You can use “↑” and “↓” to move the cursor. 7. After editing, select “Save” to save your editing. 8. To cancel editing, long-press “Erase” key until it changes to “Back”, then press it again. To enter numbers 9. Press “#” several times until “123” is displayed at the top-right corner of the screen. 10. Press numberic keys to input numbers. To enter uppercase or lowercase letters uppercased/lowercased # 11. Press “#” several times until “abc” is displayed at the top-right corner of the Tornado Reference Guide 錯誤 ! 尚未定義樣式。 2-12 screen, then you can input lowercased letters. 12. Press “#” several times until “ABC” is displayed at the top-right corner of the screen, then you can input lowercased letters. 13. Press alphanumeric key several times(no longer than 0.5 seconds between each two pressing) to enter a letter written in the key. 14. If the cursor is hidden, you can keep on pressing to change current character. current character will be entered when the cursor appears. 15. If you want to enter a letter which in the same key, you must wait for 0.5 seconds until the cursor appears, so you can press the key again. If you want to enter a letter which in a different key, you need not wait for the cursor, and can press the key as you want directly. To enter symbols or special characters * Selected symbol Up/down/left/right Confirm 16. Press “*”. Sequoia Reference Guide 錯誤 ! 尚未定義樣式。 2-13 17. Use “up” and “down” to select the symbol you need. 18. Press the left soft key to confirm. To change the language 19. Select “Settings” in main menu 20. Select “Display” 21. Select “Language” 22. Select the language you want. 23. If you set your phone to another language which you cannot read, you can press 5,3,3 after entering the main menu, then select the correct language. Entering and Editing Contacts To add a new contact 24. At the main menu, select “Contacts”. 25. Select “new”. 26. …

Text truncated - open the document above for the full version.

FIC Communications (Shanghai) Inc. Date: Mar 27, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: U58CC602 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Block Diagram 3 Operational Description 4 Tune-up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Aifang Sun/Assistant Manager FIC Communications (Shanghai) Inc

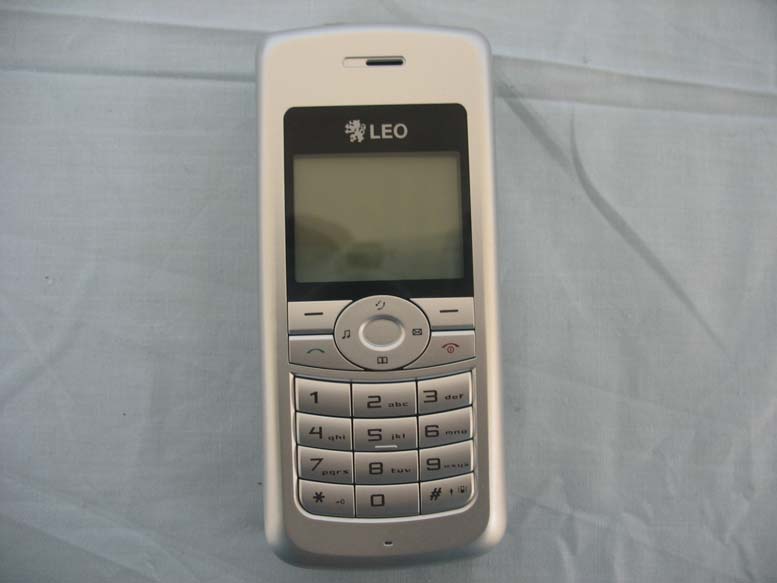

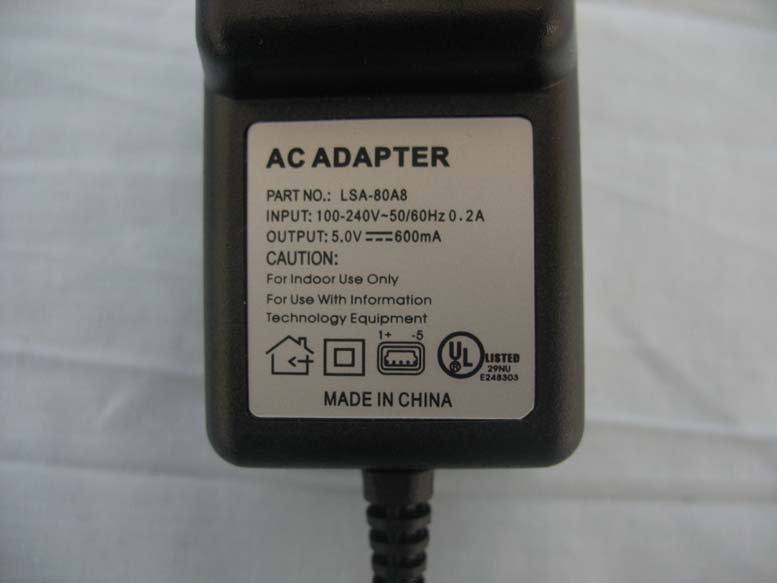

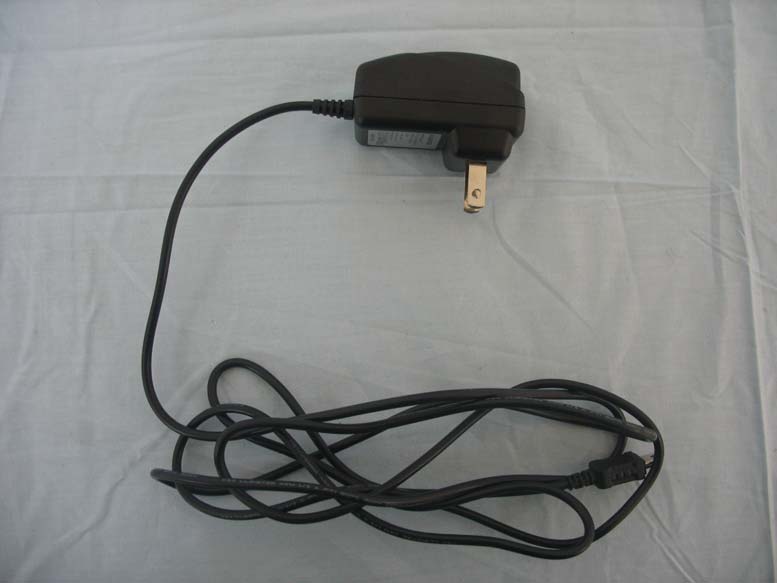

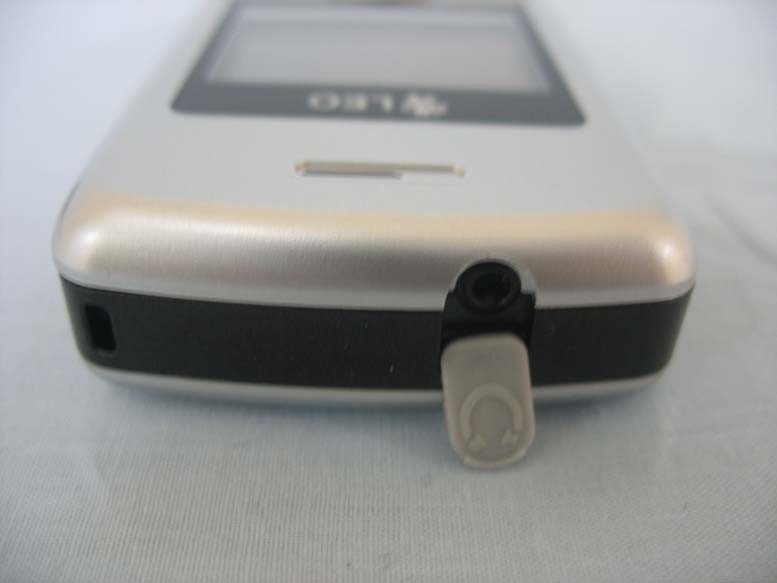

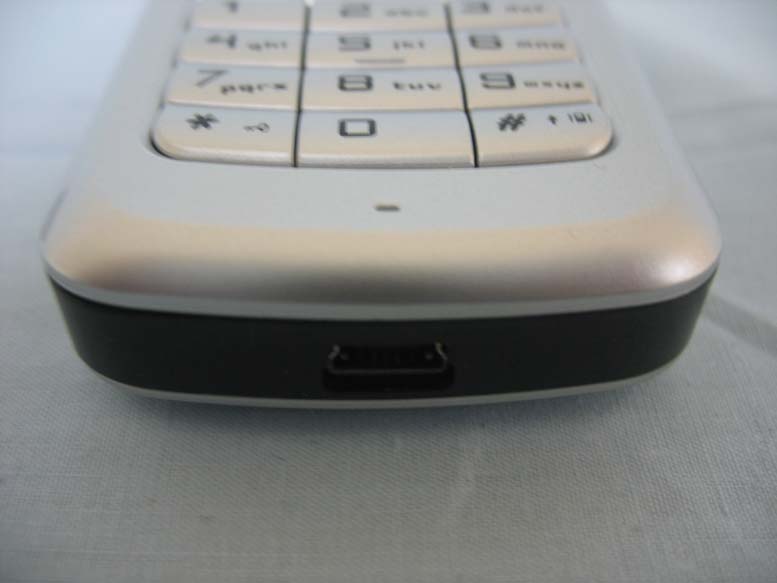

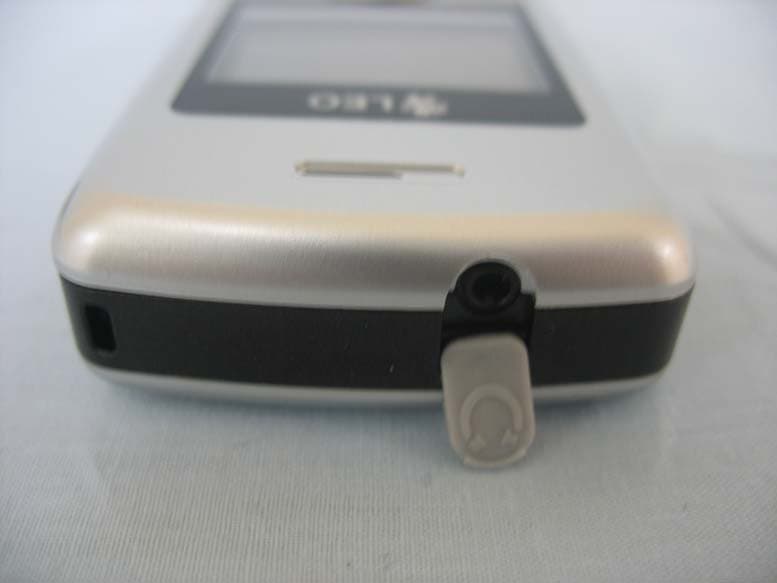

800MHz CDMA Mobile Phone (M/N: CC602) ¾ EUT Photograph – External Photographs (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo

800MHz CDMA Mobile Phone (M/N: CC602) FCC ID Label Width: 20.6mm Length: 36mm

800MHz CDMA Mobile Phone (M/N: CC602) FCC Label Position

Report No： 073S017-HP-US-P07V01 Page: 44 of 49 (5) EUT Photo (6) EUT Photo Report No： 073S017-HP-US-P07V01 Page: 45 of 49 (7) EUT Photo (8) EUT Photo Report No： 073S017-HP-US-P07V01 Page: 46 of 49 (9) EUT Photo (10) EUT Photo Report No： 073S017-HP-US-P07V01 Page: 47 of 49 (11) EUT Photo (12) EUT Photo

Report No：073L104-HPUSP10V01 Page: 19 of 32 Version:1.0 This is previous page plot (zoom in) Report No：073L104-HPUSP10V01 Page: 20 of 32 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 20.90 °C Ambient Temp. : 21.60 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.043 W/kg Power Drift-Finish: 0.042 W/kg Power Drift (%) : -2.334 DUT Position : 15° Tilt Channel : 1014 1 gram SAR value : 0.117 W/kg 10 gram SAR value : 0.056 W/kg Area Scan Peak SAR : 0.169 W/kg Zoom Scan Peak SAR : 0.330 W/kg Report No：073L104-HPUSP10V01 Page: 21 of 32 Version:1.0 This is previous page plot (zoom in) Report No：073L104-HPUSP10V01 Page: 22 of 32 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 20.90 °C Ambient Temp. : 21.60 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.059 W/kg Power Drift-Finish: 0.058 W/kg Power Drift (%) : -1.648 DUT Position : 15° Tilt Channel : 380 1 gram SAR value : 0.113 W/kg 10 gram SAR value : 0.060 W/kg Area Scan Peak SAR : 0.147 W/kg Zoom Scan Peak SAR : 0.340 W/kg Report No：073L104-HPUSP10V01 Page: 23 of 32 Version:1.0 This is previous page plot (zoom in) Report No：073L104-HPUSP10V01 Page: 24 of 32 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 20.90 °C Ambient Temp. : 21.60 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.054 W/kg Power Drift-Finish: 0.055 W/kg Power Drift (%) : 1.869 DUT Position : 15° Tilt Channel : 773 1 gram SAR value : 0.078 W/kg 10 gram SAR value : 0.044 W/kg Area Scan Peak SAR : 0.113 W/kg Zoom Scan Peak SAR : 0.150 W/kg Report No：073L104-HPUSP10V01 Page: 25 of 32 Version:1.0 This is previous page plot (zoom in) Report No：073L104-HPUSP10V01 Page: 26 of 32 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 20.90 °C Ambient Temp. : 21.60 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.034 W/kg Power Drift-Finish: 0.034 W/kg Power Drift (%) : -2.770 DUT Position : Touch Channel : 1014 1 gram SAR value : 0.065 W/kg 10 gram SAR value : 0.048 W/kg Area Scan Peak SAR : 0.068 W/kg Zoom Scan Peak SAR : 0.290 W/kg Report No：073L104-HPUSP10V01 Page: 27 of 32 Version:1.0 This is previous page plot (zoom in) Report No：073L104-HPUSP10V01 Page: 28 of 32 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 20.90 °C Ambient Temp. : 21.60 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.047 W/kg Power Drift-Finish: 0.046 W/kg Power Drift (%) : -2.061 DUT Position : Touch Channel : 380 1 gram SAR value : 0.096 W/kg 10 gram SAR value : 0.049 W/kg Area Scan Peak SAR : 0.087 W/kg Zoom Scan Peak SAR : 0.170 W/kg Report No：073L104-HPUSP10V01 Page: 29 of 32 Version:1.0 This is previous page plot (zoom in) Report No：073L104-HPUSP10V01 Page: 30 of 32 Version:1.0 Measurement Data Crest Factor : 1 Tissue Temp. : 20.90 °C Ambient Temp. : 21.60 °C Area Scan : 6x6x1 : Measurement x=12mm, y=12mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Power Drift-Start : 0.035 W/kg Power Drift-Finish: 0.035 W/kg Power Drift (%) : 2.560 DUT Position : Touch Channel : 773 1 gram SAR value : 0.052 W/kg 10 gram SAR value : 0.044 W/kg Area Scan Peak SAR : 0.096 W/kg Zoom Scan Peak SAR : 0.160 W/kg Report No：073L104-HPUSP10V01 Page: 31 of 32 Version:1.0 This is previous page plot (zoom in) Report No：073L104-HPUSP10V01 Page: 32 of 32 Version:1.0 EUT 835MHz SAR test Z-Axis plot CDMA2000 (800MHz), Left Cheek, Channel 773 Report No： 073L104-HPUSP10V01 Page: 1 of 4 Version:1.0 Test Setup & EUT Photographs Right Head (EUT Cheek) Left Head (EUT Cheek) Report No： 073L104-HPUSP10V01 Page: 2 of 4 Version:1.0 Right Head (EUT Tilted) Left Head (EUT Tilted) Report No： 073L104-HPUSP10V01 Page: 3 of 4 Version:1.0 Body-worn (Separation distance: 15mm) Note: The positions used in the measurements were according to IEEE 1528-2003. Report No： 073L104-HPUSP10V01 Page: 4 of 4 Version:1.0 EUT Photographs EUT Front EUT Back

Test Report Product Name ： 800MHz CDMA Mobile Phone Model No. ： CC602 FCC ID : U58CC602 Applicant ： FIC Communications (Shanghai) Inc. Address ： G 12F, He Ghuan Tower, No. 2016, YiShan Road, Shanghai Date of Receipt ： 2007/03/16 Issued Date ： 2007/03/20 Report No. ： 073S017-HP-US-P07V01 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by CNLA, NVLAP, NIST or any agency of the Government. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 073S017-HP-US-P07V01 Page: 2 of 49 Test Report Certification Issued Date : 2007/03/20 Report No. : 073S017-HP-US-P07V01 Product Name : 800MHz CDMA Mobile Phone Applicant : FIC Communications (Shanghai) Inc. Address : G 12F, He Ghuan Tower, No. 2016, YiShan Road, Shanghai Manufacturer : FIC Communications (Shanghai) Inc. Model No. : CC602 FCC ID : U58CC602 Rated Voltage : AC 230 V / 50 Hz EUT Voltage : DC 3.7V Trade Name : FIC Applicable Standard : FCC CFR Title 47 Part 2, Part 22H Test Result : Complied Performed Location : SuZhou EMC laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL: +86-512-6251-5088 / FAX:+86-512-6251-5098 FCC Registration number: 800392 Documented By : ( Mandy Liu ) Reviewed By : ( Dream Cao ) Approved By : ( Gene Chang ) Report No： 073S017-HP-US-P07V01 Page: 3 of 49 Laboratory Information We , QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited by the following accreditation Bodies in compliance with ISO 17025, EN 45001 and Guide 25: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://tw.quietek.com/modules/myalbum/ The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory : No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., SuZhou, China TEL : +86-512-6251-5088 / FAX : 86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : BSMI, DGT, CNLA Germany : TUV Rheinland Norway : Nemko, DNV USA : FCC, NVLAP Japan : VCCI 0914 1313 1596 Report No： 073S017-HP-US-P07V01 Page: 4 of 49 TABLE OF CONTENTS Description Page 1. General Information.......................................................................................................... 6 1.1. EUT Description .......................................................................................................... 6 1.2. Mode of Operation....................................................................................................... 7 1.3. Tested System Details ................................................................................................ 8 1.4. Configuration of Tested System .................................................................................. 9 1.5. EUT Exercise Software ............................................................................................. 10 2. Technical Test ................................................................................................................ 11 2.1. Summary of Test Result............................................................................................ 11 2.2. Test Environment ...................................................................................................... 12 3. Peak Output Power ........................................................................................................ 13 3.1. Test Equipment ......................................................................................................... 13 3.2. Test Setup ................................................................................................................. 13 3.3. Limit.......................................................................................................................... 14 3.4. Test Procedure.......................................................................................................... 14 3.5. Uncertainty ................................................................................................................ 15 3.6. Test Result ................................................................................................................ 16 3.7. Test Photograph........................................................................................................ 19 4. Modulation Characteristic ............................................................................................... 20 4.1. Test Equipment ......................................................................................................... 20 4.2. Test Setup ................................................................................................................. 20 4.3. Limit.......................................................................................................................... 21 4.4. Test Procedure.......................................................................................................... 21 4.5. Uncertainty ...................................................…

Text truncated - open the document above for the full version.

800MHz CDMA Mobile Phone (M/N: CC602) ¾ Test Setup Photographs Test Mode: Mode 1: CDMA 850 Description: Radiated Peak Output Power Test Setup Test Mode: Mode 1: CDMA 850 Description: Radiated Spurious Emission Test Setup for Under 1 GHz Test Mode: Mode 1: CDMA 850 Description: Radiated Spurious Emission Test Setup for Above 1 GHz
