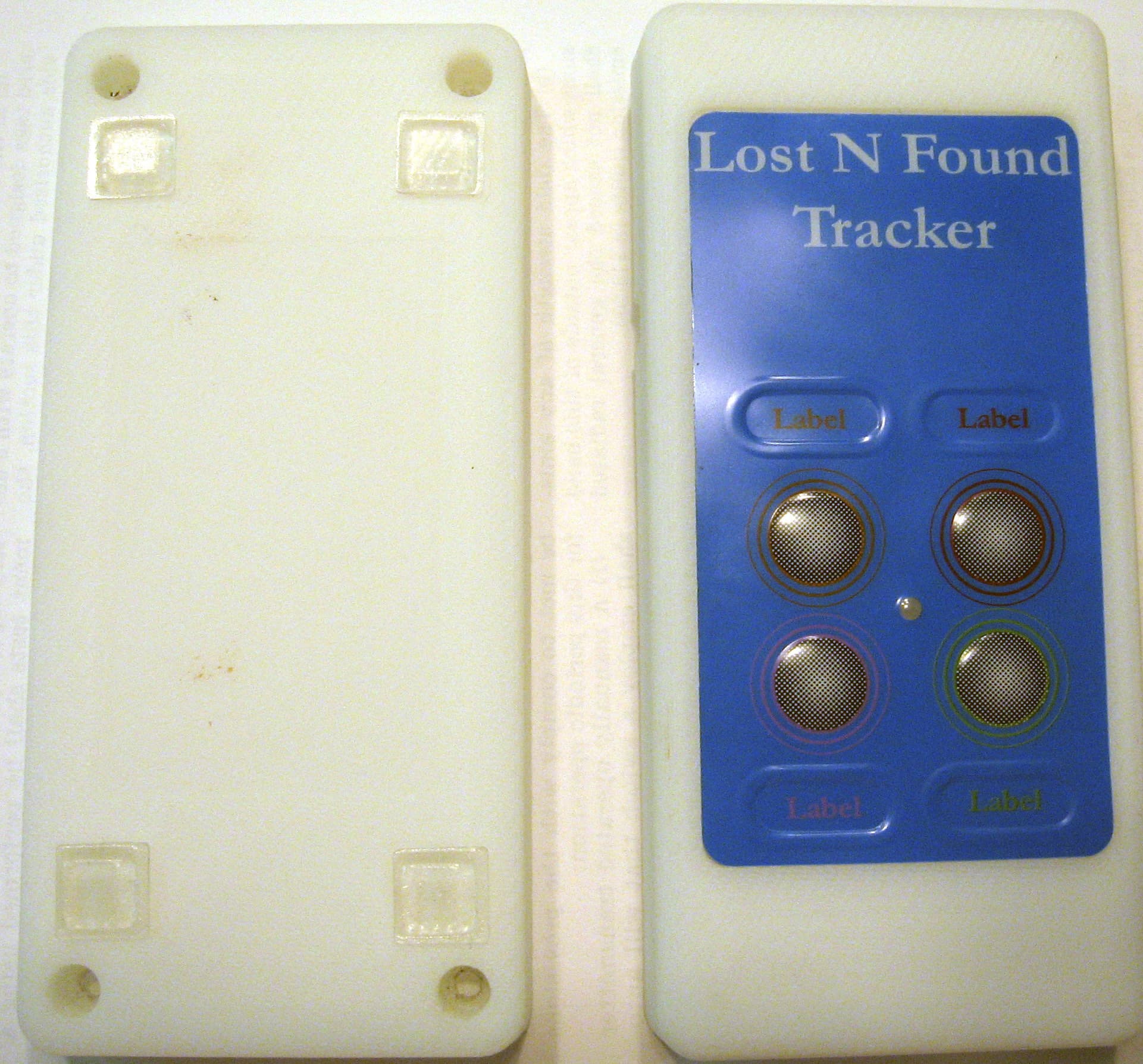

LOSTnFOUND TRACKER ™ USER MANUAL 3-14-2007 Table of Contents Introduction ............................................................................................................................... 3 Batteries and Power.................................................................................................................... 4 Operation .................................................................................................................................. 5 Statement of FCC Compliance ................................................................................................. 6 One-Year Warranty .................................................................................................................. 7 2 Introduction The LOSTnFOUND Tracker™ consists of a Base unit, four flashing beeper Fobs, and an AC adapter. Attach a Fob to an object and the next time that you need to locate it, turn on the Base and press the matching color button on the Base. The Base signals the selected Fob to then beep and flash. The beeps and flashes will help to lead you to the Fob. The Base can be powered either by the AC adapter or its internal batteries. INSERT PICTURES / CAPTIONS FOR BASE, FOBS, AND AC ADAPTER 3 Batteries and Power Base Battery and AC Adapter The Base unit can be powered either by its internal standby CR2450 cell battery or the 3VDC AC adapter. To use the AC adapter, plug the main adapter unit into a convenient wall outlet and plug the connector on the end of the adapter cable into the mating connector on the bottom of the Base. If you are using the AC adapter, the Base can be powered on all of the time. The standby CR2450 cell battery is designed to power the Base unit during power outages. However, powering the Base using the internal battery is also useful when you are searching outdoors or far away from a wall outlet. If you are using the internal battery, the Base should be turned off between searches. The typical battery life for the Base battery is four years (following the guidelines listed above). It is recommended that the Base unit be plugged in, in a central location of the home, such as a foyer, kitchen or family room. To replace the Base battery, use a small Phillips head screwdriver (X) to remove the four screws on the bottom of the Base and lift off the bottom cover. Gently pry the battery from the holder and insert a new battery. Position the bottom cover onto the top cover and replace the four screws. Fob Battery Each of the Fobs is powered by a single CR2450 battery. The typical battery life for the Fob battery is approximately three years. To replace the Fob battery, use a small Phillips head screwdriver (X) to remove one screw. Gently pull the top and bottom covers apart. Gently pry the battery from the holder and insert a new battery. Position the top cover over the bottom cover and replace the one screw. Both the Base and Fobs contain a monitoring circuit that will alert you when the battery should be replaced. The Light Emitting Diode (LED) on either the Base or Fobs will blink with a RED color approximately every 60 seconds when the battery is near the end of its useful life. For both the Base and Fobs, replace the batteries if the product does not function properly. 4 INSERT PICTURES / CAPTIONS FOR BASE & FOB BATTERY REPLACEMENT Operation Attach the Fob to the object using it key ring or double-sided adhesive pad. Place the pad on the back side of the Fob, beneath the product label. To locate a missing object: 1. Turn on the Base by pushing the power switch on the left side toward the top of the unit. The Base LED will turn on and show a GREEN color. 2. Press and release the button on the Base that matches the color of the Fob that you are trying to locate. 3. The Base now sends out a search signal to the Fobs. During the search, the Base LED will indicate a YELLOW color. If the signal is received by the Fob, it will respond with a series of beeps and GREEN LED flashes. It may be necessary to move around the area and press the button several times before you are able to locate the object. The Base and Fob will communicate within a 100-foot range. 4. Turn off the Base by pushing the power switch on the left side toward the bottom of the unit. The Base LED will then turn off. TO PREVENT LOSING THE BASE, YOU SHOULD ALWAYS RETURN IT TO A KNOWN PLACE WHEN NOT IN USE. 5 Statement of FCC Compliance WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for assistance. 6 One-Year Warranty What is Covered This warranty covers any defects in materials or workmanship, with the exceptions stated below. How Long Coverage Lasts This warranty runs for one year from the date of original purchase. What is Not Covered This warranty does not cover damage caused by water or misuse other t…

Text truncated - open the document above for the full version.

888 LOSTNFOUND TRACKING SYSTEMS, LLC Date: March 23, 2007 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Gentlemen: This letter will authorize the appointment ofFLOM TEST LAB to act as our Agent in all FCC matters related to the testing and certification of the device with the FCC Grantee Code: U5HLNFTRACKERACO7 and known commercially as the LOSTnFOUND TrackerTM. This appointment is effective until otherwise notified by the undersigned. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 use 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any question regarding the foregoing please contact the undersigned at: [email protected] David E. Fousse CEO 9872 E. Pinyon Pine Drive, Tucson, AZ 85748 USA (520) 668-1949 I (520) 207-5566 [email protected] I lostnfoundtracker.com 520-668-1949 king Systems, LLC

888 LOSTNFOUND TRACKING SYSTEMS, LLC Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Confidentiality Request regarding application for certification of FCC ill: U5HLNFTRACKERACO7 Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of infonnation accompanying this application as outlined below: Exhibit Type Transmitter Block Transmitter Schematic, Transmitter Flow Chart, Operational Design Description, Bill of Material Parts List, The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. If you have any questions regarding this matter please contact the undersigned at: [email protected] 520-207-5566 ~9872 E. Pinyon Pine Drive, Tucson, AZ 85748 USA (520) 668-1949 I (520) 207-5566 [email protected] I lostnfoundtracker.com File Name Finder System Transmitter Block Diagram for FCC testing. pdf Finder Tx Rev C SCHEMATIC! for FCC Diagram, testing. pdf Host Firmware testing. pdf Flow Chart for FCC Finder System Transmitter Design Description for FCC testing. pdf 020909 TX BOM for FCC testing with Actives. pdf

FCC ID: U5HLNFTRACKERAC07 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Patent Pending: 11/669,864

Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 MFA p06c0011, d0720019 (866) 311-3268 phone, (480) 926-3598 fax Date: April 6, 2007 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: LostNFound Tracking Systems, LLC 9872 E. Pinon Pine Dr Tucson, AZ 85748 Equipment: FCC ID: U5HLNFTRACKERAC07 FCC Rules: 15.231, 15.207, 15.209 Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Hoosamuddin S. Bandukwala, Lab Director enclosure(s) cc: Applicant HSB/mdw Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 MFA p06c0011, d0720019 (866) 311-3268 phone, (480) 926-3598 fax List Of Exhibits (FCC Certification (Transmitters) - Revised 9/28/98) Applicant: . LostNFound Tracking Systems, LLC 9872 E. Pinon Pine Dr Tucson, AZ 85748 FCC ID: U5HLNFTRACKERAC07 By Applicant: 1. Letter Of Authorization 2. Identification Drawings Id Label Location Info Attestation Statement(S) Location of Compliance Statement 3. Documentation: 2.1033(B) (3) User Manual(S) (4) Operational Description (5) Block Diagram (5) Schematic Diagram (7) External Photographs Internal Photographs Parts List Active Devices By F.T.L. Inc. A. Testimonial & Statement of Certification B. Statement of Qualifications Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 MFA p06c0011, d0720019 (866) 311-3268 phone, (480) 926-3598 fax Transmitter Certification of U5HLNFTRACKERAC07 to Federal Communications Commission Rule Part(s) 15.231 Date Of Report: April 6, 2007 On the Behalf of the Applicant: LostNFound Tracking Systems, LLC At the Request of: LostNFound Tracking Systems, LLC 9872 E. Pinon Pine Dr Tucson, AZ 85748 Attention of: Dave Fousse (520)207-5566 (520)207-5566 FAX [email protected] Supervised By: Hoosamuddin S. Bandukwala, Lab Director Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 MFA p06c0011, d0720019 (866) 311-3268 phone, (480) 926-3598 fax The applicant has been cautioned as to the following: 15.21 Information to User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 MFA p06c0011, d0720019 (866) 311-3268 phone, (480) 926-3598 fax Testimonial And Statement Of Certification This is to certify that: 1. That the application was prepared either by, or under the direct supervision of, the undersigned. 2. That the technical data supplied with the application was taken under my direction and supervision. 3. That the data was obtained on representative units, randomly selected. 4. That, to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. Certifying Engineer: Hoosamuddin S. Bandukwala, Lab Director Flom Test Labs 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 MFA p06c0011, d0720019 (866) 311-3268 phone, (480) 926-3598 fax Table Of Contents Rule Description Page Test Report 1 2.1033(c) General Information Required 2 . Standard Test Conditions and Engineering Practices 4 Test Results Summary 5 15.231(a). Radiated Peak Output Power 6 15.231(b), 15.209(a), 15.205 Radiated Spurious Emissions 7 15.231(a)(2). Occupied Bandwidth 8 15.231 Dwell time 9 15.231. Test Equipment Utilized 10 Flom Test Labs Page 1 of 10 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 MFA p06c0011, d0720019 (866) 311-3268 phone, (480) 926-3598 fax Required information per ISO 17025-2005, paragraph 5.10: a) Test Report b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) Flom Test Lab, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0720019 d) Client: LostNFound Tracking Systems, LLC 9872 E. Pinon Pine Dr Tucson, AZ 85748 e) Identification: LNFTRACKERAC07 Description: Fob Tracker f) EUT Condition: Not required unless specified in individual tests. g) Report Date: April 6, 2007 EUT Received: h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with FTL internal quality manual. m) Super…
