U5Y-AAAUSB Key

plug ́n ́crypt ID Overview V1.0" plug ́n ́crypt ID Manual © Copyright 2007 by charismathics gmbh, 47 sendlinger st, munich, germany 80331 © 2007 charismathics gmbh. All rights reserved The names of the other products mentioned are trademarks of their respective owners. This hardware key is in compliance with the following test specification: CEI EN 61000-4-2; CEI EN 61000-4-3; CISPR22 as required by : CEI EN 61000-6-1, CEI EN 61000-6-2, CEI EN 61000-6-3, CEI EN 61000-6-4 which are specified for the following test: • “ESD Immunity test” • “Radiated radio-frequency and electromagnetic field immunity test” • “Radiated Emission Verification” In compliance with the “Essential Requisites” for the EMC Directive 89/336/EEC. FCC ID: U5Y-AAA Charismathics GmbH plug ́n ́crypt ID Supply: 5V DC Absorption: 40 mA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2 Contents 1. Preface ................................................................................................................................... 5 2. About this Manual ................................................................................................................... 7 3. Installation ............................................................................................................................... 8 3.1. Installation Requirements ............................................................................................................ 8 3.2. Supported Smart Cards ............................................................................................................... 9 3.3. Tested Card Readers ................................................................................................................ 10 4. Administration Tool: Charismathics Smart Security Interface Manager ................................ 11 4.1. User Interface ............................................................................................................................ 11 Tab "Manager"..................................................................................................................... 13 Tab "Edit"............................................................................................................................. 14 Tab "Token"......................................................................................................................... 14 Tab "Key Pair" ..................................................................................................................... 15 Tab "Certificate"................................................................................................................... 15 Tab "Info"............................................................................................................................. 16 4.2. Changing PINs........................................................................................................................... 17 4.3. Unlocking Smart Cards .............................................................................................................. 18 4.4. Generating and Importing Keys ................................................................................................. 19 Generation of a Key Pair ..................................................................................................... 19 Importing a Key Pair ............................................................................................................20 Generation of a Secret Key ................................................................................................. 20 Importing a Secret Key ........................................................................................................ 21 4.5. Generation and Import of Certificates ........................................................................................ 22 Generating self signed Certificates and Certificate Requests .............................................. 22 Import of Certificates............................................................................................................ 24 4.6. Creating Profiles ....................................................................................................................... 25 ... in the case of a smart card with profile ............................................................................ 25 ... in the case of an empty smart card ................................................................................. 26 4.7. Preparing a Smart…

Text truncated - open the document above for the full version.

EMC Cert DR. RASEK - certification Institute - Boelwiese 5 91320 Ebermannstadt Germany DECLARATION We hereby CHARISMATHICS GMBH declares that the USB ELECTRONIC KEY named PLUG’N’CRYPT ID (U5Y – AAA) is identical to the product already certified by EUTRONSEC SPA with the name CRYPTO IDENTITY CCID (TFC – AAC) on 9 March 2007 and there is not technical differences between two products.

EUTRONSEC S.p.A - Key Solutions for IT Security email: [email protected] web: www.eutronsec.com Registered office: Via A. Cantore 8 H – I-16149 Genova Tel.: +39010.642011 Fax: +39010.6590756 Administrative, commercial and productive premises: Via Gandhi 12 – I-24048 Treviolo, BG Tel.: +39035.697080 Fax: +39035.697092 Fiscal code, VAT number and registration in the R. C. Genoa IT 016 3614 099 6 – f.p. corporate capital Euro 130,000.00 - REA GE 424111 Eutronsec S.p.A. is a company managed and coordinated by Selesta S.p.A. (fiscal code IT 02825520105) I-Treviolo (BG) – 8 June 2007 EMC Cert DR. RASEK - certification Institute - Boelwiese 5 91320 Ebermannstadt Germany DECLARATION We hereby EUTRONSEC SPA declares that the company CHARISMATHICS GMBH can market the USB ELECTRONIC KEY named CRYPTO IDENTITY CCID (TFC – AAC) and already certified by EUTRONSEC SPA on 9 March 2007, with his own company’s name, FCC identifier and new trade mark (U5Y – AAA). General Manager

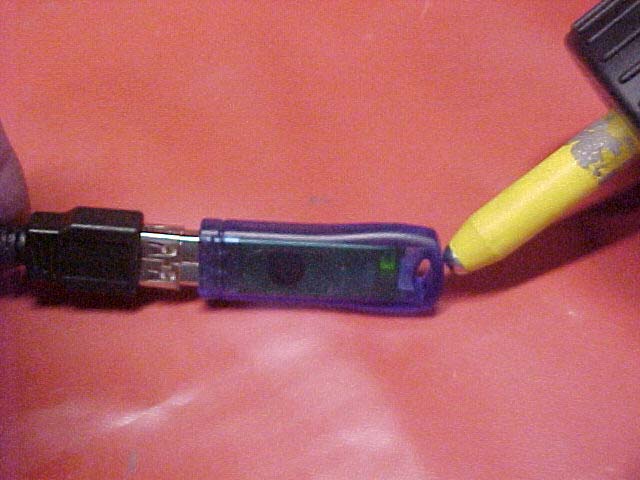

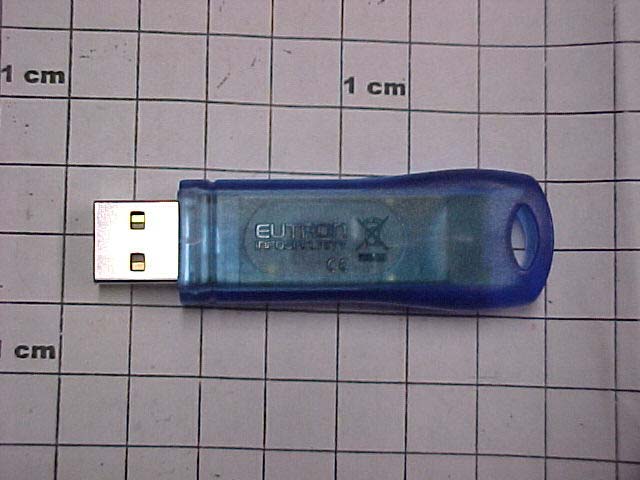

EXTERNAL PHOTOGRAPH FRONT WIEV REAR WIEV LATERAL WIEV (if necessary)

WHERE ARE THE LABELS Manufacturer Name Label Product Names Labels Label Place (product name) Label Place (manufacturer name)

INTERNAL PHOTOGRAPH FRONT WIEV REAR WIEV

FCC.TR. TEST REPORT 07.409 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 14/09/06 sheet 1 of 18 EQUIPMENT UNDER TEST : APPARECCHIO IN PROVA : USB KEY PLUG’N’CRYPT ID REFERENCE STANDARDS : NORME DI RIFERIMENTO : FCC 47 CFR Part 15 CUSTOMER: RICHIEDENTE: • Dept. / Firm : Ente / Società’: CHARISMATHICS GMBH • Mr.: Sig.: XIANGDONG WAN • Address: Indirizzo: 47 SENDLINGER STRASSE – 80331 MUENCHEN – GERMANY • Tel. : Telefono : ++49 89 30906700 • Telefax Fax : ++49 89 30906729 • E-mail: e-mail Xiangdong.wang@charismath ics.com Site of test execution: Via Campagna, 92 - 22020 Gaggino Faloppio (CO) - Italy Località esecuzione prove: Date of test samples receipt: 14/09/06 Date of start test: 14/09/06 Data ricevimento campioni: Data inizio prove: Date of end test: 14/09/06 Data fine prove: Witness to the test: Presenti alle prove: Signature of the engineers: Firma esecutore prove: Signature of the Laboratory Director: Firma Direttore Laboratori: Mr. Gianluca Maffioli ......................................................... .......................................................... Andrea Bortolotti .......................................................... Roberto Furfari The test results recorded in this Test Report are exclusively referred to the tested samples. I risultati del presente rapporto di prova si riferiscono esclusivamente al campione sottoposto a prova. Reproduction of this EMC-Test Report in whole or in part is prohibited without the written authorization of the Laboratory Director La riproduzione di questo Rapporto in modo parziale o totale è PROIBITO senza l’autorizzazione scritta della Direzione del Laboratorio FCC.TR. TEST REPORT 07.409 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 14/09/06 sheet 2 of 18 0. CONTENTS Page Rev Date 0. CONTENTS .............................................................................................. 2 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) ..... 3 1.1 Identification ...................................................................................... 3 1.2 Technical data ................................................................................... 3 1.3 Modifications incorporated in E.U.T................................................... 3 Ports identification ........................................................................................ 4 1.4 Auxiliary equipment........................................................................... 4 2. TEST CONDITIONS ................................................................................. 5 2.1 Operating test modes and test conditions......................................... 5 2.2 Test overview .................................................................................... 5 3. REFERENCE STANDARD FOR PERFORMED TESTS .......................... 6 4. Summary of test results ............................................................................ 7 4.1 Emission tests ................................................................................... 7 5. TEST RESULTS ....................................................................................... 8 6. EUT TECHNICAL DOCUMENTATION................................................... 16 6.1 Wiring diagrams............................................................................... 16 6.2 Technical manual............................................................................ 16 6.3 Photographic documentation ........................................................... 17 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 14/09/06 FCC.TR. TEST REPORT 07.409 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 14/09/06 sheet 3 of 18 1. TECHNICAL INFORMATION OF EQUIPMENT UNDER TEST (EUT) 1.1 Identification Brand name: CHARIMATHICS GMBH Manufacturer: EUTRONSEC SPA Equipment : USB KEY Model name or No. : PLUG’N’CRYPT ID Serial number : Not present FCC ID : U5Y-AAA Country of manufacturer: ITALY 1.2 Technical data FCC class: Unintentional radiators, Class B Supply voltage: +5 V dc supplied by USB PC connector Input Power / Current : 40 mA max. Maximum internal frequency generated by EUT 12 MHz Typical usage : Document encrypting EUT single or system: Single EUT dimensions : 7,5 x 1,9 x 1,2 cm 1.3 Modifications incorporated in E.U.T. The following items are the modifications introduced in the equipment under test : • None FCC.TR. TEST REPORT 07.409 Prima Ricerca & SviluppoSrl soggetta a direzione e coordinamento da parte della Giovanni Maspero & C. S.p.A. – C.I. 02634780130 Sede legale : 22100 Tavernola (CO) Via Conciliazione, 1 Cod. FISC. e N. R.I. CO 02635860139 Sede operativa : Laboratori Via Campagna, 92 22020 Faloppio fraz. Gaggino (CO) Tel. +39 03135000.11 Fax +39 031991309 Edition: 1.0 Issue date: 14/09/06 sheet 4 of 18 Ports identification This section contains descriptions of all signal ports and AC/DC power input/output ports, the leng…

Text truncated - open the document above for the full version.
