U64800-0001-04-NJTicket Vending Machine

Operating Manual NJT: Expert900 Install. & Initial Setup NJT: Expert900 Install. & Initial Setup 2 / 47 Version: 01  ACS Doc-No: 10-000-004-711 - BH - 06 - EN Copyright & Revision History The copyright to this document is owned by ACS Solutions Switzerland Ltd. All documentation is confidential and must not be disclosed to third parties without the prior written consent of ACS Solutions Switzerland Ltd. The document must not be reproduced in any way. Violation is liable to prosecution. The documentation describes the current status of the product design at the time of drafting or updating the document. Changes and improvements, due to advances in technology and functionality, may be introduced without prior notice or justification. ACS Solutions Switzerland Ltd. is not liable for any indirect damages incurred by the user as a result of using this document. Copyright  29. Mar. 07 by ACS Solutions Switzerland Ltd. Frankenstrasse 70 CH-3018 Bern Switzerland Document Administration Author(s) Roger Vifian Date 29.03.2007 Language EN Original Language EN Doc-Nr. 10-000-004-711 Sub-No.: 06 Version 01 Document-Type BH Operating Manual Format Tool Microsoft Word 2000 Location SAP-PDM Revision History Vers. Description of Changes 00 First edition 01 FCC authorization; ground connection & special track ground connection NJT: Expert900 Install. & Initial Setup  ACS Doc-No: 10-000-004-711 - BH - 06 - EN Version: 01 Seite 3 / 47 Table of Contents 1 Reference Documents.....................................................................................4 2 FCC Authorization & Rules.............................................................................5 3 Overview...........................................................................................................6 3.1 Basic Steps.........................................................................................................................6 4 Installation........................................................................................................7 4.1 Setup Conditions.................................................................................................................7 4.2 Minimum Clearance Requirements.....................................................................................7 4.3 Recommendations for the Installation of the Pedestal......................................................10 4.4 Installation of TVM onto the Pedestal................................................................................11 4.4.1 Description of the Attachment of the TVM to the Pedestal................................11 4.4.2 Installation with Lifting Device...........................................................................13 4.4.3 Installation Manually..........................................................................................17 4.5 Installation of EFT – PoS Card Processing.......................................................................22 4.6 Connecting the TVM to the Mains.....................................................................................23 4.6.1 Power Requirements.........................................................................................23 4.6.2 Procedure.........................................................................................................24 4.7 Connecting the TVM to the Network..................................................................................27 4.7.1 Network Connection with Shielded Cable Connection......................................27 4.7.2 Network Connection with Unshielded Cable Connection..................................28 5 Initial Start-up................................................................................................29 5.1 Overview...........................................................................................................................29 5.2 Requirements....................................................................................................................29 5.3 Special tools......................................................................................................................30 5.4 Starting up the TVM..........................................................................................................30 5.4.1 Remove Packaging Material andTransport Security Locks..............................30 5.4.2 Software Installation..........................................................................................30 5.4.3 Terminal Initialization........................................................................................31 5.4.4 Load Paper (Ticket Media)................................................................................36 5.4.5 Inspecting Coin Vault, Banknote Vault & BUCOs.............................................36 5.4.6 Initializing the Printer System............................................................................37 5.4.7 Initializing the Coin Processing System............................................................40 5.4.8 Fill the Coin Drums of the Coin Processing System.........................................41 5.4.9 Initializing the Banknote Verifier........................................................................44 5.4.10 Initializing the Card Handling Module (option)..................................................46 5.4.11 Commissioning of the EFT-PoS Card Processing............................................47 5.4.12 Initializing the Sales Application........................................................................47 NJT: Expert900 Install. & Initial Setup 4 / 47 Version: 01  ACS Doc-No: 10-000-004-711 - BH - 06 - EN 1 Reference Documents Document number Document Title 10-000-004-582 E00 Safety Instructions 10-000-004-711 E01 NJT: Expert900 System Description 10-000-004-711 E02 NJT: Expert900 Routine Jobs 10-000-004-711 E03 NJT: Expert900 Maintenance Jobs 10-000-004-711 E04 NJ…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Bern, 12 th april 2007 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, ACS Solutions Switzerland Ltd., Frankenstrasse 70, CH-3018 Bern, requests confidentiality for the following products: FCC ID Number Product Title/Model U64800-0001-04-NJ Ticket Vending Machine TVM Expert 900 for New Jersey Transit For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” The above exhibits contain ACS Solutions Switzerland Ltd.trade secrets and proprietary information that could be of benefit to our competitors. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Adrian Krebs Company: ACS Solutions Switzerland Ltd. Address: Frankenstrasse 70, CH-3018 Bern Phone: +41 31 999 6214 Email: [email protected]

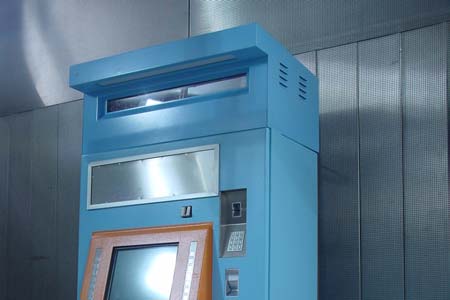

Annex 1 of Test Report INO-EEC 12478-1 Swisscom Ltd., Bern Innovations INO-CMG-EEC Test laboratory STS 121 CH-3050 Bern Test item: Ticket Vending Machine TVM Expert for New Jersey Issue date: March 27 th , 2007 Doc-ID: Annex 1 of INO-EEC 12478-1 1/1 Annex 1 of Test Report INO-EEC 12478-1: External Photos Front View of the EUT: Ticket Vending Machine TVM Expert for New Jersey Slot of the RFID-Module (See red square)

Labeling-location-info.doc 29.05.2007 Seite 1 von 1 Labeling, location Info: Trade Name: ACS Model: NJT 2006: Expert 900 FCC ID: U64800-0001-04 –NJ This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Annex 2 of Test Report INO-EEC 12478-1 Swisscom Ltd., Bern Innovations INO-CMG-EEC Test laboratory STS 121 CH-3050 Bern Test item: Ticket Vending Machine TVM Expert for New Jersey Issue date: March 27 th , 2007 Doc-ID: Annex 2 of INO-EEC 12478-1 1/1 Annex 2 of Test Report INO-EEC 12478-1: Internal Photos View on the inside of the door and view inside of the EUT: Ticket Vending Machine TVM Expert for New Jersey RFID-Module (See red square) Material Specification for TLB A+B module - OEM This document is the property of Affiliated Computer Services Solutions France SAS. It may not be reproduced or circulated without prior authorisation SES4240 Issue: A Text: EN Page: 14 8.3 OEM CSC-MODULE TLB DRIVE This is a complete product. It includes the UC board and connections, assembled in its metal unit. It comes with three connectors: power supply, the RS232 link and the coaxial connector for the antenna. The unit is secured by 4 M3 screws. 8.3.1 Photo of open unit Prise coaxial pour l’antenne Prise RJ45 pour la liaison série Prise alimentation 4 trous de fixation pour vis M3 4 holes for M3 screws Coaxial connection for antenna RJ45 Connection for serial link Power supply plug

Test Report Author (Visa) Reviewer (Visa) Head of test laboratory (Signature) Without the written approval of the test laboratory, this test report shall not be reproduced, except in full. The test results relate only to the items tested and the specified configurations. The remarks are binding for correct interpretation of the test results. Swisscom Ltd., Berne Innovations INO-CMG-EEC Test laboratory STS 121 Ostermundigenstrasse 93 CH-3050 Bern Phone +41 31 342 33 67 Fax +41 31 342 39 17 1/20 Author Johannes Biner CT INO-CMG-EEC Phone +41 79 256 21 55 STS 121 S T S Schweizerischer Prüfstellendienst Service suisse d'essai Servizio di prova in svizzera Swiss Testing Service Ticket Vending Machine TVM Expert for New Jersey Issue Date May 22 nd , 2007 Doc-ID INO-EEC 12478-1 Order No INO-EEC 12478 Pages 20 Annexes 3 Test report reviewed by Enrico Blondel Owner of the test report ACS Solutions Switzerland Ltd., Frankenstrasse 70, 3018 Bern Customer ACS Solutions Switzerland Ltd., Frankenstrasse 70, 3018 Bern Test item Ticket Vending Machine TVM Expert for New Jersey Manufacturer ACS Solutions Switzerland Ltd., Frankenstrasse 70, 3018 Bern Field of test activity EMC and Radio Spectrum Matters Test Basis / Standard 47CRF15.207, 47CRF15.209, 47CRF15.225 a) - c),and ANSI C 63-4:2003 Range of Test Complete Test fulfilment Pass Remarks None Test Report Swisscom Ltd., Bern Innovations INO-CMG-EEC Test laboratory STS 121 CH-3050 Bern Test item: Ticket Vending Machine TVM Expert for New Jersey Issue date: May 22nd, 2007 Doc-ID: INO-EEC 12478-1 2/20 Table of contents 1 Abbreviations........................................................................................................................................3 2 Test specifications.................................................................................................................................3 3 Equipment under test...........................................................................................................................3 3.1 Short description (from customer) .........................................................................................................3 3.2 Identification ........................................................................................................................................4 3.3 Tested configuration .............................................................................................................................5 3.4 Active mode during all measurements and tests ....................................................................................5 3.5 Modifications during the test ................................................................................................................5 4 Summary of test results and remarks .................................................................................................6 5 Emission ................................................................................................................................................7 5.1 Conducted disturbances 0.15 MHz - 30 MHz ........................................................................................7 5.2 Radiated disturbance 30 MHz up to 12 GHz .......................................................................................10 5.3 Spurious radiation H-Field 9 kHz - 30 MHz ..........................................................................................14 5.4 Radiated Emission Additional Provisions 13.110 MHz up to 14.010 MHz .............................................16 5.5 Stability of the carrier frequency..........................................................................................................18 5.6 Measurement Uncertainty...................................................................................................................20 Test Report Swisscom Ltd., Bern Innovations INO-CMG-EEC Test laboratory STS 121 CH-3050 Bern Test item: Ticket Vending Machine TVM Expert for New Jersey Issue date: May 22nd, 2007 Doc-ID: INO-EEC 12478-1 3/20 1 Abbreviations EUT Equipment under Test (Prüfgegenstand) TVM Ticket vending Machine 2 Test specifications Test sample arrival date: January 15 th , 2007 Date of test from: January 16 th , 2007 to: January 16 th , 2007 Customer representative during testing: Mr. A. Krebs; +41 31 999 62 14 3 Equipment under test 3.1 Short description (from customer) The Expert ticket vending machine from ACS has the following features: • Large 15.1“ TFT display • Touchscreen with "IR- Touchframe technology“ behind safety glass • Computer-controlled using Windows XP operating system • Graphical user guidance even for the service functions • Routine tasks are automated and user-guided wherever possible (replacement of paper and cashboxes) • RS24.7 change money system with auxiliary coin storage units • BNA 57 banknote processing • Modern, monitored power supply system • Online connection to the corresponding accounting, management and system servers • Thermoprinter for Ultra light Tickets handles 7 paper rolls • Thermoprinter for normal Paper based tickets and Receipt services • Magnetic Card Reader and encrypting PIN Pad for EFT- POS payment systems • Contactless Card Reader for cashless payment • LED information display for passenger information • Automatic temperature management Test Report Swisscom Ltd., Bern Innovations INO-CMG-EEC Test laboratory STS 121 CH-3050 Bern Test item: Ticket Vending Machine TVM Expert for New Jersey Issue date: May 22nd, 2007 Doc-ID: INO-EEC 12478-1 4/20 3.2 Identification Test item: Ticket Vending Machine TVM Expert for New Jersey Type / Model: Expert 900 Manufacturer: ACS Solutions Switzerland Ltd., Frankenstrasse 70, 3018 Bern Serial number: 30300240703S Photos of the identification: See Annex 1 External Photos and Annex2 Internal Photos. 3.2.1 General Dimensions (H*W*D) in mm: 2’017 * 912 * 534 (with pedestal and lightning top) Weight in kg: 350 3.2.2 Hardwa…

Text truncated - open the document above for the full version.

Annex 3 of Test Report INO-EEC 12478-1 Swisscom Ltd., Bern Innovations INO-CMG-EEC Test laboratory STS 121 CH-3050 Bern Test item: Ticket Vending Machine TVM Expert for New Jersey Issue date: May 14 th , 2007 Doc-ID: Annex 3 of INO-EEC 12478-1 1/3 Annex 3 of Test Report INO-EEC 12478-1: Photos of the Test Set-ups Conducted disturbances according to ANSI C 63-4-2003 (see chap. 5.1 of test report): Photo 1: Conducted disturbances (Front view) Photo 2: Conducted disturbances (Rear view) Radiated E-Field according to ANSI C 63-4-2003 (see chap. 5.2 of test report): Photo 3: E-Field Measurement Annex 3 of Test Report INO-EEC 12478-1 Swisscom Ltd., Bern Innovations INO-CMG-EEC Test laboratory STS 121 CH-3050 Bern Test item: Ticket Vending Machine TVM Expert for New Jersey Issue date: May 14 th , 2007 Doc-ID: Annex 3 of INO-EEC 12478-1 3/3 Measurement of the carrier stability in the climatic chamber (see chap. 5.5 of test report): Photo 5: H-Field Measurement in the climatic chamber Photo 6: Set-up H-Field antenna Photo 7: Set-up of the temperature sensor inside the system close to the detector antenna
