U6QSHTDRCEW0703Remote Control Transmitter

TD 3000 Instruction: Q Operating Frequency: 315MHz Q Using code: 2 codes (symbol A or B, standard for forward and reverse direction of the electrical winch) Q Battery Type: 12V alkaline battery Q FCC notice: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC statement: This device complies with Part 15 of the FCC Rules. Operations is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Q Operation Instruction: Þ Put a 12V alkaline battery into the battery cover (battery polar +/-) Þ Press A for the winch running forward, Press B for the winch running reverse. Þ The remote control distance will be about 5m. Warning: After the winch is running, it may generate disturbance. At that time the remote control distance may be shorter. The battery shall be changed to be a new battery every half a year.

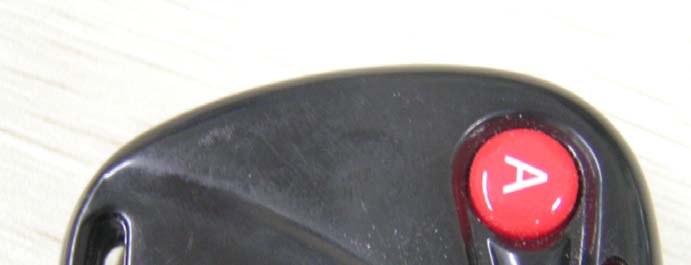

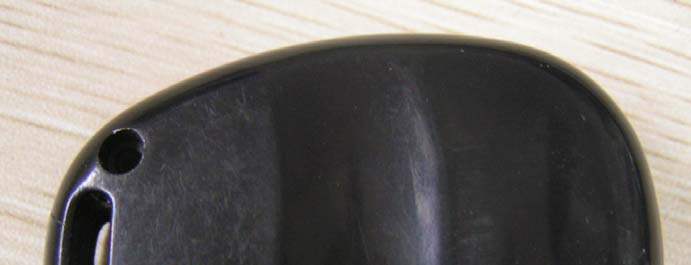

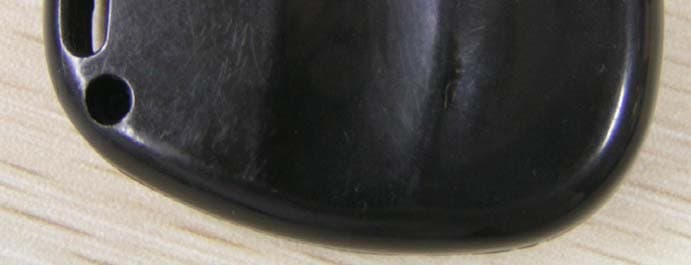

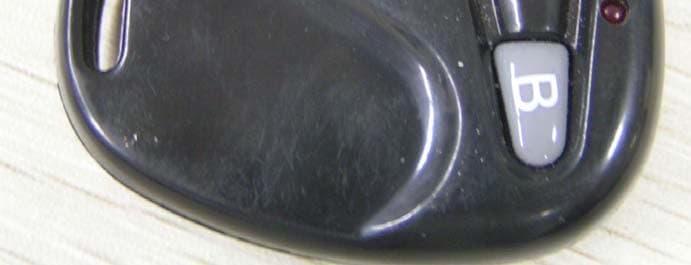

Front View Rear View

FCC ID Location

Uncovered #1 Uncovered #2 Main Board Front View Main Board Back View

Theory of Operation: Put a 12V alkaline battery into the battery cover (battery polar +/-) Press A for the winch running forward, Press B for the winch running reverse. The remote control distance will be about 5m. The RF signal is 315MHz. Circuit Description: The 315 crystal generate signal and transfer to coding chip. There is tow codes. Then the coding signal will be sent to the triode and transmit to the space by integral antenna. Two codes are controlled by button “A” and “B”.

670 National Avenue, Mountain View, CA 94043 Tel. (650) 988-0900 Fax (650) 988-6647 www.ecmg-global.com FCC CERTIFICATION RADIO MEASUREMENT TECHNICAL REPORT On Model Name: Remote Control Model Number : TD3000 Trademark : N/A FCC ID : U6QSHTDRCEW0703 Prepared for Shanghai Tedu Electromechanical Co., Ltd. According to FCC Part 15 (2006), Subpart C Test Report #: SHA-0701-5978-FCC Prepared by: Chris Huang Reviewed by: Harry Zhao QC Manager: Paul Chen Test Report Released by: 2007, March 26 ⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯ Paul Chen Date Test Location Tests performed at EMC Compliance Management Group (China) in a Certified ANSI Semi-Anechoic Chamber and Shielded Room performed testing. Test Site Location: Jiangsu Electronic Products Supervision & Inspection Institute No 107 Ge lane ZhongQiao WuXi JiangSu, China Tel: 86-510-85140038 Fax: 86-510-85140037 Registration Number: 399439 Table of Contents ADMINISTRATIVE DATA ___________________________________ 1 EUT DESCRIPTION _________________________________________ 1 TEST SUMMARY ___________________________________________ 2 TEST MODE JUSTIFICATION _______________________________ 3 EUT EXERCISE SOFTWARE _________________________________ 3 EQUIPMENT MODIFICATION _______________________________ 3 TEST SYSTEM DETAILS ____________________________________ 4 CONFIGURATION OF TESTED SYSTEM _____________________ 5 EUT SAMPLE PHOTOS OF TD3000 _________________________ 6 ATTACHMENT 1 – ANTENNA REQUIREMENT ______________ 10 ATTACHMENT 2 – OPERATION MODE _____________________ 13 ATTACHMENT 3 – RESTRICTED BAND OF OPERATION ____ 16 ATTACHMENT 4 –FIELD STRENGTH OF FUNDAMENTAL AND SPURIOUS EMISSIONS_____________________________________ 22 ATTACHMENT 5 – BANDWIDTH TEST __________________31-34 EMC Test Report #: SHA-0701-5978-FCC Prepared for Shanghai Tedu Electromechanical Co., Ltd. Prepared by EMC Compliance Management Group Page 1 of 34 Administrative Data Test Sample : Remote Control Model Number : TD3000 Trade Mark : N/A Date Tested : 2007, March 15 th Applicant : Shanghai Tedu Electromechanical Co., Ltd. No.158 Jiuyi Rd., Jiuting, Songjiang, Shanghai, China Telephone : 86-21-57637503 Fax : 86-21-57637503 Applicant : Shanghai Tedu Electromechanical Co., Ltd. No.158 Jiuyi Rd., Jiuting, Songjiang, Shanghai, China EUT Description Shanghai Tedu Electromechanical Co., Ltd. model number TD3000 (referred to as the EUT in this test report) is a Remote Control. The transmitter is manually operated and has two buttons (for the winch running forward and reverse). It transmits once per push and will cease transmitting after the button is released. EMC Test Report #: SHA-0701-5978-FCC Prepared for Shanghai Tedu Electromechanical Co., Ltd. Prepared by EMC Compliance Management Group Page 2 of 34 Test Summary The Electromagnetic Compatibility requirements on TD3000 for this test are stated below. All results listed in this report relate exclusively to this above-mentioned model as the Equipment Under Test. This report confers no approval or endorsement upon any other component, host or subsystem used in the test set-up. EMC Test Items Reference FCC Part 15 (2006), Subpart C Specification Description Test Results Remark FCC Part 15.203 Antenna Requirement Compliance Attachment 1 FCC Part 15.205 Restricted Band of Operation Compliance Attachment 3 FCC Part 15.209 Radiated Emission Limits Compliance Refer to Attachment 4 FCC Part 15.231 Periodic Operation in the Band 40.66-40.70MHz and above 70MHz (a) Operation Mode Compliance Attachment 2 (b) Field Strength of Fundamental and Spurious Emissions Compliance Attachment 4 (c) Bandwidth Compliance Attachment 5 EMC Test Report #: SHA-0701-5978-FCC Prepared for Shanghai Tedu Electromechanical Co., Ltd. Prepared by EMC Compliance Management Group Page 3 of 34 Test Mode Justification The test modes (Lie, Side, Stand) were done for testing. Note: Lie mode means let EUT put flat; Side mode means let EUT stand with side; Stand mode means let EUT stand up. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. EUT Exercise Software The device is not programmable and does not use software. Equipment Modification Any modifications installed previous to testing by Shanghai Tedu Electromechanical Co., Ltd. will be incorporated in each production model sold or leased in United States. There were no modifications installed by EMC Compliance Management Group (China) test personnel. EMC Test Report #: SHA-0701-5978-FCC Prepared for Shanghai Tedu Electromechanical Co., Ltd. Prepared by EMC Compliance Management Group Page 4 of 34 Test System Details EUT Model Number: Trademark:: Serial Number: Input Voltage: Description: Manufacturer: TD3000 N/A Engineering Sample 12V DC (1*12V alkaline battery) Remote Controller for Remote Control Shanghai Tedu Electromechanical Co., Ltd. Support Equipment None Cable Description None EMC Test Report #: SHA-0701-5978-FCC Prepared for Shanghai Tedu Electromechanical Co., Ltd. Prepared by EMC Compliance Management Group Page 5 of 34 Configuration of Tested System EMC Test Report #: SHA-0701-5978-FCC Prepared for Shanghai Tedu Electromechanical Co., Ltd. Prepared by EMC Compliance Management Group Page 6 of 34 EUT Sample Photos of TD3000 Front View Rear View EMC Test Report #: SHA-0701-5978-FCC Prepared for Shanghai Tedu Electromechanical Co., Ltd. Prepared by EMC Compliance Management Group Page 7 of 34 Uncovered #1 Uncovered #2 EMC Test Report #: SHA-0701-5978-FCC Prepared for Shanghai Tedu Electromechanical Co., Ltd. Prepared by EMC Compliance Management Group Page 8 of 34 Main Board Front View Main Board Back View EMC Test Report #: SHA-0701-5978-FCC Prepared for Shanghai Tedu Electromechanical Co., Ltd. Prepared by EMC Compliance Management Group Page 9 of 34 Battery View EMC Test Report #: SHA-0701-5978-FCC Pr…

Text truncated - open the document above for the full version.

Test setup of low frequency Field Strength Emissions Test Set-up – Lying mode Field Strength Emissions Test Set-up – Side mode Field Strength Emissions Test Set-up – Stand mode Test setup of High frequency Field Strength Emissions Test Set-up
