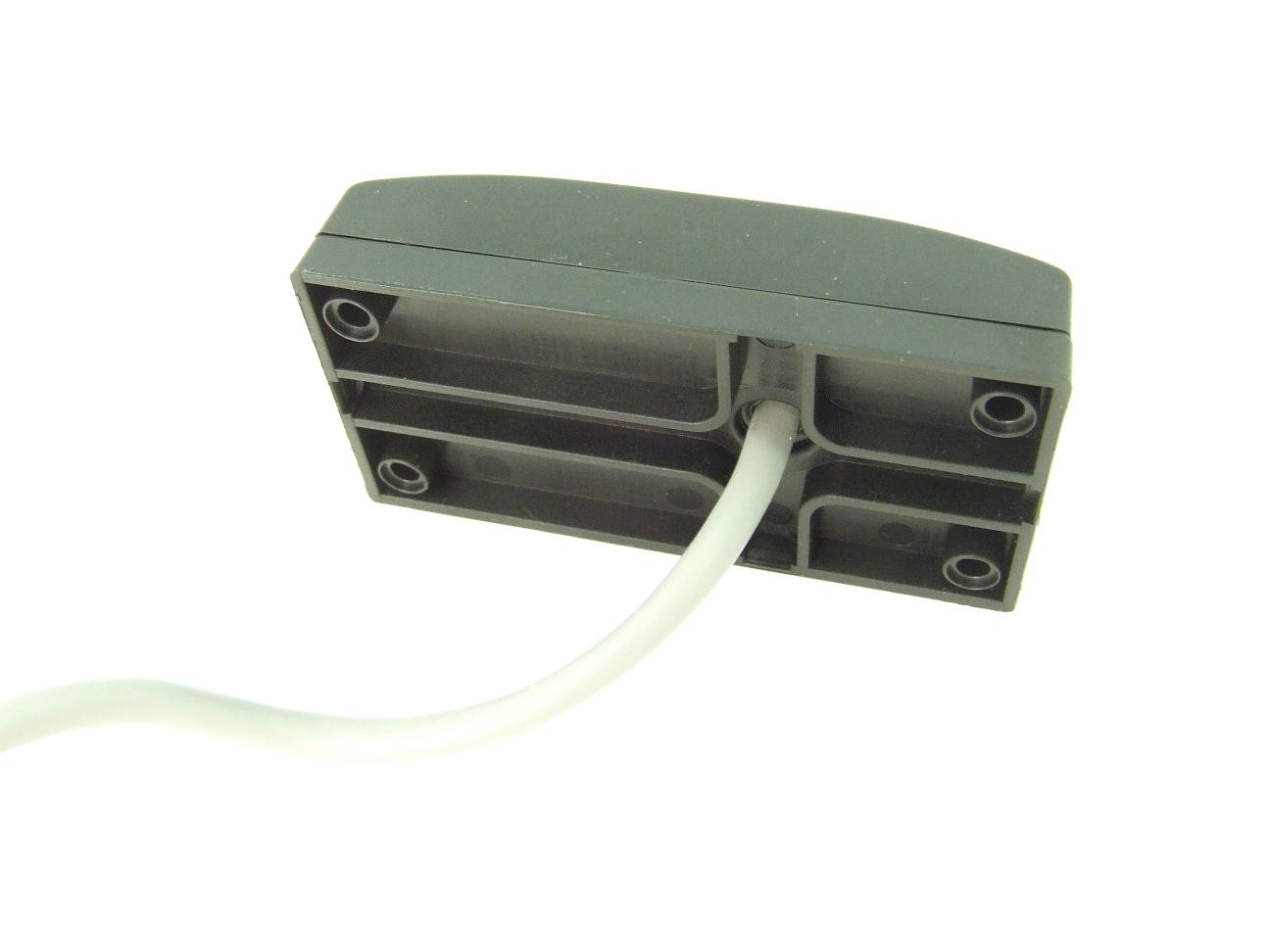

1 8965 Secure Reader Instruction Manual The Secure Reader consists of three parts: a potted unit containing the electronics, a front cover, and an optional spacer plate. A fixed 3-way color-coded cable protrudes from the back of the potted unit. Physical Dimensions and Mounting Details: If the spacer plate is used the reader cable may be brought out of one of four exit points on the spacer: top, bottom, left or right. This enables the cable to be run on the surface of the wall. If no spacer plate is used a minimum hole size of ¼” must be drilled in the wall at the cable exit position as shown above to allow the cable to exit perpendicular to the reader. The optional spacer plate may also be used when mounting the reader on a metal surface to reduce the negative effects of metal on the read range. Secure Reader Position: The readers work on the principle of radiating a magnetic field from a coil and this field will be affected by the close proximity of metal. Ideally readers should be mounted on non metallic materials. If the unit is mounted on a metal surface the included reader spacer should be used so as to limit the reduction in reading distance. Multiple Readers: The radiated field of the reader coil extends in all directions including through brick walls. The coil of one reader may interfere with another if they are mounted within 16 inches of each other. SECURE READER: +12V, DATA0 & 0V The reader is potted and has 3 wires exiting from the rear. The wires are: Red +12VDC Yellow DATA Black 0V These connections are wired to the corresponding connections of either READER-1 or READER-2 on the controller ( see connection diagrams for details). Cable length between a reader and the controller must not exceed 150 feet. Shielded cable is not required provided the cabling is not used in an electrically noisy environment. If shielded cable is used, the shield must be connected to 0V at the Controller connector. The cable should be multi-strand 3-conductor with a minimum of 22 awg. Solid core wire is NOT recommended 2 Power-up: On first time power-up of the unit the RED and GREEN LEDs flash alternately with an even pattern to show that the unit’s memory is clear. A master tag/PIN can now be added to the system Specifications: _ Power requirements: 12Vdc. Current consumption is 75 mA typical _ RF Frequency: 125 kHz. _ 40 bit read only transponders supported: EM4001 family, TEMIC e5550 and equivalent devices. _ Output formats supported: It has 3 wires: V+, Gnd and Data. The latter is bi-directional and has a proprietary protocol which is unique to the controller. _ Typical reading range with supply voltage in range 12Vdc: keyring tag with 20mm coil - 85mm, ISO card with 50mm coil - 165mm. _ 3 LEDs (RED, YELLOW, GREEN), controlled by network host. _ Sounder emits at 4 kHz, controlled by network host. _ Operating temperature range: -20ºC - +60ºC. _ 3 conductor cable: 3 Feet long _ Weight: 90 grams. _ Dimensions: reader 3-1/2” x 1-3/4” x 5/8”, optional spacer plate 3-1/2” x 1-3/4” x 1/4” Conditions: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Dortronics Systems, Inc. could void the user's authority to operate the equipment. 8965 Data Sheet Rev 1.0 March 2007 All specifications are subject to change without notice

8965 Operational Overview The DORTRONICS 8965 proximity reader consists of three parts: a potted unit containing the electronics, a front cover, and an optional spacer plate. A fixed color-coded cable protrudes from the back of the potted unit. The reader reads the code from an RFID transponder, and stores it until polled via a simple, host-controlled polling protocol. These poll packets simultaneously control the functions of the three LEDs and beeper. 8965 Overview Sheet Rev 1.0 March 14, 2007 All specifications are subject to change without notice

Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 www.ul.com/emc (631) 271-6200 Job Number: 676068 File Number: MC15600 Date: 31 May 07 Model: 8965 FCC ID: U78-8965001 IC ID: 7153A-8965001 Electromagnetic Compatibility Test Report For Dortronics Systems Inc. Copyright © 2007 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Underwriters Laboratories Inc. A not-for-profit organization dedicated 1285 Walt Whitman Rd. Melville, NY 11747 Tel: (631) 271-6200 Fax: (631)439-6095 to public safety and committed to quality service for over 100 years Job Number: 676068 File Number: MC15600 Page 2 of 30 Model Number: 8965 FCC ID: U78-8965001 Client Name: Dortronics Systems Inc. Test Report Details Tests Performed By: Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 Tests Performed For: Dortronics Systems Inc. 1668 Sag Harbor Turnpike Sag Harbor, NY 11963 Applicant Contact: John FitzPatrick Phone: (631) 725-0505 E-mail: [email protected] Test Report Date: 31 May 07 Product Type: Proximity Reader Product standards FCC Part 15, Subpart B & C; RSS-GEN; RSS-210 Model Number: 8965 Sample Serial Number: Prototype EUT Category: Low Power Transmitter Testing Start Date: 23 Mar 07 Date Testing Complete: 27 Mar 07 Overall Results: Compliant Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA websites referenced at the end of this report. Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2007 Job Number: 676068 File Number: MC15600 Page 3 of 30 Model Number: 8965 FCC ID: U78-8965001 Client Name: Dortronics Systems Inc. Report Directory 1.0 G E N E R A L - Product Description..................................................................................................................4 1.1 Equipment Description.....................................................................................................................4 1.2 Equipment Marking Plate..................................................................................................................4 1.3 Device Configuration During Test.....................................................................................................5 1.3.1 Equipment Used During Test:..........................................................................................................5 1.3.2 Input/Output Ports:..........................................................................................................................5 1.3.3 EUT Internal Operating Frequencies:...............................................................................................5 1.3.4 Power Interface:.............................................................................................................................5 1.4 Block Diagram:................................................................................................................................. 6 1.5 EUT Operation Modes.......................................................................................................................7 1.6 EUT Configurations..........................................................................................................................7 2.0 Summary............................................................................................................................................................8 2.1 Deviations from standard test methods............................................................................................8 2.2 Device Modifications Necessary for Compliance..............................................................................8 2.3 Reference Standards........................................................................................................................9 2.4 Results Summary.............................................................................................................................9 3.0 Calibration of Equipment Used for Measurement...........................................................................................10 4.0 EMISSIONS TEST RESULTS.........................................................................................................................10 4.1 Test Conditions and Results – MAINS TERMINAL – CONDUCTED EMISSIONS..............................11 4.2 Test Conditions and Results – RADIATED EMISSIONS..................................................................16 4.3 Test Conditions and Results – OCCUPIED BANDWIDTH................................................................24 5.0 IMMUNITY TEST RESULTS...........................................................................................................................28 Appendix A...................................................................................................................................................................29 Accreditations and Authorizations..................................…
