U7UHS-228249All Terrain Cyclone RC

Sketch of the diagram of the Terrain Cyclone 1． Sketch of the diagram of the transmitter： 49.680M oscillation (Y1) Modulate & amplify Transmitter with antenna (ANT) TX-2 Coding (U1) Operation input

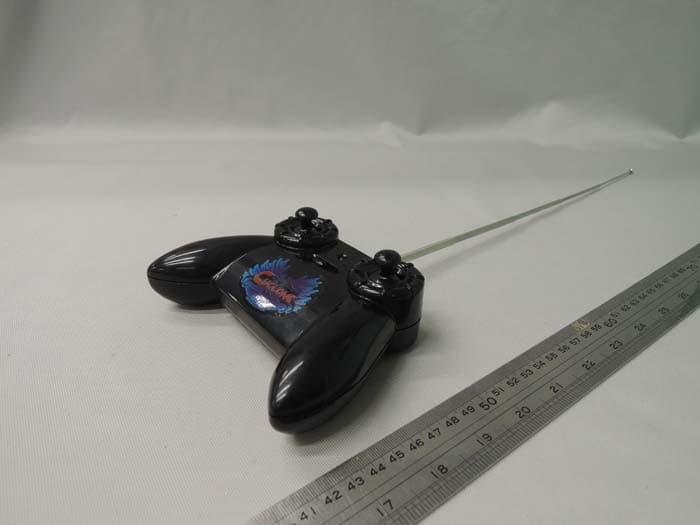

INTERTEK TESTING SERVICE Report No.: 14060716HKG-001 Equipment Photographs Model: HS2282 (External) FCC ID: U7UHS-228249

INTERTEK TESTING SERVICE Report No.: 14060716HKG-001 Equipment Photographs Model: HS2282 (Internal) FCC ID: U7UHS-228249 INTERTEK TESTING SERVICE Report No.: 14060716HKG-001 Equipment Photographs Model: HS2282 (Internal) FCC ID: U7UHS-228249 INTERTEK TESTING SERVICE Report No.: 14060716HKG-001 Equipment Photographs Model: HS2282 (Internal) FCC ID: U7UHS-228249

FCC ID: U7UHS-228249 Model: HS2282 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.860 MHz, and controls the corresponding receiver to move forward and backward. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: K1, K2, K3, K4 and U1 (GE-TX2) 2. A RF Oscillator (49.860MHz) Consisting: Y1, Q2 3. A Filter Network Consisting: T1, L3, C12, C13, C14 4. A RF Modulator and Amplifier Consisting: Q1 5. A Power Supply Consisting: 9VDC (1 X 9V block size batteries) Antenna Gain: 0dBi Nominal rated field strength: 36.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and telescope antenna with unique antenna connector.

Analysis Report Report No.: 14060716HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 49.860 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9V battery). The EUT has an on/off switch, left control stick and a right control stick. After switching ON the EUT and the receiver of the RC Car, activating the control sticks on the EUT can control the receiver moving forward, backward, left or right. Antenna Type: External, telescope antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 36.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 39.5dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.000003mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.000003mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:12-Jun-2014Sheet of File:D:\PROGRAM FILES\PROTEL 99SE汉化版\EXAMPLES\PREVIO~16.DDBDrawn By: Right 1 Test 2 GND 3 BACK 4 For 5 Turbob 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 FOSC 13 LEFT 14 U1 GE-TX2 C11 104 C8 22pF C3 104 R11 100R R7 47K R1 330R R3 200K EC1 100uF L2 1UH Q1 1815 Q2 945 K3 K2 K1 D1 4.7V Y1 49.860 VCC R2 22K C6 22pF VDD L1 1UH ANT C17 47pF C12 100pF C14 20P C13 100P R9 10R DC 9V C1 104 C2 104 R10 150K R13 10R LED Red SW1 K4 L3 6.8UH T1 8.75T C4 104 C7 104 D 4148 49.860MHZ C9 100P Print to PDF without this message by purchasing novaPDF (http://www.novapdf.com/)

Valued Qualiry. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HI(AS has accredited th¡s laboratory HOKLAS 005 - TEST) under HOKLAS for specif¡c laboratory activities as listed in the HOKLAS directory of accredited laborator¡es. TEST REPORT HII= n€t m@Ás.# F Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Report No. : I 40607 16HKG-001 Heng Sheng Toys Factory (H.K,) Co., Ltd. Application For Certification (Original Grant) (FCC lD: UTUHS-2282491 Transmitter Approved by: Lead Engineer Date: July 1 1,2014 This report shall not be rêproduced, excapt ¡n full. Th¡s eport is for the exclus¡ve use of lntertek's Client and ¡s provided pursuant to the agreement between lntertek and its Client. lntertek's responsib¡l¡ty and liability are l¡mitèd to the têrms and ænd¡tions of the agreement. lntertek assumes no liability to âny party, othèr than to ths Client ¡n aæordance w¡th the agreement, for any loss, expense or damage oæas¡oned by the use of this report. Only the Cl¡ent is authorized to pem¡t copy¡ng or d¡str¡but¡on of th¡s rsport and then only in its entirêty. Any usg of the lntertgk name or one of ¡ts marks for thè sale or advert¡sement of the tested material, product or soru¡æ must f¡rst be apprcved ¡n writing by lntertêk. The obseruat¡ons ând test results ¡n th¡s report are relevant only to the sample tested. Th¡s report by itself does not imply thât the mâter¡al, product, or seruiæ is or has evêr been under an lntèrtek cert¡f¡cat¡on prcgram. lntertek Testing Services Hong Kong Ltd. 2/F., GarmentCentre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Ng Mei Nar, Chris Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14060716HKG-001 i FCC ID: U7UHS-228249 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Heng Sheng Toys Factory (H.K.) Co., Ltd. Grantee Address: Room 6, 3/F., Lladro Centre, 72 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong. Contact Person: Queenie Chan Tel: (852) 2976 9811 Fax: (852) 2790 3069 e-mail: N/A Manufacturer: Jinjiang Hengsheng Toys Co. Ltd. Manufacturer Address: Wu Keng Ind. District, Long Hu, Jinjiang, Fujian Province, China. Brand Name: Heng Sheng Model: HS2282 Type of EUT: Transmitter Description of EUT: All Terrain Cyclone RC Serial Number: N/A FCC ID: U7UHS-228249 Date of Sample Submitted: June 16, 2014 Date of Test: June 16, 2014 to June 27, 2014 Report No.: 14060716HKG-001 Report Date: July 11, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14060716HKG-001 ii FCC ID: U7UHS-228249 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14060716HKG-001 iii FCC ID: U7UHS-228249 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .................................................................................. 2 2.5 Support Equipment List and Description............................................................. 2 3.0 Emission Results ......................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14060716HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : HS2282 FCC ID: U7UHS-228249 INTERTEK TESTING SERVICE Report No: 14060716HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : HS2282 FCC ID: U7UHS-228249
