U7UHS-P3349BRC Smart Car

1:15 SMART CAR BLOCK DIAGRAM TRANSMITTER BLOCK DIAGRAM： 49.86MHz Crystal Oscillator Modulator & Amplifier Q1, Q2 49.860MHz Antenna Encoder TX-2 Control Key S1 – S4 Power Supply (9.0V) Voltage Regulator D1

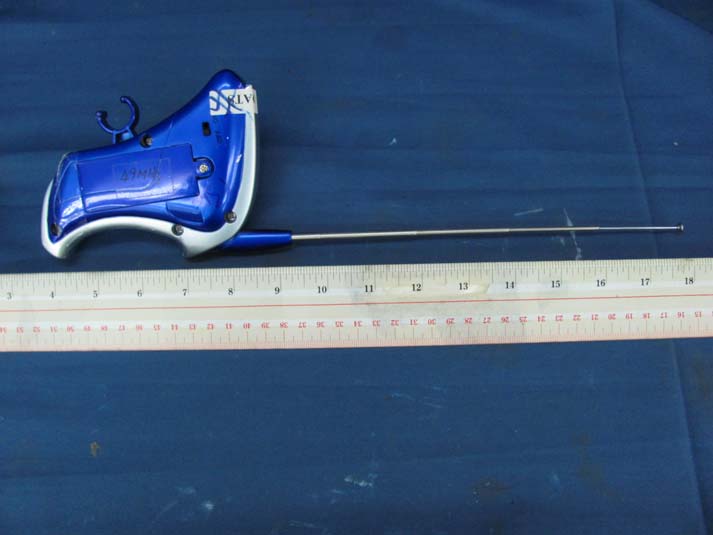

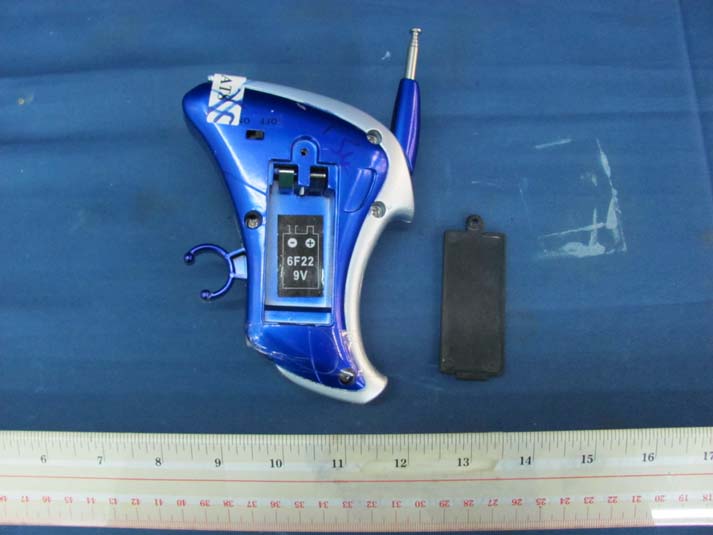

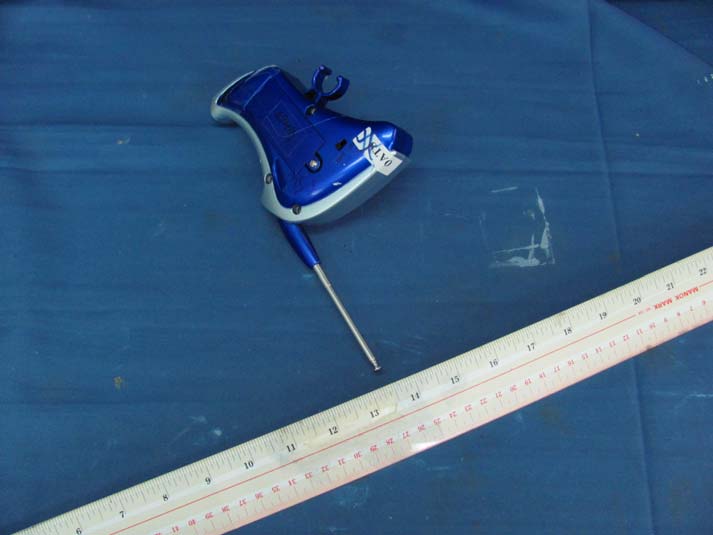

FCC ID: U7UHS-P3349B Ophoto1 Ophoto2 FCC ID: U7UHS-P3349B Ophoto3 Ophoto4

FCC ID: U7UHS-P3349B Iphoto1 Iphoto2

FCC ID: U7UHS-P3349B Technical Description : The brief circuit description is listed as follows : - TX-2 and associated circuit act as Encoder - 49.86M, Q2 and associated circuit act as 49.860MHz Oscillator - Q1 and associated circuit act as RF Modulator and Amplifier - D1 and associated circuit act as Voltage Regulator - S1-S4 and associated circuit act as Control stick Antenna Used : An external, integral antenna (extensible) has been used.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 11-May-2010 Sheet of File: E:\and y\ 遥控车 \ 鲨鱼车 \ 电路图 .Ddb Drawn By: 1 2 3 4 5 6 78 9 10 11 12 13 14 TX-2 S2S3S4S1 A B C D A B CD B+ D14v7 C1103 R13.3K D2LED vcc R2330 S5 VCC R3220K R422K Q1C945 Q2C945 L11UH v+ R510 C647 L22.2UH L3 1UH V+ C322 R7 68K C415 R8100 49.86M C2103 V+ C547

INTERTEK TESTING SERVICES Report No.:HK10051379 Sample No.:1/2 Code: FCC15C_d / Effective Date: 26 Jan 2010 ( of ) Bandedge Plot – Pursuant to FCC Part 15 Section 15. 235 Requirement (Pass)

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK10041379-1 Heng Sheng Toys Factory (H.K.) Co., Ltd. Application For Certification (Original Grant) (FCC ID: U7UHS-P3349B) Transmitter Prepared and Checked by: Approved by: Signed On File Mark Cheung Lead Engineer Chan Chi Hung, Terry Senior Lead Engineer Date: May 24, 2010 INTERTEK TESTING SERVICES Report No.: HK10041379-1 FCC ID: U7UHS-P3349B i GENERAL INFORMATION Heng Sheng Toys Factory (H.K.) Co., Ltd. MODEL: HS2212 FCC ID: U7UHS-P3349B Grantee: Heng Sheng Toys Factory (H.K.) Co., Ltd. Grantee Address: Room 6, 3/F., Lladro Centre, 72 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong. Contact Person: Queenie Chan Tel: 852-29769811 Fax: 852-27903069 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: HS2212 Type of EUT: Transmitter Description of EUT: RC Smart Car Serial Number: N/A FCC ID: U7UHS-P3349B Date of Sample Submitted: April 26, 2010 Date of Test: May 5, 2010 Report No.: HK10041379-1 Report Date: May 24, 2010 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK10041379-1 FCC ID: U7UHS-P3349B ii SUMMARY OF TEST RESULT Heng Sheng Toys Factory (H.K.) Co., Ltd. MODEL: HS2212 FCC ID: U7UHS-P3349B TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 N/A Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandedge Requirement (for 49MHz) 15.235 / RSS-310 3.9 Pass Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK10041379-1 FCC ID: U7UHS-P3349B iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ........................................................... 3 3.0 Emission Results ........................................................................................... 3 3.1 Field S…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View HS2212 HK10041739-1 HS2212 HK10041739-1
