U7UHS-P3427Flashing Street Shark

HS2210LED Packing has to be kept since it contains important information.

Block Diagram Filter RF power amplifier and Modulator Oscillator 27.145MHz Encoder Control key 27.145MHz U 2 (TX2)

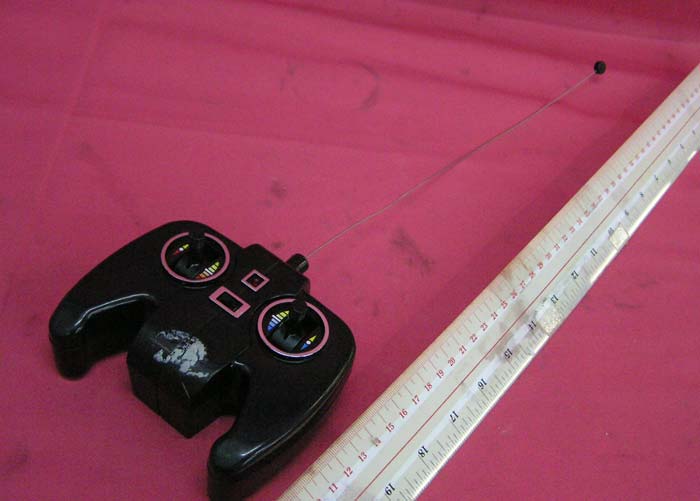

INTERTEK TESTING SERVICE Report No.: HK12030632-1 FCC ID: U7UHS-P3427 Equipment Photographs Model : HS2210LED (External)

INTERTEK TESTING SERVICE Report No.: HK12030632-1 FCC ID: U7UHS-P3427 Equipment Photographs Model: HS2210LED (Internal) INTERTEK TESTING SERVICE Report No.: HK12030632-1 FCC ID: U7UHS-P3427 Equipment Photographs Model: HS2210LED (Internal)

FCC ID: LU9513049 Model: HS2210LED (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls a receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: K1-K4, U2 2. A RF Oscillator (27.145MHz) consisting: Y1 3. A Filter Network consisting: C1, C2, C3, L2 4. A RF Modulator and Amplifier consisting: Q1, Q2 5. A Power Supply consisting: one 9V battery The transmitter uses an external, integral and non-detachable antenna.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 23-Feb-2012 Sheet of File: C:\Do cu men ts and Set ti ngs \Ad mi ni strat or\ 桌面 \ 新 RTTE PCB.Ddb Drawn By: Right 1 Test 2 GND 3 BACK 4 For 5 Turbob 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 FOSC 13 LEFT 14 U2 GE-TX2 C4 10nF C5 30pF C11100nF R2 100R R5 3.3K R7 560R R8 100K EC3100uF L3 6.8UH Q1 2SC1623 L6 Q2 2SC1623 L6 K3 K2 K1 D1 3V6 Y1 27.145MHz VCC R4 33K C6 27pF VDD L4 10UH ANT 27.145MHz C7 30pF C3 150pF C1 10pF C2 10pF EC1100uF EC2100uF R6 560R DC 9V C910nF C1010nF R3 200K C12 10nF R1 10R LEDRed SW2 K4 L16.8UH L2INDUCTOR 4 .7UH

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12030632-1 Heng Sheng Toys Factory (HK) Co., Ltd. Application For Certification (Original Grant) (FCC ID: U7UHS-P3427) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: May 02, 2012 INTERTEK TESTING SERVICES Report No.: HK12030632-1 FCC ID: U7UHS-P3427 i GENERAL INFORMATION Heng Sheng Toys Factory (HK) Co., Ltd. BRAND NAME: N/A, MODEL: HS2210LED FCC ID: U7UHS-P3427 Grantee: Heng Sheng Toys Factory (HK) Co., Ltd. Grantee Address: Room 6, 3/F., Lladro Centre, 72 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong. Contact Person: Queenie Chan Tel: (852) 2976 9811 ext. 16 Fax: (852) 2790 3069 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: HS2210LED Type of EUT: Transmitter Description of EUT: Flashing Street Shark Serial Number: N/A FCC ID: U7UHS-P3427 Date of Sample Submitted: March 13, 2012 Date of Test: March 26, 2012 Report No.: HK12030632-1 Report Date: May 02, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12030632-1 FCC ID: U7UHS-P3427 ii SUMMARY OF TEST RESULT Heng Sheng Toys Factory (HK) Co., Ltd. BRAND NAME: N/A, MODEL: HS2210LED FCC ID: U7UHS-P3427 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12030632-1 FCC ID: U7UHS-P3427 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 2 2.6 Support Equipment List and Description ................................................................ 3 3.0 E…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12030632-1 Sample No.: 1/1 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK12030632-1 FCC ID: U7UHS-P3427 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: HS2210LED HK12030632-1 HS2210LED side A INTERTEK TESTING SERVICE Report No: HK12030632-1 FCC ID: U7UHS-P3427 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: HS2210LED HK12030632-1 HS2210LED side B
