U7UHS-P3627RC Annihilator / Toy RC Vengeance

Block Diagram Filter RF power amplifier and Modulator Oscillator 27.145MHz Encoder Control key 27.145MHz U 2 (TX2)

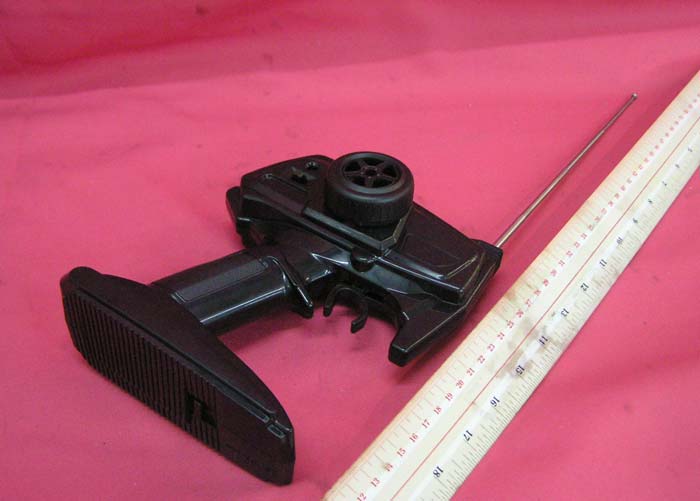

INTERTEK TESTING SERVICE Report No.: HK12031159-1 FCC ID: U7UHS-P3627 Equipment Photographs Model : HS2211 (External)

P3627

INTERTEK TESTING SERVICE Report No.: HK12031159-1 FCC ID: U7UHS-P3627 Equipment Photographs Model: HS2211 (Internal) INTERTEK TESTING SERVICE Report No.: HK12031159-1 FCC ID: U7UHS-P3627 Equipment Photographs Model: HS2211 (Internal) INTERTEK TESTING SERVICE Report No.: HK12031159-1 FCC ID: U7UHS-P3627 Equipment Photographs Model: HS2211 (Internal) INTERTEK TESTING SERVICE Report No.: HK12031159-1 FCC ID: U7UHS-P3627 Equipment Photographs Model: HS2211 (Internal)

FCC ID: LU9513049 Model: HS2211 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls a receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit consisting: K1-K4, U2 2. A RF Oscillator (27.145MHz) consisting: Y1 3. A Filter Network consisting: C39, T2 4. A RF Modulator and Amplifier consisting: Q20, Q21 5. A Power Supply consisting: one 9V battery The transmitter uses an external, integral and non-detachable antenna.

LY/FORM/ME/029 工 艺 校 对 审 核 批 准 日 期 页数 制作单号 原理图编号 产品名称 设 计 Right 1 Test 2 GND 3 BACK 4 For 5 Turbob 6 SC 7 SO 8 VDD 9 PC 10 OSCO 11 OSCI 12 FOSC 13 LEFT 14 U2 GE-TX2 C38 10nF C37 30pF C32100nF R35 100R R30 3.3K R31 560R R33 100K EC12100uF L11 * Q21 C945H Q20 C945H K3 K2 K1 D6 3V6 Y1 27.145MHz * VCC R36 33K C36 27pF VDD L10 * ANT 27.145MHz C35 30pF C39 150pF EC10100uF EC11100uF R32 560R DC 9V C3010nF C3110nF C34 NC R34 * C33 10nF R37 10R D5Red SW2 K4 T2 C41 L11 Y1 27MHz 49.MHz N/A 12pF 5.6uH 1uH 27.145MHz 49.860MHz Frequency Value REF. NO. L10 5.6uH 1uH 5.6UH C40 N/A 82pF 1UH * R34 220K 100K T2 D14001

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK12031159-1 Heng Sheng Toys Factory (H.K.) Co., Ltd Application For Certification (Original Grant) (FCC ID: U7UHS-P3627) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: May 04, 2012 INTERTEK TESTING SERVICES Report No.: HK12031159-1 FCC ID: U7UHS-P3627 i GENERAL INFORMATION Heng Sheng Toys Factory (H.K.) Co., Ltd BRAND NAME: N/A, MODEL: HS2211 FCC ID: U7UHS-P3627 Grantee: Heng Sheng Toys Factory (H.K.) Co., Ltd Grantee Address: RM 6, 3/F., Lladro Centre, 72 Hoi Yuen Road, Kwun Tong, Kowloon, Hong Kong. Contact Person: Queenie Chan Tel: 2976 9811 (ext. 16) Fax: 2790 3069 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: N/A Model: HS2211 Type of EUT: Transmitter Description of EUT: RC Annihilator / Toy RC Vengeance Serial Number: N/A FCC ID: U7UHS-P3627 Date of Sample Submitted: March 21, 2012 Date of Test: March 28, 2012 Report No.: HK12031159-1 Report Date: May 04, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK12031159-1 FCC ID: U7UHS-P3627 ii SUMMARY OF TEST RESULT Heng Sheng Toys Factory (H.K.) Co., Ltd BRAND NAME: N/A, MODEL: HS2211 FCC ID: U7UHS-P3627 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 Pass Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK12031159-1 FCC ID: U7UHS-P3627 iii Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ............................................................................................... 1 1.2 Related Submittal(s) Grants................................................................................... 1 1.3 Test Methodology.................................................................................................. 1 1.4 Test Facility ........................................................................................................... 1 2.0 System Test Configuration................................................................................. 2 2.1 Justification ........................................................................................................... 2 2.2 EUT Exercising Software....................................................................................... 2 2.3 Special Accessories .............................................................................................. 2 2.4 Equipment Modification ......................................................................................... 2 2.5 Measurement Uncertainty...................................................................................... 3 2.6 Support Equipment List and Description ................................................................ 3 3.0 Emission Results................................................................................................ 4 3.1 Field Strength Calcul…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No.: HK12031159-1 Sample No.: 1/1 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Bandwidth / Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement (Pass/Fail)

INTERTEK TESTING SERVICE Report No: HK12031159-1 FCC ID: U7UHS-P3627 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: HS2211 Model: HS2211 INTERTEK TESTING SERVICE Report No: HK12031159-1 FCC ID: U7UHS-P3627 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: HS2211 Model: HS2211
