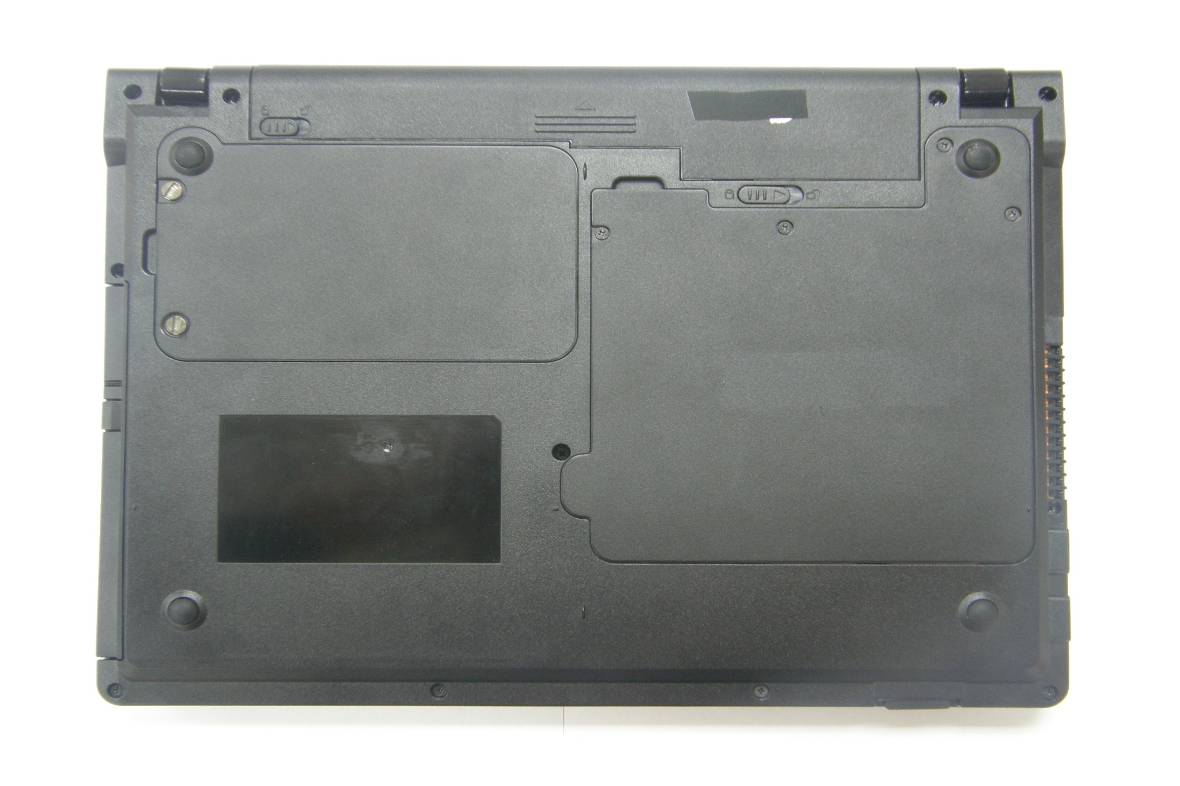

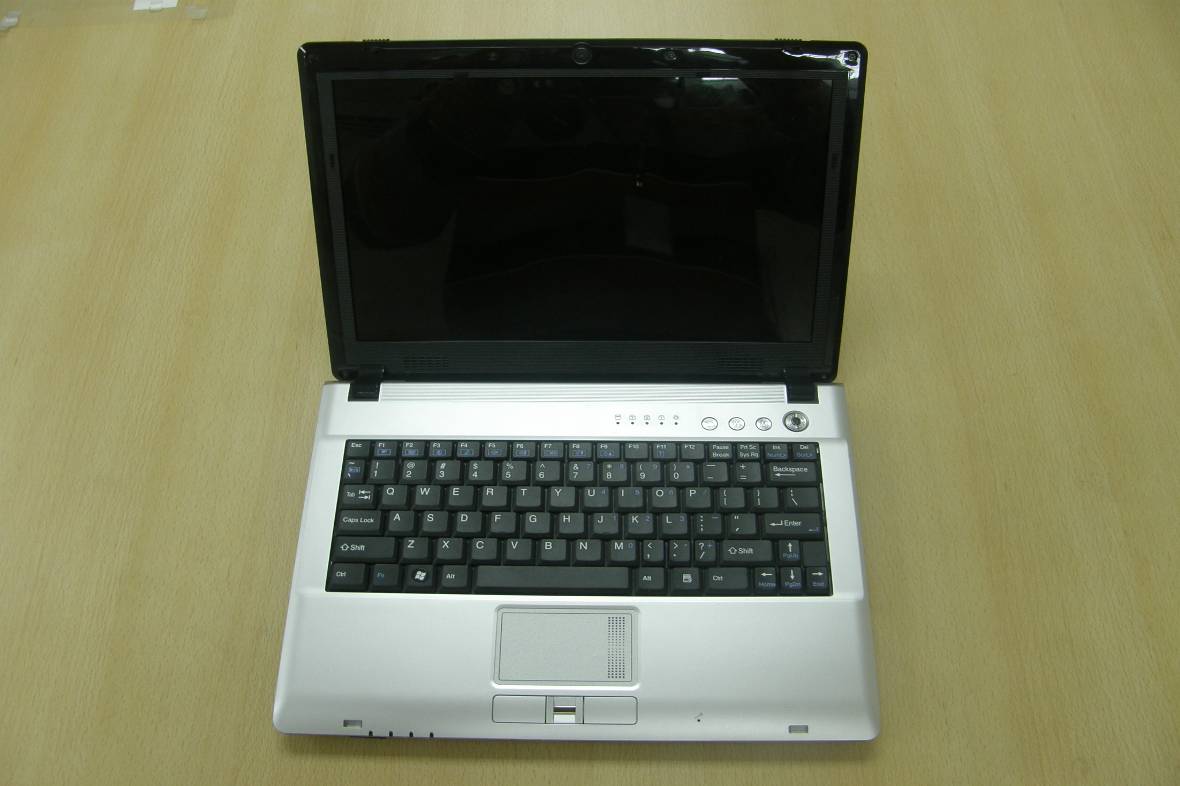

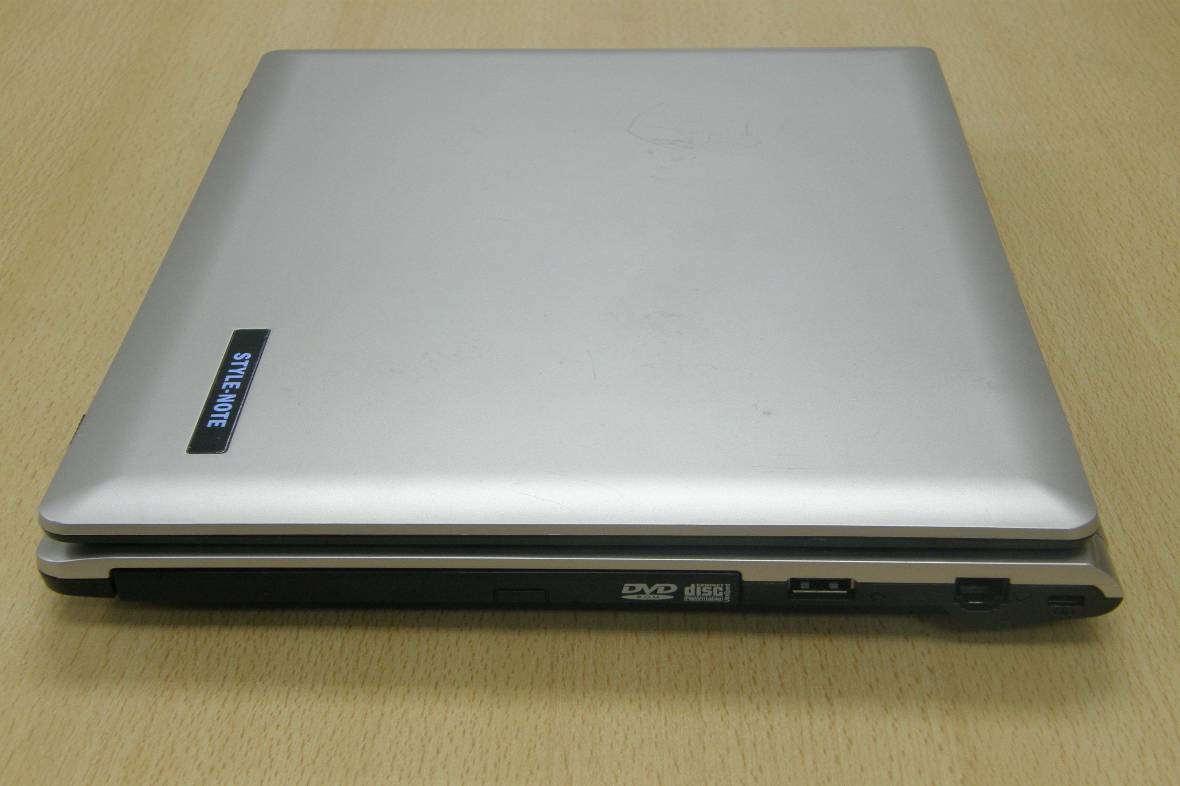

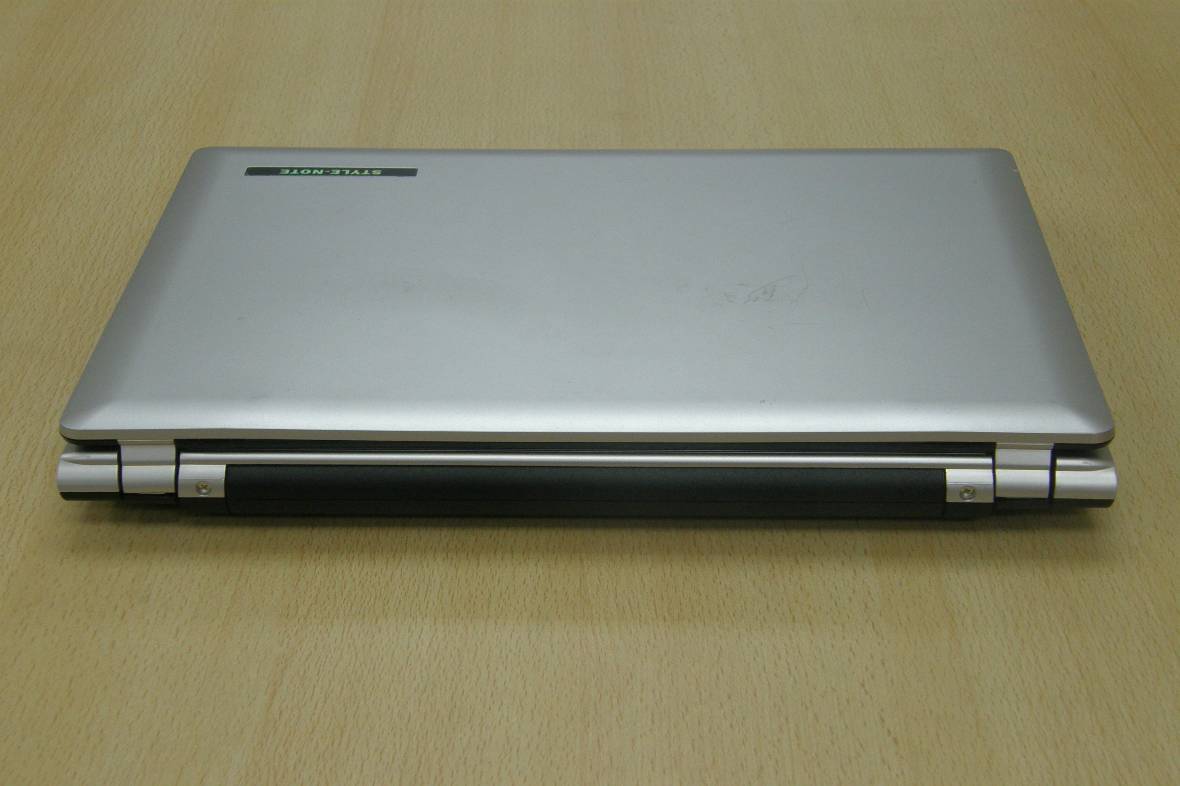

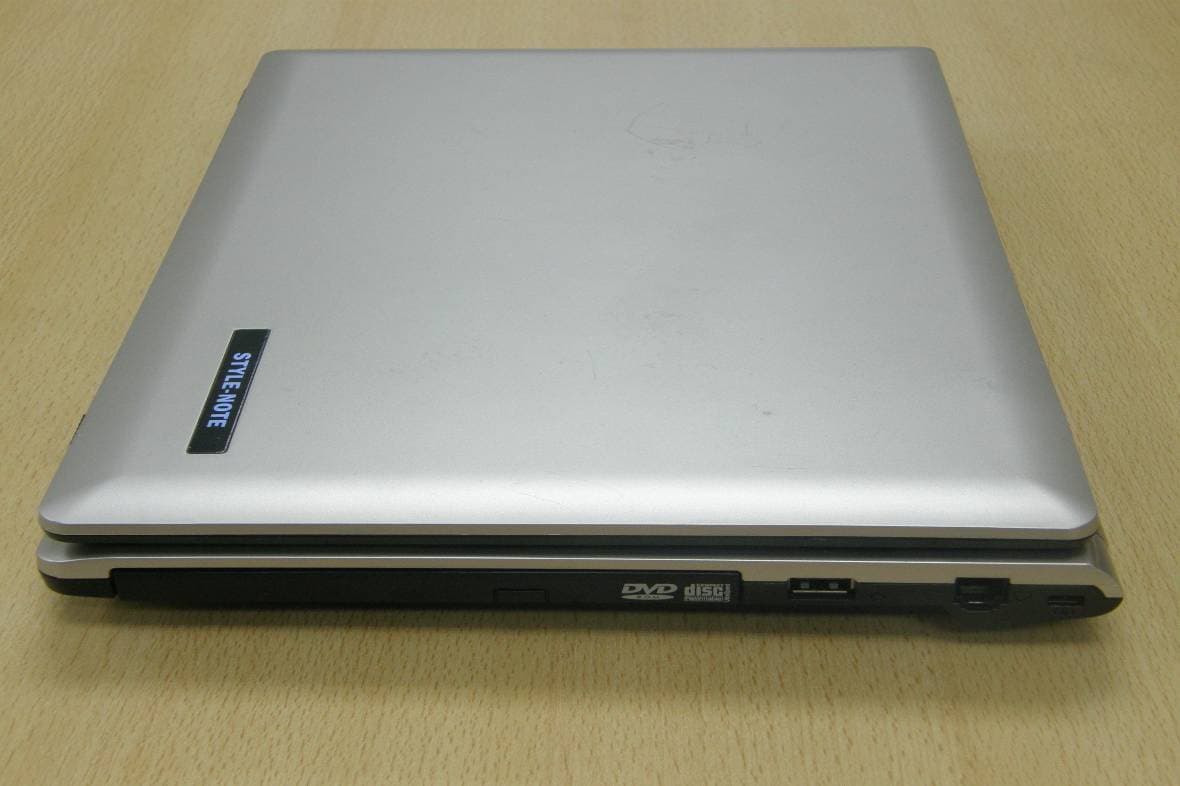

Report No. : ES/2008/20007 Page : 1 of 52 SAR TEST REPORT Equipment Under Test Notebook Model No. M72XT(X=0~9) FCC ID U9M-M72XT Applicant CLEVO CO. Address of Applicant No.129, Hsing-Te road, Sun Chung city 241,Taipei Hsien, Taiwan, R.O.C Date of Receipt 2008.02.15 Date of Test(s) 2008.03.24-2008.03.25 Date of Issue 2008.04.02 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1 , C95.3, IEEE 1528 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan Electronics & Communication Laboratory or testing done by SGS Taiwan Electronics & Communication Laboratory in connection with distribution or use of the product described in this report must be approved by SGS Taiwan Electronics & Communication Laboratory in writing. Tested by : Ricky Huang Date : 2008.03.31 Sr. Engineer Approved by : Dikin Yang Date : 2008.04.02 Asst. Manager Report No. : ES/2008/20007 Page : 2 of 52 Contents 1. General Information 1.1 Testing Laboratory 4 1.2 Details of Applicant 4 1.3 Description of EUT 4 1.4 Test Environment 5 1.5 Operation description 5 1.6 The SAR Measurement System 6 1.7 System Components 7 1.8 SAR System Verification 8 1.9 Tissue Simulant Fluid for the Frequency Band 9 1.10 EVALUATION PROCEDURES 10 1.11 Test Standards and Limits 11 2. Summary of Results 14 3. Instruments List 15 4. Measurement values 16 GSM 850MHz 4.1 Configuration 1, lowest channel 16 4.2 Configuration 1, middle channel 17 4.3 Configuration 1, highest channel 18 4.4 Configuration 2, lowest channel 19 4.5 Configuration 2, middle channel 20 4.6 Configuration 2, highest channel 21 PCS 1900MHz 4.1 Configuration 1, lowest channel 22 4.2 Configuration 1, middle channel 23 4.3 Configuration 1, highest channel 24 4.4 Configuration 2, lowest channel 25 4.5 Configuration 2, middle channel 26 4.6 Configuration 2, highest channel 27 5. System Verification GSM 850MHz Body 29 PCS 1900MHz Body 30 6.APPENDIX 6.1 Photographs of Test Setup 31 6.2 Photographs of EUT 35 6.3 Photographs of Accessories of EUT 38 6.4. DAE & Probe Calibration certificate 39 6.5 Uncertainty Analysis 49 6.6 Phantom Description 50 Report No. : ES/2008/20007 Page : 3 of 52 6.7 System Validation from Original equipment supplier 51 Report No. : ES/2008/20007 Page : 4 of 52 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. Electronics & Communication Laboratory 5F, No. 134, Wukung Road, Wuku industrial zone Taipei county, Taiwan, R.O.C. Telephone +886-2-2299-3279 Fax +886-2-2298-0488 Internet http://www.tw.sgs.com/ 1.2 Details of Applicant Name CLEVO CO. Address No.129, Hsing-Te road, Sun Chung city 241,Taipei Hsien, Taiwan, R.O.C Country Taiwan Telephone +886-2-2278-9696 Fax +886-2-2278-4787 Contact Person H. Y. Sung E-mail [email protected] 1.3 Description of EUT Product Name Notebook Model Number Brand Name CLEVO IMEI 352678011154355 Mode of Operation GSM,GPRS,EDGE,(900/1800/850/1900), WCDMA Bnad I Modulation mode GMSK/ QPSK/8PSK/ WCDMA GSM GPRS(EDGE) Duty Cycle 1/8 1/2 GSM 850 PCS 1900 Maximum RF Conducted Power (Average) 31.7 dBm 28.4 dBm GSM 850 PCS 1900 TX Frequency range 824.2-848.8 MHz 1850.2-1909.8 MHz GSM 850 PCS 1900 Channel Number (ARFCN) 128-251 512-810 Report No. : ES/2008/20007 Page : 5 of 52 14.8Vdc re-chargeable battery or 1. 19Vdc by AC/DC power adapter 2. 18.5Vdc by AC/DC power adapter Battery Model M720SBAT-8 Power Supply Adapter Model 1.0335A1965 2.HP-OK065B13 Antenna Type PIFA Antenna Antenna Gain -7.02 ~ -3.59 dbi Definition Production unit Max. SAR Measured (1 g) 0.280 W/kg (At GSM 1900 Channel 810 ) Note: 1. EGPRS mode was not measured because maximum averaged output power is more than 3 dB lower in EGPRS mode than in GPRS mode. 1.4 Test Environment Ambient Temperature: 22.1° C Tissue Simulating Liquid: 21.6° C Relative Humidity: 62 % 1.5 Operation description The EUT type is Notebook. When ues it, it will be defined as a portable device since the Notebook will place in the thigh, so SAR measurement is mandatory. The EUT is controlled by using a Communication simulate Tester (R&S CMU200), and the communication between the EUT and the tester is established by air link. Measurements are performed respectively on the lowest, middle and highest channels of the operating band(s). The EUT is set to maximum power level during all tests, and at the beginning of each test the battery is fully charged. Value of Crest Factors are 2 for GPRS mode (multi-slot=4) and 1 for WCDMA Band I were used for SAR testing according to the nature of the EUT. The test configuration tested at the low, middle and high frequency channels. By using the program subordinated in the computer, and change into the written channel, and then test of set in highest power. Finally, we will test it by GSM antenna Report No. : ES/2008/20007 Page : 6 of 52 dividing into 2 configurations: Configuration 1: Bottom side of the Notebook is paralleled with flat phantom, open the panel with 90 degrees, bottom side is contact with flat phantom.( Appendix-Fig.3 & Fig.4) Configuration 2: Right side of Notebook is paralleled with flat phantom,and spacing between EUT and Phantom-in contact 15mm.(Appendix-Fig.5& Fig.6) 1.6 The SAR Measurement System A photograph of the SAR measurement System is given in Fig. a. This SAR Measurement System uses a Computer-controlled 3-D stepper motor system ( Speag Dasy 4 professional system ). A Model EX3DV3 3526-field probe is used to determine the intern…
