UAD-GSK01Easy Key

GSK01 User manual 1, function illustrates a、 Startup electro mobile power supply 1, user sets free intelligent key enter key put position meantime, start up detect measure than to, than to confirm right then start up electro mobile power supply immediately, meanwhile monitor display on five LEDs by left to right multistage lights rise, and monitor display on buzzer gives off noise time about act for one second, if compare can not have any action to mistake. 2, intelligent key if stay put key put locally time (If act for shut down condition time), user points touch exterior button, start up detect measure than to, than to confirm right then start up electro mobile power supply immediately, meanwhile monitor display on five LEDs by left to right multistage lights rise, and monitor display on buzzer gives off noise time about act for one second, if compare can not have any action to mistake. b、 Close electro mobile power supply 1, user moves intelligent key come out key put position time, electro mobile power supply close immediately, and meantime five LEDs can light behind by right to left multistage extinguish fully. 2, intelligent key stays put key put locally time (If act for turn on condition time), user long point exterior button (Handle about 2 seconds), electro mobile power supply close immediately, and meantime five LEDs can light behind by right to left multistage extinguish fully. c、 Show and noise function (Own jointly 5 LEDs and one buzzer) 1, quantity of electricity indicating lamp : is by center three LEDs (Ll, L2, L3)Denote battery injure quantity of electricity, this three LEDs condition by electro mobile main control unit detects measure quantity of electricity by DIO signal deliver decode show to monitor display on again. 2, cruise indicating lamp : by a LED (L4)Denote electro mobile whether come into cruise mode, this LED condition by electro mobile main control unit controls by DIO signal deliver decode show to monitor display on again, LED lights for cruise mode. 3, headlight indicating lamp : is by a LED (L5)Denote headlight condition, this LED condition by monitor display detects measure lamp house to start up headlight automaticly, LED lights start up for headlight Oneself. 4, voice indicating lamp : this buzzer condition by electro mobile main control unit controls by DIO signal deliver decode drive buzzer noise to monitor display on again. d、 Open close headlight control function automaticly 1, take advantage of photoactive resistance, detect measure light bright shade degree open close headlight automaticly e、 Self-test function 1, point touch monitor display on self-test press key go on 3 seconds above, monitor display immediately by DIO signal delivers announcement manipulator proceed self-test function namely. f、 ?Car functional interface (J7 and J8) 1, does monitor display have in build? Car haft interface, does monitor display if detect measure go? Have already been pointed under, does monitor display immediately by DIO signal announcement manipulator proceed namely? Car function g、 Modulate velocity rotate switch function interface (J5) 1, monitor display has in build modulate velocity rotate switch interface, switch modulate velocity rotate Ba signal to with manipulator masterstroke (J1)On.
2、 Interface definition a, J1 masterstroke / six cores line (Connect to manipulator) PIN1 Throttle PIN2 DIO PIN3 GND PIN4 GND PIN5 VBAT+ (36V) PIN6 V+ (36V) b, J5 gas modulate velocity rotate Ba / three cores line PIN1 GND PIN2 Throttle PIN3 VCC c, J6 headlight / two cores line PIN1 +6V PIN2 GND d, does J7 power-off / three cores line PIN1 GND PIN2 BRAKE PIN3 VCC e, does J8 power-off / three cores line PIN1 GND PIN2 BRAKE PIN3 VCC
FCC Caution 1. The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2 )This device must accept any interference received, including interference that may cause undesired operation. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.

Confidentiality Request FCC ID : UAD-GSK01 Product : easy key Model : GSK01 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature:

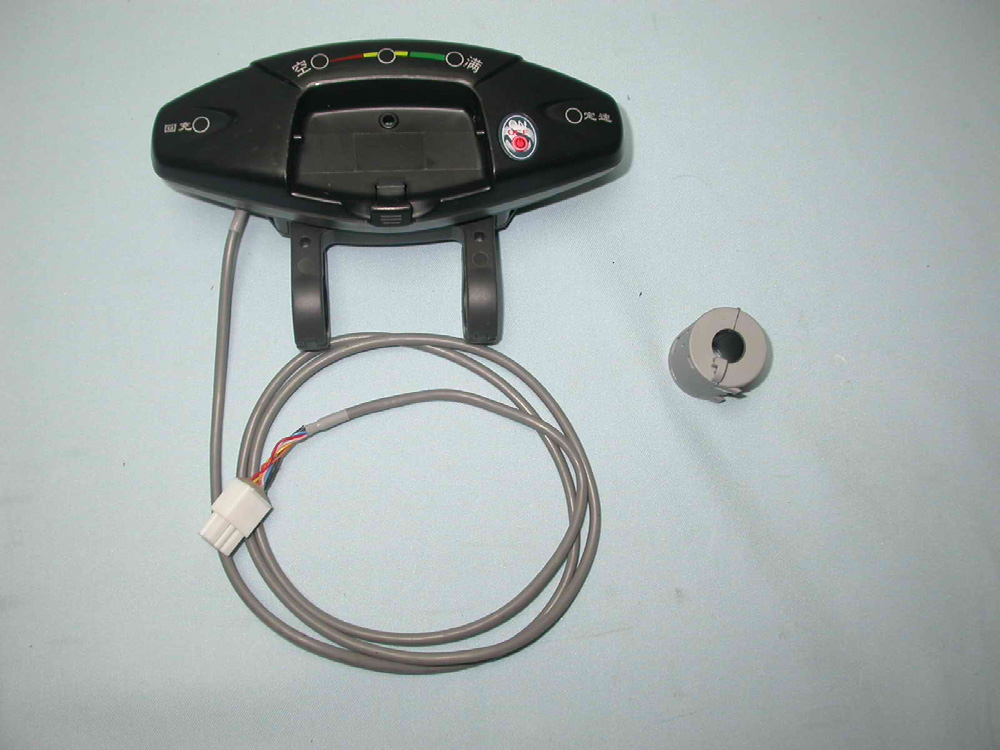

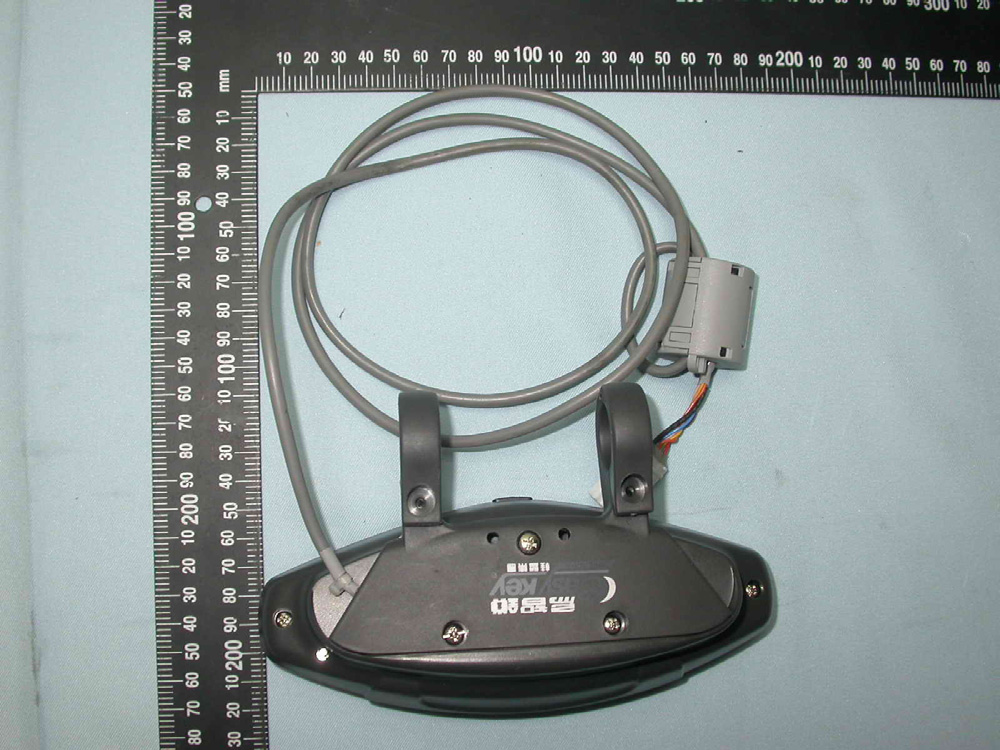

Compliance Certification Services Inc. Report No.：60517302 Page 1 of 6 External Photo Compliance Certification Services Inc. Report No.：60517302 Page 2 of 6 Compliance Certification Services Inc. Report No.：60517302 Page 3 of 6

Company : PRESIDENT INDUSTRY DEVULOPMENT(SHENZHEN) CO., LTD. Model : GSK01 Product : easy key easy key Model No: GSK01 FCC IDUAD-GSK01 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan Label Here

Compliance Certification Services Inc. Report No.：60517302 Page 4 of 6 Internal Photo Compliance Certification Services Inc. Report No.：60517302 Page 5 of 6 Compliance Certification Services Inc. Report No.：60517302 Page 6 of 6
