UAFFRIA-01WCDMA Base Station RF Transmitter Module

Equipment Authorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Amendment to Confidentiality Request for FCC ID: UAFFRIA-01 dated June 15,2006. Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Block diagrams Part lists Internal photographs Operational description Tune up procedure Installation & Operation Manual These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. 20. Day of June 20 06 Validity of Confidentiality Request: Constant By: ,[L Juha Ala-Mursula / Signature Printed Title: General Manager, WCDMA BTS R&D On behalf of: Nokia Cor~oration Telephone: +358718055400

1 (4) FRIA: 2 (4) 3 (4) 4 (4)

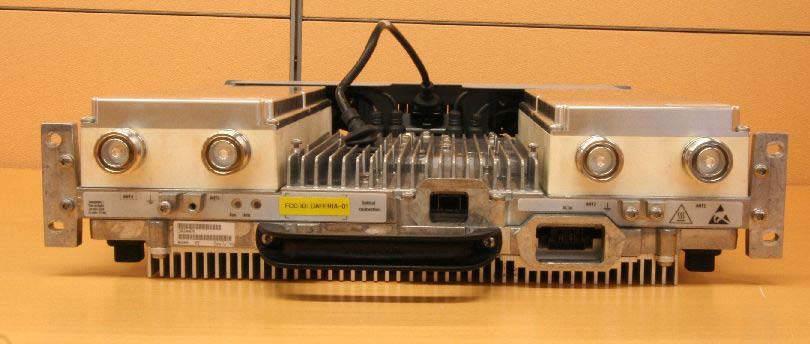

FCC ID Label for FRIA (FCC ID: UAFFRIA-01) FCC ID Label location

T EST REPORT Date: ESPOO 05.06.2006 Page: 1 (27) Appendices − Date of handing in: 01.06.2006 Number: 66937R1 Measured by: No. 1 / 1 Timo Hietala, Test Engineer Reviewed by: Jyrki Leino, Manager SORT OF EQUIPMENT: WCDMA Base Station RF module MARKETING NAME: Nokia Flexi BTS RF module 1.7GHz/2.1GHz TYPE: FRIA MANUFACTURER: Nokia Corporation FCC ID: UAFFRIA-01 CLIENT: Nokia Corporation ADDRESS: P.O.Box 319, FI-90651 OULU, FINLAND TELEPHONE: +358 7180 08000 TEST LABORATORY: NET/IMN Oulu FCC REG. NO. 411251 REFERENCE: FCC Part 27, SUBPART L SUMMARY: In regard to the performed tests the equipment under test fulfils the requirements defined in the test specifications, see page 4 for details The test results are valid for the tested unit only. Without a written permission of Nemko Oy it is allowed to copy this report as a whole, but not partially. Nemko Oy • P.O.Box 19, FI-02601 Espoo, Finland Street address: Perkkaantie 11, FI-02600 Espoo Telephone +358 (0)424 5454 1 • Telefax +358 (0)9 5489 6371 Version f1.00 FCC ID: UAFFRIA-01 Type: FRIA FCC PART 27, SUBPART L Test report No.: 66937R1 Page 2 (27) Date 05.06.2006 Contents 1. EUT and Accessory Information .........................................................................................................3 1.1 EUT description ........................................................................................................................3 1.2 EUT and accessories................................................................................................................3 Summary of Test Data .............................................................................................................................4 2. General Equipment Specification .......................................................................................................5 3. RF Power Output ................................................................................................................................7 4. 99% Occupied Bandwidth...................................................................................................................9 5. Spurious Emissions at Antenna Terminals .......................................................................................11 6. Field Strength of Spurious ................................................................................................................16 7. Frequency stability ............................................................................................................................19 8. List of test equipment ........................................................................................................................21 9. Photographs of Test Setup ...............................................................................................................22 10. ANNEX A, TEST DETAILS ...............................................................................................................24 11. ANNEX B, TEST DIAGRAMS...........................................................................................................26 FCC ID: UAFFRIA-01 Type: FRIA FCC PART 27, SUBPART L Test report No.: 66937R1 Page 3 (27) Date 05.06.2006 1. EUT and Accessory Information 1.1 EUT description The EUT is a WCDMA Base station RF module 1.7GHz/2.1GHz with 2 power amplifiers. 1.2 EUT and accessories Manufacturer: Nokia Model: FRIA, s/n: L9062000867 Other Units: System module, FSMB Transmission module, FTIA General: All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 27, Subpart L. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. NONE Nemko Oy authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Oy accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. FCC ID: UAFFRIA-01 Type: FRIA FCC PART 27, SUBPART L Test report No.: 66937R1 Page 4 (27) Date 05.06.2006 Summary of Test Data NAME OF TEST SECTION IN CFR 47 SPEC. RESULT RF Power Output 27.50 (d), 2.1046 100 W Complies 99% Occupied Bandwidth 2.1049, (i) Unspecified Complies Spurious Emissions at Antenna Terminals 27.53(g), 2.1051 - 13 dBm Complies Field Strength of Spurious Emissions 27.53(g), 2.1053 - 13 dBm E.I.R.P Complies Frequency stability 27.54, 2.1055 ± 0.05 ppm 1) Complies Note 1) Limit is the manufacturer’s specification Measurement uncertainty is expressed to a confidence level of 95%. FCC ID: UAFFRIA-01 Type: FRIA FCC PART 27, SUBPART L Test report No.: 66937R1 Page 5 (27) Date 2. General Equipment Specification 05.06.2006 Supply Voltage Input: Frequency Bands: TX: Frequency Bands: RX: Type of Modulation and Designator: Maximum No. of Carriers: Output Impedance: RF Output: Band Selection: 48 Vdc Block A : 2110 – 2120 MHz Block B : 2120 – 2130 MHz Block C : 2130 – 2135 MHz Block D : 2135 – 2140 MHz Block E : 2140 – 2155 MHz Block A : 1710 – 1720 MHz Block B : 1720 – 1730 MHz Block C : 1730 – 1735 MHz Block D : 1735 – 1740 MHz Block E : 1740 – 1755 MHz W-CDMA GSM NADC (5M00F9W) (200KG7W) 40K0DXW) 1+1 50 ohms. Per channel: 40 W. Software Duplexer Fullband FCC ID: UAFFRIA-01 Type: FRIA FCC PART 27, SUBPART L Test report No.: 66937R1 Page 6 (27) Date System Description The BTS performs the radio function of the Base Station System (BSS), and is connected to the Radio Network Controller (RNC) via the Iub interface, and to Mobile Stat…
