RADAR . LASER . G-FORCE TRAXX OWNER’S MANUAL SERVICE If you wish to return the TRAXX, please contact KAT Inc. Phone: (915) 533-1335 Fax: (915) 533-1344 INTRODUCTION Thank you for purchasing the TRAXX developed by KAT Inc. TRAXX is the first and unique sophisticated device in the world, which has radar/laser detection, vehicle performance meter and Safety alarm features. We are pleased to have you as a valued customer and hope you will be delighted with your TRAXX. This manual provides all the information you need for putting the TRAXX to work for you. WARNING: Always obey all local and federal laws when using this device to measure the performance of your vehicle. Use only in designated areas with care and do not take your eyes off the road when you measure acceleration. TRAXX records the results after the run. We are not responsible for any accident or injures that occur while using this device. Drive safely. WHAT’S IN THE PACKAGE 3 TRAXX OWNER’S MANUAL WINDSHIELD BRACKET & SUCTION CUPS TRAXX POWER CORD & FUSE HOOK AND LOOP FASTENER TAPE INTRODUCTION3 WHAT’S IN THE PACKAGE 3 CONTROL AND BUTTONS4 INSTALLATION5 HOW DOES IT WORK?8 WHAT CAN IT MEASURE AND DETECT? 8 SET-UP 9 MODE OPERATION 12 BUTTON OPERATION FOR ACCELERATION MODES16 RADAR DEVICE MODE OPERATION18 TROUBLE SHOOTING 21 FCC INFORMATION22 FEATURE MEMORY22 FACTORY RESET23 REPLACING FUSE23 SPECIFICATIONS24 LIMITED WARRANTY25 SERVICE 25 Contents CONTROL AND BUTTONS a. Power on/off and Volume Control b. DC 12V Power Input Jack c. Start Button/ Backlit Button d. Down Button/ Voice on/off button e. Mode Button f. Memory Button/ Mute Button g. Up Button/ City Button h. Display i. Front Laser Detection Lens j. Radar Antenna k. Rear Laser Detection Lens INSTALLATION For the best performance of acceleration features, mount TRAXX on the windshield centered between driver and passenger. TRAXX must be positioned straight across the vehicle. Do not angle the device toward the driver. The front of the device does not have to be perfectly level. This device automatically compensates for mounting angles up to 30 degrees from level. Adjust the device on its windshield bracket until it is approximately level. It is important that the device stays in position during use. If the device moves too easily, attach suction cups firmly. For the best performance of radar detector feature, select the proper location for the device where it has a direct view of the road. The radar antenna and laser lens are located behind the rear panel of the device. The antenna and lens should not be obstructed by metal or metallic surface and should be pointed at the horizon for accurate long range detection. ∙ Choose a location that does not block the driver’s vision. ∙ Mount the device in a level position. ∙ Do not mount the device behind metal surfaces, windshield antenna, wiper blades, ornaments or mirrored glass. ∙ Headed windshields, currently available as an option on some Ford or GM vehicles act as an impenetrable barrier to radar signals. ∙ Do not mount the device where the driver or passenger might collide in the case of an abrupt halt. Note: Whichever mounting method you choose, remember to place the device out of view when you leave your vehicle. This keeps the device out of sight from thieves and prevents exposure to extremely high temperatures. 5 TRAXX OWNER’S MANUAL 4 TRAXX OWNER’S MANUAL Caution: On some newer model cars, a plastic safety coating has been applied to the windshield. The suction cups may leave permanent marks on the windshield once they are removed. Check your vehicle owner’s manual to see if your car has the plastic safety coating. �Windshield Mounting 1. Attach bracket to windshield 2. Bend bracket for correct detection angle 3. Plug power cord into the device 4. Attach bracket to device 5. Plug power cord into cigarette lighter �Dashboard Mounting 1. Peel protective paper off one side of hook-loop 2. Tape on device’s bottom 3. Peel top paper off 4. Place device on dash board 5. Plug power cord into the device and cigarette lighter �Power and Volume Control The TRAXX is designed to operate on most DC12V negative ground vehicle electrical system. The power cord provided with the device has a cigarette light socket plug at one end and a small connector at the other. To turn on the TRAXX, connect power and rotate the wheel controller, located on the side of the device, until you hear it click. To turn it off, rotate the wheel controller in the opposite direction. You can control volume level with this wheel 7 TRAXX OWNER’S MANUAL 6 TRAXX OWNER’S MANUAL HOW DOES IT WORK? The TRAXX measures the performance of your vehicle by sensing acceleration forces. It uses a three-axis accelerometer to measure acceleration. This digital three-axis accelerometer sensor tracks your vehicle’s acceleration and cornering forces. This device analyzes data and calculates corrected G-Forces for the G Meter operation, speed and distance data. The result is the most accurate. The TRAXX provides distinct visual and voice alerts to warn you of the presence of X, K and all kinds of Ka band radar guns in the front and rear of you. This model also provides the benefit of ‘undetectability’ by alerting you to the presence of VG-2 (The Radar Device device). The TRAXX has Safety alarm mode for safe driving. You can set safety level of lateral G-force. TRAXX gives warning sound and visual blinking whenever you exceed your level setting. WHAT CAN IT MEASURE AND DETECT? �TRAXX can measure the followings: 1. Time to go from 0 to 60MPH (0 to 100Km) 2. Speed at the end of 1/4 mile (400m) 3. G-Force 4. Peak and Average Horsepower �TRAXX can detect the followings: 1. X, K and Superwide Ka band radar guns 2. Laser guns (Laser speed monitoring devices) 3. VG-2 undetectability SET-UP If this is the first time the device is powered since installation or if the orientation has changed, please move the vehicle to a level place and calibrate the three-axis accelerometer. Press Mode button t…

Text truncated - open the document above for the full version.

Date : December 13, 2006 EMCC DR. RASEK CERTIFICATION INSTITUTE – Boelwiese 5 91320 Ebermannstadt Germany Subject : Confidentiality request regarding application for certification of FCC ID: UCDACDET Pursuant to section 0.457 and 0.459 of the commission’s rules, we hereby request confidential treatment of information accompany this application as outlined bellow; Block Diagram Schematic Diagram(s) The above material contained trade secrets and proprietary information not customarily released to public. The public disclosure of these materials may be harmful to the applicant The applicant understands that pursuant to section 0.457 of the Rules, Disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely Signature Name : Chon Sik, Kim Title : Chief Engineer of EMC Team Company : E-Rae Testing Laboratory Inc. 584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : +82-2-858-0786 Fax: +82-2-858-0788

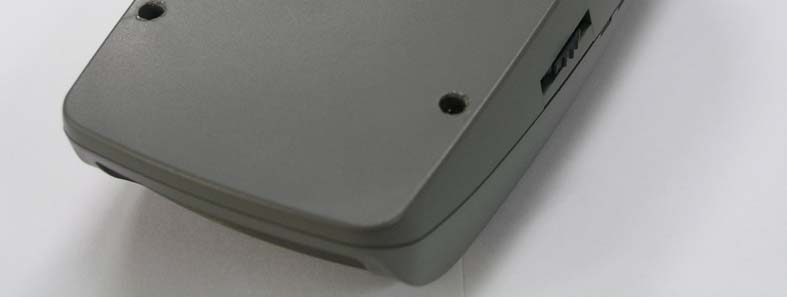

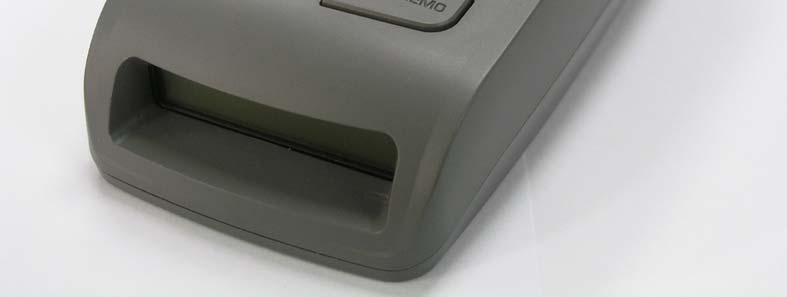

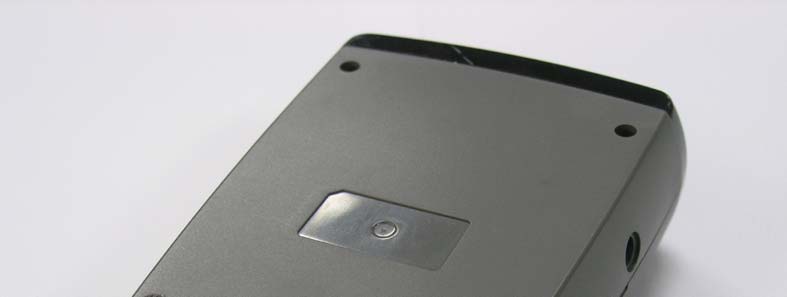

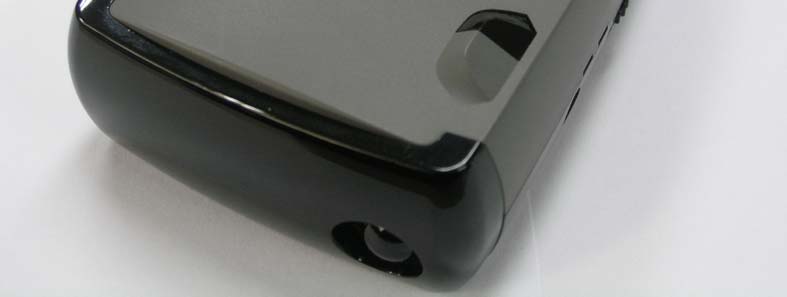

Appendix C. External Photographs Report no. ETLE061201.547, Page C1 of C2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE061201.547, Page C2 of C2 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom view of EUT

Appendix A. FCC ID Label and Location Report no. ETLE061201.547, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE061201.547, Page D1 of D3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of Inside Appendix D. Internal Photographs Report no. ETLE061201.547, Page D2 of D3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Top side view of main board Appendix D. Internal Photographs Report no. ETLE061201.547, Page D3 of D3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Bottom side view of main board

TRAXX Operating Description The TRAXX radar detector is a dual conversion scanning super-heterodyne receiver with separate alarms for each of the radar bands, dim function, mute, city/highway select. It detects front and rear laser and radar. It contains selectable tone and a digital display of all functions. The TRAXX has selectable VG-2, allowing the driver to select whether he wishes to scan for the presence of detector-detectors or not. TRAXX is completely VG-2/VG-3 undetectable. It is completely VG-2 undetectable. Also The TRAXX is built with tri-axis accelerometer sensor, It can check the G-force and the average horse power, the peak horse power, the timed run speed, ellapsed time for vehicle. The TRAXX is built with high reliability surface mount construction and VCO technology for improved performance over a wide operating temperature. The TRAXX detects all radar and laser bands used by law enforcement: 10,475 – to – 10,575 MHz, 24,050 – to – 24,250 MHz, and 33,400 – to – 36,000 MHz, as well as 904 nanometer infrared signals. The TRAXX is compact, designed exclusively for automotive use and is powered by the 12- Volt electrical system in a car or truck. TRAXX SPECIFICATIONS Radar Receiver type : Dual conversion super-heterodyne Antenna type : Linear polarized, self-contained Detector type : Scanning frequency discriminator Frequency operation : X-band; 10.525 GHz ±50 MHz K-band; 24.150 GHz ±100 MHz Ka-band (super-wide); 34.700 GHz ±1,300 MHz Laser Receiver type : Pulsed laser signal receiver Detector type : Digital signal processor pulse width discriminator Optical sensor : Dual convex condenser lens and high speed photo diode detector, 905 +/-50 nanometers (nm) Accelerometer Sensor : Tri-axis(X,Y,Z) +/-2g General Operating Temperature Range : -20° C to +70° C Storage Temperature Range : -30° C to +100° C Power requirements : 12V to 15V DC, 150mA, negative ground Dimensions : 1. 2 ̋H x 2.9 ̋W x 4.6 ̋L Weight : appr.4.0 ounces

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL Inc. www.etl.re.kr ETL Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This RADAR DETECTOR, Model TRAXX has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B: I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Chon Sik, Kim / Chief Engineer ETL Inc. #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 PRODUCT : RADAR DETECTOR MODEL/TYPE NO : TRAXX FCC ID : UCDACDET APPLICANT : K.A.T. Inc. 301 W. Overland Ave., El Paso, TX 79901 United States Attn.: Mr. Michael B Churchman / President MANUFACTURER : ATTOWAVE 1005, 10F Leader’s Tower 60-15, Gasan-dong, Geumchun-gu, Seoul, 153-801, Korea FCC CLASSIFICATION : Unintentional Radiators Radar Detector – CRD FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TEST REPORT No. : ETLE061201.547 DATES OF TEST : December 02, 2006 REPORT ISSUE DATE : December 13, 2006 TEST LABORATORY : ETL Inc. ( FCC Registration Number : 95422) Report no. ETLE061201.547, Page 2 of 12 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Radiated Emissions Measurement 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual Report no. ETLE061201.547, Page 3 of 12 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : RADAR DETECTOR z Model Number : TRAXX z FCC ID : UCDACDET z S/N : N/A z FCC Rule Part(s) : FCC Part 15 Subpart B z Test Procedure : ANSI C63.4-2003 z FCC Classification : Unintentional Radiators Radar Detector (CRD) z Dates of Tests : December 02, 2006 z Place of Tests : ETL Inc. EMC Testing Lab. (FCC Registration Number : 95422) #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : 82-2-858-086 Fax : 82-2-858-0788 z Test Report No. : ETLE061201.547 Applicant Name : K.A.T. Inc. Address : 301 W. Overland Ave., El Paso, TX 79901 United States Attention : Michael B Churchman / President Report no. ETLE061201.547, Page 4 of 12 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the open area test site of ETL Inc. facility located at #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the K.A.T. Inc., Model: TRAXX. Report no. ETLE061201.547, Page 5 of 12 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the K.A.T. Inc., Model: TRAXX. 2.2 General Specification Report no. ETLE061201.547, Page 6 of 12 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 3. DESCRIPTION OF TESTS 3.1 Radiated Emission Measurement Radiated emission measurements were made in accordance with section 11, "Measurement of Information Technology Equipment" of ANSI C63.4-2003. The measurements were performed over the frequency ranges of 30 MHz to 1 GHz and 11,7 GHz to 12,2 GHz using antenna as the input transducer to a spectrum analyzer or a field intensity met…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE061201.547, Page B1 of B1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Radiated Emission Test Setup
