UCW618EMobile Data Acquisition

600 Sin Ming Avenue, 4th Floor CityCab Building, Singapore 575733 Phone: +65 6483 0228 Fax: +65 6483 0388 Email: [email protected] Document no : 81-010-018-010 Date created : 22 May 2009 Revision : V1.0 Class : Confidential Author: Colin Tan Page 1 of 85 Mobile Data Acquisition WAVEON W618e Application Programming Guide Disclaimer May 2009 The information in this specification is subject to change without notice. INFOWAVE PTE LTD SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN, NOR FOR INCIDENTAL OR CONSQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL. THIS INFORMATION IS PROVIDED "AS IS" AND INFOWAVE DISCLAIMS ANY WARRANTIES, EXPRESS, IMPILED OR STATUTORY, AND EXPRESSLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, GOOD TITLE AND AGAINST INFRINGEMENT. This publication contains information protected by copyright. No part of this publication may be photocopied or reproduced in any form without prior written consent from InfoWave Pte Ltd. ©2009 InfoWave Pte Ltd. All rights reserved. 600 Sin Ming Avenue, 4 th Floor CityCab Building, Singapore 575733. 600 Sin Ming Avenue, 4th Floor CityCab Building, Singapore 575733 Phone: +65 6483 0228 Fax: +65 6483 0388 Email: [email protected] Document no : 81-010-018-010 Date created : 22 May 2009 Revision : V1.0 Class : Confidential Author: Colin Tan Page 2 of 85 WARRANTIES EXCLUSIVE IF THE INFOWAVE PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT INFOWAVE’S OPTION, REPAIR, OR REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. INFOWAVE NEITHER ASSUMES FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF INFOWAVE’S PRODUCTS. INFOWAVE SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY THE CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY INCIDENT, FIRE, LIGHTNING OR OTHER HAZARD. 600 Sin Ming Avenue, 4th Floor CityCab Building, Singapore 575733 Phone: +65 6483 0228 Fax: +65 6483 0388 Email: [email protected] Document no : 81-010-018-010 Date created : 22 May 2009 Revision : V1.0 Class : Confidential Author: Colin Tan Page 3 of 85 LIMITATION OF LIABILITY IN NO EVENT WILL INFOWAVE BE LIABLE FOR ANY DAMAGES, INCLUDING LOSS OF DATA, LOSS OF PROFITS, COST OF COVER OR OTHER INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES ARISING OUT THE INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE OR INTERRUPTION OF A INFOWAVE PRODUCT, HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY. THIS LIMITATION WILL APPLY EVEN IF INFOWAVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. INFOWAVE PTE LTD. RESERVES THE RIGHT TO ALTER THE EQUIPMENT SPECIFICATIONS AND DESCRIPTIONS IN THIS PUBLICATION WITHOUT PRIOR NOTICE. NO PART OF THIS PUBLICATION SHALL BE DEEMED TO BE PART OF ANY CONTRACT OR WARRANTY UNLESS SPECIFICALLY INCORPORATED BY REFERENCE INTO SUCH CONTRACT OR WARRANTY. THE INFORMATION CONTAINED HEREIN IS MERELY DESCRIPTIVE IN NATURE, AND DOES NOT CONSTITUTE A BINDING OFFER FOR THE SALE OF THE PRODUCT DESCRIBED HEREIN. 600 Sin Ming Avenue, 4th Floor CityCab Building, Singapore 575733 Phone: +65 6483 0228 Fax: +65 6483 0388 Email: [email protected] Document no : 81-010-018-010 Date created : 22 May 2009 Revision : V1.0 Class : Confidential Author: Colin Tan Page 4 of 85 TRADEMARKS ©2009 InfoWave Pte Ltd. All rights reserved. http://www.infowave.sg Contents are subjected to change without prior notice. The products mentioned herein are a registered trademark of InfoWave Pte Ltd. All other trademarks belong to their respective owners. 600 Sin Ming Avenue, 4th Floor CityCab Building, Singapore 575733 Phone: +65 6483 0228 Fax: +65 6483 0388 Email: [email protected] Document no : 81-010-018-010 Date created : 22 May 2009 Revision : V1.0 Class : Confidential Author: Colin Tan Page 5 of 85 Revision Record Revision Date Author Description V1.0 22/05/09 Colin Tan Waveon 618e V1.1 2/10/09 Colin Tan Waveon 618e 600 Sin Ming Avenue, 4th Floor CityCab Building, Singapore 575733 Phone: +65 6483 0228 Fax: +65 6483 0388 Email: [email protected] Document no : 81-010-018-010 Date created : 22 May 2009 Revision : V1.0 Class : Confidential Author: Colin Tan Page 6 of 85 Review and Approval This document will be reviewed, approved, and reissued whenever significant updates have been made according to the InfoWave Pte Ltd Document Control Procedure. Prepared By: Name Designation Date Sign Colin Tan Product Manager 01/07/2009 Colin Tan Product Manager 02/10/2009 Reviewed By: Name Designation Date Sign Colin Tan Product Manager 01/07/2009 Colin Tan Product Manager 02/10/2009 Approved By: Name Designation Date Sign Jackson Lam Director, Engineering 01/07/2009 Jackson Lam Director, Engineering 05/10/2009 600 Sin Ming Avenue, 4th Floor CityCab Building, Singapore 575733 Phone: +65 6483 0228 Fax: +65 6483 0388 Email: [email protected] Document no : 81-010-018-010 Date created : 22 May 2009 Revision : V1.0 Class : Confidential Author: Colin Tan Page 7 of 85 TABLE OF CONTENTS Section Section Title Page WARRANTIES EXCLUSIVE ........................................................................................... 2 LIMITATION OF LIABILITY .......................................................................................... 3 TRADEMARKS ................................................................................................................. 4 1. OVERVIEW............................................................................................................... 9 1.1. INTRODUCTIO…

Text truncated - open the document above for the full version.

Antenna spec. Theta Polarization EIRP Top View Power (dBm) -45 -10 -40 -35 -30 -25 -20 -15 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 Theta Polarization EIRP Bottom View Power (dBm) -45 -10 -40 -35 -30 -25 -20 -15 ZX Y Azimuth = 0.0 Elevation = 0.0 Roll = 180.0 Theta Polarization EIRP Left side View Power (dBm) -45 -10 -40 -35 -30 -25 -20 -15 Y Z X Azimuth = 90.0 Elevation = 0.0 Roll = -90.0 Theta Polarization EIRP Right Side View Power (dBm) -45 -10 -40 -35 -30 -25 -20 -15 XY Z Azimuth = -90.0 Elevation = 0.0 Roll = 90.0 Theta Polarization EIRP Front Face View Power (dBm) -45 -10 -40 -35 -30 -25 -20 -15 X Z Y Azimuth = 90.0 Elevation = -90.0 Roll = -90.0 Theta Polarization EIRP Back Face View Power (dBm) -45 -10 -40 -35 -30 -25 -20 -15 YX Z Azimuth = 0.0 Elevation = 90.0 Roll = 0.0 Antenna Pattern Theta Polarization EIRP Phi Polarization EIRP Top View Power (dBm) -40 -10 -35 -30 -25 -20 -15 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 Phi Polarization EIRP Bottom View Power (dBm) -40 -10 -35 -30 -25 -20 -15 ZX Y Azimuth = 0.0 Elevation = 0.0 Roll = 180.0 Phi Polarization EIRP Left Side View Power (dBm) -40 -10 -35 -30 -25 -20 -15 Y Z X Azimuth = 90.0 Elevation = 0.0 Roll = -90.0 Phi Polarization EIRP Right Side View Power (dBm) -40 -10 -35 -30 -25 -20 -15 XY Z Azimuth = -90.0 Elevation = 0.0 Roll = 90.0 Phi Polarization EIRP Front Face View Power (dBm) -40 -10 -35 -30 -25 -20 -15 X Z Y Azimuth = 90.0 Elevation = -90.0 Roll = -90.0 Phi Polarization EIRP Back Face View Power (dBm) -40 -10 -35 -30 -25 -20 -15 YX Z Azimuth = 0.0 Elevation = 90.0 Roll = 0.0 Antenna Pattern Phi Polarization EIRP TRP Top View Power (dBm) -26 -10 -24 -22 -20 -18 -16 -14 -12 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 Antenna Pattern TRP, Top View TRP Bottom View Power (dBm) -26 -10 -24 -22 -20 -18 -16 -14 -12 ZX Y Azimuth = 0.0 Elevation = 0.0 Roll = 180.0 Antenna Pattern TRP, Bottom View TRP Left Side View Power (dBm) -26 -10 -24 -22 -20 -18 -16 -14 -12 Y Z X Azimuth = 90.0 Elevation = 0.0 Roll = -90.0 Antenna Pattern TRP, Left Side View TRP Right Side View Power (dBm) -26 -10 -24 -22 -20 -18 -16 -14 -12 XY Z Azimuth = -90.0 Elevation = 0.0 Roll = 90.0 Antenna Pattern TRP, Right View TRP Front Face View Power (dBm) -26 -10 -24 -22 -20 -18 -16 -14 -12 X Z Y Azimuth = 90.0 Elevation = -90.0 Roll = -90.0 Antenna Pattern TRP, Front Face View TRP Back Face View Power (dBm) -26 -10 -24 -22 -20 -18 -16 -14 -12 YX Z Azimuth = 0.0 Elevation = 90.0 Roll = 0.0 Antenna Pattern TRP, Back Face View

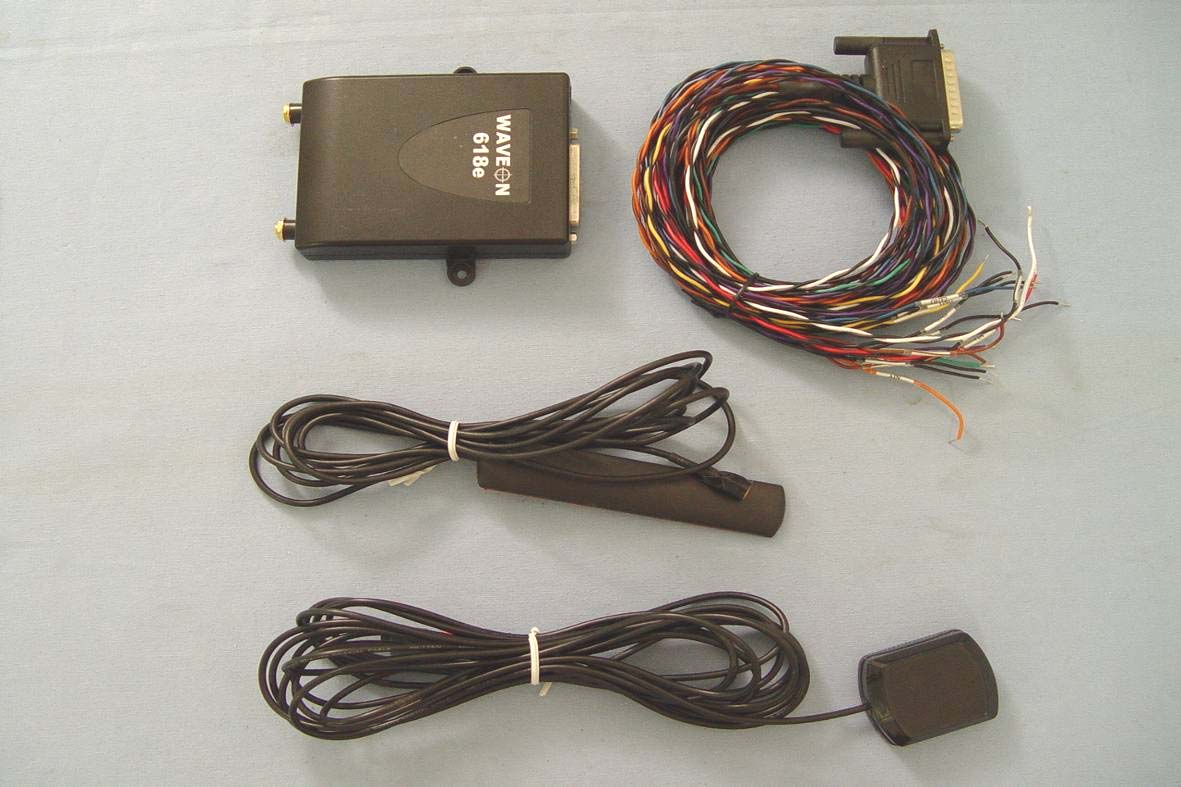

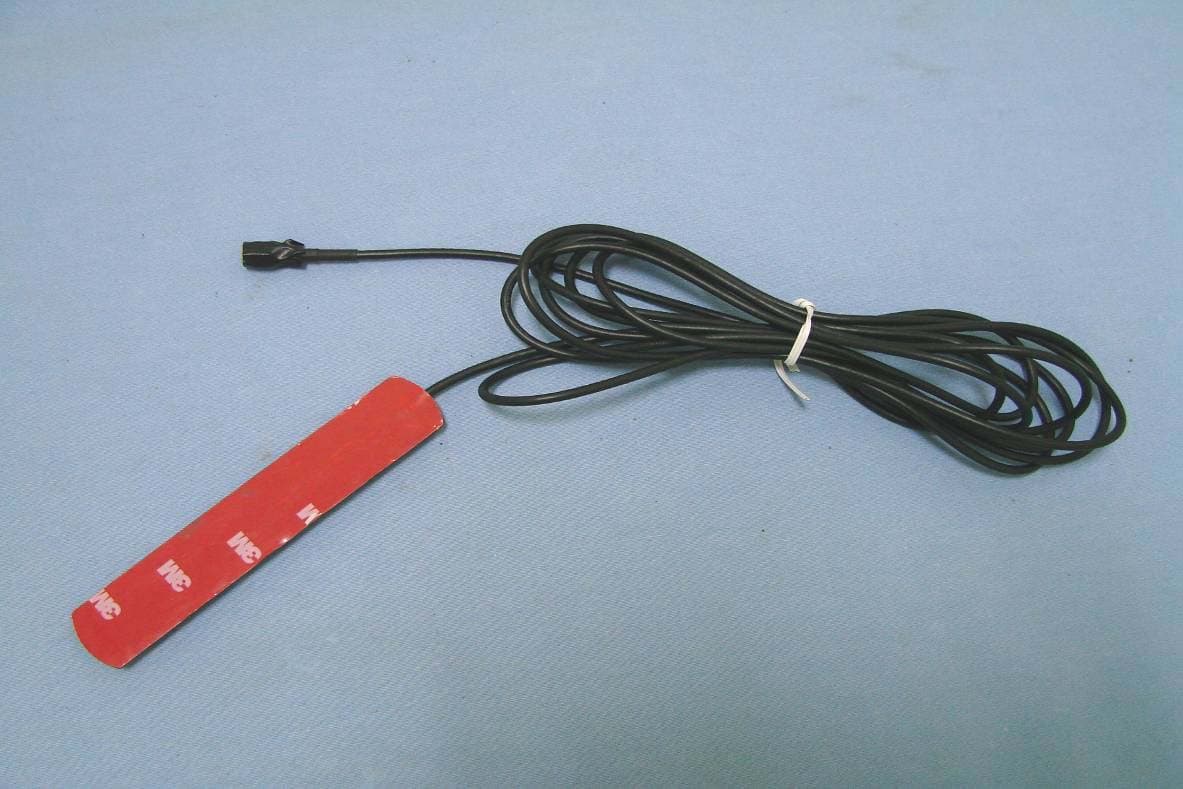

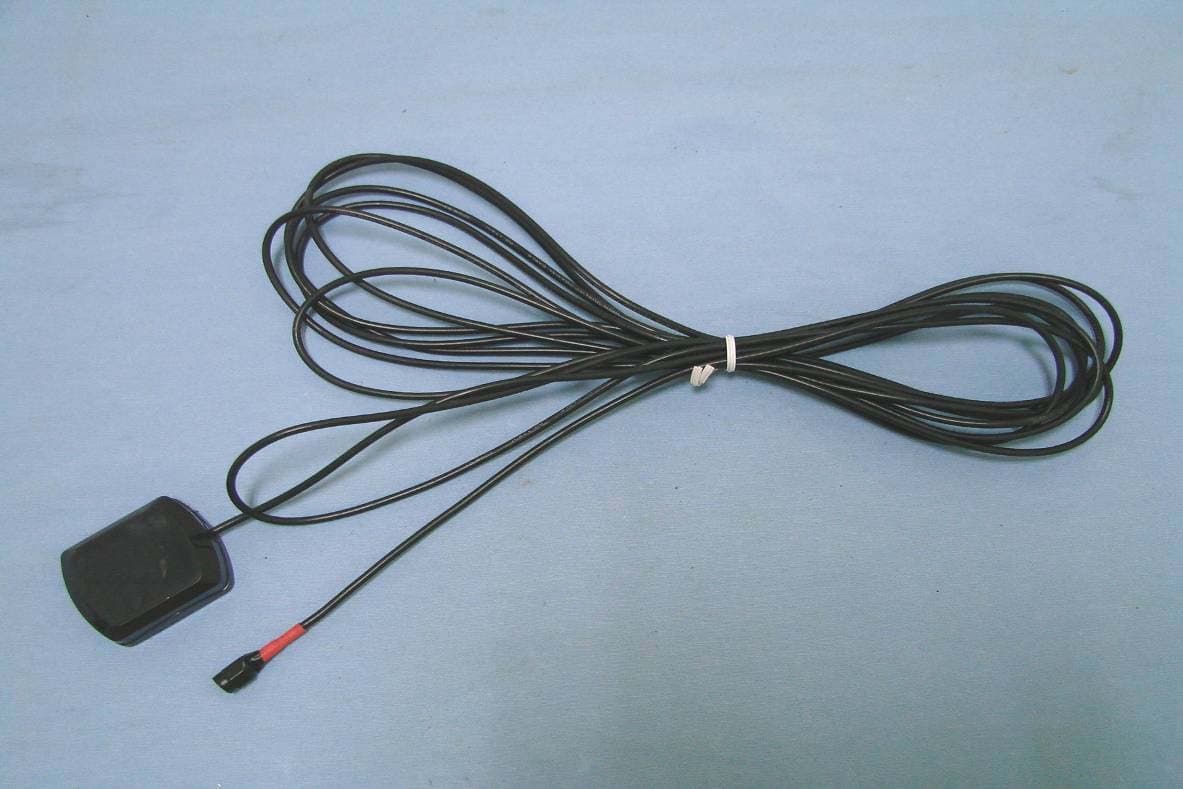

Compliance Certification Services Inc. Report No.: 90511003 Date of Issue: September 28, 2009 Page 1 Total Page: 11 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 90511003 Date of Issue: September 28, 2009 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 90511003 Date of Issue: September 28, 2009 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 90511003 Date of Issue: September 28, 2009 Page 4 Rev. 00

Compliance Certification Services Inc. Report No.: 90511003 Date of Issue: September 28, 2009 Page 5 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 90511003 Date of Issue: September 28, 2009 Page 6 Rev. 00 Compliance Certification Services Inc. Report No.: 90511003 Date of Issue: September 28, 2009 Page 7 Rev. 00 Compliance Certification Services Inc. Report No.: 90511003 Date of Issue: September 28, 2009 Page 8 Rev. 00 Compliance Certification Services Inc. Report No.: 90511003 Date of Issue: September 28, 2009 Page 9 Rev. 00 Compliance Certification Services Inc. Report No.: 90511003 Date of Issue: September 28, 2009 Page 10 Rev. 00 Compliance Certification Services Inc. Report No.: 90511003 Date of Issue: September 28, 2009 Page 11 Rev. 00

W618e Factory Test Procedure INFOWAVE CONFIDENTIAL Revision Record Revision Date Author Description 1.0 15-Apr-09Wang Min Initial Release W618e Factory Test Procedure INFOWAVE CONFIDENTIAL Check and Approval Prepared By: Name Designation Date Signature Wang Min Production Engineer 15-Apr-09 Reviewed By: Name Designation Date Signature Colin Tan Product Manager 15-Apr-09 Approved By: Name Designation Date Signature Tan Thiang Huat Operation Manager 15-Apr-09 W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 1 - 1. W618 Factor Test Overview 1.1 Test Objective The objective of factory test is to make sure every unit is tested and functional before sending to customers. There will be three test stations including In-Circuit-Test station, downloading station and functional test station. 1.2 Flowchart The flowchart of the testing procedure is shown below. * Take Note: This configuration is only required at first setup. All the settings must be saved for subsequent testing. Station 1 Station 2 Station 3 PCBA In-Circuit-Test Firmware Downloading Configuration * I/O Testing GPS & GPRS Testing MicroSD Connector Testing Downloading Bootloader W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 2 - 2. Station Setup 2.1 Station One – ICT Station This station is the ICT station. The fixture will do in-circuit-test for test points and certain components. Some of the points and components are not able to be tested by the fixture. The list of untested points is shown in the table below. Item Part Name Remarks ItemPart Name Remarks 1 L201 No Access Point 20 C101 2 R227 No Access Point 21 C102 3 C3 22 C103 4 C4 23 C104 5 C5 24 C105 6 C16 25 C106 7 C50 26 C108 No Access Point 8 C51 27 C150 9 C52 28 C200 10 C53 29 C203 11 C54 30 C205 12 C55 31 C206 13 C56 32 C208 14 C57 33 C252 15 C58 34 C267 16 C60 35 C270 17 C67 36 D203 No Access Point 18 C68 37 SW50 No Access Point 19 C100 38 BZ50 No Access Point W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 3 - 2.2 Station Two – Programming Station The bootloader and firmware is downloaded at this station. Required test equipment, station setup and test procedure is provided below. 2.2.1 Test Equipment S/N Equipment Requirement 1 Personal Computer (PC1) A personal computer with * Windows Operating System * Microsoft.NET Framework 1.1 * Microsoft.NET Framework 2.0 Service Pack 1 * Microsoft.NET Framework 3.0 Service Pack 1 * Microsoft.NET Framework 3.5 * Samba Application - SAM-BA v2.8 * Wave_PC_Monitor.exe” Application * RS-232 Serial Port (Male DB9) 2 Power Supply Output Voltage: 12V±1% Current: < 200mA 3 Programming Cable A cable with * One end of Male DB25 connector * the other end of Female DB9 connector and wires connected to power supply W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 4 - 2.2.2 Setup Connection As shown in the figure below, connect the UUT (Unit Under Test) to the programming cable. The Female DB9 connector is connected to the serial COM port of the PC. The power wires are connected to the power supply. 2.2.3 Test Steps Before downloading the firmware, it is required to download the bootloader first. There will be three steps: Programming Cable UUT W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 5 - Step 1: Clear IC U50 Memory • Remove Jumper JP200 Remove JP200 JP200 after removed. W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 6 - • Short the two pins of R58. It is unpopulated originally. • Connect the power supply, UUT and PC as shown in setup connection. Set the voltage of the power supply to 12V±1% and power up for 10 seconds. • After 10 seconds, shut down the power. R58: Open circuit R58: Short circuit W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 7 - • De-solder the shorted pin of R58 Step 2: Download Bootloader • Turn on the power supply • Open Samba Application • Select the corresponding COM Port • Under “Select your board”, select AT91SAM7S512-EK • Click on “Connect” R58: De-soldered W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 8 - • After connecting, the following window will be opened: Click on this icon. W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 9 - • Choose “bootloader” then click on “Open” • After Opening the “bootloader”, click on “Send File” Select “bootloader” from the directory and click “Open” After selecting the file, click on “Send File” W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 10 - • Click on “No” when the message box pop up • Click on “Compare sent file with memory” A message box will pop up. Click “No”. Click on “Compare sent file with memory”. W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 11 - • A message stating the memory and sent file match exactly will pop up. Click on “OK”. W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 12 - • Turn off the power supply • Put back jumper JP200 Step 3: Download Firmware • Turn on the power supply • Open the “Wave_PC_Monitor.exe” application • Select the correct COM port and programming file Put back jumper JP200 W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 13 - • Go to“W618 Factory” folder Æ Select “mtrack_flash.bin” Click to choose the correct file Click to choose the correct COM port “W618 Factory” Folder “Mtrack_flash.bin” file W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 14 - • Press Download to start the process • The following process bar appears: • Wait for approximately 2 minutes for the downloading process to complete The UUT is ready for functional testing after downloading the firmware. Disconnect the programming cable from the UUT and connect the next unit for downloading. W618e Factory Test Procedure INFOWAVE CONFIDENTIAL - 15 - 2.3 Station Three – Functional Station This station carries out the functional test, including I/O testing, GPS testing, GSM testing and MicroSD connector testing. 2.3.1 Test Equipment S/N Equipment Requirement 1 Personal Computer (PC1) A personal computer with * Windows Operating System * Microsoft.NET Framework 1.1 * Microsoft.NET Framework 2.0 Service Pac…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 90511003-RP1 FCC ID: UCW618E Date of Issue: November 12, 2009 Page 50 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT EUT Specification EUT Mobile Data Acquisition Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others: GPRS 850MHz: 824 ~ 849 MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power ERP: 10.22 dBm (10.52mW) Antenna gain (Max) 2.3dBi(Numeric gain: 1.70) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: 1. The maximum output power is 10.22dBm (10.52mW) at 848.80MHz (with 1.70 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: 90511003-RP1 FCC ID: UCW618E Date of Issue: November 12, 2009 Page 51 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 10.52mW Numeric Antenna gain = 1.70 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.0036 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.) Compliance Certification Services Inc. Report No.: 90511003-RP1 FCC ID: UCW618E Date of Issue: November 12, 2009 Page 52 Rev. 00 EUT Specification EUT Mobile Data Acquisition Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.725GHz ~ 5.850GHz WLAN: 5.15GHz ~ 5.35GHz Others: _1850 ~ 1910 MHz __ Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power ERP: 19.20 dBm (83.18mW) Antenna gain (Max) 3.1dBi(Numeric gain: 2.04) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: 1. The maximum output power is 19.20 dBm(83.18mW) at 1850.20MHz (with 2.04 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: 90511003-RP1 FCC ID: UCW618E Date of Issue: November 12, 2009 Page 53 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 83.18mW Numeric Antenna gain = 2.04 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.0338 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Report No: 90511003-D Page 1 / 20 FCC 47 CFR PART 15 SUBPART B TEST REPORT for Mobile Data Acquisition MODEL: W618e Test Report Number: 90511003-D Issued for Infowave Pte Ltd 600 Sin Ming Avenue 4th Floor CityCab Building Singapore 575733 Issued By: Compliance Certification Services Inc. Wugu Laboratory No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) TEL: 886-2-2299-9720 FAX: 886-2-2299-9721 E-Mail: [email protected] Issued Date: September 28, 2009 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No: 90511003-D Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 28, 2009 Initial Issue ALL Eunice Shen Report No: 90511003-D Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION.......................................................................................4 2 EUT DESCRIPTION...........................................................................................................5 3 TEST METHODOLOGY.....................................................................................................6 3.1. DECISION OF FINAL TEST MODE ...................................................................................6 3.2. EUT SYSTEM OPERATION ..............................................................................................6 4 SETUP OF EQUIPMENT UNDER TEST............................................................................7 4.1. DESCRIPTION OF SUPPORT UNITS ...............................................................................7 4.2. CONFIGURATION OF SYSTEM UNDER TEST................................................................8 5 FACILITIES AND ACCREDITATIONS ..............................................................................9 5.1. FACILITIES ........................................................................................................................9 5.2. ACCREDITATIONS............................................................................................................9 5.3. MEASUREMENT UNCERTAINTY ...................................................................................10 6 CONDUCTED EMISSION MEASUREMENT...................................................................11 6.1. LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................11 6.2. TEST INSTRUMENTS .....................................................................................................11 6.3. TEST PROCEDURE (please refer to measurement standard or CCS SOP PA-031).......12 6.4. TEST SETUP ...................................................................................................................13 6.5. DATA SAMPLE: ...............................................................................................................13 6.6. TEST RESULTS...............................................................................................................13 7 RADIATED EMISSION MEASUREMENT........................................................................14 7.1. LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................14 7.2. TEST INSTRUMENTS .....................................................................................................15 7.3. TEST PROCEDURE (please refer to measurement standard or CCS SOP PA-031).......16 7.4. TEST SETUP ...................................................................................................................17 7.5. DATA SAMPLE: ...............................................................................................................17 7.6. TEST RESULTS...............................................................................................................18 8 PHOTOGRAPHS OF THE TEST CONFIGURATION ......................................................20 Report No: 90511003-D Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Product: Mobile Data Acquisition Model: W618e Brand: Waveon Applicant: Infowave Pte Ltd 600 Sin Ming Avenue 4th Floor CityCab Building Singapore 575733 Manufacturer: OSI Electronics Cammo Industrial Park Blok F No. 3A Batam Centre, Batam – Indonesia Tested: June 5, 2009 Test Voltage: DC 12V EMISSION Standard Item Result Remarks Conducted (Main Port)N/A Not applicable, because EUT does not connect to AC Main Source direct. FCC 47 CFR Part 15 Subpart B (May 4, 2007), ICES-003 Issue 4 ANSI C63.4-2003 Radiated PASS Meet Class B limit Note: 1. The test result judgment is decided by the limit of measurement standard 2. The information of measurement uncertainty is available upon the customer’s request. Deviation from Applicable Standard None The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Rex Lai Section Manager Gina Lo Section Manager Report No: 90511003-D Page 5 This report shall not be reproduced except in full, witho…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 90511003-RP1 FCC ID: UCW618E Date of Issue: November 12, 2009 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 56 Rev. 00 FCC 47 CFR PART 22 SUBPART H AND PART 24 SUBPART E TEST REPORT For Mobile Data Acquisition Model: W618e Trade Name: Waveon Issued to Infowave Pte Ltd 600 Sin Ming Avenue 4th Floor CityCab Building Singapore 575733 Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 90511003-RP1 FCC ID: UCW618E Date of Issue: November 12, 2009 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 8 4.3 MEASUREMENT UNCERTAINTY .................................................................................... 9 5. FACILITIES AND ACCREDITATIONS ................................................................................. 10 5.1 FACILITIES............................................................................................................................ 10 5.2 EQUIPMENT........................................................................................................................... 10 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................... 11 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 12 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 12 6.2 SUPPORT EQUIPMENT..................................................................................................... 12 7. FCC PART 22 & 24 REQUIREMENTS ................................................................................... 13 7.1 PEAK POWER........................................…

Text truncated - open the document above for the full version.
