Welcome 1 Congratulations on the purchase of your new PULSE Barryvox ® . This user manual explains the functionality and use of the PULSE Barryvox ® . The PULSE Barryvox ® is a revo- lutionary avalanche transceiver, which you will under- stand quickly, and which is very easy to use. A transceiver does not protect you against ava- lanches! As a winter outdoor enthusiast, you must consider all possible avalanche prevention measures and plan your trips carefully. Companion rescue – the worst case – must be practiced frequently. Under the stress of an accident, this is the only way you will be able to locate and dig out a companion quickly and efficient- ly. Despite practice and all the technological advancements, by far not all of the completely buried avalanche victims are rescued! An avalanche burial is always life threatening. Important information on these topics can be found in the chapters on companion rescue and avalanche theory. PULSE Barryvox ® – Made in Switzerland Our heritage is compelling. Mammut and Barryvox follow the time-honored tradition of world-class pre- cision products made in Switzerland. From its design to its engineering and production, this device is com- pletely Swiss-made. This device is compatible with all avalanche trans- ceivers that comply with the EN 300718 standard and operate on a frequency of 457 kHz. © Copyright by Ascom (Schweiz) AG. All rights reserved. Text, text excerpts, images and diagrams are all subject to copyright. No part may be reproduced or copied without written permission from the publisher. P49876_Ascom_GB_Inhalt 12.10.2006 9:08 Uhr Seite 1 2 Table of Contents Front view Welcome 1.Operation ................................................................................................................3 2.Setup........................................................................................................................5 3.Send Mode (SEND)....................................................................................................10 4.Search Mode (SEARCH)............................................................................................11 Search Phases..........................................................................................................11 Standard Mode ..........................................................................................................13 Backup Mode............................................................................................................21 5.Advanced Features..................................................................................................26 6. Additional Information ............................................................................................33 7. Companion Rescue..................................................................................................38 8. Introduction to Avalanche Theory..............................................................................46 Index..............................................................................................................................50 Overview P49876_Ascom_GB_Inhalt 12.10.2006 9:08 Uhr Seite 2 Operation 3 1.Operation 1.1 Main Switch OFF / SEND / SEARCH The main switch is located on the top side of the device. It can be moved by pressing down on the button. By applying lateral pressure to the switch, it can be set to SEND at any time. In the left switch position, the transceiver is OFF, in the center position, it is in SEND mode, and in the right position, the SEARCH mode is activated. To get into the OFF position, an additional safety button must be pressed down, as well. OFF OFFSENDSEARCH OFFSENDSEARCH OFF -> SENDSEND -> OFF OFFSENDSEARCH SEAR C H OFFSENDSEARCH SEND -> SEARCHSEARCH -> SEND P49876_Ascom_GB_Inhalt 12.10.2006 9:08 Uhr Seite 3 4 Operation 1.2Use of Keys The PULSE Barryvox® clearly excels through its ease of use. The device is operated using the two lateral keys. The current function of the keys is always shown at the bottom of the display. On the left, the function of the left -key is shown; on the right, you will see the function of the right -key. If the text is centered, either key can be pressed to activate the function. Examples: Two Functions Right -key: ✓Mark Left -key: Move the selection Both keys simultaneously: Back Left or right key: Group check One Function Special Functions P49876_Ascom_GB_Inhalt 12.10.2006 9:08 Uhr Seite 4 Setup 5 2. Setup 2.1 Initial Setup Before you use the device for the first time, remove the protective foil on the front side and stick the emergency plan on the back of the battery compart- ment lid. 2.1.1 Insert / Replace Batteries Only use alkaline LR03/AAA batteries. Always insert 3 new batteries of the same type. Never use rechargeable batteriesand always replace all the batteries at the same time. Make sure the lid is properly closed and that the device and the batteries stay dry. Periodically inspect the battery compartment. Clean or dry it, if needed, since moisture can cause corrosion. Avoid touching the contacts with your hands. When storing or not using the transceiver for an extended period of time (in the summer), remove the batteries and leave the battery compartment open. The warranty becomes void if batteries have leaked! 2.1.2 Device Setup When turning the device on for the first time and switching to SEND, the user language must be selec- ted. Press the -key to change the current selection and confirm by pressing the-key. The compass calibration is performed next. Please follow the instructions on the display and in the chap- ter «Calibrate Compass». You can customize your Barryvox with your personal information, such as name, address, and phone num- ber. This way your device is identifiable as yours. Please refer to the instructions in the chapter «Owner.» Verify if your PULSE Barryvox ® is set to the appropri- ate W-Link region for your country (wireless radio link). Please see chapter …

Text truncated - open the document above for the full version.

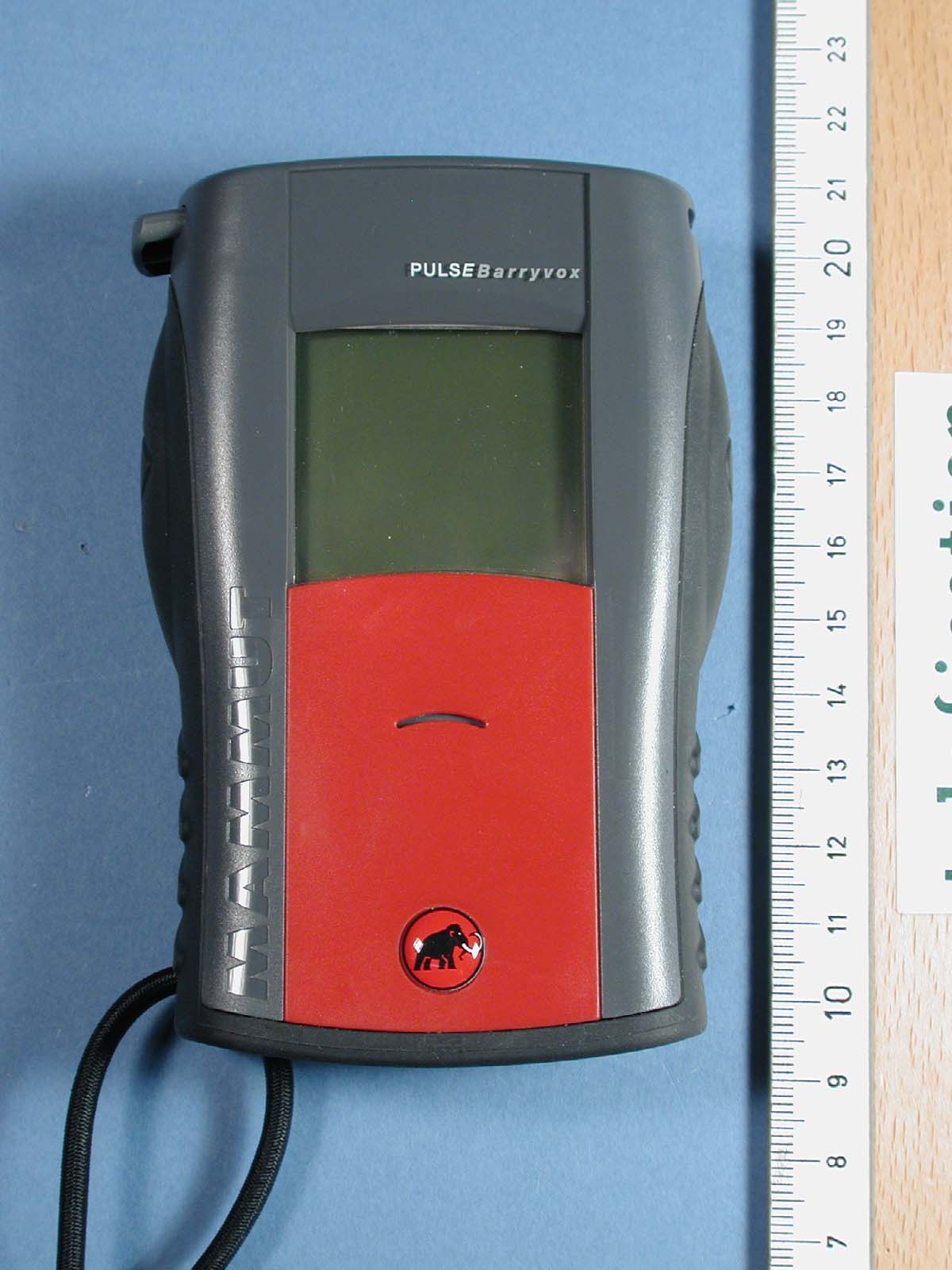

Photographs module 997259 30/31 External PHOTOGRAPH 1: FRONT VIEW.......................................................................................................................... 2 PHOTOGRAPH 2: REAR VIEW............................................................................................................................ 3 Page: 2 of 3 Report number: 997259 30/31 Photograph 1: front view Page: 3 of 3 Report number: 997259 30/31 Photograph 2: rear view

Photographs module 997259 30/31 Internal PHOTOGRAPH 1: INSIDE VIEW.......................................................................................................................... 2 PHOTOGRAPH 2: PCB TOP VIEW...................................................................................................................... 3 PHOTOGRAPH 2: PCB REAR VIEW................................................................................................................... 4 PHOTOGRAPH 2: BATTERIES INSIDE COMPARTMENT........................................................................................ 5 PHOTOGRAPH 2: LABEL IN BATTERY COMPARTMENT...................................................................................... 6 Page: 2 of 6 Report number: 997259 30/31 Photograph 1: inside view Page: 3 of 6 Report number: 997259 30/31 Photograph 2: PCB top view Page: 4 of 6 Report number: 997259 30/31 Photograph 3: PCB rear view Page: 5 of 6 Report number: 997259 30/31 Photograph 4: batteries inside compartment Page: 6 of 6 Report number: 997259 30/31 Photograph 5: label in battery compartment

Test report 99725931 - rev 1.0 based on: FCC Part 15 Subpart C, section 15.209 (10-1-05 Edition) RSS-210 (Issue 6, September 2005) section 2.6 Avalanche Beacon Mammut Pulse Barryvox Report number: 99725931 - rev 1.0 Contents MAIN MODULE.......................................................................................................................................................3 1 I NTRODUCTION ...............................................................................................................................................3 2 P RODUCT ........................................................................................................................................................4 3 T EST SCHEDULE ..............................................................................................................................................4 4 P RODUCT DOCUMENTATION ............................................................................................................................5 5 O BSERVATIONS AND COMMENTS .....................................................................................................................5 6 S UMMARY .......................................................................................................................................................6 7 C ONCLUSIONS .................................................................................................................................................7 TEST RESULTS MODULE.....................................................................................................................................8 1 S UMMARY .......................................................................................................................................................9 2 E MISSION TESTS ............................................................................................................................................10 2.1 Field strength of intentional signal .....................................................................................................10 2.2 Field strength of unwanted emissions ( < 30 MHz) .............................................................................11 USED TEST EQUIPMENT MODULE.................................................................................................................12 REVISION HISTORY............................................................................................................................................13 This report comprises of four modules. The total number of pages exclusive of the pages enclosed in the additional information module is: 13 Page: 3 of 13 Main module Report number: 99725931 - rev 1.0 Main module 1 Introduction This report contains the result of tests performed by: Telefication B.V. Edisonstraat 12a 6902 PK Zevenaar The Netherlands Telefication complies with the accreditation criteria for test laboratories as laid down in ISO/IEC 17025:1999. The accreditation covers the quality system of the laboratory as well as the specific activities as described in the authorized annex bearing the accreditation number L021 and is granted on 30 November 1990 by the Dutch Council For Accreditation (RvA: Raad voor Accreditatie). The copyright of this test report is owned by Telefication bv and may not be reproduced except in full without the written approval of Telefication bv. Ordering party: Company name : Ascom (Switzerland) Ltd. Address : Eichtal Zipcode : CH-8634 City/town : Hombrechtikon Country : Switzerland Date of order : 9 March 2006 Page: 4 of 13 Main module Report number: 99725931 - rev 1.0 2 Product A sample of the following product was submitted for testing: Product name : Avalanche Beacon Product category : Intentional radiators Manufacturer : Ascom (Switzerland) Ltd. Trade mark : Mammut Type designation : Pulse Barryvox FCC ID : UD9PULSE-B-462002 Emission designator : P0N Hardware version : -- Software version : R 1.60 Serial number : 0621912397 and 0621912398 3 Test schedule Tests were carried out in accordance with the specification detailed in chapter 6 "Summary" of this report. Tests were carried out at the following location: • Telefication, Zevenaar The sample of the product was received on: • 6 May 2006 Tests were carried out on: • 6 and 7 July 2006 Page: 5 of 13 Main module Report number: 99725931 - rev 1.0 4 Product documentation For production of this report the following product documentation was used: Description Date Identification NBV Monitor 2 Manual 29/05/2006 New Barryvox NBV monitor manual version 0.1 Pulse Barryvox, Parameters 01/06/2006 -- Pulse Barryvox Short instructions for the test 31/05/2006 -- Schematics 30/05/2006 462010-00000_1SZ_001_00 PCB information 28/04/2006 46201-00000 topside (version 4) 46201-00000 bottomside (version 3) Schematics 30/05/2006 462010-00000_1SZ_001_00 5 Observations and comments The Pulse Barryvox is an avalanche beacon that transmits on 457 kHz and in the 902 - 928 MHz band. This report only describes the tests on the 457 kHz transmitter and receiver The 457 kHz transmitter was set to transmit continuously during testing. Page: 6 of 13 Main module Report number: 99725931 - rev 1.0 6 Summary The product is intended for use in the following application area: • Avalanche beacon The sample was tested according to the following specification: • FCC Part 15 Subpart C, section 15.209 (10-1-05 Edition) • RSS-210 (Issue 6, September 2005), section 2.6 Page: 7 of 13 Main module Report number: 99725931 - rev 1.0 7 Conclusions The sample of the product showed NO NON-COMPLIANCES to the specification stated in chapter 6 of this report. The results of the tests as stated in this report, are exclusively applicable to the product item as identified in this report. Telefication does not accept any responsibility for the results stated in this report, with respect to the properties of product items not involved in these tests. Al…
