UDCREM125-5RF-ID SYSTEM

Ceyon Technology Co., Ltd.

Click to zoom

Application Details

Equipment Class: DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant: Jul 03, 2006
Application Purpose: Original Equipment
Date of Application: Jul 03, 2006
Equipment Note: RF-ID SYSTEM
Frequency Range: 0.12500000 - 0.12500000
Company: Ceyon Technology Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

CEYON RF-ID System MANUAL Contents RF-ID Reader MANUAL ......................................................................................................... 5 1.REM125 Series ................................................................................................................ 6 1.1.REM125 Series Specification ............................................................................................. 6 1.1.1.Product specification........................................................ 6 1.1.2.Environment specification................................................ 6 REM125 Series Parts ..................................................................................................................... 7 1.1.3.REM125 Series Front ...................................................... 7 1.1.4.REM125 Series upper section ......................................... 8 1.1.5.REM125-5 lower section.................................................. 8 1.2.REM125 Series installation................................................................................................. 9 1.2.1.Caution during REM125 Series installation. .................... 9 1.3.Power connection ...............................................................................................................9 1.3.1.When the power is supplied normally .............................. 9 1.3.2.When the power is not supplied normally, ..................... 10 1.3.3.Check the followings. ..................................................... 10 1.4.ANTENNA Connection ...................................................................................................... 10 1.5.Communication Line Connection.................................................................................... 10 1.5.1.RS-232 Serial Cable Connection Road ......................... 10 1.5.2.RS-422 Serial Cable Connection................................... 11 1.5.3.RS-485 Serial Cable Connection................................... 12 1.6.Menu ................................................................................................................................... 13 1.6.1.REM125 Series Menu Tree ........................................... 13 1.6.2.REM125 Series Normal Operation ................................ 14 1.6.3.REM125 Series Configuration ....................................... 14 1.6.4.REM125 Series Test (Trial mode).................................. 18 1.7.Host Communication........................................................................................................ 18 1.8.Recognition Test ...............................................................................................................18 1.9.Problems and solutions.................................................................................................... 20 1.9.1.Power-related problems................................................. 20 1.9.2.Problems on the connection between the networks ...... 20 1.9.3.Operation Related problems.......................................... 20 RF-ID ANTENNA MANUAL................................................................................................ 22 2.EA125C........................................................................................................................... 23 2.1.EA125C Specifications ..................................................................................................... 23 2.1.1.Product Specifications ................................................... 23 2.1.2.Environment Specifications............................................ 23 2.2.EA125C Parts ..................................................................................................................... 24 2.2.1.EA125C Front Section ................................................... 24 2.2.2.EA125C lower parts ....................................................... 25 2.3.EA125C Installation ........................................................................................................... 25 2.3.1.Caution during E A125C Series installation ................... 25 2.4.EA125C Communication Line Connection ..................................................................... 26 2.4.1.Caution during cable connection. .................................. 26 2.5.EA125C operation ............................................................................................................. 27 2.6.EA125C Problems and solutions..................................................................................... 27 3.EA125S........................................................................................................................... 28 3.1.EA125S Specifications...................................................................................................... 28 3.1.1.Product Specifications ................................................... 28 3.1.2.Environment Specifications............................................ 28 3.2.EA125S Parts ..................................................................................................................... 29 3.2.1.EA125S Front Section ................................................... 29 3.2.2.EA125S lower part......................................................... 29 3.3.EA125S Installation ........................................................................................................... 30 3.3.1.Caution during EA125S installation ............................... 30 3.4.EA125S communication Cable Connection ................................................................... 31 3.4.1.Caution during cable connection ................................... 31 3.5.EA125S operation.............................................................................................................. 32 3.6.EA125S Problems and solutions ..................................................................................... 32 Supplement ..............…

Text truncated - open the document above for the full version.

Cover Letter(s)

13 Samsung Insurance B/D #942-9, lngye-Dong, Paldal-Gu, Suwon-City, Gyeonggi-Do,Korea 442-776 TEL No : +82-31-267-1163 FAX No : +82-31-267-1106 June 20, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : CEYON Technology Co., LTD. FCC ID : UDCREM125-5 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics, Parts list, Block diagram and Operational description. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jeon Young-Ju R&D / Department Manager

External Photos

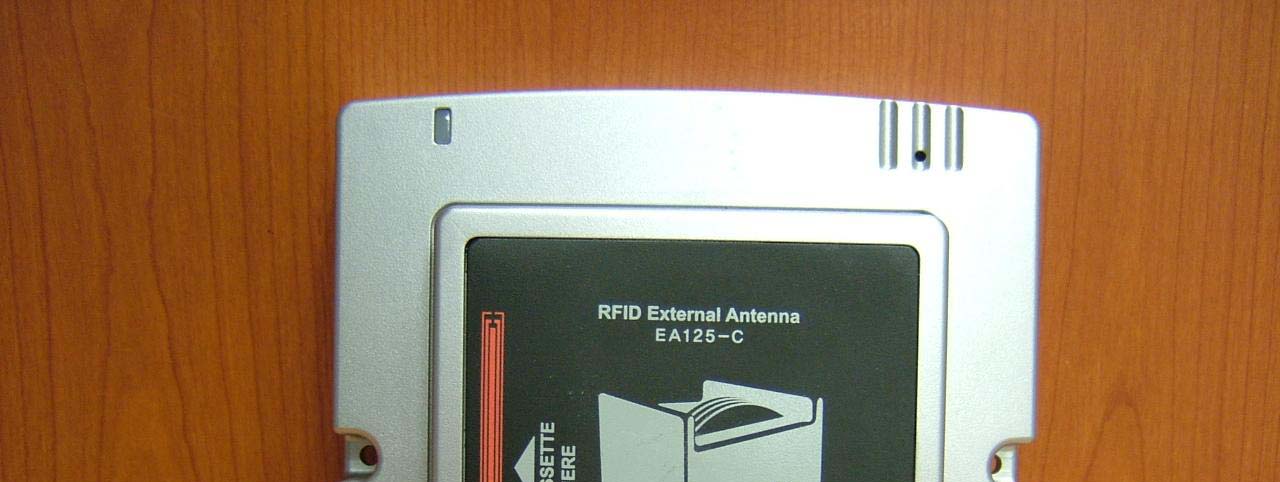

FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 9 FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 9 FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 9 FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 9 ANTENNA Type : EA125-C FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 5 of 9 ANTENNA Type : EA125-C FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 6 of 9 ANTENNA Type : EA125-C FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 7 of 9 ANTENNA Type: EA125-S FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 8 of 9 ANTENNA Type : EA125-S FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 9 of 9 ANTENNA Type : EA125-S

ID Label/Location Info

FCC ID: UDCREM125-5 Copyright Ⓒ 2006, LTA Co., Ltd. SAMPLE LABEL & LOCATION *** Below the text may be placed in a prominent location in the instruction manual This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received. Including interference that may cause undesired operation. FCC ID:UDCREM125-5

Internal Photos

FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 8 FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 8 FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 8 FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 8 FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 5 of 8 ANTENNA TYPE: EA125-C FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 6 of 8 ANTENNA TYPE: EA125-C FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 7 of 8 ANTENNA TYPE: EA125-S FCC ID: UDCREM125-5 Copyright ○ c 2006, LTA Co., Ltd. Page 8 of 8 ANTENNA TYPE: EA125-S

Test Report

FCC ID: UDCREM125-5 Copyright Ⓒ 2006, LTA Co., Ltd. Page 1 of 6 Radiated Emission – ANTENNA TYPE: EA125-C FCC ID: UDCREM125-5 Copyright Ⓒ 2006, LTA Co., Ltd. Page 2 of 6 Radiated Emission – ANTENNA TYPE: EA125-C FCC ID: UDCREM125-5 Copyright Ⓒ 2006, LTA Co., Ltd. Page 3 of 6 Radiated Emission – ANTENNA TYPE: EA125-S FCC ID: UDCREM125-5 Copyright Ⓒ 2006, LTA Co., Ltd. Page 4 of 6 Radiated Emission – ANTENNA TYPE: EA125-S FCC ID: UDCREM125-5 Copyright Ⓒ 2006, LTA Co., Ltd. Page 5 of 6 Conducted Emission – ANTENNA TYPE: EA125-C FCC ID: UDCREM125-5 Copyright Ⓒ 2006, LTA Co., Ltd. Page 6 of 6 Conducted Emission – ANTENNA TYPE: EA125-C

Test Report

Ref. No.: LR500110606D Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 19 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: June 07 ~ 15, 2006 Test Report S/N: LR500110606D Test Site : LTA CO., LTD. CERTIFICATIO OF COMPLIANCE FCC ID. APPLICANT Manufacturing Description : RFID Reader Manufacturer : CEYON TECHNOLOGY CO., LTD. Model name : REM125-5 Test Device Serial No.: : Identification Rule Part(s) : FCC Part 15.209 Subpart C; ANSI C-63.4-2003 Frequency Range : 125kHz RF power for ANT C Type : 10.21 uV/m @ 300m RF power for ANT S Type 0.92 uV/m @ 300m Data of issue : June 16, 2006 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 UDCREM125-5 CEYON TECHNOLOGY CO., LTD. Ref. No.: LR500110606D Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 19 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 FIELD STRENGTH OF FUNDAMENTAL AND HARMONICS ----------------------- 3.2.2 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX 1 TEST EQUIPMENT USED FOR TESTS -------------------------------------------- APPENDIX 2 OCCUPIED BANDWIDTH ------------------------------------------------------------ 3 4 5 5 6 6 11 16 18 Ref. No.: LR500110606D Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 19 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2006-09-30 ECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500110606D Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 19 2. Information’s about test item 2-1 Client Company name : CEYON TECHNOLOGY CO., LTD. Address : 13 Samsung Insurance B/D #942-9, lngye-Dong, Paldal-Gu, Suwon-City, Gyeonggi-Do,Korea 442-776 Tel / Fax : +82-31-267-1163/ +82-31-267-1106 2-2 Equipment Under Test (EUT) Trade name : RFID Reader FCC ID : UDCREM125-5 Model name : REM125-5 Serial number : Identification Date of receipt : June 12, 2006 EUT condition : Pre-production, not damaged Antenna type : ANT. Model name: EA125-S ANT. Model name: EA125-C Frequency Range : 125kHz Number of Antenna port: 5 EA RF output power Range : 10.21 uV/m @ 300m 0.92 uV/m @ 300m Power Source : AC/DC ADAPTOR (12VDC) 2-3 Tested frequency LOW MID HIGH Frequency (kHz) - 125 - Ref. No.: LR500110606D Copyright ○ c 2006, LTA Co., Ltd. Page 5 of 19 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.203 Antenna Requirements - Note 3 C 15.209 Field Strength of Fundamental - Radiated C 15.209 / 15.109 Field Strength of Harmonics - Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. Note 3: The EUT has the antenna connector. And it connector type is 6 pin DIN connector. The manufacturer supply approved antenna that has 6 pin DIN connector. The approved antennas are EA125-C and EA125-S model. The Result of this report are worse case results for all the antennas to be used with this device. The sample was tested according to the following specification: FCC Parts 15.209; ANSI C-63.4-2003 Ref. No.: LR500110606D Copyright ○ c 2006, LTA Co., Ltd. Page 6 of 19 3.2 TECHNICAL CHARACTERISTICS TEST 3.2.1 Field Strength of Fundamental and Harmonics Procedure: The EUT was placed on a 0.8m high wooden table inside a shielded enclosure. An antenna was placed near the EUT and measurements of frequencies and amplitudes of field strengths were recorded for reference during final measurements. For final radiated testing, measurements were performed in OATS. Measurements were performed with the EUT oriented in 3 orthogonal axis and rotated 360 degrees to determine worst-case orientation for maximum emissions. The spectrum analyzer is set to: Center frequency = the worst channel Frequency Range = 30 MHz ~ 10 th harmonic. RBW = 100 kHz ( <1 GHz) = 1 MHz (> 1 GHz ) VBW ≥ RBW Detector function = peak / Average power Sweep = auto Measurement Data: - Refer to the next page Minimum Standard: FCC Part 15.209(a) Frequency (MHz) Limit (uV/m) Distance (m) 0.009 ~ 0.490 2400/F (kHz) 300 0.490 ~ 1.705 24000/F (kHz) 30 1.705 ~ 30.0 30 30 30 ~ 88 100 ** 3 88 ~ 216 150 ** 3 216 ~ 960 200 ** 3 Above 960 500 3 ** Except as provided in 15.209(g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 MHz, 76-88MHz, 174…

Text truncated - open the document above for the full version.

Test Setup Photos
