UDGIAQ001433MHz WIRELESS DEVICE

IAQ Laboratories International, L.L.C.
433MHz WIRELESS DEVICE - FCC ID UDGIAQ001 - IAQ Laboratories International, L.L.C.
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Aug 06, 2006
Application Purpose
Original Equipment
Date of Application
Aug 06, 2006
Equipment Note
433MHz WIRELESS DEVICE
Frequency Range
433.00000000 - 433.00000000
Company
IAQ Laboratories International, L.L.C.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Operational Description

↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Veritas Tech Wireless Q-Safe User Manual APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 Wireless Q-Safe User Manual Please keep this user manual. Please use this product following the instruction after read it. Veritas Tecn (Ningbo)Co.,Ltd. Add: ChuangYe Yi Lu 17# Ningbo City China Tel: 86-574-56161703 z Specifications and Information contained in this documentation are furnished for information use only, and are subject to change at any time without notice, and should not be construed as a commitment by manufacture. Veritas Tech Wireless Q-Safe User Manual APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 TABLE OF CONTENTS 1. INTRODUCTION ....................................................................................... 3 2. PRODUCT APPEARANCE ....................................................................... 4 3. FUNCTION OF Q-STAT ............................................................................ 7 4. PARAMETERS OF Q-STAT ...................................................................... 9 5. PARAMETERS OF SENSORS ................................................................ 11 6. CONNECTION OF INSTALLATION .................................................... 13 7. Q-STAT BASIC OPERATION ................................................................. 15 8. INTERCONNECTION SETTING .......................................................... 22 9. AFTER SERVICE ..................................................................................... 24 10. TECHNICAL SUPPORT ........................................................................ 25 11. WARRANTY ............................................................................................ 26 Veritas Tech Wireless Q-Safe User Manual APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 1. Introduction Thank you for selecting Q-Safe. Please read this user manual in detail before operation and follow the instruction. Function and operation method of Q-Stat and sensors are introduced in the user manual. Q-Safe adopts the advanced sensor technique and wireless network communication technique. Q-Safe can collect the temperature and humidity of the sensors, calculate MOLD growth risk, and then save the collected initial data and calculation result in database in order to inquiry and monitoring. Veritas Tech Wireless Q-Safe User Manual APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 2. Product Appearance 2.1 Appearance of Q-Stat Front side figuration drawing: Figure 1 Back side connection drawing: LCD Three keys: [↕], [↔], [OK]. Indicator light Veritas Tech Wireless Q-Safe User Manual APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 Figure 2 SW1: Power supply D7: Backup battery indicator light J12: Sensor’s setting port J7: Connection port Connection Ports of J7 are introduced from left to right: 1-2: External power supply interface (-V, +V) 3-8: External extend backup interfaceCOMC1O1COMC2O2 9-10: RS485 portAB See family-use Q-safe installation manual in detail. 2.2 Appearance of sensors Front side figuration drawing: Figure 3 Figure 4 D7 J7 J12 SW1 Battery Sensor’s setting port3 Power support Antenna Veritas Tech Wireless Q-Safe User Manual APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 Back side figuration drawing: Figure 5 Sensor’s component Veritas Tech Wireless Q-Safe User Manual APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 3. Function of Q-Stat 1) LCD displays the following information: system applications, Q-Stat’ ID number, Q-Stat wireless frequency range, records in Q-Stat, transmit interval of sensors, information of the sensors and current time. 2) Status indicator lamp: Green: normal working Red: hardware defect, sensor connection defect or short power supply Orange: alarming, sensors’ parameters exceed the setting value. 3) It is human to off line operate the system, which has its own menu. 4) Connecting computer and Q-Stat with BUS M-Bus. One serial port of the computer can link up to 255 Q-Stat. 5) Wireless connecting Q-Stat and sensors (adopt the worldwide open frequency range, which is used without license). One Q-Stat can link up to 255 sensors. 6) The data of connected sensors is collected regularly by Q-Stat. One Q-Stat can save up to 4000 records. 7) Computer can collect the data of Q-Stat, set the time and ID number of the Q-Stat, and transmit interval of sensors by administrative software. 8) The following operation can be offline operated by keys on Q-Stat: setup system applications, Q-Stat ID number, Q-Stat’s wireless frequency range, sensors’ ID number and frequency range. 9) Q-Stat has its own charging batteries, which can supply power while power off. The length of time power supplied depends on the number of Q-Stat and sensors. Batteries are charging while powers on. Veritas Tech Wireless Q-Safe User Manual APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 Veritas Tech Wireless Q-Safe User Manual APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 4. Parameters of Q-Stat 1. Transmitting rate and communication protocol 1) Q-Stat and PC: 4800Bps, RS485 semiduplex 2) Q-Stat and sensors: wireless frequency 433MHz, transmission distance max. 100 meters. 2. Two control ports are used for control external electrical appliances. 3. Power supply: DC 15V 200mA. 4. Maximum power: <5W (include backup battery charging power) 5. 12V600mAH charging battery is included in Q-Stat. 6. Working Conditions: Temperature: 32-158F Humidity: 0%-95%RH non-coagulation 7. Size: 106 x145 x 175mm(Height x Width x Depth) 8. Weight: 1500g (net weight) 9. Certificate: FCC Veritas Tech Wireless Q-Safe User Manual APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 Veritas Tech Wireless Q-Safe User Manual APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 5. Parameters of Sensors 1. Wireless frequency: 433MHz. Tra…

Text truncated - open the document above for the full version.

Block Diagram

APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 433MHz CPU Sensor Wireless transmission

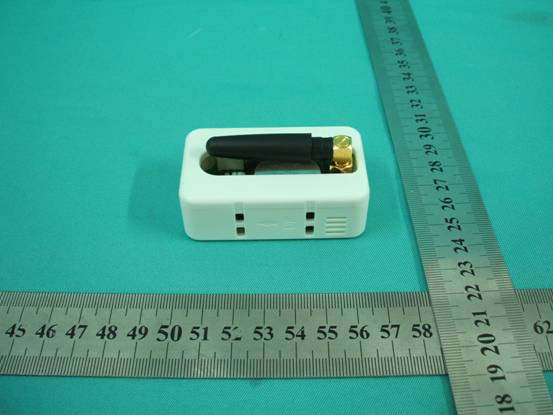

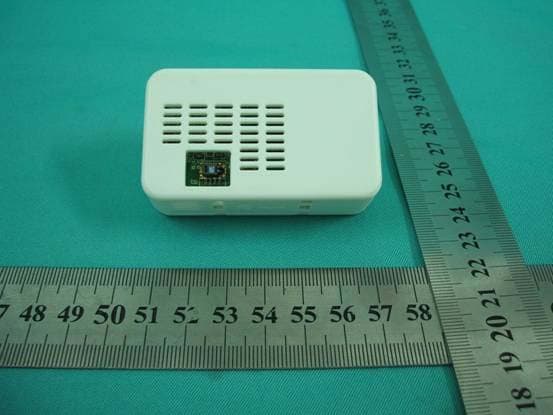

External Photos

APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001

ID Label/Location Info

APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 Label Drawing FCC ID: UDGIAQ001 Model Number: I06-1WC-2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ID Label/Location Info

APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 Label Location

Internal Photos

APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001

Operational Description

APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 Circuit Description of transmitter Description of circuit: The brief circuit description is listed as follow: 1. CPU U1 act as the whole system control. 2. Sensor U2 used to gather temperature , humidity signal. 3. Wireless transmission U3 used to send the data to control. Remark: This device transmits signal periodically when operation. Time for each transmission of the device is 0.1 second and the silent time is 30 minutes between transmissions.

Schematics

11 22 33 44 D D C C B B A A 12 J2CON2 TEST 1 Vcc 2 P2.5/Rosc 3 Vss 4 Xout 5 Xin 6 RST/NMI 7 P2.0/ACLK 8 P2.1/INCLK 9 P2.2/CAOUT/TA0 10 P3.0/STE0 11 P3.1/SIMO0 12 P3.2/SOMI0 13 P3.3/UCLK0 14 P3.4/UTXD0 15 P3.5/URXD0 16 P3.6 17 P3.7 18 P2.3/CA0/TA1 19 P2.4/CA1/TA2 20 P1.0/TACLK 21 P1.1/TA0 22 P1.2/TA1 23 P1.3/TA2 24 P1.4/SMCLK/TCK 25 P1.5/TA0/TMS 26 P1.6/TA1/TD1 27 P1.7/TA2/TDO/TDI 28 U1MSP430F123IDW GND 1 DATA 2 SCK 3 Vcc 4 U2SHT11 R5100k R347k R42k C170.1uF D11N4148 VCC RST X232.768K RST VCC VCC DATASCK DATASCK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 J4 14PIN TDOTDITMSTCKGNDRST VCCTEST VCC TEST TDOTDITMSTCK TRX_CE 1 PWR_UP 2 uPCLK 3 VDD 4 VSS 5 CD 6 AM 7 DR 8 VSS 9 MISO 10 MOSI 11 SCK 12 CSN 13 XC1 14 XC2 15 VSS 16 VDD 17 VSS 18 VDD_PA 19 ANT1 20 ANT2 21 VSS 22 IREF 23 VSS 24 VDD 25 TXEN 32 DVDD 31 VSS 30 VSS 29 VSS 28 VSS 27 VSS 26 U3 nRF905 12 J1CON2 BT13V C180.1uF VCC TX_ENTRX_CEPWR_UPCDAMDRMISOMOSISCKCSN VCC2 C833pF X1 16M±10ppm R1 1M C122pF C222pF VCC2 R222K C710nF C533pF C64.7nF VCC2 C918pF±5%C1018pF±5% C43.3nF C126.8pF±5%C3180pF±5% L112nH,5% L239nH,5%L339nH,5% J3 50 ohm RF I/O CDAMDRMISOMOSISCKCSN TX_ENTRX_CEPWR_UP 虚虚虚虚虚虚(除 J3 外)采采采采虚虚 VCC2 VCC R62.2Ω C144.7uF 钽钽钽 BT1 采采 3.0V 一一一一钽一 (CR2450) 。 123 J3CON3 K1 SW-SPDT

Test Report

SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 Cover Sheet Test Report Product Name: Q-Safe Model No.: V06-1WC-2, I06-1WC-2 FCC ID: UDGIAQ001 Applicant: IAQ Laboratories International, L.L.C. 6685 Beta Drive Mayfield Village, OH 44143 USA Date Received: 7/27/2006 Date Tested: 7/27/2006 SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 TEST REPORT CONTAINING: PAGE 1...........TEST EQUIPMENT LIST PAGE 5...........RADIATION INTERFERENCE TEST DATA PAGE 6-7.........OCCUPIED BANDWIDTH AND PLOTS PAGE 8-9.........DUTY CYCLE PLOTS EXHIBIT INCLUDED: PAGE 1...........BLOCK DIAGRAM PAGE 2...........SCHEMATIC PAGE 3...........USERS MANUAL PAGE 4...........LABEL SAMPLE PAGE 5...........LABEL LOCATION PAGE 6...........EXTERNAL PHOTOGRAPHS PAGE 7...........INTERNAL PHOTOGRAPHS PAGE 8...........OPERATIONAL DESCRIPTION PAGE 9...........TEST SET UP PHOTOGRAPHS SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 Page 1 of 7 EMC Equipment List Equipment Manufacturer Model No.Serial No.Last Cal. Cal. Interval EMI Test Receiver ROHDE&SCHWARZ ESCS30 100307 Mar 20,2006 1 Year LISN ROHDE&SCHWARZ ESH3-Z5 100305 Mar 20,2006 1Year Pulse Limiter ROHDE&SCHWARZ ESH3-Z2 100305 Mar 20,2006 1Year 50 Coaxial Switch ANRITSU CORP MP59B 6200283933 Mar 20,2006 1 Year Spectrum Analyzer ANRITSU MS2651B 6200238856 Mar 20,2006 1 Year Bilog Antenna SCHWARZBECK VULB 9163 9163-194 Mar 20,2006 1 Year 50 Coaxial Switch ANRITSU CORP MP59B 620028393 3 Mar 20,2006 1 Year Cable Resenberger N/A NO.1 Mar 20,2006 1 Year Cable SCHWARZBECK N/A NO.2 Mar 20,2006 1 Year Cable SCHWARZBECK N/A NO.3 Mar 20,2006 1 Year DC Power Filter DuoJi DL2°30B N/A N/A N/A Single Phase Power Line Filter DuoJi FNF 202B30 N/A N/A N/A 3 Phase Power Line Filter DuoJi FNF 402B30 N/A N/A N/A AC Power Source California Instruments 5001iX-400 55689 Mar 20,2006 1Year Test analyzer California Instruments PACS-1 72254 Mar 20,2006 1Year ESD Tester HAEFELY PESD 1610 H4001552 Mar 20,2006 1 Year Signal Generator IFR 2032 203002/100 Mar 20,2006 1 Year Amplifier A&R 150W1000 301584 NCR NCR Dual Directional Coupler A&R DC6080 301508 Mar 20,2006 1 Year Power Head A&R PH2000 301193 Mar 20,2006 1 Year Power Meter A&R PM2002 302799 Mar 20,2006 1 Year Field Monitor A&R FM5004 300329 Mar 20,2006 1 Year Field Probe A&R FP5000 300221 Mar 20,2006 1 Year EMCPRO System Thermo RO-BASE 0403271 Mar 20,2006 1 Year Capacitive Clamp Thermo PRO-CCL 0403272 Mar 20,2006 1 Year EMCPRO System Thermo PRO-BASE 0403271 Mar 20,2006 1 Year Coupler decoupler for telecom lines Thermo CM-TEL-CD 0403273 Mar 20,2006 1 Year Signal Generator IFR 2032 203002/100 Mar 20,2006 1 Year Amplifier A&R 150W1000 301584 NCR NCR EMCPRO System Thermo PRO-BASE 0403271 Mar 20,2006 1 Year SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 Page 2 of 7 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of SHENZHEN MOST ELECTRONICS CO., LTD. The EUT was transmitting a test signal during the testing. POWER LINE CONDUCTED INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a 50H LISN. Both Lines were observed. The bandwidth of the receiver was 10kHz with an appropriate sweep speed. The ambient temperature of the EUT was 25 with a humidity of 58%. RADIATION INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a ANRITSU spectrum analyzer with a pre-selector. The analyzer was calibrated in dB above a micro volt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. The ambient temperature of the EUT was 25 with a humidity of 58%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The EUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The EUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSI Standard C63.4-2003 10.1.7 with the EUT 40 cm from the vertical ground wall. SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 Page 3 of 7 APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001 NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.231 REQUIREMENTS: Fundamental Frequency MHz Field Strength of Fundamental dBuV Field Strength of Harmonics and Spurious Emissions (dBuV/m @ 3m) 40.66 to 40.70 67…

Text truncated - open the document above for the full version.

Test Setup Photos

APPLICANT: IAQ Laboratories International, L.L.C. FCC ID: UDGIAQ001

Contact Information

Applicant

Robert Juran(Manager)
[email protected]440-605-7287Fax: 440-646-1615

Test Firm

Accurate Technology Co., Ltd.Sean Liu
[email protected]86-755-26503291Fax: 86-755-26503396

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231433 MHz - 433 MHz-
