UDN-AVLAuto Vehicle Locator (AVL)

Technical Guide AVL75 Auto Vehicle Locator System www.avl.tw A A V V L L i Copyright COPYRIGHT © 2005-2006 DMP ELECTRONICS INC. for AVL75 SYSTEM. DMP ELECTRONICS INC. is hereby also refer to as “DMP” during the course of this documentary literature. The information in this manual is subject to change without notice in pursue for continuous improvement of the subject product and commodity. All rights reserved. The manufacturer assumes no responsibility for any inaccuracies that may be contained in this document. And makes no commitment to update or to keep current information contained in this manual. Unauthorized use for whatever purposes are prohibited. No part of AVL75 SYSTEM material may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means, by persons, organizations or corporations other than the AVL75 SYSTEM (its affiliates, divisions and units) without the prior written permission from DMP. Trademarks Acknowledgement is the registered trademark of DMP. The Trademarks appearing on any AVL75 SYSTEM are the property of DMP and other third parties. Nothing contained on the AVL75 SYSTEM literature should be construed as granting any license or right to use any Trademark without the prior written permission of the owner of the Trademark. Trademarks, logos, and services marks are collectively refer to as "Trademarks" in this section. Microsoft, Windows and the Windows CE Logo are registered trademarks of Microsoft Corporation in the United States and/or other countries. Other brand names, or product names appearing in this literature are the sole properties and registered trademarks of their respective owners. All names mentioned herewith serves as identification purpose only. is the identification mark for AVL75 SYSTEM of which the ownership is reserved by DMP. Owner’s Record The serial number of this commodity is located at the bottom chassis of your AVL75 SYSTEM. Refer to the model and serial number when you contact your nearest dealer or DMP offices for services. The Model No. of this product is also indicated on the product label of your gift box as: AVL750/751/752/753MWB (NWB/NXB/NXX/MWB/MXB/MXX/ ... etc). Please check the description of your model no. in Chapter 2. A A V V L L ii Special Notice to Users DMP provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information. In no event shall DMP be liable for any incidental, consequential, or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the software, or other information contained herein or the use thereof. DMP reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separated user license agreement or label sticker. This product contains software owned by DMP and licensed by third parties. Use of such software is subject to the terms and conditions of license agreements enclosed with this product. Software specifications are subject to change without notice and may not necessarily be identical to current retail versions. Updates and additions to software may require an additional charge. Subscription to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institution. Safety Information WARNING Do not expose your AVL75 SYSTEM to the rain or moisture, in order to prevent shock and fire hazard. Never install your AVL75 SYSTEM in wet locations. Do not attempt to open the cabinet of your AVL system to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing. Never touch un-insulated terminals or wire of your AVL75 SYSTEM unless your vehicle engine is turned off. In the service laboratory: Never touch un-insulated terminals, unless the power adaptor and the display monitor are disconnected. Locate your AVL75 SYSTEM as close as possible to the electrical socket outline for easy access, while avoiding force caused by entangling of your arms with surrounding cables from the system. Avoid using or installing the modem to the serial port of your AVL SYSTEM during a storm or a lightning. Do not use the telephone to report a gas leak in the vicinity of your AVL75 SYSTEM still working. Turn off the system immediately. USB connectors are not supplied with Limited Power Sources. DO NOT ATTEMPT TO OPEN OR TO DISASSEMBLE THE CHASSIS (ENCASING) OF THIS COMMODITY. PLEASE CONTACT YOUR NEAREST DEALER FOR SERVICING FROM A QUALIFIED TECHNICIAN . iii Regulatory FCC Class A Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference in which case the user will be required to correct the interference at his own expense. Testing was done with shielded cables. Therefore, in order to comply with the FCC regulations, you must use shielded cables with your installation. WARNING This product Complies with EN55022 Class A. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the follow…

Text truncated - open the document above for the full version.

22 SRAM control port I/O address 866H. Bit Function Bit0, 4 Change SRAM page 0~4 Bit6 Enable/disable SRAM write protect Please refer our example codes to know how to setup and access GPIO. 23 Windows CE Example Codes #include "stdafx.h" unsigned char inp(int addr) { __asm { push edx mov edx, DWORD PTR addr in al, dx and eax, 0xff pop edx } } void outp(int addr, unsigned char val) { __asm { push edx mov edx, DWORD PTR addr mov al, BYTE PTR val out dx, al pop edx } } void main() { outp(0x2e, 0x87); /* unlock W83697UF configuration registers */ outp(0x2e, 0x87); outp(0x2e, 0x2a); /* select GP2-5 device */ outp(0x2f, 0x00); outp(0x2e, 0x2b); /* select GP80-83 device & enable COM3 */ outp(0x2f, 0x7c); outp(0x2e, 0x2c); /* enable COM4 */ outp(0x2f, 0x55); outp(0x2e, 0x07); /* select device 9, GP2-4 */ outp(0x2f, 0x09); outp(0x2e, 0x30); /* active GP2-4 */ outp(0x2f, 0x07); outp(0x2e, 0xf0); /* set GP2 as output mode */ outp(0x2f, 0x00); outp(0x2e, 0xf3); /* set GP3 as input mode */ outp(0x2f, 0xff); outp(0x2e, 0xf6); /* set GP4 as input mode */ outp(0x2f, 0xff); 24 outp(0x2e, 0x60); /* map to I/O address 610H */ outp(0x2f, 0x06); outp(0x2e, 0x61); outp(0x2f, 0x10); outp(0x2e, 0x07); /* select device F, GP8 */ outp(0x2f, 0x0F); outp(0x2e, 0x30); /* active GP8 */ outp(0x2f, 0x01); outp(0x2e, 0xf0); /* set GP8 as output mode */ outp(0x2f, 0x00); outp(0x2e, 0x60); /* map to I/O address 400H */ outp(0x2f, 0x04); outp(0x2e, 0x61); outp(0x2f, 0x00); outp(0x2e, 0xaa); /* lock W83697UF configuration registers */ outp(0x2f, 0xaa); /* After those code, programmer can access port 2/3/4/8 now */ /* output data to port 2 */ out(0x610, 0x55); /* read data from port 3 */ inp(0x610) /* read data from port 4 */ inp(0x611) /* output data to port 8 */ out(0x610, 0xaa) } Technical Support For more technical support, please visit http://www.dmp.tw/tech or mail to [email protected] Using GPIO on AVL | 2006-04-25 End-of-Using GPIO on AVL 25 10.3. AVL Power Management Command Set The power management of AVL is performed by a micro-p via I2C interface. The power management commands are divided into two parts: setup and query commands. This document will show programmer those commands and use our AVL library to do power management on AVL. Setup Commands Power ON setup command sequence is one command byte + one time data byte . Power ON Condition Commands Command Hex. Description SET_OFF 81H Turn power off SET_Ring 82H Wake on modem SET_After 83H Power on after define time SET_Every 84H Power on every define time SET_GPI_ALL 8FH Wake on one of GPI pins SET_GPI0 90H Wake on GPI0 SET_GPI1 91H Wake on GPI1 SET_GPI2 92H Wake on GPI2 SET_GPI3 93H Wake on GPI3 SET_Clear 85H Clear all trigger events. Time data will be ignored Time Data Byte BitDescription 7 1: in hour 0: in minute 6-0 Time value in hour or minute. z Set all bits to 0 indicate right now. z Set all bits to 1 indicate disabled. 26 Command Hex. Description SET_OFF 81H Turn power off Example Command Turn off power right now 81H + 00H Turn off power after 10 minutes 81H + 0AH Turn off power after 2 hours 81H + 82H Disable turn off power setting 81H + FFH Programmer can use 05H command to verify setting. Command Hex. Description SET_Ring 82H Wake on modem Example Command Wake on ring right now 82H + 00H Wake on ring after 10 minutes 82H + 0AH Wake on ring after 2 hours 82H + 82H Disable Wake on ring 82H + FFH Programmer can use 05H command to verify setting. Command Hex. Description SET_After 83H Power on after define time Example Command Wake on AVL right now 83H + 00H Wake on AVL after 10 minutes 83H + 0AH Wake on AVL after 2 hours 83H + 82H Disable this command 83H + FFH Programmer can use 05H command to verify setting. Command Hex. Description SET_Every 84H Power on every define time Example Command Wake on AVL right now 84H + 00H Wake on AVL every 10 minutes 84H + 0AH Wake on AVL every 2 hours 84H + 82H Disable this command 84H + FFH Programmer can use 05H command to verify setting. Note: Before using SET_Ring command, please make sure that GPRS is power on and supports wake on ring mode. 27 Command Hex. Description SET_GPI_ALL 8FH Wake on one of GPI pins Example Command Turn on AVL power right now while one of GPIO is triggered 8FH + 00H Disable this command 8FH + FFH The valid time data bytes for this command are 00H and FFH. Command Hex. Description SET_GPI0 90H Wake on GPI0 Example Command Turn on AVL power right now while GPI0 is triggered 90H + 00H Disable this command 90H + FFH The valid time data bytes for this command are 00H and FFH. Command Hex. Description SET_GPI1 91H Wake on GPI1 Example Command Turn on AVL power right now while GPI1 is triggered 91H + 00H Disable this command 91H + FFH The valid time data bytes for this command are 00H and FFH. Command Hex. Description SET_GPI2 92H Wake on GPI2 Example Command Turn on AVL power right now while GPI2 is triggered 92H + 00H Disable this command 92H + FFH The valid time data bytes for this command are 00H and FFH. Command Hex. Description SET_GPI3 93H Wake on GPI3 Example Command Turn on AVL power right now while GPI3 is triggered 93H + 00H Disable this command 93H + FFH The valid time data bytes for this command are 00H and FFH. 28 Command Hex. Description SET_Clear 85H Clear all trigger events. Time data will be ignored Example Command Clear all trigger events 93H + 00H 29 Query Commands Power ON status query command is to send one query command and client will return one time date byte. Time Data Byte Bit Description 7 1: in hour 0: in minute 6-0 Time value in hour or minute. z “00H” indicates right now. z “FFH” is to disable time setting. Voltage Data Bytes The voltage is a 12-bit data. Bit Description Bit 7~0 of byte1 Bit 7~0 of voltage data. Bit 3~0 of byte2 Bit 11~0 of voltage data. Status Query Commands Command Hex. Description Return GET_OFF 01H Turn power off. Time data byte. GET_Ring 02H Wake on modem. Time data byte. GET_After 03H Power on after define time. Time data byte. GET_Every 04H Power on…

Text truncated - open the document above for the full version.

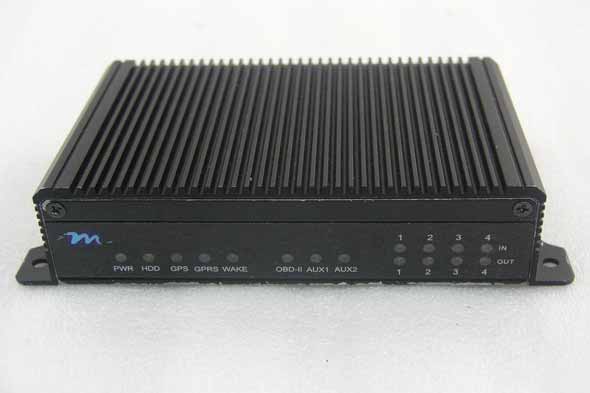

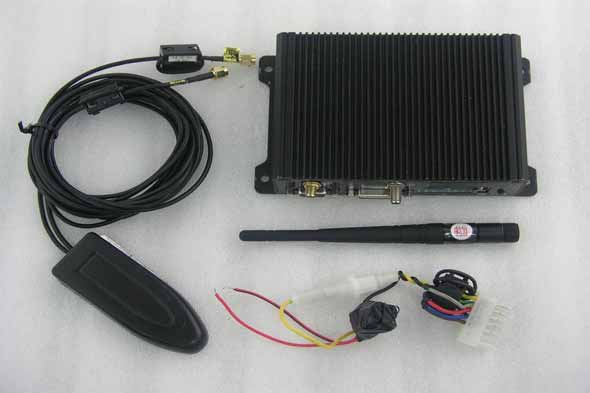

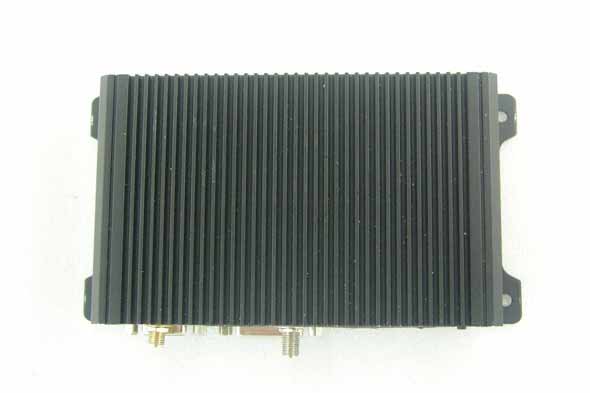

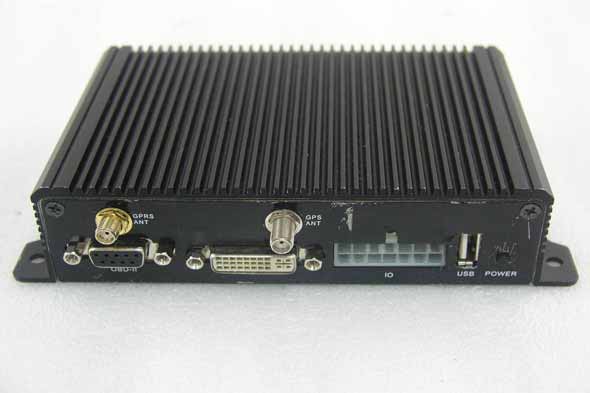

Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 PHOTOGRAPHS OF EUT Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All View of EUT Front View of EUT Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Right View of EUT Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Left View of EUT Top View of EUT Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Bottom View of EUT GSM Antenna

FCC ID LABEL FORMAT AND LOCATION Applicant: DMP ELECTRONICS INC. FCC ID: UDN-AVL

Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 PHOTOGRAPHS OF EUT Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT – 1 Open View of EUT – 2 Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT – 3 Internal of EUT – 1 Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 2 Internal of EUT – 3 Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT -4 Internal of EUT-5 Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT-6 Internal of EUT – 7 Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification…

Text truncated - open the document above for the full version.

Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 Page: 1 of 57 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 22 SUBPART H and PART 24 SUBPART E OF Product Name: Auto Vehicle Locator(AVL) Brand Name: DMP Model Name: AVL75 FCC ID: UDN-AVL Report No.: ER/2006/60008 Issue Date: Jun. 20, 2007 FCC Rule Part: 2 , 22H & 24E Prepared for DMP ELECTRONICS INC. 8F,No.12 WU-Quan 7 Rd.,WU-Gu Industrial Park Wu Gu Xiang,Taipei#248,Taiwan Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 Page: 2 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: LECTRONICS INC. 8F,No.12 WU-Quan 7 Rd.,WU-Gu Industrial Park Wu Gu Xiang,Taipei#248,Taiwan Product Name: Auto Vehicle Locator(AVL) FCC ID Number: UDN-AVL Brand Name: DMP Model No.: AVL75 Model Difference: N/A File Number: ER/2006/60008 Date of test: Jun. 10, 2006 ~ Jun. 15, 2007 Date of EUT Received: Jun. 09, 2006 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA-603-1-1998 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rule FCC PART 22 subpart H and FCC PART 24 subpart E. The test results of this report relate only to the tested sample identified in this report. Test By: Date Jun. 20, 2007 Jason Wu / Engineer Prepared By: Date Jun. 20, 2007 Gigi Yeh/ Clerk Approved By: Date Jun. 20, 2007 Vincent Su / Manager Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 Page: 3 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Jun. 20, 2007 Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 Page: 4 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION ..................................................................................................... 6 1.1 Product Description ......................................................................................................................... 6 1.2 Related Submittal(s) / Grant (s) ....................................................................................................... 7 1.3 Test Methodology ............................................................................................................................ 7 1.4 Test Facility......................................................................…

Text truncated - open the document above for the full version.

Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. , 列www.sgs.com 說 不更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRAPHS OF SET UP Report No.: ER/2006/60008 FCC ID: UDN-AVL Issue Date: Jun. 20, 2007 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Atten- tion is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any un…

Text truncated - open the document above for the full version.
