UDOBT1390Bluetooth AV Adapter

FUNCTIONAL SPECIFICATION 1. PRODUCT SUMMARY 1.1 PRODUCT INTRODUCTION This specification defines the unique product features and requirements of the model BT-1390 portable Bluetooth AV Adapter. BT-1390 enables you to play the music stored in your Bluetooth cell phone or computers with a Dongle on any Hi-Fi or car stereo via the transmission of Bluetooth technology. BT-1390 is equipped with CSR-BC03 Bluetooth Technology, which can be connected with any audio system. The circuit gives the best audio quality for mobile phones when listening to music from the stereo system. This product is easy to operate, convenient to use and occupies little space. It’s your best choice ever. 1.2 FEATURES SUMMARY 1) Play music on your stereo a.Listen to your music in your cell phone or computer on your home stereo, TV or any appliance with AV input through the transmission of Bluetooth AV Adapter. b.Cell phone and laptops can be the remote control of your home stereo. You can skip the current song, forward to the last song, stop playing the song or pause the song simply by controlling your cell phone or laptops. 2) Connectivity a.Integrated Bluetooth Technology for wireless conenction to the Bluetooth mobile phone. b.Use CSR chipset as the Bluetooth platform. 3)User Friendly Interface a.Easy to set up and simple to use. b.Works with any stereo system or TV. 1.3 PRODUCT AS RECEIVED The complete BT-1390 product shall consist of the following items: Bluetooth AV AdapterRCA cable 1.3.1 Basic unit The unit should have electronics necessary to implement the features specified in this document. 1.3.2 Other accessories (optional) 1)RCA cables 2)Power supply 3)Nokia traveler charger 1.3.3 Literature One(1) Instruction Booklet. 1.4 REQUIRED PRODUCT APPROVALS This product shall be tested for compliance with all applicable regulatory requirements listed below. Testing shall be performed, and reports generated, by a certified test facility. 1.4.1 Bluetooth (BQB) The product shall be designed to have the BQB (Bluetooth Qualification Body) approval. 1.4.2 FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.4.3. CE The unit shall be designed and manufactured so that it may be operated in accordance with UL 60950. 1.4.4 RoHS The unit shall be designed and manufactured so that it may be operated in Accordance with RoHS. Manufacturers need to understand the requirements of the RoHS Directive to ensure that their products, and their components, comply. USER INTERFACE AND OPERATION Nokia traveler charger NOTE: Charger not include. Power : User standard Nokia travel charger. The regular 9V~15V Adaptor are suitable Plug In standard RCA cable to Your TV or Home Stereo System. 2.1 PRODUCT OUTLOOK 2.2 HOW TO OPERATE Hook up the RCA cables to BT-1390, then connect it with power. Hook the other end of the RCA cables to your home stereo system or any appliances with AV input. Then, pair up BT-1390 with your Bluetooth device. Then, it’s up and ready to go. You are not required to operate BT-1390, once the power it’s on, it’s always in the pairing mode and will pair automatically.. 2.3 POWER Power On Plug in the power supply. Power Off Unplug the power supply. Connecting Bluetooth When the power is on, it’s always on. 2.4 PAIRING Pairing When the unit is On, it’s always in the pairing mode. Follow your mobile phone’s instruction guide to make the mobile phone connect to the unit . Typically, use the mobile phone to find or search model BT-1390. The mobile phone will prompt you to enter a PIN or a password. Enter: 1234. It’s recommended that you confirm to allow this device to connect automatically to your cell phone so that the next time you use BT-1390 it will be paired up by itself without you going through the pairing steps again. 2.5 ADJUST THE VOLUME Adjust the volume from your home stereo system or the appliances that have been connected to this Bluetooth AV Adapter. ELECTRICAL SPECIFICATIONS 3.1 CURRENT CONSUMPTION AND GENERAL INFORMATION OF THE CONTROL BOX Power input:7.5-15 V dc/200mA Standby current: less than 10 mA Bluetooth: Chipset: CSR-BC03 Profile: A2DP, AVRCP Capacity: 1 mobile phone Support power bass. Support 2 RCA jacks for R/L output Support 1 DC jack as Nokia The speaker output: 1 Vp-p at 1k load Case material: ABS Weight: T.B.D Size: 10x4.2x2.5 cm 3.2 RF PARAMETER Bluetooth Standard: 1.2 specification Transmit Power: 0 dBm (Class 2) Range: around 10m. BT-1390 is compatible with more than 90 percent of the Bluetooth mobiles. FUNCTIONAL SPECIFICATION 1. PRODUCT SUMMARY-----------------------------------------1 1.1 PRODUCT INTRODUCTION---------------------------------1 1.2 FEATURES SUMMARY----------------------------------------1 1.3 PRODUCT AS RECEIVED------------------------------------2 1.3.1 Basic unit ----------------------------------------------------------3 1.3.2 Other accessories (optional)----------------------------------3 1.3.3 Literature-----------------------------------------------------------3 1.4 REQUIRED PRODUCT APPROVALS---------------------3 1.4.1 Bluetooth (BQB)--------------------------------------------------3 1.4.2 FCC Part 15-------------------------------------------------------3 1.4.3. CE-------------------------------------------------------------------4 1.4.4 RoHS---------------------------------------------------------------4 2.1 PRODUCT OUTLOOK-----------------------------------------4 2.2 HOW TO OPERATE--------------------------------------------5 2.3 POWER------------------------------------------------------------5 2.4 PAIRING-----------------------------------------------------------5 2.5 ADJUST THE VOLUME---------------------------------------6 3.1 CURRENT CONSUMPTION AND GENERAL INFORMATION OF THE CONTROL BOX----------------6 3.2 RF PARAMETER----------------…

Text truncated - open the document above for the full version.

BT-1390 SYSTEM DIAGRAM The frequency of the clocks and oscillators: 16 MHz Power Circuit Sound Amplifier DC Jack RCA Jack ANT Bluetooth Module

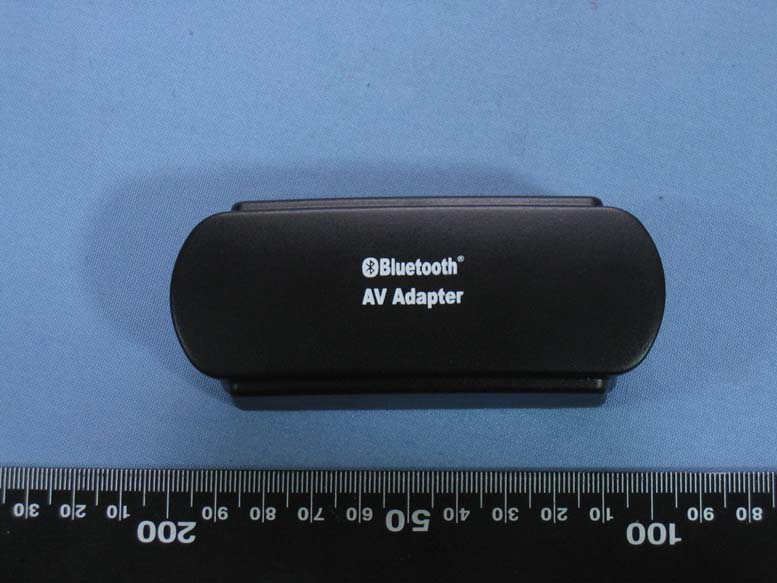

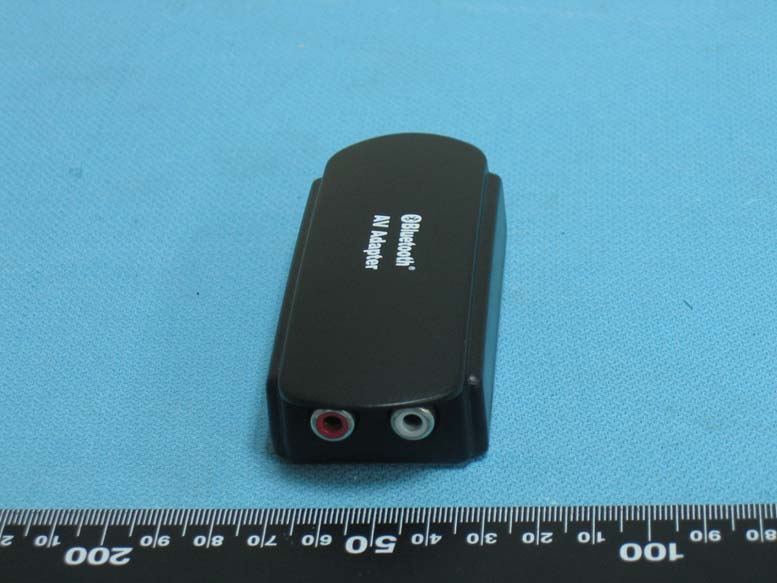

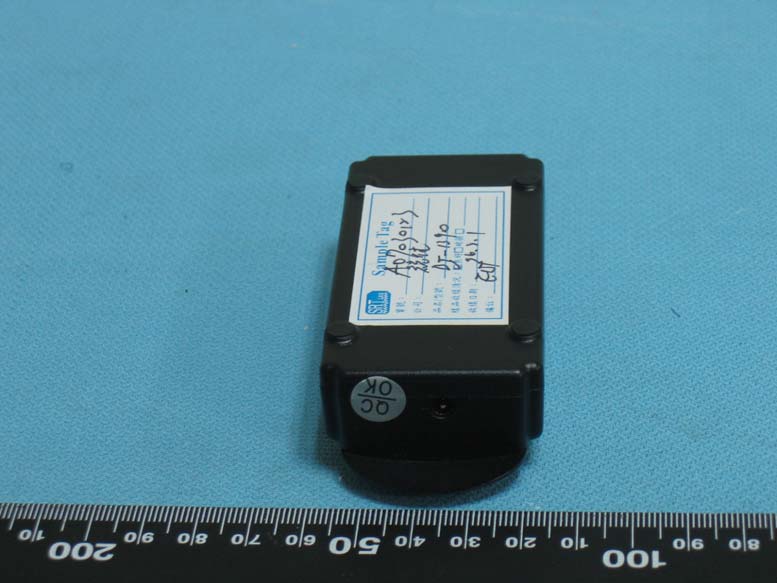

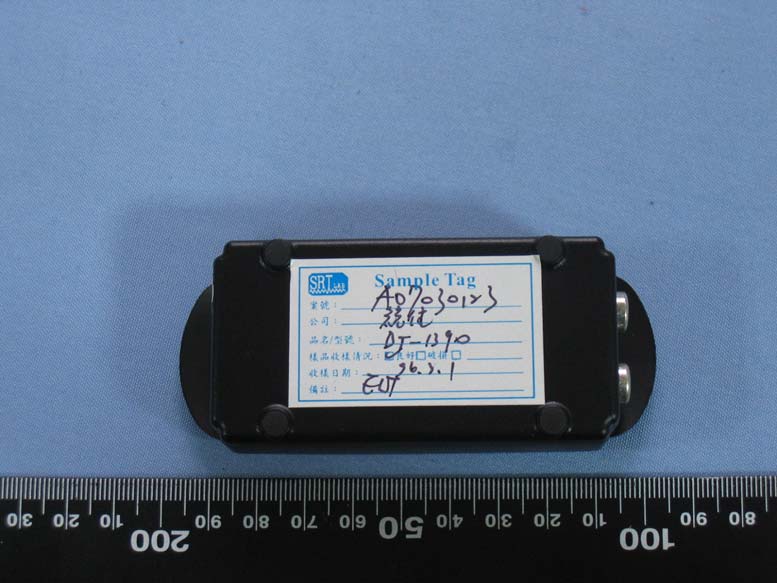

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 4 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 4 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 4 PHOTOS OF EUT

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. FCC ID :UDOBT1390

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 4 PHOTOS OF EUT- PCB

FCC ID: UDOBT1390 Operational Description of the equipment Hook up the RCA cables to BT-1390, then connect it with power. Hook the other end of the RCA cables to your home stereo system or any appliances with AV input. Then pair up BT-1390 with your Bluetooth device. Then, it’s up and ready to go. You are not required to operate BT-1390, once the power it’s on, it’s always in the pairing mode and will pair automatically. PRODUCT Bluetooth AV Adapter MODEL NO. BT-1390 POWER SUPPLY DC 7.5~15V, 200mA FREQUENCY BAND 2.4GHz ISM, 2400~2483.5MHz NUMBER OF CHANNEL 79 CHANNEL SPACING 1 MHz RATED RF OUTPUT POWER 4 dBm (2.5mW) MODE OF OPERATION duplex MODULATION TYPE GFSK BIT RATE OF TRANSMISSION 1M bits/second ANTENNA TYPE PCB PATTERN ANTENNA GAIN 0dBi OPERATING TEMPERATURE -40~105°C CHANNEL BANDWIDTH 1MHz

RF產品之技術規格表 1. 產品名稱： BlueTooth stereo adapter 型號： BT-1390 2. 電源輸入額定值： ; DC 7.5~15 V, 200 mA; □ AC V, A 3. Frequency Band： 2.4GHz ISM, 2400~2483.5MHz Carrier Frequency： MHz 4. Number of Channel： 79 5. Channel Spacing： 1MHz 6. RF Output Power (ERP or EIRP) ： 4 dBm = 2.5m W 7. I.F.： MHz; L.O.： MHz 8. Modulation Type： GFSK 9. Duty Cycle： % 10. Mode of operation (duplex, simplex, half duplex) ： duplex 11. Bit Rate of Transmission： 1M bits/second 12. Antenna Type： PCB PATTERN 13. Antenna gain： 0 dBi 14. Operating Temperature Range： -40~105 °C 15. Channel bandwidth ： 1 MHZ 16. 預定銷售國家： 歐洲國家

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2006/12/27 Sheet of File: C:\Program Files\..\BTAV01.SchDoc Drawn By: 1.8V3.3V 3.3V E1 3.3V 123 45 VIN CE/MODE VSS NC VOUT U2SOT-25 123 465 U3SOT23-6 5V 1.8V3.3V SPKL+SPKL-SPKR-SPKR+ L-OUTR-OUT 5V SPKL-SPKL+SPKR-SPKR+ SPI_MOSISPI_MISOSPI_CLKSPI_CSB 123456789 10111213141516171819 20212223242526272829303132333435363738 39 40 41 42 43 44 45 SPK_LEFT_NSPK_LEFT_PSPK_RIGHT_NSPK_RIGHT_PGNDMIC_LEFT_PMIC_LEFT_NMIC_RIGHT_PMIC_RIGHT_NAIOOUART_RTSUART_CTSUART_TXUART_RXGND1.8V3.3/1.8VPIO6PIO7 GNDPIO5PIO4 SPI_MOSISPI_MISO SPI_CLKSPI_CSB RESET PIO11 PIO3PIO9 PIO10 VDD_PA PIO1 PIO0PIO8 RF_IN GND RF/OUT USB_DP USB_DN PCM_CLK PCM_OUT PCM_SYNC PCM_IN PIO2 CG-MUC-04 U1 0603 C1 0603 C2 0603 C4 0603 C3 0603 R1 0603 R2 0603 R7 0603 R8 0603 R6 0603 C5 0603 R5 0805 D1 0603 R3 0603 R4 0603 R9 0603 R10 0603 R17 0603 R18 0603 R13 0603 R14 0603 R15 0603 R16 0603 R12 0603 R20 0603 R11 0603 R19 0603 C10 0603 C14 0603 C11 0603 C16 + - 32 1 U4A + - 56 7 84 U4B 5V 1206 D2 + C6 P2.5W6 + C7 P2.5W6 0805 C9 0805 C8 1 1 2 2 JA1 DC-JACK1 1 1 2 2 JA2 RCA-JACK1 1 1 2 2 JA3 RCA-JACK1 + C12 1206 + C15 1206 + C13 1206 1 1 2 2 3 3 4 4 5 5 6 6 TP1 Up data port SPI_MOSISPI_MISOSPI_CLKSPI_CSB 5V BTAV01

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A07030123 Report No.:FCCA07030123 Page:2 of 50 Date: May. 01, 2007 TABLE OF CONTENTS 1. DOCUMENT POLICY AND TEST STATEMENT.................................................... 4 1.1 DOCUMENT POLICY ......................................................................................... 4 1.2 TEST STATEMENT ............................................................................................ 4 1.3 EUT MODIFICATION........................................................................................... 4 2. DESCRIPTION OF EUT AND TEST MODE ....................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 5 2.2 DESCRIPTION OF SUPPORT UNIT.................................................................. 5 2.3 DESCRIPTION OF TEST MODE ....................................................................... 6 3. DESCRIPTION OF APPLIED STANDARDS....................................................... 6 4. TECHNICAL CHARACTERISTICS TEST .......................................................... 7 4.1 CONDUCTED EMISSION .................................................................................. 7 4.1.1 LIMIT .................................................................................................................. 7 4.1.2 TEST EQUIPMENT ......................................................................................... 7 4.1.3 TEST SETUP..................................................................................................... 8 4.1.4 TEST PROCEDURE .......................................................................................... 8 4.1.5 EUT OPERATING CONDITION....................................................................... 8 4.1.6 TEST RESULT................................................................................................. 9 4.2 RADIATED EMISSION TEST .......................................................................... 10 4.2.1 LIMIT ............................................................................................................. 10 4.2.2TEST EQUIPMENT ........................................................................................... 11 4.2.3 TEST SET-UP................................................................................................ 12 4.2.4 TEST PROCEDURE...................................................................................... 13 4.2.5 EUT OPERATING CONDITION..................................................................... 13 4.2.6 RADIATED EMISSION TEST RESULT ............................................................ 14 4.3 CHANNEL SEPARATION TEST.......................................................................... 18 4.3.1 LIMIT ................................................................................................................ 18 4.3.2 TEST EQUIPMENT ....................................................................................... 18 4.3.3 TEST SET-UP................................................................................................ 18 4.3.4 TEST PROCEDURE...................................................................................... 18 4.3.5 EUT OPERATING CONDITION..................................................................... 18 4.3.6 TEST RESULT............................................................................................... 19 4.4 QUANTITY OF HOPPING CHANNEL TEST.................................................... 23 4.4.1 LIMIT ................................................................................................................ 23 4.4.2 TEST EQUIPMENT ....................................................................................... 23 4.4.3 TEST SET-UP................................................................................................ 23 4.4.4 TEST PROCEDURE...................................................................................... 23 4.4.5 EUT OPERATING CONDITION..................................................................... 23 4.4.6 TEST RESULT............................................................................................... 24 4.5.1 LIMIT ................................................................................................................ 25 4.5.2 TEST EQUIPMENT ....................................................................................... 25 4.5.3 TEST SET-UP................................................................................................ 25 4.5.4 TEST PROCEDURE...................................................................................... 25 4.5.5 EUT OPERATING CONDITION..................................................................... 25 4.5.6 TEST RESULT............................................................................................... 26 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A07030123 Report No.:FCCA07030123 Page:3 of 50 Date: May. 01, 2007 4.6 MAXIMUM PEAK POWER TEST .....................................................................30 4.6.1 LIMIT ................................................................................................................ 30 4.6.2 TEST EQUIPMENT ....................................................................................... 30 4.6.3 TEST SET-UP................................................................................................ 31 4.6.4 TEST PROCEDURE...................................................................................... 31 4.6.5 EUT OPERATING CONDITION..................................................................... 31 4.6.6 TEST RESULT......................................................…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A07030123 Report No.:FCCA07030123 Page:47 of 50 Date: May. 01, 2007 6. PHOTOS OF TESTING - Radiated test (1G) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A07030123 Report No.:FCCA07030123 Page:48 of 50 Date: May. 01, 2007 - Radiated test (2G) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A07030123 Report No.:FCCA07030123 Page:49 of 50 Date: May. 01, 2007 - Conducted Emission test
