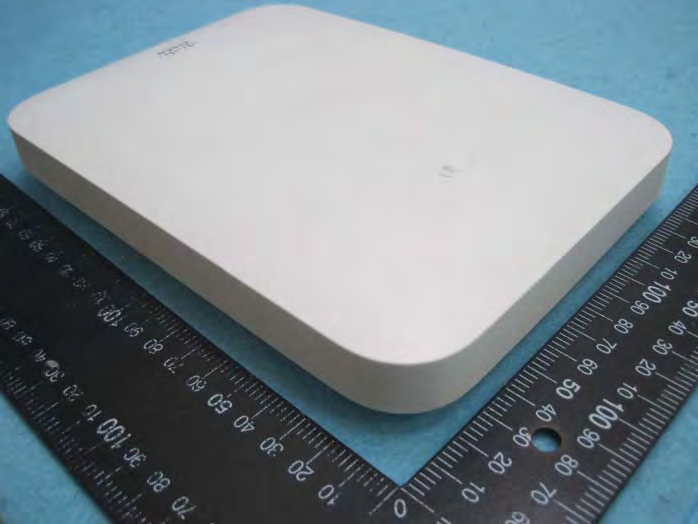

UDX-60027010802.11 a/b/g/n Wireless Access Point with SDR

Meraki MR26 Hardware Installation Guide Trademarks Meraki, Meraki MR26, Meraki Cloud Controller, and Meraki Mesh are trademarks of Cisco Systems, Inc. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, Cisco Systems reserves the right to make changes to the products described in this document without notice. Cisco Systems does not assume any liability that may occur due to the use or application of the product(s) or circult layout(s) described herein. Warranty Meraki, Inc. provides a lifetime warranty on this product. Warranty details may be found at www.meraki.com/legal. 3 Table of Contents 1 Scope of Document and Related Publications 4 2 MR26 Overview 5 2.1 Package Contents 5 2.2 Understanding the MR26 5 2.3 Security Features 7 2.4 Ethernet Ports 7 2.5 Power Source Options 7 2.6 Power Input/Rating 7 2.7 Operating Temperature 7 2.8 Factory Reset Button 7 2.9 UL 2043 Plenum rating 8 3 Pre-Install Preparation 8 3.1 Configure Your Network in Dashboard 8 3.2 Check and Upgrade Firmware 8 3.3 Check and Configure Firewall Settings 8 3.4 Assigning IP Addresses to MR26s 9 3.4.1 Dynamic Assignment 9 3.4.2 Static Assignment 9 3.4.3 Static IP Assignment via DHCP Reservations 9 3.5 Collect Tools 10 3.6 Collect Additional Hardware for Installation 10 4 Installation Instructions 11 4.1 Choose Your Mounting Location 11 4.2 Install the MR26 11 4.2.1 Attach the Mount Plate 11 4.2.1.1 Wall or Solid Ceiling Mount Using Mount Plate 13 4.2.1.2 Drop Ceiling Mount Using Mount Plate 14 4.2.1.3 Electrical Junction Box Mount Using Mount Plate 18 4.2.2 Power the MR26 20 4.2.2.1 Powering the MR26 with Meraki AC Adapter 21 4.2.2.2 Powering the MR26 with Meraki 802.3af Power over Ethernet Injector 21 4.2.2.3 Powering the MR26 with an 802.3af Power over Ethernet Switch 22 4.2.3 Mount the MR26 22 4.2.3.1 Assemble Security Hasp to the MR26 22 4.2.3.2 Assemble MR26 to the Mount Plate 23 4.2.3.3 Desk or Shelf Mount 25 4.3 Secure the MR26 26 4.3.1 Security Screw 26 4.3.2 Kensington Lock 26 4.4 Verify Device Functionality and Test Network Coverage 27 5 Troubleshooting 27 6 Regulatory 27 4 1 Scope of Document and Related Publications The MR26 Hardware Installation Guide describes the installation procedure for the MR26 access point. Additional reference documents are available online at www.meraki.com/library/product. 5 MR26 access point Drop ceiling mounting kit 2 MR26 Overview The Meraki MR26 is an enterprise-class, dual-concurrent 3x3 MIMO 802.11n access point designed for high- density deployments in offices, schools, hospitals and hotels. When connected to the Meraki Cloud Controller, the MR26 enables the creation of ultra-high speed, reliable indoor wireless networks quickly, easily and cost- effectively. 2.1 Package Contents The MR26 package contains the following: 2.2 Understanding the MR26 Your Meraki MR26 has the following features: Kensington lock hard point Security screws Wall screws Mounting Template Mounting plate 6 Your MR26 mount plate has the following features: MR26 cable access bay Mount plate attachment slots (2x) Access point mounting posts (2x) Desk mount feet (4x) Cable access bay AC Adapter plug Ethernet 0 port (10/100/1000) Factory Reset Button Various mounting holes 7 2.3 Security Features The MR26 features multiple options for physically securing the access point after installation: 1. Security screw – The accessory kit includes screws that can be used to secure the access point to the mount plate. Engaging the security screw prevents accidental dislodging and theft. 2. Kensington lock – The access point contains a hard point that allows it to be secured to any nearby permanent structure using a standard Kensington lock. 2.4 Ethernet Ports The MR26 features a Gigabit Ethernet RJ45 port that accepts 802.3af power (labeled “Eth0, PoE”). This port should be used for uplink to your WAN connection. 2.5 Power Source Options The MR26 access point can be powered using either the Meraki AC Adapter or 802.3af PoE Injector (both sold separately) or a third-party 802.3af PoE switch. 2.6 Power Input/Rating 12Vdc, 1.5A / 48Vdc, 0.375A 2.7 Operating Temperature 0-40 Degrees C 2.8 Factory Reset Button If the button is pressed and held for at least five seconds and then released, the MR26 will reboot and be restored to its original factory settings by deleting all configuration information stored on the unit. 8 2.9 UL 2043 Plenum rating The MR26 meets the UL 2043 plenum-rating standard. This certifies that the MR26 has adequate fire resistance and low smoke-emission characteristics to be mounted and operated in a building’s environmental air spaces, such as above suspended ceilings in an office environment. 3 Pre-Install Preparation You should complete the following steps before going on-site to perform an installation. 3.1 Configure Your Network in Dashboard The following is a brief overview only of the steps required to add an MR26 to your network. For detailed instructions about creating, configuring and managing Meraki wireless networks, refer to the Meraki Cloud Controller Manual (meraki.com/library/product). 1. Login to http://dashboard.meraki.com. If this is your first time, create a new account. 2. Find the network to which you plan to add your APs or create a new network. 3. Add your APs to your network. You will need your Meraki order number (found on your invoice if you ordered directly from Meraki) or the serial number of each AP, which looks like Qxxx-xxxx-xxxx, and is found on the bottom of the unit. You will also need your Enterprise Cloud Controller license key, which you should have received via email from [email protected]. 4. Go to the map / floor plan view and place each AP on the map by clicking and dragging it to the location where you plan to mount it. 3.2 Check and Upgrade Firmware To ensure your MR26 performs optimally immediately…
