UDX-60047015802.11a/b/g/n/ac Wireless Router

Meraki MX65W-HW Installation Guide This document describes how to install and set up the MX65W-HW security appliance. Additional reference documents are available online at: www.meraki.com/library/products. MX65W-HW Overview The Meraki MX65W-HW (model: MX65W-HW) is an enterprise security appliance designed for distributed deployments that require remote administration. It is ideal for network administrators who demand both ease of deployment and a state-of-the-art feature set. This appliance provides the following new features: • 2.4-Ghz (2 spatial streams) and 5-GHz (2 spatial streams) radios for 802.11abgn/ac support. • USB port, to support approved 3G/4G cards for failover to cellular networks. • Support for 10 LAN connections (2 of 10 offer 802.3at support) • Wall screws and anchors for mounting drywall surface, either vertically or horizontally MX65W-HW Operational Temperature: 32 o F to 104 o F (0 o C to 40 o C) Package Contents In addition to the MX65W-HW, the following are provided. The MX65W-HW front panel Ports and Status Indicators The MX65W-HW uses a single LED to inform the user of the device's status. Function LED Status Meaning Power Up/Boot Solid Orange Power is applied Connecting Rainbow Device in process of connecting to the Meraki Dashboard Connected Solid White Fully operational Upgrading Flashing White During boot or no WAN link The MX65W-HW back panel Additional functions on the back panel are described below, from left to right. LAN ports Ten (Ports 3 through 12) provide connectivity to computers, printers, access points, or Ethernet switches. Two of these ten (Ports 11 and 12) also provide PoE+ (802.3at) support. Two LEDs -- one for activity, another for connectivity. A steady green LED indicates bidirectional connectivity while a flashing green LED indicates traffic. Internet ports Two ports provide connectivity to the WAN. Power input Designed for use only with the unit’s power supply. Antenna ports Two RP-SMA ports for dipole antennas (two antennas included) The MX65W-HW side panel Restore button Insert a paper clip if a reset is required. • A brief, momentary press: To delete a downloaded configuration and reboot. • Press and hold for more than 10 sec: To force the unit into a full factory reset. Kensington Security Slot The slot is a portion of the Kensington lock system and is compatible with any Kensington cable. USB port USB 2.0 for 3G/4G wireless cards. The MX65W-HW bottom panel Please note that the serial number is located on the product label, which is located on the bottom of the MX65W-HW. The blank region in the center of the label will be populated with regulatory marks on commercial units. Mounting hardware The supplied wall screws and anchors allow you to mount the appliance on a drywall surface, either vertically or horizontally. The distance between the holes you drill should be 165 mm. • For mounting on drywall, use a ¼-in drill bit, then insert the plastic and screw assemblies. • For mounting on wood or a similar surface, use only the screws. • Allow the heads of the screws to stick out far enough to be inserted securely into the back of the appliance. Connecting to the WAN All Meraki MX devices must have an IP address. This section describes how to configure your local area network before you deploy it. A local management web service, running on the appliance, is accessed through a browser running on a client PC. This web service is used for configuring and monitoring basic ISP/WAN connectivity. Setting up a static IP address To ensure that the client PC is redirected to the local web service in the following step, you must disable all other network services (e.g., Wi-Fi) on your client machine. Do the following to configure basic connectivity and other networking parameters: 1. Using a client machine such as a laptop, connect to one of the ten LAN ports of the MX. 2. Using a browser on the client machine, access the appliance's built-in web service by browsing to http://setup.meraki.com. (You do not have to be connected to the Internet to reach this address) 3. Click Uplink configuration under the Local status tab. 4. Choose Static for the IP Assignment option. 5. Enter the IP address, subnet mask, default gateway IP and DNS server information. Setting up a DHCP IP address By default all MX devices are configured to DHCP from upstream WAN / ISP servers. Simply plug one of the MX's WAN / Internet ports into your upstream circuit and wait a few minutes for the unit to negotiate a DHCP address. Icon When the WAN connection is fully enabled, the Internet 1 or 2 LED 1 will turn green. Additional settings Please note that all these settings below are accessible only via the local management console. Setting VLANs If your WAN uplink is on a trunk port, choose VLAN tagging > Use VLAN tagging and enter the appropriate value for VLAN ID for your network. Setting PPPoE PPPoE authentication may be required if you are connecting the MX to a DSL circuit. You need to know your authentication option and credentials (supplied by your ISP) in order to complete these steps. • Choose Connection Type > PPPoE. • Select your Authentication option. • If you select Use authentication, enter appropriate values for Username and Password. Web proxy settings These settings take effect if the MX device has to fall back to using HTTP to contact the Cloud Controller. By default, web proxy is disabled. To enable web proxy, do the following: • Choose Web proxy > Yes. • Enter values as appropriate for Hostname or IP and Port. • If you require authentication, choose Authentication > Use authentication, and enter appropriate values for Username and Password. To apply all configuration settings to the appliance, be sure to click Save Settings at the bottom of the page. Configuring physical link settings To configure physical link settings on the Ethernet ports, click Local status > Ethernet configuration. You can enable half duplex, full duplex, and auto-negotiation, as well as s…

Text truncated - open the document above for the full version.

Cisco Systems, Inc. 170 West Tasman Drive, San Jose, CA 95134 USA Date: 13 January 2015 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Authorization Letter To whom it may concern: I, the undersigned, hereby authorize UL Verification Services, Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services, Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services, Inc. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding Cisco Systems, Inc. 170 West Tasman Drive, San Jose, CA 95134 USA our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, Alexander C. Gioe Compliance Manager, CNG Cisco Systems, Inc. Tel: +1 415-432-1000 Fax: +1 415 632-5899 [email protected]

Cisco Systems, Inc. 170 West Tasman Drive, San Jose, CA 95134 USA Date: 8 January 2016 Letter of Attestation Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Letter of Attestation FCC ID: UDX-60047015 To Whom It May Concern: We, Cisco Systems, Inc. declare the Meraki MX65W (MX65W-HW) wireless router complies with the following FCC regulations: 1) Part 15.15 2) Part 15.27 3) Part 15.203 and Part 15.204 for the antennas Best Regards, Alexander C. Gioe Compliance Manager Cisco Systems, Inc. Tel: +1 415-432-1000 Fax: +1 415 632-5899 [email protected]

Cisco Systems, Inc. 170 West Tasman Drive, San Jose, CA 95134 USA Date: 8 January 2016 Letter of Attestation Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Letter of Attestation FCC ID: UDX-60047015 To Whom It May Concern: We, Cisco Systems, Inc. declare the Meraki MX65W (MX65W-HW) wireless router is compatible with certain Cisco approved 3G/4G wireless dongles. User information for specific dongles will address co-located RF exposure requirements according to FCC Guidance. Best Regards, Alexander C. Gioe Compliance Manager, CNG Cisco Systems, Inc. Tel: +1 415-432-1000 Fax: +1 415 632-5899 [email protected]

Cisco Systems, Inc. 170 West Tasman Drive, San Jose, CA 95134 USA Date: 8 January 2016 Request for Confidentiality Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: UDX-60047015 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation SDR Files SW Security Statement Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are Cisco Systems, Inc. 170 West Tasman Drive, San Jose, CA 95134 USA requesting the commission to grant short-term confidentiality request on the following attachments for 45 days. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Alexander C. Gioe Compliance Manager, CNG Cisco Systems, Inc. Tel: +1 415-432-1000 Fax: +1 415 632-5899 [email protected]

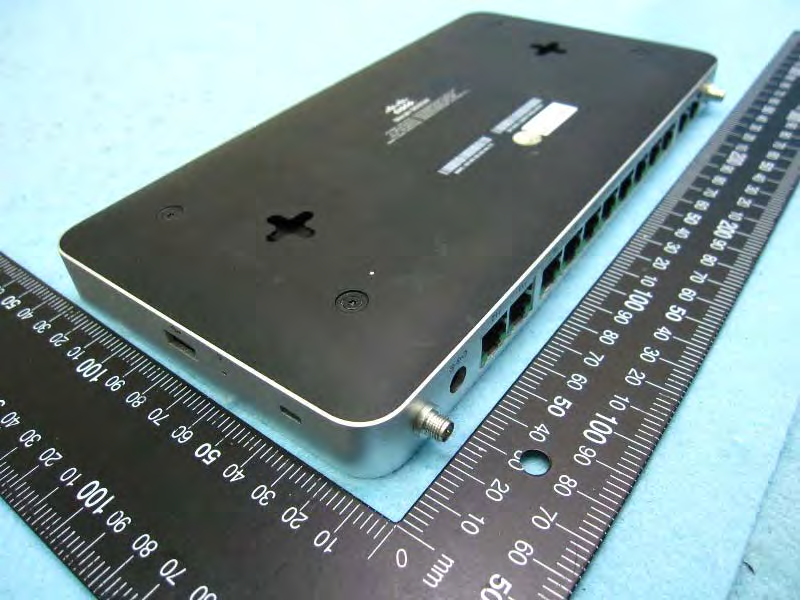

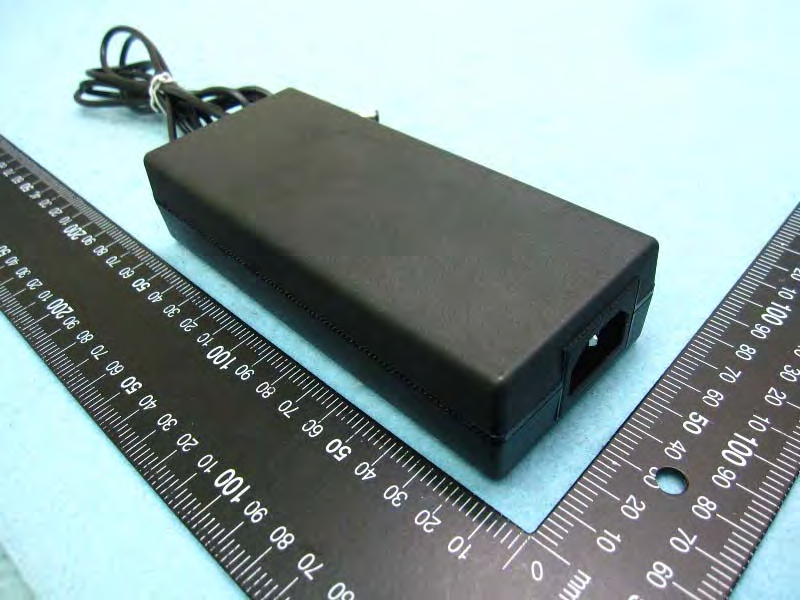

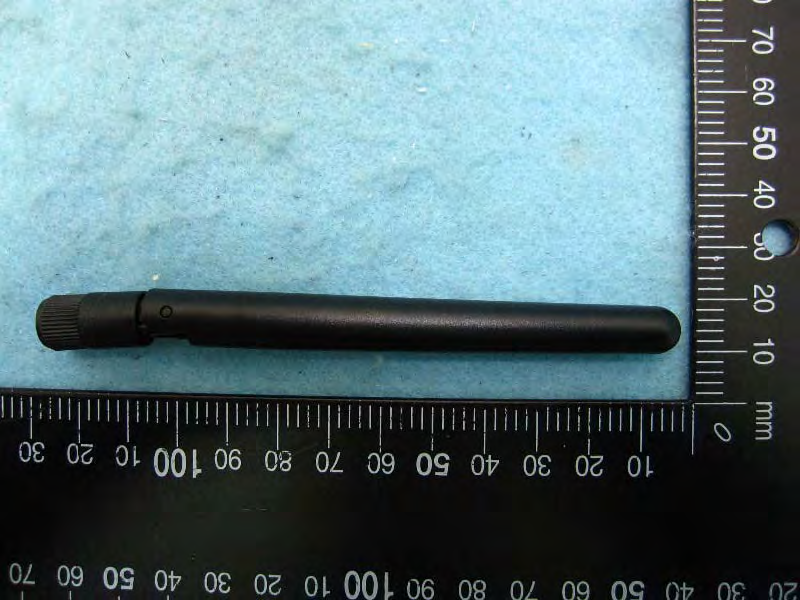

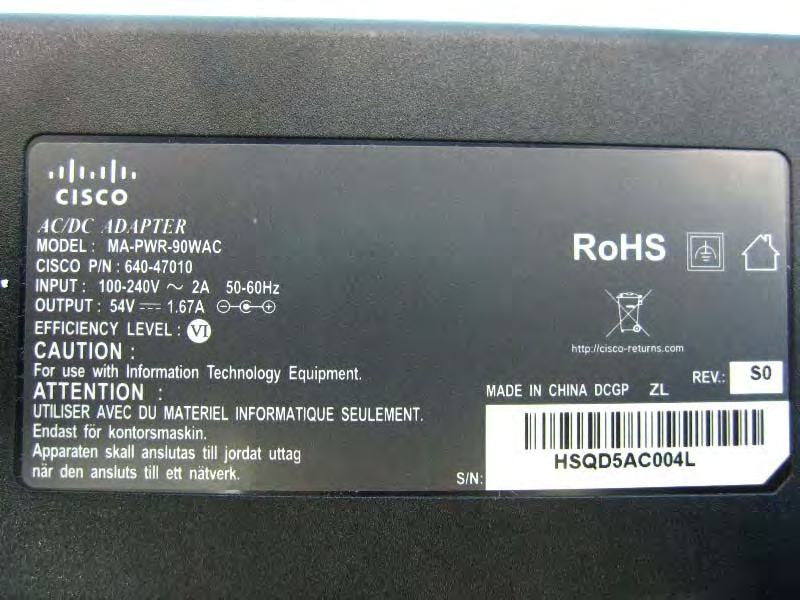

Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 1 of 6 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Photographs of EUT Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 2 of 6 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 3 of 6 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 4 of 6 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Adapter Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 5 of 6 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Antenna Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 6 of 6 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973

FCC Label and location Model Number: MX65W-HW FCC ID: UDX-60047015

Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 1 of 12 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Photographs of EUT Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 2 of 12 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 3 of 12 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 4 of 12 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 5 of 12 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 6 of 12 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 7 of 12 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 8 of 12 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 9 of 12 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 10 of 12 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 11 of 12 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973 Report No.: 5O1504 SPORTON International Inc. PAGE NUMBER : 12 of 12 TEL : 886-3-327-3456 ISSUED DATE : Jan. 08, 2016 FAX : 886-3-327-0973

Report No.: FA5O1504AA Report Format Version: 01 Page No. : i of ii FCC ID : UDX-60047015 Issued Date : Jan. 08, 2016 Table of Contents 1. GENERAL DESCRIPTION.................................................................................................................................... 1 1.1. EUT General Information .....................................................................................................................................................................1 1.2. Testing Location..................................................................................................................................................................................1 2. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................................... 2 2.1. Limit of Maximum Permissible Exposure ..............................................................................................................................................2 2.2. MPE Calculation Method ....................................................................................................................................................................2 2.3. Calculated Result and Limit................................................................................................................................................................3 Report No.: FA5O1504AA Report Format Version: 01 Page No. : ii of ii FCC ID : UDX-60047015 Issued Date : Jan. 08, 2016 History of This Test Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FA5O1504AA Rev. 01 Initial issue of report Jan. 08, 2016 Report No.: FA5O1504AA Report Format Version: 01 Page No. : 1 of 3 FCC ID : UDX-60047015 Issued Date : Jan. 08, 2016 1. GENERAL DESCRIPTION 1.1. EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 5GHz WLAN 5150-5250 5725-5850 5180-5240 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 1.2. Testing Location Testing Location HWA YA ADD : No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL : 886-3-327-3456 FAX : 886-3-327-0973 JHUBEI ADD : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. TEL : 886-3-656-9065 FAX : 886-3-656-9085 Report No.: FA5O1504AA Report Format Version: 01 Page No. : 2 of 3 FCC ID : UDX-60047015 Issued Date : Jan. 08, 2016 2. MAXIMUM PERMISSIBLE EXPOSURE 2.1. Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 2.2. MPE Calculation Method The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   Report No.: FA5O1504AA Report Format Version: 01 Page No. : 3 of 3 FCC ID : UDX-60047015 Issued Date : Jan. 08, 2016 2.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz Band: Antenna Type : Dipole Ant. Conducted Power for IEEE 802.11a: 21.93 dBm Average Output Power Distance (cm) Test Freq. (MHz) Composite Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 20 5240 3.30 2.1380 21.9259 155.8098 0.066305 1 Complies For 2.4GHz Band: Antenna Type : Dipole Ant. Conducted Power for IEEE 802.11b: 29.79 dBm Average Output Power Distance (cm) Test Freq. (MHz) Composite Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 20 2437 2.00 1.5849 29.7917 953.1676 0.300690 1 Complies Conclusion: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.300690 / 1 + 0.066305 / 1 = 0.366995, which is less than “1”. This confirmed that the device complies.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company Cisco Systems, Inc. Applicant Address 170 West Tasman Drive, San Jose, CA 95134 USA FCC ID UDX-60047015 Manufacturer’s company Cisco Systems, Inc. Manufacturer Address 170 West Tasman Drive, San Jose, CA 95134 USA Product Name 802.11a/b/g/n/ac Wireless Router Brand Name CISCO Model No. MX65W-HW Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250 MHz / 5725 ~ 5850 MHz Test Freq. Range Oct. 21, 2015 Final Test Date Dec. 23, 2015 Submission Type Original Equipment Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart E, KDB789033 D02 v01r01, KDB662911 D01 v02r01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR5O1504AB Report Format Version: Rev. 01 Page No. : i of ii FCC ID: UDX-60047015 Issued Date : Jan. 08, 2016 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations................................................................................................................................................................11 3.7. Table for Supporting Units .................................................................................................................................................................11 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................12 3.9. EUT Operation during Test .................................................................................................................................................................12 3.10. Duty Cycle ........................................................................................................................................................................................13 3.11. Test Configurations ...........................................................................................................................................................................14 4. TEST RESULT ................................................................................................................................................... 17 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................17 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................21 4.3. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................51 4.4. Maximum Conducted Output Power Measurement .........................................................................................................................60 4.5. Power Spectral Density Measurement ..............................................................................................................................................64 4.6. Radiated Emissions Measurement ....................................................................................................................................................79 4.7. Band Edge Emissions Measurement ...............................................................................................................................................158 4.8. Frequency Stability Measurement ..................................................................................................................................................196 4.9. Antenna Requirements ...................................................................................................................................................................203 5. LIST OF MEASURING EQUIPMENTS .........................…

Text truncated - open the document above for the full version.

Report No.: FR5O1504 FCC ID: UDX-60047015 Page No. : B1 of B3 Appendix B. Radiated Emission Co-location Report Report No.: FR5O1504 FCC ID: UDX-60047015 Page No. : B2 of B3 1. Results of Radiated Emissions for Co-located Temperature 25°C Humidity 59% Test Engineer Peter Wu Configurations 2.4GHz + 5GHz Horizontal Report No.: FR5O1504 FCC ID: UDX-60047015 Page No. : B3 of B3 Vertical

Report No.: FR5O1504 FCC ID: UDX-60047015 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR5O1504 FCC ID: UDX-60047015 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR5O1504 FCC ID: UDX-60047015 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR5O1504 FCC ID: UDX-60047015 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR5O1504 FCC ID: UDX-60047015 Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
