UDX-600790114x4 Wi-Fi 6 Access Point

Meraki MR46-HW Hardware Installation Guide Trademarks Meraki, Meraki MR46-HW, Meraki Cloud Controller, and Meraki Mesh are trademarks of Cisco Systems, Inc. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, Cisco Systems reserves the right to make changes to the products described in this document without notice. Cisco Systems does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Warranty Meraki, Inc. provides a lifetime warranty on this product. Warranty details may be found at www.meraki.com/legal. 3 Table of Contents 1 Scope of Document and Related Publications 4 2 MR46-HW Overview 5 2.1 Package Contents 5 2.2 Understanding the MR46-HW 5 2.3 Security Features 7 2.4 Ethernet Ports 7 2.5 Power Source Options 7 2.6 Factory Reset Button 7 2.7 LED Indicators and Run Dark Mode 7 3 Pre-Install Preparation 8 3.1 Configure Your Network in Dashboard 8 3.2 Check and Upgrade Firmware 8 3.3 Check and Configure Firewall Settings 8 3.4 Assigning IP Addresses to MR46-HW 9 3.4.1 Dynamic Assignment 9 3.4.2 Static Assignment 9 3.4.3 Static IP Assignment via DHCP Reservations 9 3.5 Collect Tools 10 3.6 Collect Additional Hardware for Installation 10 4 Installation Instructions 11 4.1 Choose Your Mounting Location 11 4.2 Install the MR46-HW 11 4.2.1 Attach the Mount Plate 11 4.2.1.1 Wall or Solid Ceiling Mount Using Mount Plate 13 4.2.1.2 Drop Ceiling Mount Using Mount Plate 14 4.2.1.3Electrical Junction Box Mount Using Mount Plate 18 4.2.2 Power the MR46-HW 20 4.2.2.1 Powering the MR46-HW with Meraki AC Adapter 21 4.2.2.2 Powering the MR46-HW with Meraki 802.3at Power over Ethernet Injector 21 4.2.2.3 Powering the MR46-HW with an 802.3af Power over Ethernet Switch 22 4.2.3 Mount the MR46-HW 22 4.2.3.1 Assemble Security Hasp to the MR46-HW 22 4.2.3.2 Assemble MR46-HW to the Mount Plate 23 4.2.3.3 Desk or Shelf Mount 25 4.3 Secure the MR46-HW 26 4.3.1 Security Screw 26 4.3.2 Kensington Lock 26 4.4 Verify Device Functionality and Test Network Coverage 27 5 Troubleshooting 27 4 1 Scope of Document and Related Publications The MR46-HW Hardware Installation Guide describes the installation procedure for the MR46-HW indoor access point. Additional reference documents are available online at www.meraki.com/library/product. 5 2 MR46-HW Overview The Meraki MR46-HW is an enterprise-class, dual-concurrent 4x4 MIMO 802.11ax indoor access point designed for high-density deployments in offices, schools, hospitals and hotels. When connected to the Meraki Cloud Controller, the MR46-HW enables the creation of ultra-high speed, reliable indoor wireless networks quickly, easily and cost- effectively. 2.1 Package Contents The MR46-HW package contains the following: MR46-HW access point Mounting plate Drop ceiling mounting kit Wall screws Security screws Mounting Template 2.2 Understanding the MR46-HW MR46-HW Operation Temperature: 32 ° F to 104 ° F (0 ° C to 40 ° C) Your Meraki MR46-HW has the following features: Kensington lock hard point Mount plate attachment slots (2x) Cable access bay Desk mount feet (4x) MR46-HW cable access bay Factory Reset Button Ethernet port Power supplied by PoE: 50-57Vdc 0.6A AC Adapter plug (sold separately) Power supplied by adapter: 12Vdc, 2.5A Your MR46-HW mount plate has the following features: Access point mounting posts (2x) 7 2.3 Security Features The MR46-HW features multiple options for physically securing the access point after installation: 1. Security screw – The accessory kit includes screws that can be used to secure the access point to the mount plate. Engaging the security screw prevents accidental dislodging and theft. 2. Kensington lock – The access point contains a hard point that allows it to be secured to any nearby permanent structure using a standard Kensington lock. 2.4 Ethernet Ports The MR46-HW features an Ethernet RJ45 port that accepts 802.3at power (labeled “PoE”). This port should be used for uplink to your WAN connection. 2.5 Power Source Options The MR46-HW access point can be powered using either the Meraki AC Adapter or 802.3at PoE Injector (both sold separately) or a third-party 802.3at PoE switch. 2.6 Factory Reset Button If the button is pressed and held for at least five seconds and then released, the MR46-HW will reboot and be restored to its original factory settings by deleting all configuration information stored on the unit. 8 3 Pre-Install Preparation You should complete the following steps before going on-site to perform an installation. 3.1 Configure Your Network in Dashboard The following is a brief overview only of the steps required to add an MR46-HW to your network. For detailed instructions about creating, configuring and managing Meraki wireless networks, refer to the Meraki Cloud Controller Manual (meraki.com/library/product). 1. Login to http://dashboard.meraki.com. If this is your first time, create a new account. 2. Find the network to which you plan to add your APs or create a new network. 3. Add your APs to your network. You will need your Meraki order number (found on your invoice if you ordered directly from Meraki) or the serial number of each AP, which looks like Qxxx-xxxx-xxxx, and is found on the bottom of the unit. You will also need your Enterprise Cloud Controller license key, which you should have received via email from [email protected]. 4. Go to the map / floor plan view and place each AP on the map by clicking and dragging it to the location where you plan to mount it. 3.2 Check and Upgrade Firmware To ensure your MR46-HW performs optimally immediately following installation, Meraki recommends that you facilitate a firmware upgrade prior to mounting your MR46-HW. 1. Attach your MR46-HW to power and a wired Internet connection. See p. 19 of this Hardware Installation Guide for details. 2.…

Text truncated - open the document above for the full version.

Date: 2022-08-15 FCC ID: UDX-60079011 Declaration for DFS master devices We, Cisco Systems, Inc. hereby declare that the device meets all the other requirements specified in Part 15E Section 15.407. If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- Aurelio Llabres, Compliance Manager, CNG Cisco Systems, Inc. Tel: 415-432-1000 Fax: 415-632-5899 E-mail: [email protected]

Date: 2023-08-01 FCC ID: UDX-60079011 To the attention of Federal Communications Commission Authorization and Evaluation Division Attestation Statements Attestation Statements Part 2.911(d)(5)(i) Filing Cisco Systems, Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Attestation Statements Part 2.911(d)(5)(ii) Filing Cisco Systems, Inc. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely yours, ----------------------------------- Aurelio Llabres, Compliance Manager, CNG Cisco Systems, Inc. Tel: 415-432-1000 Fax: 415-632-5899 E-mail: [email protected]

U.S. Agent for Service of Process Attestation To the attention of Federal Communications Commission Authorization and Evaluation Division Applicant / Designated U.S Agent Company Name: Cisco Systems, Inc. FRN: 0016015430 Grantee Code: UDX Contact Name: Aurelio Llabres Street Address: 170 West Tasman Drive, San Jose, City/Province/Zip: CA 95134 Telephone No: 415-432-1000 Email: [email protected] This letter is to confirm that the Applicant has designated itself as the U.S Agent for service of process as required by §2.911(d)(7). The Applicant further acknowledges acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant / U.S. Agent Signature: Date: 2023-07-17 Signed by Aurelio Llabres.

Date: 2022-08-15 FCC ID: UDX-60079011 AUTHORIZATION LETTER To Whom It May Concern: Cisco Systems, Inc. hereby authorizes Trista Tsai / Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Trista Tsai / Specialist of BV CPS Taoyuan on Cisco Systems, Inc.’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Aurelio Llabres, Compliance Manager, CNG Cisco Systems, Inc. Tel: 415-432-1000 Fax: 415-632-5899 E-mail: [email protected]

Date: 2022-08-15 FCC ID: UDX-60079011 To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description Software Defined Radio The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Aurelio Llabres, Compliance Manager, CNG Cisco Systems, Inc. Tel: 415-432-1000 Fax: 415-632-5899 E-mail: [email protected]

Date: 2022-08-15 FCC ID: UDX-60079011 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------- Aurelio Llabres, Compliance Manager, CNG Cisco Systems, Inc. Tel: 415-432-1000 Fax: 415-632-5899 E-mail: [email protected]

Date: 2022-08-15 Cover Letter for Referencing Test Data To Whom It May Concern: The reference device (initial application) has been granted according to 47CFR Part 15 for FCC ID: UDX-60079010; Granted on 01/18/2019 (Original Application) and 04/22/2019 (C3PC application). The variant device to be granted in this new application (FCC ID: UDX-60079011). For more details listed below (Reference device & Variant Device different portions), please refer to Operation Description exhibit. 1. General Descriptions of EUT 2. Device Materials 3. Device Form Factor & Photos 4. PCB Photos 5. Referencing test items 6. Spot- Check Test Plan We are taking full responsibility that the test data represents compliance for the variant device (FCC ID: UDX-60079011). If you have any questions, feel free to contact us. Thank you. Sincerely yours, ----------------------------------- Aurelio Llabres, Compliance Manager, CNG Cisco Systems, Inc. Tel: 415-432-1000 Fax: 415-632-5899 E-mail: [email protected]

香港商立德國際商品試驗有限公司桃園分公司 Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch 1. Original General Descriptions of EUT Equipment Referenced Device Model Variant Device FCC ID UDX-60079010 UDX-60079011 FCC Granted Date 04/22/2019 (for NII) 01/18/2019 (for DTS) TBD Product 4x4 802.11a/b/g/n/ac/ax Access Point 4x4 Wi-Fi 6 Access Point Brand Cisco Cisco Applicant Cisco Systems, Inc. Cisco Systems, Inc. Test Model MR45-HW MR46-HW RF characteristics WLAN 2.4GHz 2412 – 2462 MHz WLAN 2.4GHz 2412 – 2462 MHz WLAN 5GHz 5180.0 - 5240.0 MHz 5260.0 - 5320.0 MHz 5500.0 - 5720.0 MHz 5745.0 - 5825.0 MHz WLAN 5GHz 5180.0 - 5240.0 MHz 5260.0 - 5320.0 MHz 5500.0 - 5720.0 MHz 5745.0 - 5825.0 MHz BT LE 2402 – 2480 MHz BT LE 2402 – 2480 MHz Hardware Difference N.A. 1. TI TPS23751PWPR re-layout to MPS MP8009GV: (no affect PoE function.) 2. TI TLV62569DBVR adding 2nd source change (DC-DC Pin to Pin) 3. BT chip change: from EFR32MG13 to EFR32MG21 within the device (non-Pin to Pin) Note: UDX-60079010 Original Report No.: RF180704E03D-1, SA180704E03D, 12659283-E1V2, RF180704E03, RF180704E03-1, RF180704E03-2, RF180704E03-3, SA180704E03. And there is C1PC report (Report No.: RF180704E03H, RF180704E03H-1, RF180704E03H-2) for adding change name MR46HW, change product name to 4x4 Wi-Fi 6 Access Point, Gen2 chip revise Gen1 chip’s bug and added one new POE. Modifications did not affect radio components and did not degrade the characteristics reported in original filing. Due to above, it radio result reference to UDX-60079010 Original report (Report No.: RF180704E03D-1, SA180704E03D, 12659283-E1V2, RF180704E03, RF180704E03-1, RF180704E03-2, RF180704E03-3, SA180704E03.) 香港商立德國際商品試驗有限公司桃園分公司 Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch 2. Referencing test items Part 15C FCC Clause Test Items Referenced Test Data Note 15.247(b) Conducted Output Power Y Only for Wi-Fi 2.4G, BLE is re-test. 15.207 AC Power Line Conducted Emission Y 15.205/ 15.209/ 15.247(d) Radiated Emissions and Band Edge Measurement Y 15.247(d) Antenna Port Emission Y 15.247(a)(2) 6dB bandwidth Y 15.247(e) Power Density Y Part 15E FCC Clause Test Items Referenced Test Data Note 15.407(a)(1/2/3) Conducted Output Power Y 15.207 AC Power Line Conducted Emission Y 15.407(b) (1/2/3/4 (i/ii) Radiated Emissions and Band Edge Measurement Y 15.407(a)(1/2/3) 26dBc bandwidth Y - 99% Occupied bandwidth Y 15.407(e) 6dB bandwidth Y 15.407(a)(1/2/3) Power Density Y 15.407(g) Frequency Stability Y 15.407(h) DFS Y 3. Spot- Check Test Plan Amount of test samples: 1 sample Equipment Class FCC Rule Part Test Items Frequency Band Test Modes Test Channel DTS Part 15C Conducted output power/ Radiated emission – Band edge and Harmonics 2412-2462 MHz 802.11 b CH 6 (Worse power Mode) NII Part 15E Conducted output power/ Radiated emission – Band edge and Harmonics 5180-5240MHz, 5260-5320MHz, 5500-5720MHz 5745-5825MHz 802.11 ax 20MHz, CH 149 (Worse power Mode) DFS DFS Detection Threshold Channel Availability Check Time Channel Move Time Channel Closing Transmission Time CH100/CH106 香港商立德國際商品試驗有限公司桃園分公司 Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Non-Occupancy Period U-NII Detection Bandwidth and Statistical Performance Check Note1: RF Conducted output power were confirmed and the same as Referenced Device (FCC ID: UDX-60079010) Note2: DFS FW change as below, and the change was not affect the DFS function in the new Firmware. It also had spot check for the DFS. Original FW New FW Different T-201903052123-G2b2dfdd5 -L630F066d-samrat-brook 29-20231121832-G86bba517-rel-apar tment Add support for new PHY chip, AQR115C-B1-C Add support for new BLE chip, EFR32MG21 Upgrade Linux kernel to 4.4.302Upgrade QCA wlan to SPF 11.3 CS SBA26 The rest would be features and bug fixes.

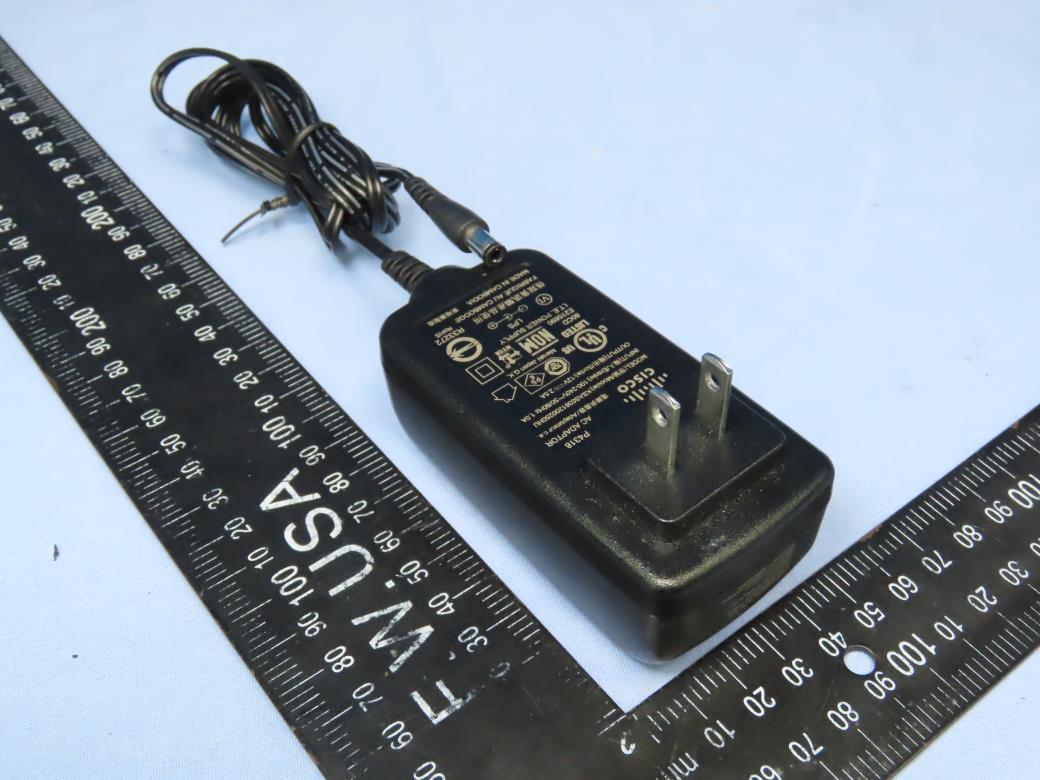

Reference No.: BCKS-WTW-P22041066-1 Page 1/8 CONSTRUCTION PHOTOS OF EUT Reference No.: BCKS-WTW-P22041066-1 Page 2/8 Reference No.: BCKS-WTW-P22041066-1 Page 3/8 Reference No.: BCKS-WTW-P22041066-1 Page 4/8 Reference No.: BCKS-WTW-P22041066-1 Page 5/8 Adapter (Brand: Ktec, Model: KSAS0361200250HU) (Option) Reference No.: BCKS-WTW-P22041066-1 Page 6/8 Reference No.: BCKS-WTW-P22041066-1 Page 7/8 Adapter (Brand: UMEC, Model: MA-PWR-30W-US) (Option) Reference No.: BCKS-WTW-P22041066-1 Page 8/8

Label Sample & Label Location FCC ID: UDX-60079011 IC: 6961A-60079010 Bottom of EUT

FINISH: A4 SHEET 1 OF 1SCALE:1:1 PRODUCT: TITLE: REVISION: MATERIAL: UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN MILLIMETERS AND TOLERANCES ARE: LINEAR TOLERANCES + 0.1 THIRD ANGLE PROJECTION REV10 SIZE: HENDRIX-2 PRODUCT LABEL REVREVISION DESCRIPTIONREVISION DATE ANGULAR TOLERANCES + 1 NOTES:1) MATTE WHITE PET PER SAMPLE PART NUMBER: ###-##### THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED, OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF CISCO MERAKI. REV7ADDED -A, NOM, ANATEL2020/07/13 REV8ADDED Q1FY212020/09/04 REV9Updated2020/09/30 REV10Updated FCC, added HVIN2020/07/01

香港商立德國際商品試驗有限公司桃園分公司 Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch 1. PCB Photos Referenced Device Model variant FCC ID: UDX-60079010 FCC ID: UDX-60079011 2. Enclosure Photos

Reference No.: BCKS-WTW-P22041066-2 Page 1/27 CONSTRUCTION PHOTOS OF EUT Reference No.: BCKS-WTW-P22041066-2 Page 2/27 Reference No.: BCKS-WTW-P22041066-2 Page 3/27 Reference No.: BCKS-WTW-P22041066-2 Page 4/27 Reference No.: BCKS-WTW-P22041066-2 Page 5/27 Reference No.: BCKS-WTW-P22041066-2 Page 6/27 Reference No.: BCKS-WTW-P22041066-2 Page 7/27 Reference No.: BCKS-WTW-P22041066-2 Page 8/27 Reference No.: BCKS-WTW-P22041066-2 Page 9/27 Reference No.: BCKS-WTW-P22041066-2 Page 10/27 Reference No.: BCKS-WTW-P22041066-2 Page 11/27 Reference No.: BCKS-WTW-P22041066-2 Page 12/27 Reference No.: BCKS-WTW-P22041066-2 Page 13/27 Reference No.: BCKS-WTW-P22041066-2 Page 14/27 Reference No.: BCKS-WTW-P22041066-2 Page 15/27 2.4GHz Antenna No. 1 Reference No.: BCKS-WTW-P22041066-2 Page 16/27 2.4GHz Antenna No. 2 Reference No.: BCKS-WTW-P22041066-2 Page 17/27 2.4GHz Antenna No. 3 Reference No.: BCKS-WTW-P22041066-2 Page 18/27 2.4GHz Antenna No. 4 Reference No.: BCKS-WTW-P22041066-2 Page 19/27 5GHz Antenna No. 1 Reference No.: BCKS-WTW-P22041066-2 Page 20/27 5GHz Antenna No. 2 Reference No.: BCKS-WTW-P22041066-2 Page 21/27 5GHz Antenna No. 3

Reference No.: BCKS-WTW-P22041066-2 Page 22/27 5GHz Antenna No. 4 Reference No.: BCKS-WTW-P22041066-2 Page 23/27 2.4GHz / 5GHz Scanning (only RX) Reference No.: BCKS-WTW-P22041066-2 Page 24/27 Reference No.: BCKS-WTW-P22041066-2 Page 25/27 Bluetooth antenna Reference No.: BCKS-WTW-P22041066-2 Page 26/27 Reference No.: BCKS-WTW-P22041066-2 Page 27/27

Report No.: MFBCKS-WTW-P21030821A Page No. 1 / 7 Report Format Version: 6.1.1 Reference No.: BCKS-WTW-P22041066 RF Exposure Report Report No.: MFBCKS-WTW-P21030821A FCC ID: UDX-60079011 Test Model: MR46-HW Received Date: 2022/4/29 Test Date: 2022/5/23 Issued Date: 2022/6/10 Applicant: Cisco Systems, Inc. Address: 170 West Tasman Drive, San Jose, CA 95134 USA Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBCKS-WTW-P21030821A Page No. 2 / 7 Report Format Version: 6.1.1 Reference No.: BCKS-WTW-P22041066 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Antenna Gain ...................................................................................................................................... 6 2.5 Calculation Result of Maximum Conducted Power ............................................................................. 7 Report No.: MFBCKS-WTW-P21030821A Page No. 3 / 7 Report Format Version: 6.1.1 Reference No.: BCKS-WTW-P22041066 Release Control Record Issue No. Description Date Issued MFBCKS-WTW-P21030821A Original release. 2022/6/10 Report No.: MFBCKS-WTW-P21030821A Page No. 4 / 7 Report Format Version: 6.1.1 Reference No.: BCKS-WTW-P22041066 1 Certificate of Conformity Product: 4x4 Wi-Fi 6 Access Point Brand: Cisco Test Model: MR46-HW Sample Status: Engineering sample Applicant: Cisco Systems, Inc. Test Date: 2022/5/23 FCC Rule Part: FCC Part 2 (Section 2.1091) Standard: KDB 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. Prepared by : , Date: 2022/6/10 Vivian Huang / Specialist Approved by : , Date: 2022/6/10 May Chen / Manager Report No.: MFBCKS-WTW-P21030821A Page No. 5 / 7 Report Format Version: 6.1.1 Reference No.: BCKS-WTW-P22041066 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 33 cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: MFBCKS-WTW-P21030821A Page No. 6 / 7 Report Format Version: 6.1.1 Reference No.: BCKS-WTW-P22041066 2.4 Antenna Gain WLAN Directional gain table – 4TX Frequency range (GHz) Directional Antenna Gain (dBi) Antenna Type Antenna Connector 2.4 ~ 2.4835 7.74 PIFA i-pe…

Text truncated - open the document above for the full version.

□ Normal □ Internal Use ■ Confidential □ Restricted Confidential Antenna Test Report for 4x4 Wi-Fi 6 AP (M/N:MR46-HW) 2 □ Normal □ Internal Use ■ Confidential □ Restricted Confidential Contents  General Information  Test Setup –Diagram –Equipment –Procedure  Test Result –Summary •Performance 3 □ Normal □ Internal Use ■ Confidential □ Restricted Confidential General Information  Antenna Information: - Brand: WNC 20 Park Ave. II, Hsinchu Science Park, Hsinchu 308, Taiwan  Antenna Type: –Wi-Fi 2.4G: PIFA (M/N:95XKAA15.GKJ) –Wi-Fi 5G: PIFA (M/N:95XKAA15.GKJ) –BLE: PIFA (M/N:95XKAA15.GKL) –Scanning: PIFA (M/N:95XKAA15.GKK)  Test Date and Member Date: 2020/04/27 Member: Gary 4 □ Normal □ Internal Use ■ Confidential □ Restricted Confidential SG 64 uses analog RF signal generators to emit EM waves from the probe array to the antenna under test (AUT) or vice versa. It uses the NPAC as an RF receiver for antenna measurements. The NPAC also drives the electronic scanning of the probe array. The NPAC includes the fastest and most accurate sources and receivers on the market. Test Setup and Diagram 5 □ Normal □ Internal Use ■ Confidential □ Restricted Confidential DeviceType/Model Serial#Manufacturer Calibrated Date Calibrated Until SG64 ChamberStandardSG64MVG2020/03/30 2024/03/30 Turn TableCustomization -Machinery Dept. 2020/03/30 2024/03/30 New Probe Array ControllerN/A1102341-4535MVG2020/03/30 2024/03/30 Power Supply UnitN/A1103211-13204 MVG2020/03/30 2024/03/30 Activve Switching UnitN/A1102347-7214MVG2020/03/30 2024/03/30 TX Amplification UnitN/A1102527-5909MVG2020/03/30 2024/03/30 RX Amplification UnitN/A1102536-3823MVG2020/03/30 2024/03/30 Transfer Swittching UnitN/A1102183-3351MVG2020/03/30 2024/03/30 Mixer UnitN/A1102545-7208MVG2020/03/30 2024/03/30 Power And Control UnitN/A1102706-7209MVG2020/03/30 2024/03/30 Antenna ProbeDP 400-6000 -MVG 2020/03/30 2024/03/30 Cable 13.7m - 400MHz to 18GHzSS40200100A1F5A1XXS Woken2020/03/30 2024/03/30 Temperature & Humidity MeterHTC-01-Metravi2020/03/30 2024/03/30 Note: 1. There are 63 set ANT probes in WNC’s SG64 Chamber. Equipment 6 □ Normal □ Internal Use ■ Confidential □ Restricted Confidential • Place the device at the center of the chamber. • Connect the antenna cable to RF cable of the chamber • Run Satimo test SW (NPAC Spherical Measurement, v1.5.4 (GIT-E6965664)) • Get 3D data in 2.8125 degree step from phi 0°~360°and theta -90°~ +90°, including efficiency, peak gain, 2D & 3D radiation pattern. • This is far field test for MR46-HWantenna verification. • This is passive measurement, which means the device is off and not in any operating mode. Test Setup and Procedure Z X Y Z X Y 7 □ Normal □ Internal Use ■ Confidential □ Restricted Confidential –VSWR •Under 2 for 2.4GHz and 5GHz application –Isolation •Above 20dB for all antennas –Average Radiation efficiency (excluding cable length loss) •72% for 2.4GHz antenna ; 80% for 5GHz antenna •74% for Scanning 2.4GHz ; 84% for Scanning 5GHz •72% for BT antenna –Peak gain •3.7dBi for 2.4GHz antenna ; 5.4dBi for 5G antenna •3.8dBi for Scanning 2.4GHz ; 5dBi for Scanning 5G •4.2dBi for BT antenna Summary 8 □ Normal □ Internal Use ■ Confidential □ Restricted Confidential Antenna Placement BT Scanning 4x4 Modularized WiFiAntenna 5G2 5G1 5G3 5G4 2G1 2G2 2G3 2G4 9 □ Normal □ Internal Use ■ Confidential □ Restricted Confidential Test Product Specification Top cover Main-Board Chassis-Bottom Bottom cover 10 □ Normal □ Internal Use ■ Confidential □ Restricted Confidential Antenna Efficiency and Peak Gain Frequency (MHz) 2400 2450 2500 Avg. 2G1 Eff. (%) 64% 68% 63% 65% Avg. Gain (dB) -1.96 -1.64 -2.03 w/o cable loss Eff. (%) 72% 78% 71% 74% Peak Gain (dBi) 3.58 3.70 3.36 2G2 Eff. (%) 64% 68% 64% 65% Avg. Gain (dB) -1.96 -1.66 -1.92 w/o cable loss Eff. (%) 72% 77% 73% 74% Peak Gain (dBi) 3.37 3.26 3.07 2G3 Eff. (%)62% 65% 62% 63% Avg. Gain (dB) -2.09 -1.85 -2.07 w/o cable loss Eff. (%) 69% 73% 70% 71% Peak Gain (dBi) 3.32 3.26 3.08 2G4 Eff. (%) 61% 67% 62% 63% Avg. Gain (dB) -2.11 -1.74 -2.11 w/o cable loss Eff. (%) 68% 74% 68% 70% Peak Gain (dBi) 3.02 3.03 2.88 11 □ Normal □ Internal Use ■ Confidential □ Restricted Confidential Antenna Efficiency and Peak Gain Frequency (MHz) 5150 5350 5550 5750 5850 Avg. 5G1 Eff. (%) 68% 71% 65% 67% 64% 67% Avg. Gain (dB) -1.64 -1.51 -1.84 -1.72 -1.93 w/o cable loss Eff. (%) 85% 88% 81% 84% 80% 83% Peak Gain (dBi) 4.03 5.23 4.53 4.14 4.37 5G2 Eff. (%) 66% 72% 62% 65% 64% 66% Avg. Gain (dB) -1.83 -1.43 -2.04 -1.86 -1.95 w/o cable loss Eff. (%) 79% 87% 76% 79% 77% 79% Peak Gain (dBi) 3.33 4.04 4.44 3.75 3.24 5G3 Eff. (%)70% 73% 67% 70% 69% 70% Avg. Gain (dB) -1.58 -1.36 -1.73 -1.52 -1.60 w/o cable loss Eff. (%) 79% 83% 76% 80% 78% 79% Peak Gain (dBi) 4.06 4.82 5.44 4.27 4.51 5G4 Eff. (%) 63% 70% 67% 66% 62% 66% Avg. Gain (dB) -2.03 -1.58 -1.74 -1.83 -2.1 w/o cable loss Eff. (%) 76% 84% 81% 79% 74% 79% Peak Gain (dBi) 3.11 3.72 4.43 4.35 4.26 12 □ Normal □ Internal Use ■ Confidential □ Restricted Confidential Antenna Efficiency and Peak Gain Frequency (MHz) 2400 2450 2500 Avg. 5150 5350 5550 5750 5850 Avg. Scanning Eff. (%) 64% 65% 66% 65% 67% 68% 64% 68% 65% 66% Avg. Gain (dB) -1.96 -1.89 -1.83-1.77 -1.67 -1.94 -1.68 -1.85 w/o cable loss Eff. (%) 73% 74% 75% 74% 84% 86% 81% 86% 82% 84% Peak Gain (dBi) 3.84 3.37 3.31 4.78 5.08 4.79 4.72 4.58 Frequency (MHz) 2400 2450 2500 Avg. BT Eff. (%)65% 72% 67% 68% Avg. Gain (dB) -1.89 -…
