UDX-600930104x4 Wi-Fi 6 Access Point with External Antennas

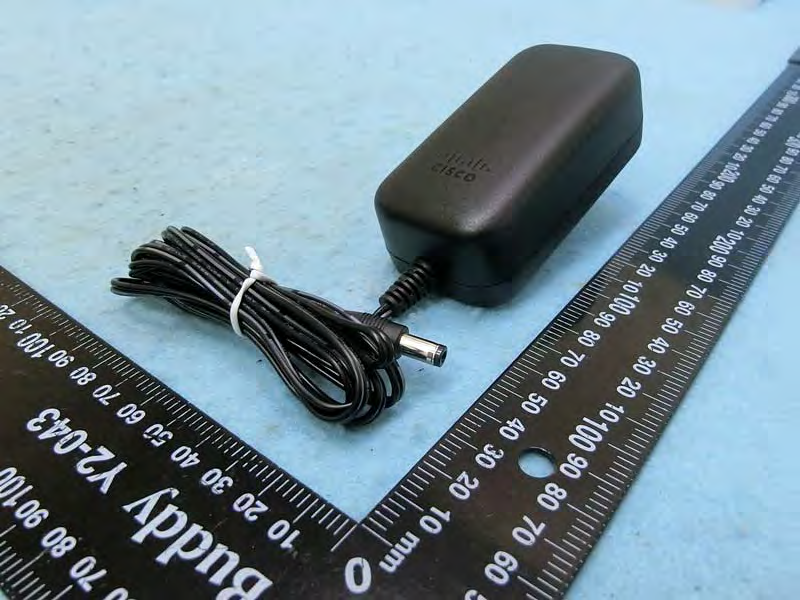

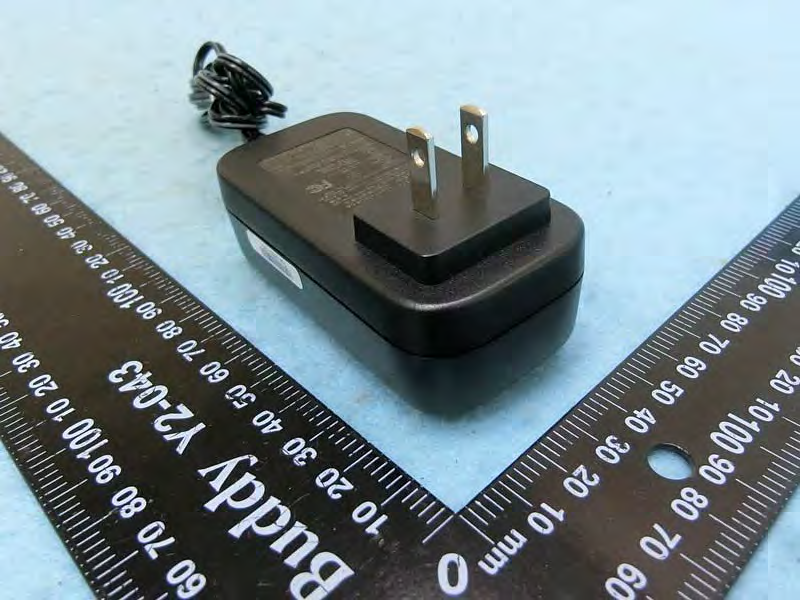

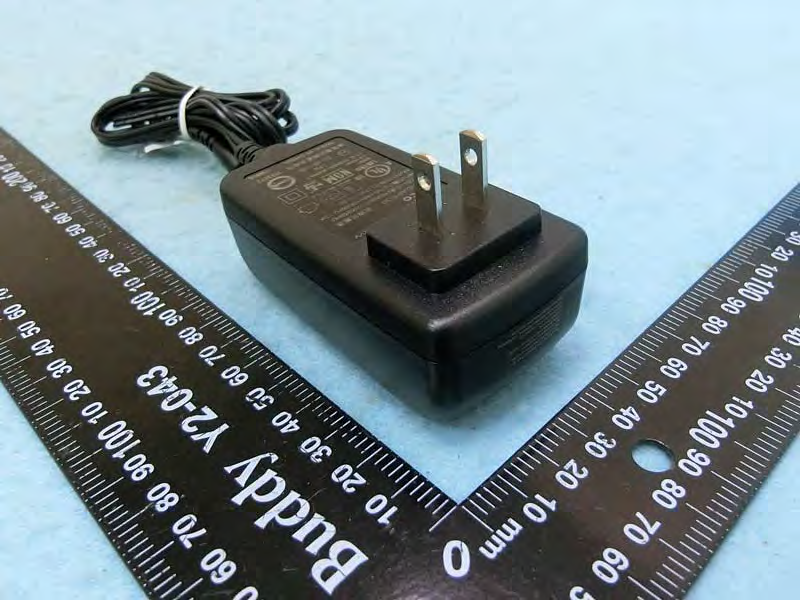

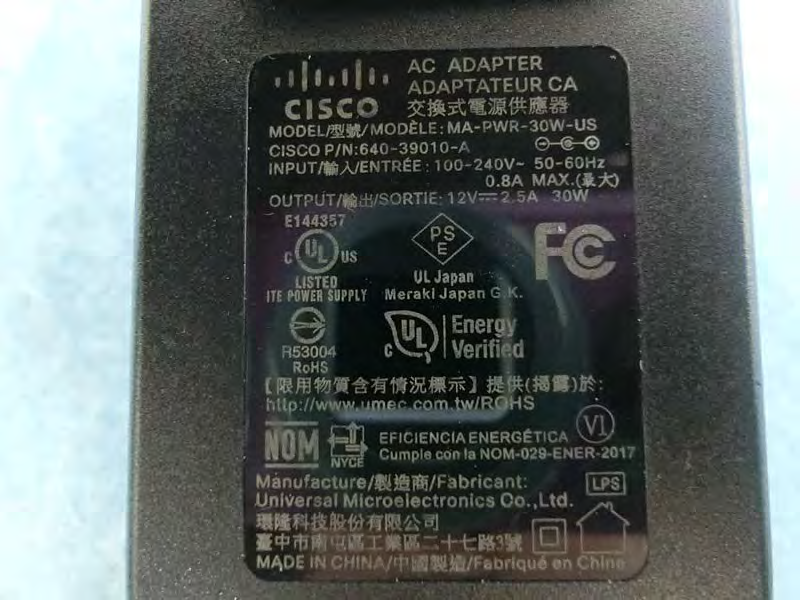

Meraki MR46E-HW Hardware Installation Guide Trademarks Meraki, Meraki MR46E-HW, Meraki Cloud Controller, and Meraki Mesh are trademarks of Cisco Systems, Inc. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, Cisco Systems reserves the right to make changes to the products described in this document without notice. Cisco Systems does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Warranty Meraki, Inc. provides a lifetime warranty on this product. Warranty details may be found at www.meraki.com/legal. 3 Table of Contents 1 Scope of Document and Related Publications 4 2 MR46E-HW Overview 5 2.1 Package Contents 5 2.2 Understanding the MR46E-HW 5 2.3 Security Features 7 2.4 Ethernet Ports 7 2.5 Power Source Options 7 2.6 Factory Reset Button 7 2.7 LED Indicators and Run Dark Mode 7 3 Pre-Install Preparation 8 3.1 Configure Your Network in Dashboard 8 3.2 Check and Upgrade Firmware 8 3.3 Check and Configure Firewall Settings 8 3.4 Assigning IP Addresses to MR46E-HWs 9 3.4.1 Dynamic Assignment 9 3.4.2 Static Assignment 9 3.4.3 Static IP Assignment via DHCP Reservations 9 3.5 Collect Tools 10 3.6 Collect Additional Hardware for Installation 10 4 Installation Instructions 11 4.1 Choose Your Mounting Location 11 4.2 Install the MR46E-HW 11 4.2.1 Attach the Mount Plate 11 4.2.1.1 Wall or Solid Ceiling Mount Using Mount Plate 13 4.2.1.2 Drop Ceiling Mount Using Mount Plate 14 4.2.1.3Electrical Junction Box Mount Using Mount Plate 18 4.2.2 Power the MR46E-HW 20 4.2.2.1 Powering the MR46E-HW with Meraki AC Adapter 21 4.2.2.2 Powering the MR46E-HW with Meraki 802.3at Power over Ethernet Injector 21 4.2.2.3 Powering the MR46E-HW with an 802.3at Power over Ethernet Switch 22 4.2.3 Mount the MR46E-HW 22 4.2.3.1 Assemble Security Hasp to the MR46E-HW 22 4.2.3.2 Assemble MR46E-HW to the Mount Plate 23 4.2.3.3 Desk or Shelf Mount 25 4.3 Secure the MR46E-HW 26 4.3.1 Security Screw 26 4.3.2 Kensington Lock 26 4.4 Verify Device Functionality and Test Network Coverage 27 5 Troubleshooting 27 4 1 Scope of Document and Related Publications The MR46E-HW Hardware Installation Guide describes the installation procedure for the MR46E-HW indoor access point. Additional reference documents are available online at www.meraki.com/library/product. 5 2 MR46E-HW Overview The Meraki MR46E-HW is an enterprise-class, dual-concurrent 4x4 MIMO 802.11ax indoor access point designed for high-density deployments in offices, schools, hospitals and hotels. When connected to the Meraki Cloud Controller, the MR46E-HW enables the creation of ultra-high speed, reliable indoor wireless networks quickly, easily and cost- effectively. 2.1 Package Contents The MR46E-HW package contains the following: • MR46E-HW access point • Mounting plate • Drop ceiling mounting kit wall screws • Security screws • Mounting Template 2.2 Understanding the MR46E-HW MR46E-HW Operation Temperature: 32 ° F to 104 ° F (0 ° C to 40 ° C) Your Meraki MR46E-HW has the following features: Kensington lock hard point Mount plate attachment slots (2x) Cable access bay 6 Desk mount feets (4x) MR46E-HW cable access bay Factory Reset Button Ethernet port Power supplied by PoE: 50-57Vdc 0.6A AC Adapter plug (sold separately) Power supplied by adapter: 12Vdc, 2.5A Your MR46E-HW mount plate has the following features: Access point mounting posts (2x) Various mounting holes 7 2.3 Security Features The MR46E-HW features multiple options for physically securing the access point after installation: 1. Security screw – The accessory kit includes screws that can be used to secure the access point to the mount plate. Engaging the security screw prevents accidental dislodging and theft. 2. Kensington lock – The access point contains a hard point that allows it to be secured to any nearby permanent structure using a standard Kensington lock. 2.4 Ethernet Ports The MR46E-HW features an Ethernet RJ45 port that accepts 802.3at power (labeled “PoE”). This port should be used for uplink to your WAN connection. 2.5 Power Source Options The MR46E-HW access point can be powered using either the Meraki AC Adapter or 802.3at PoE Injector (both sold separately) or a third-party 802.3at PoE switch. 2.6 Factory Reset Button If the button is pressed and held for at least five seconds and then released, the MR46E-HW will reboot and be restored to its original factory settings by deleting all configuration information stored on the unit. 8 3 Pre-Install Preparation You should complete the following steps before going on-site to perform an installation. 3.1 Configure Your Network in Dashboard The following is a brief overview only of the steps required to add an MR46E-HW to your network. For detailed instructions about creating, configuring and managing Meraki wireless networks, refer to the Meraki Cloud Controller Manual (meraki.com/library/product). 1. Login to http://dashboard.meraki.com. If this is your first time, create a new account. 2. Find the network to which you plan to add your APs or create a new network. 3. Add your APs to your network. You will need your Meraki order number (found on your invoice if you ordered directly from Meraki) or the serial number of each AP, which looks like Qxxx-xxxx-xxxx, and is found on the bottom of the unit. You will also need your Enterprise Cloud Controller license key, which you should have received via email from [email protected]. 4. Go to the map / floor plan view and place each AP on the map by clicking and dragging it to the location where you plan to mount it. 3.2 Check and Upgrade Firmware To ensure your MR46E-HW performs optimally immediately following installation, Meraki recommends that you facilitate a firmware upgrade prior to mounting your MR46E-HW. 1. Attach your MR46E-HW to power and a wired Internet co…
