FCC ID: UDX-MERAKI-MINI ADT No.950703L13 Modular Approval Request Letter Advance Data Technology Jul. 14, 2006 Dear Application Examiner, Meraki Networks, Inc., It’s Wireless AP, FCC ID: UDX-MERAKI-MINI, would like to have your authorization as a limited modular approval specific to the mobile device such as Access Point or Router etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR2315. 3. “The modular transmitter must have its own power supply regulation. The part number of this regulator is AME8815AEGT. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a RJ45 cable. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: UDX-MERAKI-MINI ADT No.950703L13 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Supervisor Advance Data Technology

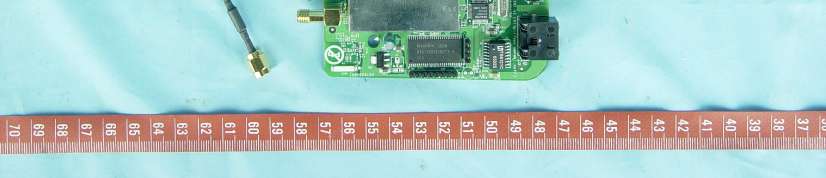

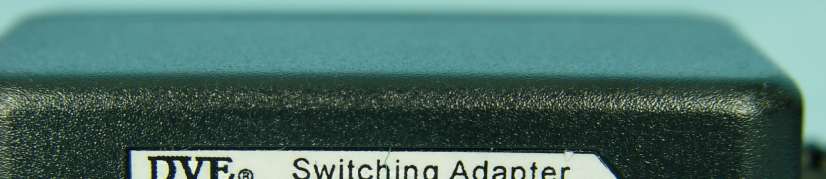

Page 1 CONSTRUCTION PHOTOS OF EUT Antenna 1 Page 2 Antenna 2 Page 3 Antenna 3 Page 4 Antenna 4 Page 5

FCC ID .: UDX-MERAKI-MINI Label Location

Page 6 Page 7 Page 8

FCC ID: UDX-MERAKI-MINI Report No. RF950703L13 Operational Description This device is a Wireless AP which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC Adapter. The antenna are Dipole antenna with R-SMA connector and Chip antenna without connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: UDX-MERAKI-MINI Report No: SA950703L13 1 RF EXPOSURE REPORT REPORT NO.: SA950703L13 MODEL NO.: Meraki Mini Module ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Meraki Networks, Inc. ADDRESS: 849 Independence Ave., Suite B Mountain View, CA 94043 ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: UDX-MERAKI-MINI Report No: SA950703L13 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: UDX-MERAKI-MINI Report No: SA950703L13 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: UDX-MERAKI-MINI Report No: SA950703L13 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5.0dBi or 3.162 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Dipole antenna gain: 5dBi 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.0960.0401.0 6243771.9450.0451.0 11246264.1210.0401.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241244.8750.0281.0 6243750.4660.0321.0 11246244.9780.0281.0

Report No.: RF950703L131Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950703L13 MODEL NO.: Meraki Mini Module RECEIVED: May 24, 2006 TESTED: May 24 ~ Jul. 07, 2006 ISSUED: Jul. 11, 2006 APPLICANT: Meraki Networks, Inc. ADDRESS: 849 Independence Ave., Suite B Mountain View, CA 94043 ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 65 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950703L132Report Format Version 2.0.4 Table of Contents 1CERTIFICATION.............................................................................................................4 2SUMMARY OF TEST RESULTS...................................................................................5 2.1MEASUREMENT UNCERTAINTY................................................................................5 3GENERAL INFORMATION.............................................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................................6 3.2DESCRIPTION OF TEST MODES................................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...........................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS........................................................................10 4TEST TYPES AND RESULTS.......................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT..............................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................................11 4.1.2TEST INSTRUMENTS..................................................................................................11 4.1.3TEST PROCEDURES.................................................................................................12 4.1.4DEVIATION FROM TEST STANDARD.......................................................................12 4.1.5TEST SETUP...............................................................................................................13 4.1.6EUT OPERATING CONDITIONS................................................................................13 4.1.7TEST RESULTS...........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT...................................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................................20 4.2.2TEST INSTRUMENTS.................................................................................................21 4.2.3TEST PROCEDURES.................................................................................................22 4.2.4DEVIATION FROM TEST STANDARD.......................................................................22 4.2.5TEST SETUP...............................................................................................................23 4.2.6EUT OPERATING CONDITIONS................................................................................23 4.2.7TEST RESULTS...........................................................................................................24 4.36dB BANDWIDTH MEASUREMENT...........................................................................35 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................................35 4.3.2TEST INSTRUMENTS.................................................................................................35 4.3.3TEST PROCEDURE....................................................................................................36 4.3.4DEVIATION FROM TEST STANDARD.......................................................................36 4.3.5TEST SETUP...............................................................................................................36 4.3.6EUT OPERATING CONDITIONS................................................................................36 4.3.7TEST RESULTS...........................................................................................................37 4.4MAXIMUM PEAK OUTPUT POWER..........................................................................43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................43 4.4.2TEST INSTRUMENTS.................................................................................................43 4.4.3TEST PROCEDURES.................................................................................................44 4.4.4DEVIATION FROM TEST STANDARD.......................................................................44 4.4.5TEST SETUP...............................................................................................................44 4.4.6EUT OPERATING CONDITIONS................................................................................44 4.4.7TEST RESULTS...........................................................................................................45 4.5POWER SPECTRAL DENSITY MEASUREMENT.....................................................46 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..........................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 3 RADIATED EMISSION TEST 4
