UDX-MERAKI-OTDR802.11b/g Wireless Access Point

Meraki Outdoor User Manual (Draft) Copyright 2007, Meraki Networks, Inc. All Rights Reserved Revised: August 2007 Trademarks Meraki, Meraki Outdoor and Meraki Mesh are trademar ks of Meraki Networks, Inc. Other brand and product names are registered tradem arks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, opera tional function, and/or reliability, Meraki reserves the right to make changes to the pr oducts described in this document without notice. Meraki does not assume any liabilit y that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Updated versions of this document may be available on the Web at http://www.meraki.net/ . Warranty Meraki Networks, Inc. provides a limited warranty o n this product. Refer to your sales agreement to establish the terms of the limited war ranty. Federal Communication Commission Interference State ment This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rule s. These limits are designed to provide reasonable protection against harmful inter ference in a residential installation. This equipment generates, uses and can radiate radi o frequency energy and if not installed and used in accordance with the instructi ons, may cause harmful interference to radio communications. However, there is no guar antee that interference will not occur in a particular installation. If this equipm ent does cause harmful interference to radio or television reception, which can be determi ned by turning the equipment off and on, the user is encouraged to try to correct the in terference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV tech nician for help. FCC ID : UDX-MERAKI-OTDR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not c ause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expre ssly approved by the party responsible for compliance could void the user's au thority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your b ody. This transmitter must not be co-located or operatin g in conjunction with any other antenna or transmitter. We declare that the product is limited in CH1-CH11 for 2.4G band by specific firmware controlled by the manufacturer and is not user chan geable. EN 55 022 Declaration of Conformance This is to certify that the Wireless Router is shie lded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22). To reduce potential radio interference to other use rs, the antenna type and its gain should be so chosen that the equivalent isotropical ly radiated power (e.i.r.p.) is not more than that permitted for successful communicati on." This device has been designed to operate with the a ntennas listed below, and having a maximum gain of 9 dB. Antennas not included in this list or having a gain greater than 9 dB are strictly prohibited for use with this devi ce. The required antenna impedance is 50 ohms. Antennas suitable for use with the Meraki Outdoor: 1. Dipole Antenna with 2dBi gain 2. Dipole Antenna with 7dBi gain 3. Patch Antenna with cable 7.5dBi total gain 4. Chip Antenna with 2dBi gain (onboard) Antenna Configurations suitable for use with Meraki Outdoor: 1. Dipole Antenna with 2dBi gain 2. Dipole Antenna with 7dBi gain 3. Patch Antenna with cable 7.5dBi total gain 4. Chip Antenna with 2dBi gain (onboard) This device is intended only for OEM integrators un der the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located wit h any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programm ing tool. OEM shall not supply any tool or info to the end-user regarding to Regul atory Domain change. As long as 3 conditions above are met, further tran smitter test will not be required. However, the OEM integrator is still responsible fo r testing their end-product for any additional compliance requirements required with th is module installed (for example, digital device emissions, PC peripheral requirement s, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with a nother transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re- evaluating the end product (including the transmitt er) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID:UDX-MERAKI-OTDR”. Manual Information To the End User The OEM integrator has to be aware not to provide i nformation to the end user regarding how to install or remove this RF mod ule in the user’s manual of the end product which …

Text truncated - open the document above for the full version.

FCC ID: UDX-MERAKI-OTDR ADT No. 960705H04 Modular Approval Request Letter Advance Data Technology Oct. 12, 2007 Dear Application Examiner, Meraki Networks, Inc., LLC’s 802.11b/g Wireless Access Point, FCC ID: UDX-MERAKI-OTDR, would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip ADM6996F. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 3.3V DC powered. Input power provides 18VDC, so there are regulators in front of these chips, the part number of this regulator is AP1509-SL 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: UDX-MERAKI-OTDR ADT No. 960705H04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, May Chen Deputy Manager of Hsinchu Certification Service Div. Advance Data Technology

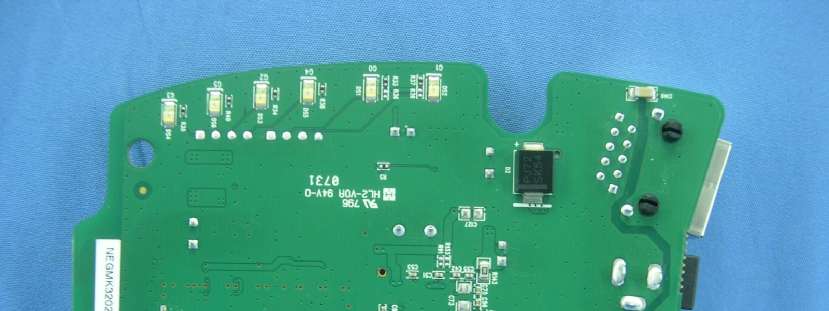

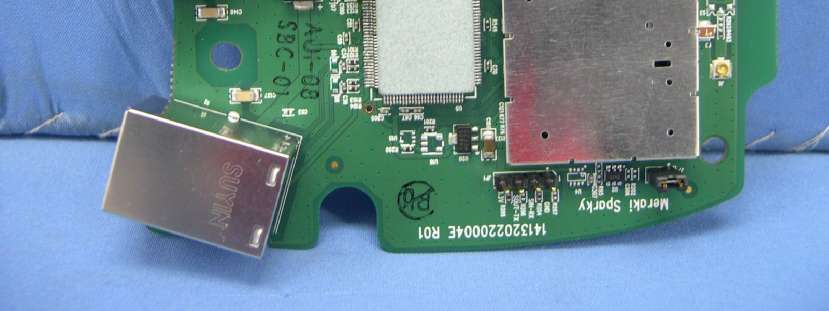

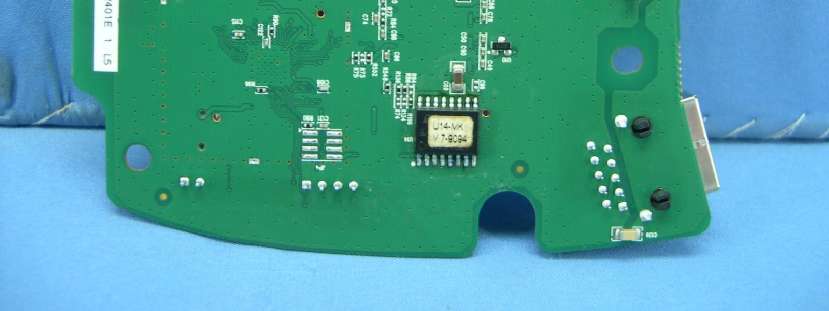

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID： ：： ：UDX-MERAKI-OTDR LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

ｦwｳWｶKｯﾈｳﾆｵ?: 1.ｦLｨ・Cｦ?:ｶﾂｦ? 2. 146000053800E R0A FCC LABEL MR3202A-FLF-MK Ellen 081307’ 1 1 0.1 Vender ID MFG Country MFG Factory 32.30 59.22 27.30 5.51 MODEL: POWER Output: FCC ID: IC: Meraki Networks Made in XXXXXX Meraki Outdoor 15V/0.8A UDX-MERAKI-OTDR 6961A-MRKIOTDR 1 2 146000053800E R0A XX XX 0560 R5.20 印刷色為100% BK

Page 2 Page 3 Page 4 Antenna Model No.: RFANT5220110A0T Page 5 Page 6 Antenna Model No.: ODU-OA-24-0201-A-W Page 7 Antenna Model No.: ODU-OA-24-0701-A Page 8 Antenna Model No.: ODU-DA-24-0904-A2 Page 9 PoE Page 10 Adapter Model No.: DSA-15P-15 US 150120 Page 11 Adapter Model No.: MU12-2150080-A1 Page 12

Report No.: SA960705H04 1 RF EXPOSURE REPORT REPORT NO.: SA960705H04 MODEL NO.: Meraki Outdoor FCC ID: UDX-MERAKI-OTDR ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Meraki Networks, Inc. ADDRESS: 313 West Evelyn Ave. Mountain View, CA 94041 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA960705H04 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA960705H04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by client enabled the EUT to transmit and receive data at specific channel frequencies individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA960705H04 4 6. Test Results 6.1 Antenna Gain The antennas used in this product are as following: No. Model No. Gain (dBi) Cable lose (dB) Net Gain (dBi) Antenna Type Connector 1 RFANT5220110A0T 2 0 2 Chip NA 2 ODU-OA-24-0201-A-W 2 0 2 Omni-Directional (Dipole) RP SMA Plug 3 ODU-OA-24-0701-A 7 0 7 Omni-Directional (Dipole) RP SMA Plug 4 ODU-DA-24-0904-A2 9 1.5 7.5 Directional (Panel) RP SMA Jack 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Antenna 1 : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 157.036 0.050 1.0 6 2437 81.658 0.026 1.0 11 2462 52.845 0.017 1.0 Antenna 2 : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 164.059 0.052 1.0 6 2437 193.642 0.061 1.0 11 2462 129.420 0.041 1.0 Antenna 3 : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 164.059 0.164 1.0 6 2437 193.642 0.193 1.0 11 2462 190.108 0.190 1.0 Report No.: SA960705H04 5 Antenna 4 : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 146.218 0.164 1.0 6 2437 193.642 0.217 1.0 11 2462 112.980 0.126 1.0 For Part 802.11g: Antenna 1 : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 154.525 0.049 1.0 6 2437 248.886 0.078 1.0 11 2462 111.173 0.035 1.0 Antenna 2 : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 95.940 0.030 1.0 6 2437 174.985 0.055 1.0 11 2462 99.083 0.031 1.0 Antenna 3 : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 95.060 0.095 1.0 6 2437 174.985 0.174 1.0 11 2462 88.105 0.088 1.0 Antenna 4 : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 67.764 0.076 1.0 6 2437 174.985 0.196 1.0 11 2462 60.534 0.068 1.0

Report No.: RF960705H04 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF960705H04 MODEL NO.: Meraki Outdoor RECEIVED: May 07, 2007 TESTED: Aug. 08 to Sep. 06, 2007 ISSUED: Sep. 07, 2007 APPLICANT: Meraki Networks, Inc. ADDRESS: 313 West Evelyn Ave. Mountain View, CA 94041 ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 169 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960705H04 2 Report Format Version 2.0.6 Table of Contents 1. CERTIFICATION...........................................................................................4 2. SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY...................................................................5 3. GENERAL INFORMATION...........................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................6 3.2 DESCRIPTION OF TEST MODES................................................................8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:...............9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................11 3.4 DESCRIPTION OF SUPPORT UNITS........................................................12 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................13 4. TEST TYPES AND RESULTS.....................................................................15 4.1 CONDUCTED EMISSION MEASUREMENT..............................................15 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................15 4.1.2 TEST INSTRUMENTS................................................................................15 4.1.3 TEST PROCEDURES.................................................................................16 4.1.4 DEVIATION FROM TEST STANDARD.......................................................16 4.1.5 TEST SETUP..............................................................................................17 4.1.6 EUT OPERATING CONDITIONS................................................................17 4.1.7 TEST RESULTS – Adapter Mode with adapter 1........................................18 4.1.8 TEST RESULTS – PoE Mode with Adapter 1..............................................20 4.1.9 TEST RESULTS – Adapter Mode with adapter 2........................................22 4.1.10 TEST RESULTS – PoE Mode with Adapter 2..............................................24 4.2 RADIATED EMISSION MEASUREMENT...................................................26 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................26 4.2.2 TEST INSTRUMENTS................................................................................27 4.2.3 TEST PROCEDURES.................................................................................28 4.2.4 DEVIATION FROM TEST STANDARD.......................................................28 4.2.5 TEST SETUP..............................................................................................29 4.2.6 EUT OPERATING CONDITIONS................................................................29 4.2.7 TEST RESULTS (Antenna 1)......................................................................30 4.2.8 TEST RESULTS (Antenna 2)......................................................................45 4.2.9 TEST RESULTS (Antenna 3)......................................................................60 4.2.10 TEST RESULTS (Antenna 4)......................................................................75 4.3 6dB BANDWIDTH MEASUREMENT..........................................................90 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................90 4.3.2 TEST INSTRUMENTS................................................................................90 4.3.3 TEST PROCEDURE...................................................................................91 4.3.4 DEVIATION FROM TEST STANDARD.......................................................91 4.3.5 TEST SETUP..............................................................................................91 Report No.: RF960705H04 3 Report Format Version 2.0.6 4.3.6 EUT OPERATING CONDITIONS................................................................91 4.3.7 TEST RESULTS (ANTENNA 1)...................................................................92 4.3.8 TEST RESULTS (ANTENNA 2)...................................................................98 4.3.9 TEST RESULTS (ANTENNA 3).................................................................104 4.3.10 TEST RESULTS (ANTENNA 4).................................................................110 4.4 MAXIMUM PEAK OUTPUT POWER........................................................116 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.........116 4.4.2 INSTRUMENTS........................................................................................116 4.4.3 TEST PROCEDURES...............................................................................117 4.4.4 DEVIATION FROM TEST STANDARD.....................................................117 4.4.5 TEST SETUP............................................................................................117 4.4.6 EUT OPERATING CONDITIONS..............................................................117 4.4.7 TEST RESULTS........................................................................................118 4.5 POWER SPECTRAL DENSITY M…

Text truncated - open the document above for the full version.

Report No.: RF960705H04 90 Report Format Version 2.0.6 4.3 6dB BANDWIDTH MEASUREMENT 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 4.3.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Dec. 09, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF960705H04 91 Report Format Version 2.0.6 4.3.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator. The bandwidth of the fundamental frequency was measured by spectrum analyzer with 100kHz RBW and 100kHz VBW. The 6dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6dB. 4.3.4 DEVIATION FROM TEST STANDARD No deviation 4.3.5 TEST SETUP 4.3.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. SPECTRUM ANALYZER EUT Report No.: RF960705H04 92 Report Format Version 2.0.6 4.3.7 TEST RESULTS (ANTENNA 1) 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28 deg. C, 62 %RH, 961 hPa TESTED BY Phoenix Huang CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 12.39 0.5 PASS 6 2437 11.76 0.5 PASS 11 2462 11.13 0.5 PASS Report No.: RF960705H04 93 Report Format Version 2.0.6 CH1 CH6 Report No.: RF960705H04 94 Report Format Version 2.0.6 CH11 Report No.: RF960705H04 95 Report Format Version 2.0.6 802.11g OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28 deg. C, 62 %RH, 961 hPa TESTED BY Phoenix Huang CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 16.38 0.5 PASS 6 2437 16.45 0.5 PASS 11 2462 16.38 0.5 PASS Report No.: RF960705H04 96 Report Format Version 2.0.6 CH1 CH6 Report No.: RF960705H04 97 Report Format Version 2.0.6 CH11 Report No.: RF960705H04 98 Report Format Version 2.0.6 4.3.8 TEST RESULTS (ANTENNA 2) 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28 deg. C, 62 %RH, 961 hPa TESTED BY Phoenix Huang CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 11.83 0.5 PASS 6 2437 11.2 0.5 PASS 11 2462 10.85 0.5 PASS Report No.: RF960705H04 99 Report Format Version 2.0.6 CH1 CH6 Report No.: RF960705H04 100 Report Format Version 2.0.6 CH11 Report No.: RF960705H04 101 Report Format Version 2.0.6 802.11g OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28 deg. C, 62 %RH, 961 hPa TESTED BY Phoenix Huang CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 16.45 0.5 PASS 6 2437 16.38 0.5 PASS 11 2462 16.31 0.5 PASS Report No.: RF960705H04 102 Report Format Version 2.0.6 CH1 CH6 Report No.: RF960705H04 103 Report Format Version 2.0.6 CH11 Report No.: RF960705H04 104 Report Format Version 2.0.6 4.3.9 TEST RESULTS (ANTENNA 3) 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28 deg. C, 62 %RH, 961 hPa TESTED BY Phoenix Huang CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 11.83 0.5 PASS 6 2437 11.2 0.5 PASS 11 2462 11.76 0.5 PASS Report No.: RF960705H04 105 Report Format Version 2.0.6 CH1 CH6 Report No.: RF960705H04 106 Report Format Version 2.0.6 CH11 Report No.: RF960705H04 107 Report Format Version 2.0.6 802.11g OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28 deg. C, 62 %RH, 961 hPa TESTED BY Phoenix Huang CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 16.38 0.5 PASS 6 2437 16.38 0.5 PASS 11 2462 16.38 0.5 PASS Report No.: RF960705H04 108 Report Format Version 2.0.6 CH1 CH6 Report No.: RF960705H04 109 Report Format Version 2.0.6 CH11 Report No.: RF960705H04 110 Report Format Version 2.0.6 4.3.10 TEST RESULTS (ANTENNA 4) 802.11b DSSS modulation MODULATION TYPE CCK TRANSFER RATE 11Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28 deg. C, 62 %RH, 961 hPa TESTED BY Phoenix Huang CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 11.13 0.5 PASS 6 2437 11.2 0.5 PASS 11 2462 11.83 0.5 PASS Report No.: RF960705H04 111 Report Format Version 2.0.6 CH1 CH6 Report No.: RF960705H04 112 Report Format Version 2.0.6 CH11 Report No.: RF960705H04 113 Report Format Version 2.0.6 802.11g OFDM modulation MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 28 deg. C, 62 %RH, 961 hPa TESTED BY Phoenix Huang CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1 2412 16.38 0.5 PASS 6 2437 16.38 0.5 PASS 11 2462 16.31 0.5 PASS Report No.: RF960705H04 114 Report Format Version 2.0.6 CH1 CH6 Report No.: RF960705H04 115 Report Format Version 2.0.6 CH11 Report No.: RF960705H04 116 Report Format Version 2.0.6 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Dec. 09, 2007 Agilent SIGNAL GENERATOR E8257C MY43320668 Dec. 07, 2007 TEKTRONIX OSCILLOSCOPE TDS380 B016335 July. 15, 2008 NARDA DETECTOR 4503A FSCM99899 NA NOTE: The calibration i…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Mode 1) 2 CONDUCTED EMISSION TEST (Mode 2) 3 CONDUCTED EMISSION TEST (Mode 3) 4 CONDUCTED EMISSION TEST (Mode 4) 5 RADIATED EMISSION TEST (Mode 1) 6 7 RADIATED EMISSION TEST (Mode 2) 8 9 RADIATED EMISSION TEST (Mode 3) 10 11 RADIATED EMISSION TEST (Mode 4) 12
