UEZTZ7110Ultra-Wideband evaluation kit

Tzero Technologies Confidential & Proprietary Tz TzTz Tzero ero ero ero 7110 RevA1 Mini 7110 RevA1 Mini7110 RevA1 Mini 7110 RevA1 Mini- -- -PCI Car PCI CarPCI Car PCI Card d d d Windows Windows Windows Windows Evaluation Evaluation Evaluation Evaluation K KK Kits itsits its User UserUser User Guide GuideGuide Guide 08-14-2006 Rev. A1 For Software Releases 1.2.2 (Windows) And Above Tzero Technologies Confidential & Proprietary © Tzero Technologies 2006. All rights reserved. All right, title and interest, copyrights, patents, know-how, trade secrets and other intellectual property relating to this publication and to the Tzero 7110 Mini-PCI card product are proprietary products of Tzero Technologies Inc. (“Tzero”). Any and all other trademarks, product names and other intellectual property rights are the sole property of their respective owners. The information presented in this publication does not form part of any quotation or contract, is believed to be accurate and reliable and may change. No part of this publication may be reproduced in any form whatsoever without prior written approval by Tzero. All products are sold subject to Tzero’s terms and conditions of sale supplied at the time of order. Tzero™ is a registered trademark of Tzero. No right, license, or interest to such trademark is granted hereunder. Regulatory Notice U.S. Operation: This device is under certification for compliance with FCC Code of Federal Regulations (CFR) 47, Part 15 Subpart F: Ultra-Wideband Operation. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to the Tzero 7110 Mini-PCI card without the prior written consent of Tzero may void the user’s authority to operate this device. Please consult with Tzero if you have any questions, prior to use. Non-U.S. Operation: Tzero chipset technology has not been authorized for use or commercial exploitation under the regulations of any non-U.S. government agency. Please confer with your government’s regulatory agency to obtain proper authorizations. Disclaimer • Tzero reserves the right to make any corrections, modifications, enhancements, improvements and other changes to the 7110 Mini-PCI Card Module and its services at any time and to discontinue any product or service without notice. As far as possible, major changes of the 7110 Mini-PCI Card Module specifications and functionality will be stated in product specific errata Notes. • Tzero warrants the performance of its products to the specifications applicable at the time of sale in accordance with Tzero’s standard warranty. • Tzero shall be released from all obligations under its warranty in the event that the equipment has been subjected to misuse, neglect, accident or improper installation, or if repairs or modifications were made by persons other than Tzero’s own authorized service personnel, unless such repairs by others were made with the written consent of Tzero. You will be liable for any damages caused by the above mentioned to yourself, Tzero or any third party. • There are no warranties which extend beyond the face of Tzero’s standard warranty, including, but not limited to, warranties of title, non-infringement, merchantability or fitness for a particular purpose, and in no event shall Tzero be liable for consequential damages. • You are responsible for your products and applications using Tzero products. Tzero assumes no liability for applications assistance or customer product design. Tzero Technologies Confidential & Proprietary 2 • Tzero shall not be liable to any person for any special or indirect damages, including, but not limited to, lost profits from any cause whatsoever arising from or in any way connected with the manufacture, sale, handling, repair, maintenance or use of the 7110 Mini-PCI Card Module. • Software components in the 7110 Mini-PCI Card Module are provided "as is" and without warranty of any kind. Notwithstanding the foregoing, Tzero shall do its best to provide error-free software products and shall offer free software updates during the warranty period. • Tzero’s cumulative liability to you or any other party for any loss or damages resulting from any claims, demands, or actions arising out of or relating to this publication and the Mini-PCI Module shall not exceed the sum paid to Tzero for the purchase of the 7110 Mini-PCI Card Module. • You may not, directly or indirectly, develop, market, distribute, license, or sell any product that supports substantially similar functionality as the 7110 Mini-PCI Card Module, based on or derived in any way from the 7110 Mini-PCI Card Module. Life Support Policy Tzero assumes no liability for the use of the 7110 Mini-PCI Card Module. The 7110 Mini- PCI Card Module is not designed for use in life support appliances, devices or other systems where malfunction can reasonably be expected to result in significant personal injury to the user or as a critical component in any life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system or to affect its safety or effectiveness. If you use or sell the product for use in such applications you do that at your own risk and agree to fully indemnify Tzero for any damages resulting from any of the abovementioned. Tzero Technologies Confidential & Proprietary 3 Getting Started Package Content Your Windows Evaluation Kit consists of two host systems, each comprised of the following modules: 1) A laptop running Windows XP Pro and configured with Tzero software. 2) One Mini-PCI card with Tzero chip set. One antenna and its mounting system: Tripod with mounting SMA bulkhead 3) One cable. 4) One Reverse Polarity (RP) SMA -> SMA adaptor In addition, the following documents are included in the package: 1) Windows Evaluation Kits User Guide. …

Text truncated - open the document above for the full version.

Letter Of Agency October 9, 2006 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: Please be advised that Tzero Technologies Inc. authorizes TDK Test services to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission (FCC) regarding Ultra-Wideband (UWB) products. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Rajeev Krishnamoorthy CTO and founder, Tzero Technologies

Request for Confidentiality October 9, 2006 Chief, Authorizations Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Tzero Certification Application FCC ID: FRN: 0015238777 To Whom It May Concern: Please be advised that the following exhibits are to be held confidential on behalf of Tzero Technologies, Inc.: • Schematics • Block Diagrams • Bill of Materials This application contains technical information that Tzero considers to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Rajeev Krishnamoorthy CTO and Founder

External Photo Documentation for TZero Certification Application October 9, 2006 Figure 1. Tzero TZ7110 Mini-PCI adaptor mounted in laptop.

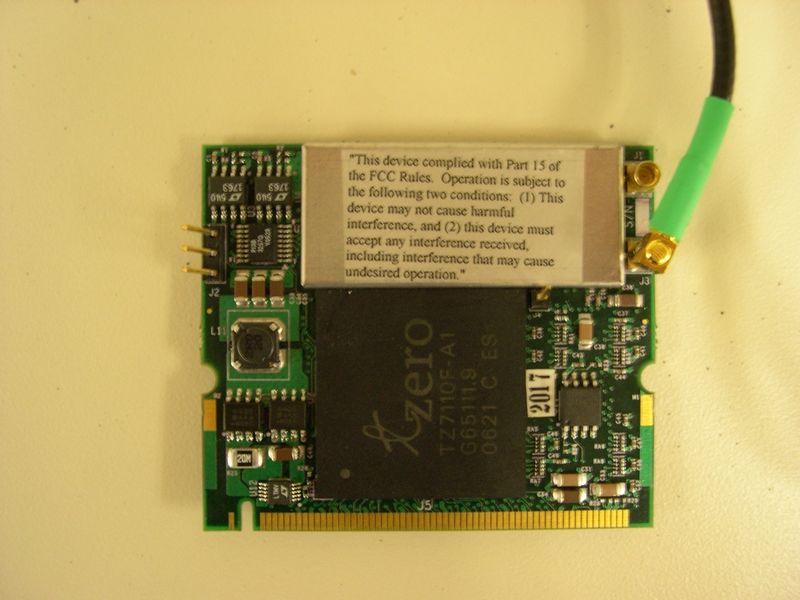

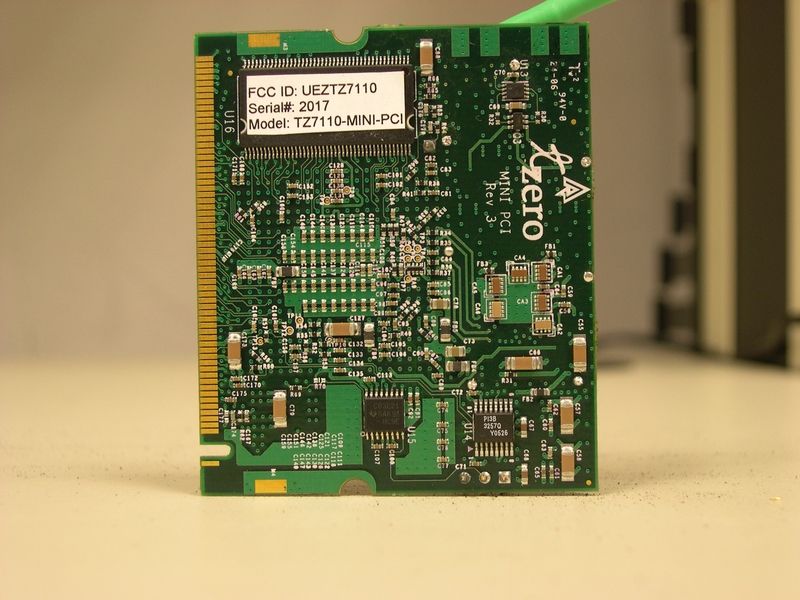

ID Photo Documentation for TZero Certification Application October 9, 2006 Figure 1. Close up Tzero 7110 Mini-PCI adapter including warning label. Figure 2. Reverse side of Tzero TZ7110 Mini-PCI adaptor including ID label.

Photo Documentation for TZero Certification Application October 9, 2006 Figure 1. Tzero 7110 Mini-PCI adapter including RP SMA connector Figure 2. Close up Tzero 7110 Mini-PCI adapter including labeling. Note: This port is disabled. Figure 3. Reverse side of Tzero TZ7110 Mini-PCI adaptor.

Internal Photo Documentation for TZero Certification Application October 9, 2006 Figure 1. Tzero 7110 Mini-PCI adapter including RP SMA connector Figure 2. Close up Tzero 7110 Mini-PCI adapter including labeling. Note: This port is disabled.

Photo Documentation for TZero Certification Application October 9, 2006 Figure 1. Tzero 7110 Mini-PCI adapter including RP SMA connector Figure 2. Close up Tzero 7110 Mini-PCI adapter including labeling. Note: This port is disabled. Figure 3. Reverse side of Tzero TZ7110 Mini-PCI adaptor. Figure 4. Tzero TZ7110 Mini-PCI adaptor mounted in laptop.

Theory of Operation TZ7110-MINI-PCI The Tzero TZ7110 Mini-PCI card is an evaluation platform intended for testing wireless video streaming applications. The board employs a mini-PCI interface, and contains a chipset containing a radio chip, the TZ7110 and a baseband/MAC chip, the TZ7120. The standard evaluation platform uses a Windows XP driver, a GUI-based evaluation software tool, and an omni-directional antenna with nominally 0 dBi gain. The TZ7110 Mini-PCI card implements the WiMedia/MB-OFDM PHY 1.0 specification for Band Group 1, which occupies a frequency range between 3168-4752 MHz. Band Group 1 is in turn sub-channelized into three 528 MHz bands, with center frequencies of 3432 MHz, 4488 MHz, and 4752 MHz. This is illustrated in Figure 1. This specification employs Orthogonal Frequency Division Multiplexing (OFDM) modulation with 128 carriers and a carrier spacing of 4.125 MHz. The symbol length is 312.5ns. The bandwidth of the signal is above 500 MHz. There are both hopping and fixed frequency channels, known as Time-Frequency Codes (TFC). The fixed frequency channels occupy a single 528 MHz band, there is one channel for each of the three bands. The hopping channels hop on each symbol boundary through all three bands. There are four hopping sequences, each with a period of 6 symbols, for example, Band 1-Band 2-Band 3-Band 1-Band 2-Band 3. This makes a total of 7 TFCs: the hopping TFCs are labeled 1-4, the fixed frequency TFCs are labeled 5-7. The TZ7110 Mini-PCI card implements WiMedia/MB-OFDM PHY data rates ranging from 53.3 – 480 MBPS with packet sizes up to 4095 bytes. The transmit power of the TZ7110 Mini-PCI card is limited to an EIRP of -41.3 dBm/MHz average power. The nominal channel power is -10 dBm for hopping channels and -15 dBm for fixed frequency channels. As the hopping channels use 3x the bandwidth, they employ 3x or 4.7 dB higher integrated channel transmit power than the fixed frequency channels. f 3432 MHz 3960 MHz 4488 MHz Band #1 Band #2 Band #3 Figure 1. WiMedia/MB-OFDM Band Group 1

All services undertaken are subject to the following general policy. Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of TDK R&D Corporation. This report must not be used to claim product endorsement by A2LA, NVLAP nor any other agency of the US Government. Compliance report of TZ7110 REV A Compliance report of TZ7110 REV ACompliance report of TZ7110 REV A Compliance report of TZ7110 REV A Customer: Customer:Customer: Customer: Tzero Technologies Inc Date: Date:Date: Date: October 26, 2006 TDK Report: TDK Report:TDK Report: TDK Report: 090506TZRev2 Test performed by: Test performed by:Test performed by: Test performed by: TDK R&D Corporation 1101 Cypress Creek Rd Cedar Park, TX 78613 Technician TechnicianTechnician Technician Checked by Checked byChecked by Checked by Radiated 30 MHz to 40 GHz Radiated 30 MHz to 40 GHzRadiated 30 MHz to 40 GHz Radiated 30 MHz to 40 GHz A. Medina A. MedinaA. Medina A. Medina K. Yata K. YataK. Yata K. Yata Conducted 150 KHz to 30 MHz Conducted 150 KHz to 30 MHzConducted 150 KHz to 30 MHz Conducted 150 KHz to 30 MHz K. Yata K. YataK. Yata K. Yata K. Yata K. YataK. Yata K. Yata Report ReportReport Report A. Medina A. MedinaA. Medina A. Medina K. Yata K. YataK. Yata K. Yata T-Zero test report TZ7110 Rev A 2/44 1. Executive Summary An EMC evaluation to determine compliance of the TZ7110 REV A with requirements of FCC 47 CFR Part 15, Subpart F Section 15.519 was conducted. All references are to the most current version of the Code of Federal Regulations 47 that is currently in effect. In accordance with §2.1033, the following data is presented in support of the Certification of the TZ7110 REV A. The client should retain a copy of this document on file for at least 5 years after the manufacturing of the product has been discontinued. Test Description FCC 47 CFR Section Compliance Operational Limitations 15.519 (a) The client has been notified of these limitations. In normal operating mode the transmitter will only send data when associated with a receiver. See section 5 for detail UWB Bandwidth 15.503, 15.519 (b) Yes Radiated Emissions 15.519 (c), 15.209 (a) Yes Radiated Emissions in GPS Bands 15.519 (d) Yes Peak Emissions within a 50 MHz Bandwidth 15.519 (e) Yes 3 2. Task Description 2.1. Scope Reference FCC ET Docket No. 98-153, FCC 02-48 First R&O; FCC 47 CFR, Part 15, Subpart A; FCC 47 CFR, Part 15, Subpart B; FCC 47 CFR, Part 15, Subpart C; FCC 47 CFR, Part 15, Subpart F FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) Title Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems; Code of Federal Regulations, Part 15 Subpart A: General Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation Purpose of Test To gain FCC Certification Authorization for technical requirements for outdoor UWB Systems operating between 3.1 GHz and 10.6 GHz. Test Procedures The tests were conducted in accordance with the following documents: FCC ET Docket 98-153, FCC 02-48 First R&O ANSI C63.4: 2001: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Code of Federal Regulations 47, Part 15 Subpart A: General FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) General Procedures FCC Code of Federal Regulations 47, Part 2 Frequency Allocations and Radio Treaty Matter: General Rules and Regulations Classification of EUT Hand-Held Ultra-Wideband System 4 2.2. Related Submittal(s)/Grant(s) None 2.3. Test Plan Reference Publication Year Title FCC 47 CFR, Part 15, Subpart A 10/2004 Code of Federal Regulations, Part 15 Subpart A: General FCC 47 CFR, Part 15, Subpart B 10/2004 Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators FCC 47 CFR, Part 15, Subpart C 10/2004 Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators FCC 47 CFR, Part 15, Subpart F 10/2004 Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation FCC ET Docket 98-153, FCC 02-48 First R&O 04/2002 Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems: First Report & Order ANSI C63.4 01/2001 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC ET Docket No. 04- 352 3/2005 Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG 2.4. Client Information APPLICANT Name: Tzero Technologies Inc Address: 445 West Maude Ave, Suite 100, Sunnyvale, CA 94085 Contact Person: Sanjay Mani MANUFACTURER Name: Tzero Technologies Inc Address: 445 West Maude Ave, Suite 100, Sunnyvale, CA 94085 Contact Person: Sanjay Mani 5 2.5. Equipment Under Test (EUT) The following information (with the exception of the date information) has been supplied by the applicant. The test results in this report pertain only to the item tested. General Brand Name Ultra-Wideband Evaluation Kit Product Name Wireless miniPCI Adapter Reference Design Model Name or Number TZ7110 REV A Serial Number 2040 Type of Equipment UWB Radio Transmitter Input Power Supply Type PC miniPCI port Classification Hand-Held Ultra-Wideband System Technical Power Supply Requirements Powered through miniPCI port of PC RF Output Rating -42 dBm EIRP @ 3 meters Operating Frequency Range 3100 MHz to 4800 MHz RF Output Impedance 50 Ω Channel Spacing N/A Pulse Width N/A Pulse Repetition Frequency N/A 10 dB Bandwidth >500 MHz Modula…
