UF9IPS1492.4 GHz Radar Sensor

Annex No.5 1 of 38 User Manual 2.4 GHz Radar Sensor IPS-149 Manual IRS21 Version V1.29C (09/2006) Technical Documentation IRS20/21 Page 2 of 37 Table of contents 1 GENERAL REMARKS 4 2 STORAGE CONDITIONS 5 3 OPERATING CONDITIONS 5 4 APPROVALS 5 5 QUALITY 5 6 SYSTEM DESCRIPTION 6 6.1 HARDWARE 6 6.2 THE INTERFACES 8 7 MOUNTING AND INSTALLATION 10 7.1 PREPARATION 10 7.2 MOUNTING 11 7.3 CONNECTION OF THE SUPPLY LEAD 12 7.4 COMMISSIONING AND TESTING 14 8 MAINTENANCE 14 8.1 EXCHANGE OF THE SENSOR 14 Technical Documentation IRS20/21 Page 3 of 37 9 IRS-21 PROTOCOL 16 9.1 INTRODUCTION 16 9.1.1 IRS-21 BUS PROTOCOLS 16 9.2 BINARY PROTOCOL 17 9.2.1 TELEGRAM SETUP (DESCENDING BYTE SERIES) 17 9.2.2 PHYSICAL CONDITIONS 17 9.2.3 COMMANDS 18 9.2.4 DEFINING THE IDENTIFICATION 22 9.3 ASCII-PROTOKOLL (IRS-21 <-> HOST COMPUTER) 23 9.3.1 PHYSICAL CONDITIONS AND FEATURES 23 9.3.2 COMMANDS FOR READING OUT MEASUREMENT VALUES 24 9.3.3 EEPROM CONFIGURATION + ADDRESSING THE RS485 BUS 27 9.4 BINARY PROTOCOL (IRS-21 OVER OPUS200/300 <-> HOST COMPUTER) 28 9.4.1 PHYSICAL CONNECTION AND HARDWARE STRUCTURE 28 9.4.2 SOFTWARE PROTOCOL 28 9.4.3 TELEGRAM AND DATA FORMAT 29 9.4.4 CONFIGURATION OF THE OPUS200 MODULES 32 9.4.5 CONFIGURATION OF THE ROAD SENSOR 33 ENCLOSURE 35 10 COMPLIANCE STATEMENT 36 Technical Documentation IRS20/21 Page 4 of 37 1 General remarks The IRS-20/21 Road Sensor serves to monitor road conditions. In contrast to most other sensors on the market, the IRS determines the road condition within the sensor itself. This was made possible by means of a high-end microcontroller and a sensor system which consists of the following components: • Surface temperature measurement. Two additional temperature sensors can be connected for measuring temperature under ground. These latter values are not taken into account for determining the road condition. • Multi-frequency measurement • Measurement of salt concentration and freezing temperature • Determination of the water film height on the surface of the sensor. Depending on the measured values the IRS-20/21-software calculates a possible road con- dition based on correlation factors and operates within a temperature range from –20°C to +60°C. For temperature values higher than a nominated temperature TPOS (default value 2ºC) the model recognises the conditions "Dry", "Residual Salt", "Damp" and "Wet". Values below TPOS additionally allow the determination of "Freezing Wetness", "Hoar Frost / Dry Snow" and "Ice / Wet Snow". The IRS-20 can be used only in combination with a Lufft datalogger OPUS 2. The IRS-21 can be connected to any host computer which is able to support one of the communication protocols described in chapter 9. Furthermore, the sensor has the following characteristics: • Compact construction and easy installation • Low maintenance • Resistant to physical and chemical influences • Exchangeable even when installed • Data transmission via RS 485 (IRS-21) • Measurement time < 2s, therefore low energy consumption Technical Documentation IRS20/21 Page 5 of 37 2 Storage conditions Permissible ambient temperature ...............................-30°C ... +70°C Permissible relative humidity ......................................0...100 % rel. humidity 3 Operating Conditions Permissible ambient temperature ..............................-30°C ... +70°C Permissible relative humidity .....................................0...100 % rel. humidity Protection Class..........................................................IP68 4 Approvals Design conforms to CE 5 Quality Warranty period ..........................................................2 years Maintenance interval...................................................annually Technical Documentation IRS20/21 Page 6 of 37 6 System description 6.1 Hardware The sensor consists basically of two components: • Basic housing with connection cables for communication and power supply • Housing cover with sensor electronics and evaluation electronics These two components are joined together by 6 screws. Two concentric circles on the sensor surface provide the measurement values for the multi- frequency measurement. Alonside, in a recess, there are two electrodes that provide infor- mation about salt concentration and thereby the freezing temperature. Additionally, a tem- perature sensor, which determines the surface temperature, is installed in the central elec- trode. Beneath the remainder of the surface is the aerial for the impedance sensor, by means of which the water film height above the cover can be determinded. The printed circuit board, which contains the signal conditioning and evaluation electronics, is also directly connected to the cover. Data is output via an RS485 interface. Important!! Power consumption during measurement is approximately 200 mA. In order to exclude measurement errors through self-heating, the IRS-20/21 should only be supplied with power only for approx. 2s. For the IRS-20 this is controlled by the OPUS2. The IRS-21 must be switched on and off by the control program of the host system. After data interrogation, therefore, the sensor must be free of voltage. The measurement interval must be >1 minute. Technical Documentation IRS20/21 Page 7 of 37 h Multi-frequency Temperature Freezing temp. Water film Signal conditioning Controller RS485 Power supply A B 12V GND Illustration 1: IRS-20/21 Schematic Unit Diagram Technical Documentation IRS20/21 Page 8 of 37 6.2 The Interfaces Illustration 2 shows three possible combinations by means of which the IRS-20/21 can communicate with terminal devices. Please also consider the manual 8410.KON2. 8161.SV3 Mains Unit Level Transducer 8160.RS485 8161.SV3 Mains Unit Level Transducer 8160.RS485 Null-Modem Cable RS232 Interface IRS Configurations Via OPUS200 Open Protocol OEM Applications Via RS232-PC Open Protocol OEM Applications Via RS485 Open Protocol OEM Applications RS485/ UB=12V, clocked (both electrically isolated for all sensors) Radar IRS-20 Radar Radar …

Text truncated - open the document above for the full version.

Annex No.7 Page 1 of 1 Block Diagram : 2.4 GHz Radar Sensor IPS-149 Oscillator frequencies generated or used in the device: : 2.435 GHz to 2.475 GHz

,:innrifFFi DtN EN FO sn1 NB:?0J!qlrqi2e2 e,€:n.:r,i'Ft.itEip- Lutft G. LUFFT MESS.UND REGELTECHNIK GMBH GUTENBERGSTRASSE 20 70736 FELLBACH TEL. ++ 49 (0) 71 1 - 51822 - 0 FAX ++ 49 (0) 71 1 - 51822 - 41 Letter of Authorization We, G.Lufft Mess und Regeltechnik,Gutenbergstrasse 20,7l736Fellbach, Germany, hereby authorize m.dudde hochfrequenz-technik, Rottland 5a, 51429 Bergisch Gladbach, Germany, to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We further certify that the applicant nor any party to the application is subject to a denial of Federal benefits that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. Fellbach . 17.7.2006 Geschäftsführer: Dipl.-Wirtsch.lng. Klaus Hirzel Dipl.lng. Axel Schmitz-Hübsch Waiblingen HRB 2436

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus - Reg.-Nr.: TTI-P-G128/96 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Date 2006-09-22 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(1)(ii) and Section 0.459 pertaining to confidential material. G. Lufft Mess- Regeltechnik GmbH,Gutenbergstrasse 20, D-70736 Fellbach, Germany would like the following documents regarding this submission for FCC ID: UF9IPS149 to be kept confidential. Lufft 2.4GHz Radar Sensor IPS-149 1. Page 2 to 3 of Annex no. 8 document “Schematics” The above material contains trade secret or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, m. dudde hochfrequenz-technik Manfred Dudde

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus - Reg.-Nr.: DAT-P-G225/96-02 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Date: 2007-01-02 Subject: Modular approval request To: FCC TCB Herewith we like to apply for "Modular approval" for the following device: Applicant/manufacturer: G. Lufft Mess- und Regeltechnik GmbH Module name: IPS-149 (2.4 GHz Radar Sensor Module) FCC ID: UF9IPS149 This device is subject of this FCC application package. Justification for our request is summarized below: 1. RF shielding This device has its own RF shielding. 2. Data Inputs This device is designed in such a way, that whenever the data input is disturbed or disconnected, the RF signal is not affected and the device will not go out of compliance. 3. Power supply regulation The regulated voltage supply is provided by the equipment in which the 2.4 GHz Radar Sensor Module IPS-149 is built-in. In the user’s manual there is described within which voltage limits the transceiver may be used. Higher voltages lead to the destruction of the device. 4. Antenna The antenna of the 2.4 GHz Radar Sensor Module IPS-149 is an patch antenna and an part on the PCB 5. Stand alone tested The 2.4 GHz Radar Sensor Module IPS-149 had been tested with an external power supply which was directly connected. 6. Labeling The terminal equipment refers with its label to the enclosed 2.4 GHz Radar Sensor Module IPS-149. 7. Specific Operation requirements The modular transmitter complies with the specific rule or operating requirements applicable to the transmitter. 8. RF exposure requirements The modular transmitter complies with any applicable RF exposure requirements. Best regards, [Signature] R. Trepper m.dudde hochfrequenz-technik Phone: +49 2207 9689 16 email: [email protected] Site 1 of 1

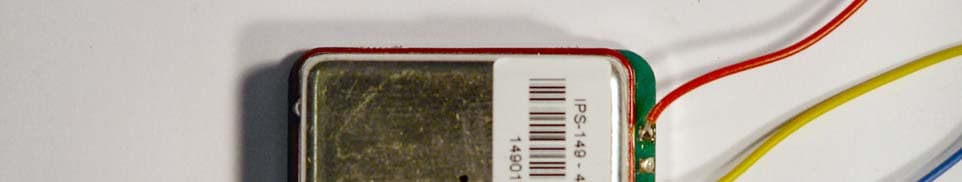

Annex No.1 Page 1 of 3 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO Annex No.1 Page 2 of 3 EXTERNAL REAR VIEW PHOTO Annex No.1 Page 3 of 3 PHOTO OF CONFIGURATION

Annex No.4 Page 1 of 2 FCC ID LABEL SAMPLE SKETCH OF FCC ID LABLE LOCATION Annex No.4 Page 2 of 2

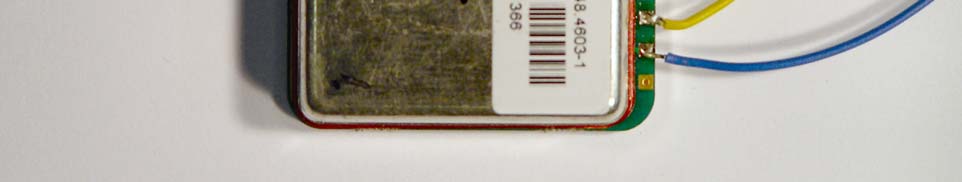

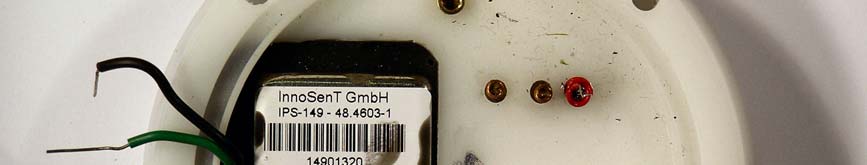

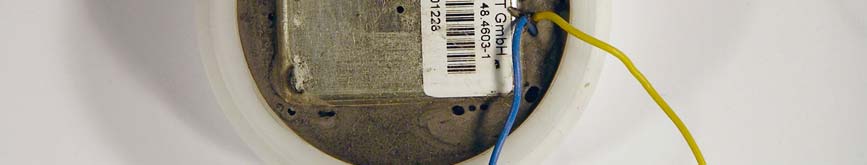

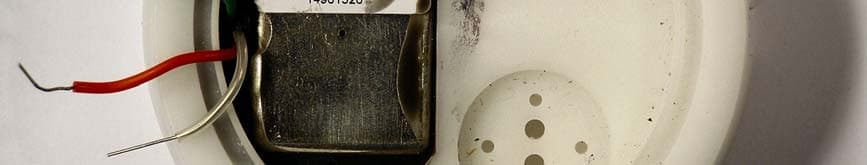

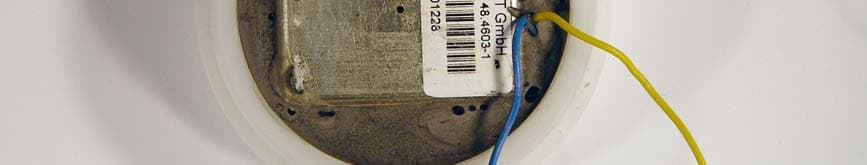

Annex No.2 Page 1 of 1 Internal Photographs of the Equipment under Test

Annex No.9 Page 1 of 2 Technical Description 2,4 GHz Radar Sensor IPS-149 Annex No.9 Page 2 of 2

Test report no. 07003839 Page 1 of 23 EUT : 2,4 GHz Radar Sensor IPS-149 FCC ID: UF9IPS149 Date of issue: 2007-01-02 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com DAT-P-225/96-02 Test Report acc. to the relevant standard 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4 - 1992 relating to G. Lufft Mess- und Regeltechnik GmbH 2.4 GHz-Radar-Sensor IPS-149 Measurement of Radio- Noise Emissions from Low- Voltage Electrical and Electronic Equipment Technical characteristics and test methods for radio equipment in the frequency range 9 kHz to 40 GHz Test report no. 07003839 Page 2 of 23 EUT : 2,4 GHz Radar Sensor IPS-149 FCC ID: UF9IPS149 Date of issue: 2007-01-02 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com Manufacturer’s details Manufacturer G. Lufft Mess- und Regeltechnik GmbH Manufacturer’s grantee code UF9 G. Lufft Mess- und Regeltechnik GmbH Gutenbergstr. 20 D-70736 Fellbach Germany Phone: +49 (0) 711 51822 0 Fax: +49 (0) 711 51822 41 Manufacturer’s address 47 CFR Part 15C - Intentional Radiators ANSI C63.4-1992 Relevant standard used G. Lufft Mess- und Regeltechnik GmbH Test Report prepared by Ralf Trepper m.dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 Technical engineer E-mail: [email protected] Equipment Under Test (EUT) Equipment category Field disturbance sensor Trade name Lufft Type designation 2.4 GHz Radar Sensor IPS-149 Serial no. --- IRS-20 / IRS-21 (Variants in which the 2.4GHz Radar Sensor IPS-149 will be built in) Variants Test report no. 07003839 Page 3 of 23 EUT : 2,4 GHz Radar Sensor IPS-149 FCC ID: UF9IPS149 Date of issue: 2007-01-02 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com 0 Test result CFR Section Report Chapter Requirements Headline Test result OK 15.203 10.1 Antenna requirement pass fail n.a. 15.249(a) 10.2 Field strength limits (fundamental) pass fail n.a. 15.249(d) 15.209 10.2 Radiated spurious emissions pass fail n.a. 15.215(c) 10.3 20 dB bandwidth pass fail n.a. Test requirements kept yes no Signature (Technical engineer) ........................................ Ralf Trepper Signature (Manager) ....................................... Manfried Dudde Test report no. 07003839 Page 4 of 23 EUT : 2,4 GHz Radar Sensor IPS-149 FCC ID: UF9IPS149 Date of issue: 2007-01-02 m. dudde hochfrequenz-technik Rottland 5a Vers. no. 1.06 D-51429 Bergisch Gladbach Tel.: +49 2207-9689-0 Fax: +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com List of contents Page 0 Test result ............................................................................................................................................... 3 1 Test laboratory........................................................................................................................................ 5 2 Introduction............................................................................................................................................ 5 3 Product................................................................................................................................................... 6 4 Test schedule .......................................................................................................................................... 6 5 Product and measurement documentation................................................................................................ 7 6 Observations and comments.................................................................................................................... 7 7 Summary ................................................................................................................................................ 7 8 Conclusions ........................................................................................................................................... 8 9 Operation description.............................................................................................................................. 9 10.1 Antenna requirement ......................................................................................................................... 10 10.1.1 Regulation ...................................................................................................................................... 10 10.1.2 Result ............................................................................................................................................. 10 10.2 Radiated emissions ........................................................................................................................... 11 10.2.1 Regulation ...................................................................................................................................... 11 10.2.2 Test equipment ............................................................................................................................... 13 10.2.2 Test procedures............................................................................................................................... 13 10.2.3 Calculation of field strength Section 15.209 below 30 MHz ........................................................... 14 10.2.3 Calculation of field strength Section 15.209 above 30 MHz ........................................................... 14 10.2.4 Calculation of average correction factor.......................................................................................... 14 10.2.5 Calculation of the fiel…

Text truncated - open the document above for the full version.

Annex No.6 Page 1 of 6 Test Setup Photos : IPS-149 Annex No.6 Page 2 of 6 Annex No.6 Page 3 of 6 Annex No.6 Page 4 of 6 Annex No.6 Page 5 of 6 Annex No.6 Page 6 of 6
