UFQB400SPNBMAINBlighter B400 Series Main Radar Unit

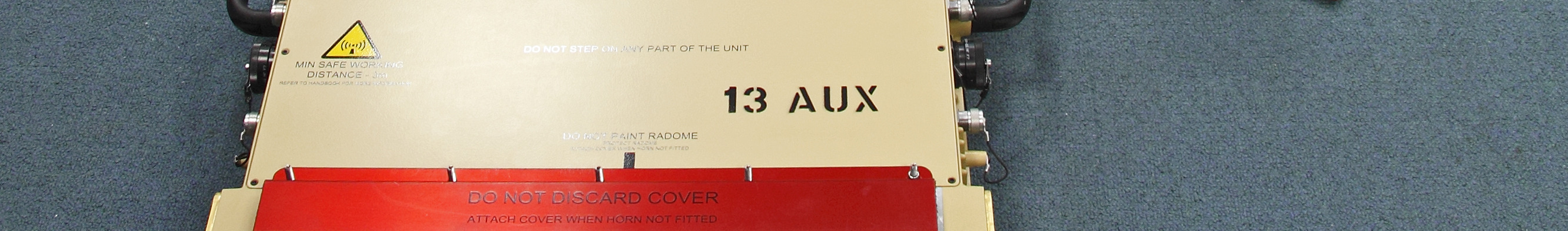

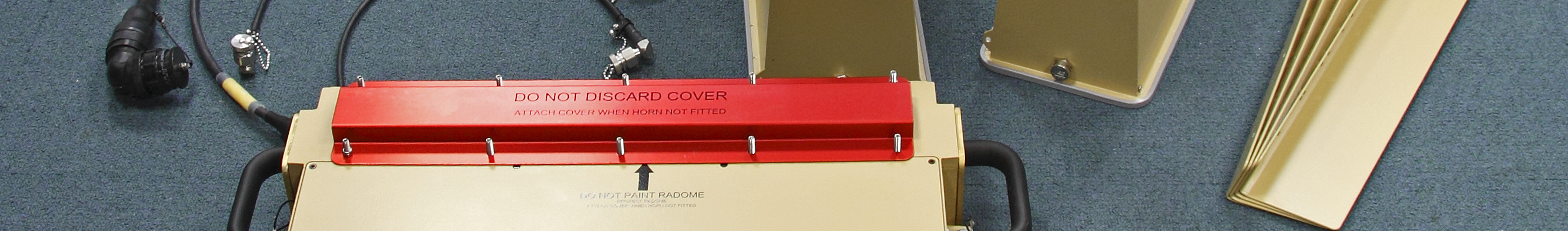

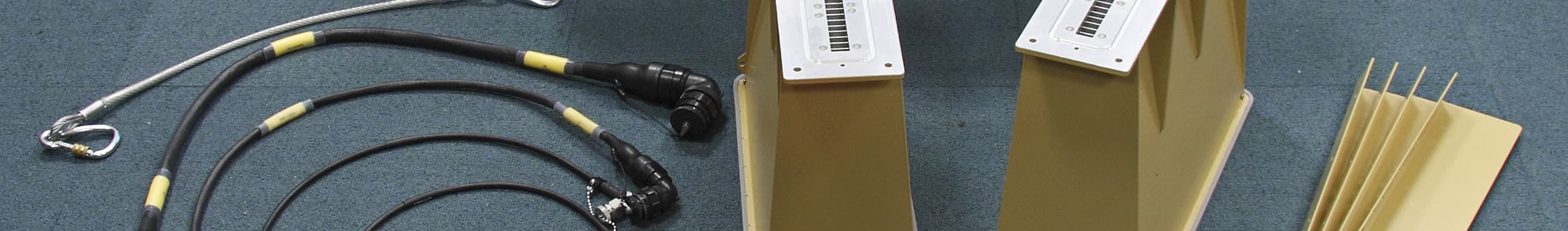

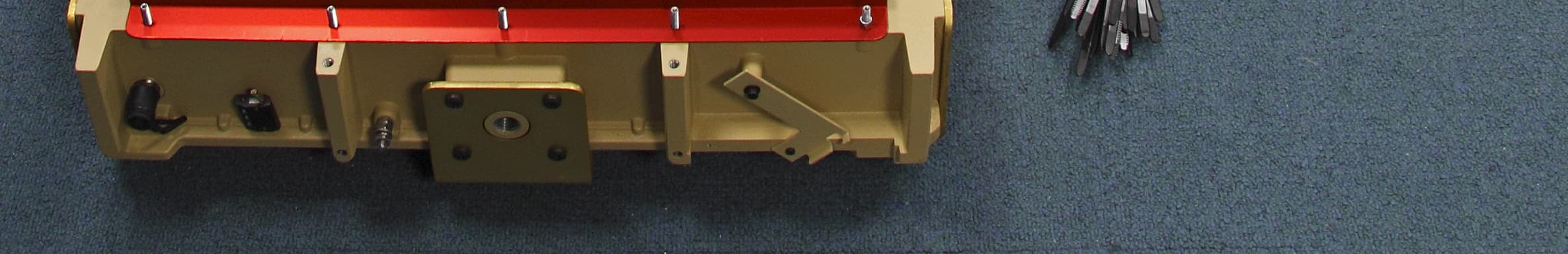

Main Unit (horns shown detached) Auxiliary Unit (horns shown detached) 1 x Main and 3 x Auxiliary units installed

EXPOSURE LIMITS FOR ELECTROMAGNETIC RADIATION Referenced Documents“Guidelines for Limiting Exposure to Time-Varying Electric, Magnetic and Electromagnetic Fields (up to 300GHz)” ICNIRP Guidelines. Health Pysics 74 (4); 1998 FCC Part 47 of CFR, 1 October 2004, paragraph 1.1307 IEEE C95.1-2005 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz -Description Table 8 and Table 9 EN 62311:2008 This Document ref : 8BT74301Last updated04/04/2010 near/far field boundary d16.95m t = time exposure correction factor (referenced to 3.5 minutes) Wavelength λ0.0174m maximum dimension of the antenna D0.384m Transmit Power P1.05W Maximum Duty Cycle correction factor x1.00 x = 69% Maximum Duty Cycle (general 5km), 84% duty cycle (normal 8km), max duty cycle 94% (Fast 8km mode) ref. 8BT364 01e Mean Tx Power (inc. duty cycle) 1.05W Gain of Antenna G26dBi Linear Gain of Antenna 398.1071706 Exposure Limit 10 W/m 2 1 mW/cm 2 Taken from ICNIRP report. IEEE quote this as 10mW/cm 2 for Controlled Exposure Power Density @ d (d=R) P d 0.0116 mW/cm 2 Safety margin @d79.4dB Exposure Limit in near field 3.3333 W/m 2 see note 10.3333 mW/cm 2 Note 1: Applies 300% uncertainty factor for calculations in near field Safe Distance from Antenna R3.16mWorst case scenario - Unscanning beam, 3.5 minutes exposure. SAFESafe Distance Matrix (m) DISTANCE MATRIXFCC (Part 47 of CFR, para 1.1307) & ICNIRPIEEE C95.1-2005 Exposure Duration {e} (seconds) t {e/210} Uncontrolled Exposure (1mW/cm 2 ) Controlled Exposure (5mW/cm 2 ) Uncontrolled Exposure (1mW/cm 2 ) Controlled Exposure (10mW/cm 2 ) In Front of Antenna (26dBi antenna gain)15110 20.010.180.080.180.06Typical walk-by exposure time Scanned100.050.400.180.400.13 (Does not take into 300.150.700.310.700.22 account 300% uncertainty600.290.990.440.990.31 factor in near field)1200.591.400.631.400.44 1800.881.710.771.710.54 2041.001.820.821.820.58 20.010.310.140.310.10Typical walk-by exposure time Unscanned100.050.700.310.700.22 λ 2 .2D d= 2 .R4. .P.G. π xt P d = d P xt R ..4 G.P.. π = Unscanned100.050.700.310.700.22 (Does take into 300.151.210.541.210.38 account 300% uncertainty600.291.710.771.710.54 factor in near field)1200.592.421.082.420.77 1800.882.971.332.970.94 2041.003.161.413.161.00Continuous exposure (i.e. Not time limited) Behind Antenna (0dBi antenna gain assumed)1.005.001.0010.00 20.010.010.000.010.00Typical walk-by exposure time Scanned100.050.020.010.020.01 (Does not take into 300.150.040.020.040.01 account 300% uncertainty600.290.050.020.050.02 factor in near field)1200.590.070.030.070.02 1800.880.090.040.090.03 2041.000.090.040.090.03 20.010.020.010.020.00Typical walk-by exposure time Unscanned100.050.040.020.040.01 (Does take into 300.150.060.030.060.02 account 300% uncertainty600.290.090.040.090.03 factor in near field)1200.590.120.050.120.04 1800.880.150.070.150.05 2041.000.160.070.160.05 Assumptions Scanned Beam scanning across frequency range. Scanning is expected to average out any local maximum, therefore can lose the 300% uncertainty in near field UnscannedUse 300% uncertainty for near field measurement Exposure Duration {t}Any frequency above 10GHz has to use a mean power averaged over a 68/f 1.05 minute (3.5mins) period in the calculation. This expsoure duration is converted to a fraction of 3.5 mintues. Uncontrolled ExposureGeneral public exposure Controlled ExposureOccupational exposure WiFiThe WLAN transmitter and Antenna gain are not significant in this calculation (0.14W & 4dBi). λ 2 .2D d= 2 .R4. .P.G. π xt P d = d P xt R ..4 G.P.. π =

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Blighter B422-SP Main Unit To: FCC Part 90: 2009, Subpart F in accordance with RFI Test Plan RFI/REGE1/TP75565JD03 Test Report Serial No: RFI-RPT-RP76954JD03A_V2.0 Versions 2.0 supersedes all previous versions This Test Report Is Issued Under The Authority Of Brian Watson, COO Payments and Consultancy: pp Checked By: R. Graham Signature: Date of Issue: 30 April 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP76954JD03A_V2.0 VERSION 2.0 ISSUE DATE: 30 APRIL 2010 Page 2 of 30 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP76954JD03A_V2.0 VERSION 2.0 ISSUE DATE: 30 APRIL 2010 RFI Global Services Ltd Page 3 of 30 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 7 4. Operation and Monitoring of the EUT during Testing ............................................................. 10 5. Measurements, Examinations and Derived Results ................................................................ 11 6. Measurement Uncertainty .......................................................................................................... 28 Appendix 1. Test Equipment Used ................................................................................................29 TEST REPORT SERIAL NO: RFI-RPT-RP76954JD03A_V2.0 VERSION 2.0 ISSUE DATE: 30 APRIL 2010 Page 4 of 30 RFI Global Services Ltd 1. Customer Information Company Name: Plextek Ltd Address: London Road Great Chesterford Essex CB10 1NY United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP76954JD03A_V2.0 VERSION 2.0 ISSUE DATE: 30 APRIL 2010 RFI Global Services Ltd Page 5 of 30 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR90 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 90: Public Safety Radio Pool Specification Reference: 47CFR2 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 2: Frequency Allocations and Radio Treaty Matters; General Rules and Regulations Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH, England Test Dates: 01 March 2010 to 26 March 2010 RFI Test Plan Reference: RFI/REGE1/TP75565JD03 Date: 11 th January 2010 Description: Test Plan from RFI Global Services Ltd for Blighter B400 Series Radar TEST REPORT SERIAL NO: RFI-RPT-RP76954JD03A_V2.0 VERSION 2.0 ISSUE DATE: 30 APRIL 2010 Page 6 of 30 RFI Global Services Ltd 2.2. Summary of Test Results FCC Reference (47CFR ) Measurement Result Part 2.1046 Transmitter RF Conducted Output Power Part 2.1049 Transmitter Occupied Bandwidth (Bandwidth Limitations) Part 2.1051 / Part 2.1057 Spurious Emissions at Antenna Terminals Part 2.1053 / Part 2.1057 Field Strength of Spurious Radiation Part 2.1053 Transmitter Band Edge Radiated Emissions Part 2.1055 Transmitter Frequency Stability (Temperature & Voltage Variation) Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP76954JD03A_V2.0 VERSION 2.0 ISSUE DATE: 30 APRIL 2010 RFI Global Services Ltd Page 7 of 30 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Description: FMCW Radar – Main Unit Brand Name: Blighter Model Name or Number: B422-NBSP Serial Number: 6B501 Hardware Version Number: BoM / Rev – Main 6BA39B/01 Software Version Number: Build 81 FCC ID Number: UFQB400SPNBMAIN 3.2. Description of EUT The equipment under test was the Main Unit of a multi-frequency ground surveillance radar system that can scan and detect moving vehicles and persons over a 180º area and can operate up to a range of 16 km. The main radar unit contains a GPS receiver and Wireless LAN transceiver (WLAN). The EUT assembly was mounted onto a tripod for test purposes. A personal computer (PC) is normally connected to the main radar unit by Ethernet or WLAN. The radar system can be configured and monitored from the PC. The Client stated that power to the EUT is provided from a DC supply only. The Client stated that an electronic test target was not required. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. TEST REPORT SERIAL NO: RFI-RPT-RP76954JD03A_V2.0 VERSION 2.0 ISSUE DATE: 30 APRIL 2010 Page 8 of 30 RFI Global Services Ltd 3.4. Additional Information Related to Testing Category of Equipment: Radar Type of Radio Device: Transceiver Intended Operating Environment: Outdoor Nominal 16.0 V Minimum 13.6 V Power Supply Requirement(s): Maximum 18.4 V Antenna Type: Sectoral Horn Antenna Gain: 26 (dBi) On Boresight Modulation Type: FM-CW Channel Bandwidth When Operating On A Single Frequency: 25.538MHz Transmi…

Text truncated - open the document above for the full version.
