UFU07D200N

FirstCom Technology Co., Ltd

Wireless Skype phone (Dongle)

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Sep 18, 2007
Application Purpose: Original Equipment
Date of Application: Sep 18, 2007
Equipment Note: Wireless Skype phone (Dongle)
Frequency Range: 2413.15200000 - 2470.17600000
Company: FirstCom Technology Co., Ltd
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

Internal Photos

Test Report

Test Setup Photos

Document Text Content (5 documents)

External Photos

Top View of TX Bottom View of TX

ID Label/Location Info

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC IDQ6N199ELA 27MHz

Internal Photos

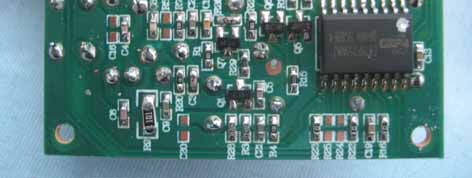

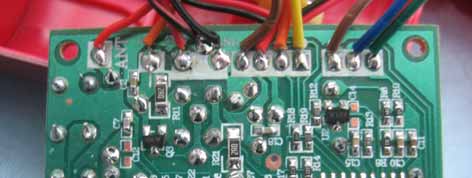

Internal photo of TX-1 Internal photo of TX-2 Internal photo of TX-3 Internal photo of TX-4

Test Report

EL199 Pterosaur 27.045 ~ 27.225MHz Transmitter Operation Description Mar.10, 2007 Confidential Page 1 of 3 The Microprocessor (U1, Figure 1) reads input commands (SW2/SW3/W2/W3,Figure 1),and then encodes them to digital codes. The codes are sent to RF oscillator via pin 6 of U1, Q6, Q7 and then modulates 27.045~27.225MHz carry frequency signal via Q1 (Figure 2) to achieve AM signal . Figure 1 The Radio Frequency of the transmitter is based on standard 27MHz AM citizen’s band. It generates low power 27.045~27.225MHz AM carrier frequency via major components of Q1, Y1, L1, C5, C21, R4, R3 and R28 etc. (Figure 2). Please note that the value of the components may vary. Please see the attached schematics for more detail. EL199 Pterosaur 27.045 ~ 27.225MHz Transmitter Operation Description Mar.10, 2007 Confidential Page 2 of 3 Figure 2 The AM signal (via capacitor C3) is passed to RF amplifier (Figure 3,Q2,C8,R9,C9 and L2), which amplifies the signal and then couples the signal into the antenna (ANT1) via components C4,C6,L4,C7 and L3. EL199 Pterosaur 27.045 ~ 27.225MHz Transmitter Operation Description Mar.10, 2007 Confidential Page 3 of 3 Figure 3

Test Setup Photos

11 22 33 44 55 66 77 88 DD CCBB AA Title Number Revision Size A3 Date: 12/29/2006 Sheet of File: H:\EED\..\EL190TX_SCH.SchDoc Drawn By: C9102 R34.7k C868P C447P C718p R9100R C347P ANT1 R4 100R Y1 27.045 ~ 27.225MHz R710K C2104 L32.2uH C682P C547P L22.2uH L12.2uH VCC 123456789 101112131415161718 U1 R1610K C11104 Vref C13104W210K R12220R R1339K C15104 VDD R18330R R19220R VDD U2KA431 Vref W310K SW2 R Chg RGND BatV VDD R1100R C1102 BT3 3.7V,LI-PO Q4S8550 Q3 S8550 D11N4007 R112R/1206 Chg Q58050D R15 2.2k R142.2k VCC R8 10K R6100kR10100k C10 104 BatV BT1 4.5V BT2 4.5V VDD VCC 2 31 SW1ON/OFF TxD VDD C19104 C17 100uF/16V C18104 TRIM TRIM R172.2k SW3 L R2 100R Q28050D Q1C380Y R20180 R212R/1206 R2410K R2310K VDD Q68050D C21102 L4 1.5uH Q7S8550 R264.7k R2710k TxD VCC P64 P64 D2Green D3Red C22102 R284.7k Vref
