UHLRF4A05REMOTE CONTROL

RF Remote control user manual FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. 1. Pull out the Antenna of Remote Control 2. Press “ ” key on remote control to execute a “up ” command meanwhile the LED indicator will light up. 3. Press “ ” key on remote control to execute a “ down” command meanwhile the LED indicator will light up. 4. press “ ” key on remote control to execute a “ stop” command meanwhile the LED indicator will light up. Replace battery : 1. Open the back cover of remote control with screwdriver , take out the used battery. 2. Install the new battery ,make sure of “+” ,”-” position in battery chamber. 3. Close the the cover of remote control , tighten it with screws . FCC Warning Statements for the FCC ID Label Requirement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:7-Aug-2006 Sheet of File:D:\MYPCB\REMOTE315.ddbDrawn By: KEYS ENCODE GENERATORRF OSCILLATOR OOK MODULATION ANTENNA WITH 433.92MHz SAW PDF created with pdfFactory Pro trial version www.pdffactory.com

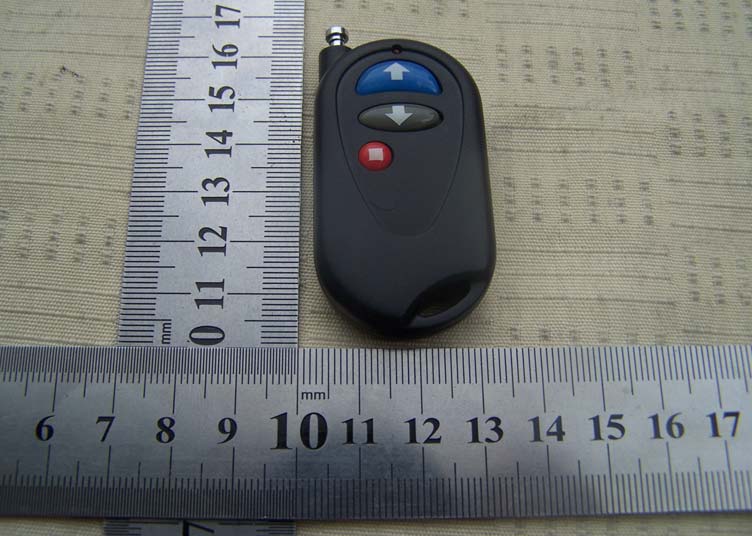

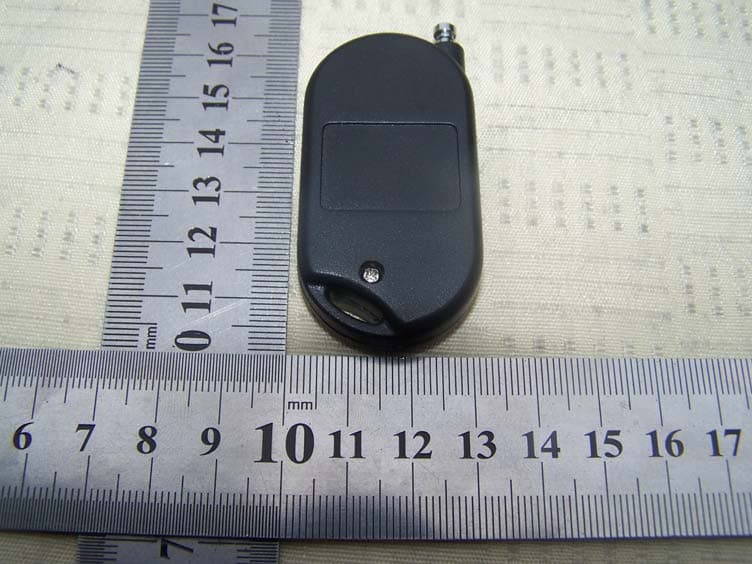

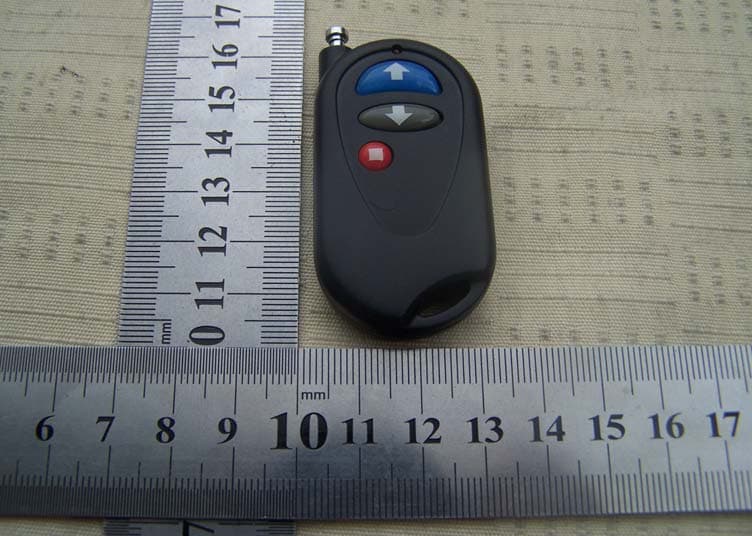

EUT—External Photo View 1. EUT- Front View 2. EUT- Back View

Remote Control FCC ID LABEL Remote Control Model: RF-4A05 FCC ID: UHLRF4A05 This device compliance with part 15 of the FCC rules ,See instruction manual Rating: 9~12V DC 15mA MADE IN CHINA

FCC ID LABEL Location This device complies Part 15 of the FCC rules. Operation is subject to the following Two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause Undesired operation. The label must not be a stick-on paper. The label on these products must be permanently affixed to the product and readily visible at the time of Purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location

EUT- Internal Photo 1. EUT- Open View 2. EUT- PCB Component View 3. EUT- PCB Solder View

RF Remote Control Operation Description This is a short distance RF remote control with 433.92MHz , there are “ “ “ ” and “ ” three Buttons on it . The different command signal are transmitted when pressing the different buttons , at the same time the red LED will light up . The remote control have an antenna which can be stretched out. When antenna be stretched out , the power of signal which be transmitted by this remote control will stronger , and the remote distance will be maximum . The remote control powered by one 12V alkali battery , its standby current is less than 5 uA ,and operating current is less than 15mA when in operation. When operating remote control, its LED light become weaker and remote distance become short obviously ,it is time to change used battery with new one . Open the cover of remote control with screwdriver , replace the used battery with the same type battery .

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:2-Aug-2006 Sheet of File:D:\MYPCB\REMOTE315.ddbDrawn By: 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 U1 SC2260 R3 47K D1 RED R2 2.2k C3 15P C2 3.3P Q1 2SC3356 VCC12V C4 102 K4 PB K3 PB K2 PB R5 10 R4 100R R1 8.2M C1 104P L1 20nH A0 A1 A2 A3 A4 A5 A6 A7 L2 D3,6T C5 3.3P C6 5.6P C7 5.6P 1 2 3 4 X1 SAW433.92MHz E1 ANTENNA PDF created with pdfFactory Pro trial version www.pdffactory.com

SHENZHEN EMTEK Co., Ltd. REPORT NO:E0608036F FCC ID: UHLRF4A05 DATE: 08/04/2006 Page 1 of 23 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Remote Control MODEL No.: RF-4A05 FCC ID: UHLRF4A05 REPORT NO: E0608036F ISSUE DATE: August 04, 2006 Prepared for GU & CONCORD PTE., LTD Rm.2404, No.1 Building, 511 Wu Zhong Road, Shanghai, China Prepared by SHENZHEN EMTEK Co., Ltd. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 SHENZHEN EMTEK Co., Ltd. REPORT NO:E0608036F FCC ID: UHLRF4A05 DATE: 08/04/2006 Page 2 Rev. 00 VERIFICATION OF COMPLIANCE Applicant: GU & CONCORD PTE., LTD Rm.2404, No.1 Building, 511 Wu Zhong Road, Shanghai, China Product Description: Remote Control Model Number: RF-4A05 Serial Number: N/A File Number: E0608036F Date of Test: August 04, 2006 We hereby certify that: The above equipment was tested by SHENZHEN EMTEK Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC 15 Paragraph 15.205, Paragraph 15.209, Paragraph 15.231,Paragraph 15.31, Paragraph 15.33, Paragraph 15.35. The test results of this report relate only to the tested sample identified in this report. Approved By Reviewed By David Lee / Q.A. Manager Phenix / Engineer SHENZHEN EMTEK Co., Ltd.. SHENZHEN EMTEK Co., Ltd.. SHENZHEN EMTEK Co., Ltd. REPORT NO:E0608036F FCC ID: UHLRF4A05 DATE: 08/04/2006 Page 3 Rev. 00 Table of Contents 1. GENERAL INFORMATION ................................................................................................. 5 1.1 P RODUCT D ESCRIPTION ........................................................................................................................... 5 1.2 R ELATED S UBMITTAL ( S ) / G RANT ( S ) ..................................................................................................... 5 1.3 T EST M ETHODOLOGY .............................................................................................................................. 5 1.4 S PECIAL A CCESSORIES ............................................................................................................................ 5 1.5 E QUIPMENT M ODIFICATIONS .................................................................................................................. 5 1.6 T EST F ACILITY ........................................................................................................................................ 6 2. SYSTEM TEST CONFIGURATION .................................................................................... 7 2.1 EUT C ONFIGURATION ............................................................................................................................. 7 2.2 EUT E XERCISE ........................................................................................................................................ 7 2.3 T EST P ROCEDURE .................................................................................................................................... 7 2.4 L IMITATION ............................................................................................................................................. 8 2.5 C ONFIGURATION OF T ESTED S YSTEM ..................................................................................................... 9 3. SUMMARY OF TEST RESULTS ....................................................................................... 10 4. DESCRIPTION OF TEST MODES .................................................................................... 10 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT).......... 11 5.1 MEASUREMENT PROCEDURE:................................................................................................................ 11 5.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ....................................................................... 11 5.3 M EASUREMENT E QUIPMENT U SED : ...................................................................................................... 11 5.4 MEASUREMENT RESULT:....................................................................................................................... 11 5.5 C ONDUCTED M EASUREMENT P HOTOS :.................................................................................................. 11 6. RADIATED EMISSION TEST ............................................................................................ 12 6.1 M EASUREMENT P ROCEDURE ................................................................................................................. 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................... 13 6.3 M EASUREMENT E QUIPMENT U SED : ...................................................................................................... 13 6.4 M EASUREMENT R ESULT ........................................................................................................................ 14 7. DEACTIVATION TESTING ............................................................................................... 15 7.1 REQUIREMENT....................................................................................................................................... 15 7.2 T EST SET-UP........................................................................................................................................ 15 7.3 M EASUREMENT E QUIPMENT U SED : ...................................................................................................... 15 7.4 TEST PROCEDURE.......................................................…

Text truncated - open the document above for the full version.

Test Setup Photo
