UHW10030002Microwave Oven

Model: D100N30AL-T4 Microwave Oven User's manual 1. Please read these instructions carefully before installing and operating the oven. Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference. SERIAL NO. 1 2. Do not attempt to operate this oven with the door-open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. 3. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. 4. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: a. Door (bent), b. Hinges and latches (broken or loosened), c. Door seals and sealing surfaces. 5. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. CONTENT PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ...............................................................................................................................1 IMPORTANT SAFETY INSTRUCTIONS...............................................................................2 INSTALLATION GUIDE .........................................................................................................3 GROUNDING INSTRUCTIONS ............................................................................................3 UTENSILS GUIDE ................................................................................................................4 COOKING TECHNIQUES.....................................................................................................5 SPECIFICATIONS.................................................................................................................6 PART NAMES .......................................................................................................................6 CONTROL PANEL ................................................................................................................7 HOW TO SET THE OVEN CONTROLS ...............................................................................8 Setting the clock ............................................................................................................8 Microwave cooking........................................................................................................8 Grill cooking...................................................................................................................8 Combination cooking.....................................................................................................8 Auto Cook......................................................................................................................9 Defrost by weight...........................................................................................................9 Jet Defrost .....................................................................................................................9 Multi-stage Cooking.....................................................................................................10 Delay start ...................................................................................................................10 Quick start ...................................................................................................................10 Child Lock....................................................................................................................10 Special Feature ...........................................................................................................10 CLEANING AND CARE.......................................................................................................11 P P R R E E C C A A U U T T I I O O N N S S T T O O A A V V O O I I D D P P O O S S S S I I B B L L E E E E X X P P O O S S U U R R E E T T O O E E X X C C E E S S S S I I V V E E M M I I C C R R O O W W A A V V E E E E N N E E R R G G Y Y SAVE THESE INSTRUCTIONS 2 When using electrical appliances, basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 1. 3. This appliance must be grounded. Connect only to properly grounded outlet. See "grounding instructions " on page 3. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs and sealed containers -for example, closed glass jars- are able to explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 9. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due…

Text truncated - open the document above for the full version.

Date: Jan 09 , 2007 Federal communications commission Authorization and Evaluation Division FCC ID: UHW10030001 Confidentiality Request Pursuant to section 0.457 and 0.459 of the commission’s rules,the applicant hereby requests confidential treatment of information accompanying this application as outline below: 1. Schematics 2. Block diagram 3. Operational description The above materials contain trade secrets and proprietary information not customarily released to the public,the public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Valley Wang & Guangdong Galanz Enterprise Phone : +86 0757-23612785 Fax : + 86 0757-23612537 E-Mail:[email protected]

1 External Photos of EUT sample Photo 1- Front view of EUT Photo 2- Back view of EUT 2 Photo 3 – Inner view of EUT

Label & Location Proposed FCC Label Format: Dimention：Length x width = 170mm x 30mm Specifications: Text is white or black in color and is left justified ,Labels are printed in indelible ink on permanent adhesive backing or sile-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed FCC Label Location: location FCC Warning Statement: The Device complies with part 18 of the FCC rules,Operation is subject to the following conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received,including interference that may cause undersired operation .

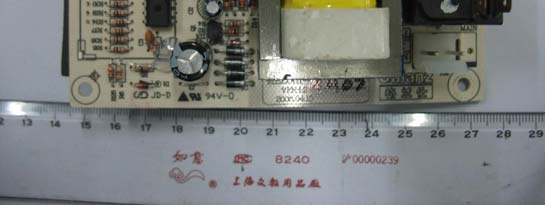

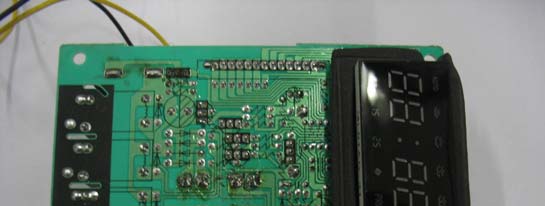

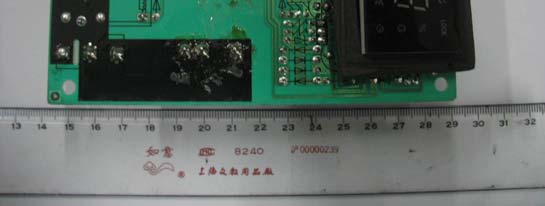

1 External Photos of EUT sample Photo 1- Uncovered view of EUT Photo 2- Front view of AC Power filter board 2 Photo 3 – Back view of AC Power filter board Photo 4 –Front view of Main board Photo 5 – Back view of main board

670 National Avenue, Mountain View, CA 94043 Tel. (650) 988-0900 Fax (650) 988-6647 www.ecmg-global.com EMI Test Report On Model Name : Microwave oven Model Numbers : D100N30X-Z Brand Name : Galanz FCC ID : UHW10030002 Prepared for Guangdong Galanz Enterprises Co., Ltd. According to FCC Part 18 Industrial, Scientific and Medical Equipment FCC/OST MP-5(1986) FCC methods of measurements of radio noise emission from industrial,scientific and medical equipment Test Report # : GUA-0701-5980-FCC Prepared by : Ravin Su Reviewed by : Ivan Wen QC Manager : Paul Chen Test Report Released by: 2007, January 12 th ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯ Paul Chen Date NVLAP Lab code: 200068-0 ISO/IEC 17025:1999, ISO 9002:1994 List Attached Files Exhibit Type File Description File Name Test Report Test Report UHW10030002 _Test report.pdf Operation Description Technical Description UHW10030002 _operationdescription.pdf External Photos External Photos UHW10030002 _External Photos Internal Photos Internal Photos UHW10030002 _Internal Photos Block Diagram Block Diagram UHW10030002 _Block Diagram.pdf Schematics Circuit Diagram UHW10030002 _Schematics.pdf ID Label/Location Label Artwork and Location UHW10030002 _Label & Location.pdf User Manual User Manual UHW10030002 _User Manual.pdf Test setup photos Test setup photos UHW10030002 _Test Setup Photos Test Location Tests performed at Galanz in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location: Guangdong Galanz Enterprises Co., Ltd 25 South Ronggui Rd., Shunde, Foshan, Guangdong, China. Tel: 86-757-23612785 Fax: 86-757-23612537 FCC Registration Number: 580210 Accreditation Bodies EMC Compliance Management Group is a fully accredited Test Laboratory for ITE, ISM, MIL-STD and Telecommunications Products. In compliance with the site registration requirements of Section 2.948 of the FCC Rules to perform EMI measurements for the general public. FCC Registration #: 894293. Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code # 200068-0. Table of Contents GOVERNMENT DISCLAIMER NOTICE _______________________________________ 1 REPRODUCTION CLAUSE __________________________________________________ 1 OPINIONS AND INTERPRETATIONS ________________________________________ 1 STATEMENT OF MEASUREMENT UNCERTAINTY ____________________________ 1 ADMINISTRATIVE DATA ___________________________________________________ 1 EUT DESCRIPTION_________________________________________________________ 2 TYPE OF DERIVER _________________________________________________________ 3 TEST SUMMARY ___________________________________________________________ 4 LOAD FOR MICROWAVE OVENS ___________________________________________ 5 EQUIPMENT MODIFICATION _______________________________________________ 5 EUT SAMPLE PHOTOS FOR MODEL D100N30AL-T4 ________________________ 6 TEST SYSTEM DETAILS ___________________________________________________10 CONFIGURATION OF TESTED SYSTEM ____________________________________11 ATTACHMENT 1 – RADIATION HAZARD TEST _____________________________12 ATTACHMENT 2 – INPUT POWER MEASUREMENT _________________________15 ATTACHMENT 3 – RF OUTPUT POWER MEASUREMENT____________________18 ATTACHMENT 4 – OPERATING FREQUENCY MEASUREMENT_______________21 ATTACHMENT 5 - CONDUCTED EMISSION TEST RESULTS _________________24 ATTACHMENT 6 - RADIATED EMISSION TEST RESULTS ___________________28 EMC Test Report #: GUA-0701-5980-FCC Prepared for Guangdong Galanz Enterprises Co., LTD. Prepared by EMC Compliance Management Group Page 1 of 32 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from EMC Compliance Management Group, 670 National Ave., Mountain View, CA 94043. Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT). Without the permission of EMC Compliance Management Group Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. Administrative Data Test Sample : Microwave Oven EMC Test Report #: GUA-0701-5980-FCC Prepared for Guangdong Galanz Enterprises Co., Ltd. Prepared by EMC Compliance Management Group Page 2 of 32 Model Numbers : D100N30X-Z Model Tested : D100N30AL-T4 Brand Name : Galanz Date Tested : 2006, December 26 th Applicant : Guangdong Galanz Enterprises Co., Ltd. 25 Ronggui Nan Rd., Shunde, Foshan, Guangdong, China. Telephone : 86-757-23612785 Fax : 86-757-23612537 Manufacturer : Guangdong Galanz Enterprises Co., Ltd. 25 Ronggui Nan Rd., Shunde, Foshan, Guangdong, China. EUT Description Guangdong Galanz Enterprises Co., Ltd. model tested …

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1. AC input power measurement 2． Conducted Emission Test 3. Operation frequency measurement 4.Radiated emission measurement 5. Radiation hazard test 6. RF output power measurement
