UHW11043001Microwave Oven

1.6 Cu. Ft. Countertop Microwave Model: P11043AP-YZ GLN010214 1 IMPORTANT SAFETY INSTRUCTIONS 2 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 3 INSTALLATION GUIDE 4 GROUNDING INSTRUCTIONS 4 PRODUCT DIAGRAM 5 CONTROL PANEL 6 INSTALLING THE TURNTABLE 6 OPERATION INSTRUCTIONS 7 COOKING UTENSILS GUIDE 11 COOKING TECHNIQUES 12 CLEANING AND CARE 14 BEFORE CALLING FOR SERVICE 14 SPECIFICATIONS 15 TABLE OF CONTENTS 2 READ ALL SAFETY INSTRUCTIONS BEFORE USING THIS MICROWAVE WARNING - to reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy, basic safety precautions should be followed, including the following: 1. Read all instructions before using the microwave. 2. This microwave must be grounded. Connect only to properly grounded outlets. See page 4 for grounding instructions. 3. Install or place this microwave only in accordance with installation instructions. 4. Some produce such as whole eggs and sealed containers-for example, closed glass jars - are able to explode and should not be heated in this oven. 5. This microwave is intended for use only as described in this manual. Do not use corrosive chemicals or vapors in this microwave. This type of microwave is specifically designed to heat, cook, or dry foods. It is not designed for laboratory use. 6. As with any appliance, close supervision is necessary when used by children. 7. To reduce the risk of fire in the oven cavity，do not overcook food. Carefully attend to the microwave when paper, plastic, or other combustible materials are placed inside the microwave to facilitate cooking. 8. Remove wire twist-ties from paper or plastic bags before placing in microwave. 9. If materials inside the microwave should ignite, keep microwave door closed, turn it off, and disconnect the power cord or turn off the power fuse at the circuit breaker panel. Do not use the microwave cavity for storage purposes. 10. Do not leave paper products, cooking utensils, or food in the cavity when not in use. 11. Liquids, such as water, coffee, or tea may overheat beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury: do not overheat the liquid; stir the liquid both before and halfway through heating; do not use straight-sided containers with narrow necks; after heating, allow the container to stand in the microwave a short time before removing; use extreme care when inserting a spoon or other utensil into the container. 12. Do not heat oil or fat for deep-frying in this microwave. It is difficult to control the temperature of oil in the microwave. 13. Pierce foods with heavy skins, such as potatoes, before cooking. 14. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving to avoid burns. 15. Cooking utensils may become hot from heat transferred from the heated food. Pot holders may be needed to handle these utensils. 16. Do not cover or block any openings on the microwave. 17. Do not store or use this microwave outdoors. Do not use this microwave near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location. 18. Do not operate this microwave if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 19. Do not immerse the cord or plug in water. Keep cord away from heated surfaces. Do not let the cord hangover the edge of the table or counter. SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS 3 20. Use only thermometers specifically designed for microwaves. 21. Do not operate any heating or cooking under this microwave. 22. Be certain the glass tray and roller rings are in place when using the microwave. 23. Read and follow the specific “Precautions to Avoid Possible Exposure to Excessive Microwave Energy” section found on page 3. 24. When cleaning microwave surface and door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. 1. Do not attempt to operate this microwave with the door open. Door open operation can result in harmful exposure to microwave energy. It is important not to defeat of tamper with the safety interlocks. 2. Do not place any objects between the microwave front face and the door, or allow soil or cleaner residue to accumulate on sealing surfaces. 3. Do not operate the microwave if damaged. It is particularly important that the microwave door be properly closed and there is no damage to the door (bent), hinges and latches (broken or loosened), or door seals and sealing surfaces. 4. The microwave should not be adjusted or repaired by anyone except properly qualified service personnel. SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS (continued) PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 4 1. Make sure all packing materials are removed from inside the microwave door. 2. Check the microwave for damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches, and dents inside the cavity or on the door. 3. This microwave must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked inside. 4. Do not place the oven where heat, moisture, or high humidity is generated. Do not place microwave near combustible materials. 5. For correct operation, the oven must have sufficient air flow. Allow 8” of space above the microwave, 4” at the back, and 2” on each side of the unit. 6. Do not cover or block any openings on the microwave. Do not remove microwave feet. Do not operate the oven without the glass tray, roller support, and shaft in their proper positions. Make sure the power supply…

Text truncated - open the document above for the full version.

Guangdong Galanz Enterprises Co., Ltd 25 South Ronggui Rd., Shunde, Foshan, Guangdong, China DATE 2014-01-10 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: UHW11043001 Product Name: Microwave Oven Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this / Day of 01/10/2014 / By: Valley.Wang Signature Printed Title: Vice director/CTSC On behalf of : Guangdong galanz Enterprises Co.,Ltd Telephone: 86-757-23612785

Guangdong Galanz Enterprises Co., Ltd 25 South Ronggui Rd., Shunde, Foshan, Guangdong, China Authority to Act as Agent to ACB: MUST BE ON COMPANY LETTERHEAD AND SIGNED BY COMPANY OFFICIAL DATE 2014-01-10 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint ECMG Electronic Technical Testing Corp(Zhongshan). (Name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by ACB, Inc., still resides with ECMG Electronic Technical Testing Corp(Zhongshan). ( applicant name and address). Dated this / Day of 01/10/2014 / Agency agreement expiration date: 01/10/2015 B y: Valley.Wang Signature Printed Title: Vice director /CTSC On behalf of : Guangdong Galanz Enterprises Co.,Ltd Telephone: 86-757-23612785

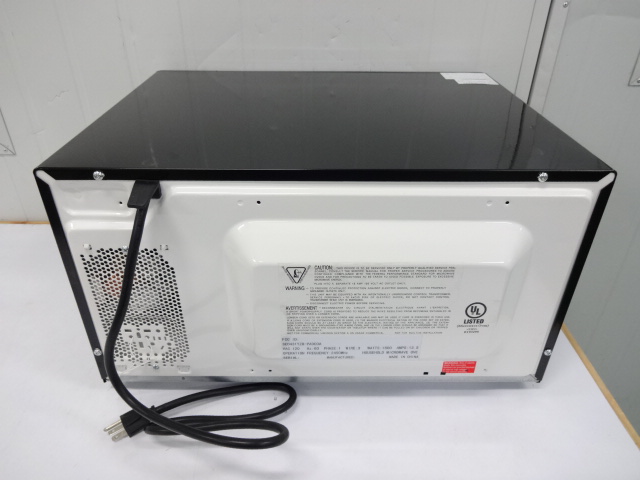

External Photos of EUT Sample 1. Front and Top View of EUT 2. Rear View of EUT 3. Door Open View of EUT

Internal Photos of EUT Sample 1. Uncovered View from Right Side of EUT 2. Uncovered View from Top Side of EUT 3. Front View of Main Board 4. Back View of Main Board 5. Front View of AC Power Filter Board 6. Back View of AC Power Filter Board 7. View of Magnetron

www.ecmg-global.net EMI TEST REPORT On Model Name: Microwave Oven Model Number: P11043(X) -(Y) Brand Name: Galanz Prepared for Guangdong Galanz Enterprises Co., Ltd FCC ID Number: UHW11043001 According to FCC Part 18(2013) Industrial, Scientific and Medical Equipment FCC/OST MP-5(1986) FCC methods of measurements of radio noise emission from industrial,scientific and medical equipment Test Report #: GUA-1401-11103-FCC Tested by: ECMG Sewen Guo/Engineer Company Name Reviewed by: ECMG Jawen Yin/Senior Engineer Company Name QC Manager: ECMG Swall Zhang/QC Manager Company Name Test Report Released by: January 17 th , 2014 ⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯⎯ Swall Zhang Date Test Location Tests performed in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location : Galanz EMC Laboratory 25 South Ronggui Rd.,Shunde, Foshan,Guangdong, China Tel : (86)-757-23612785 Fax : (86)-757-23612537 Test Facility The test facility was recognized, certified, or accredited by the following organizations: z CNAL – LAB Code: L2244 Galanz EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing laboratories (identical to ISO/IEC 17025:2005 General Requirements)for the Competence of Testing Laboratories. z FCC – Registration No.: 580210 Galanz EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC was maintained in our files. Table of Contents LIST ATTACHED FILES______________________________________________________________ 1 GOVERNMENT DISCLAIMER NOTICE ________________________________________________ 2 REPRODUCTION CLAUSE ___________________________________________________________ 2 OPINIONS AND INTERPRETATIONS _________________________________________________ 2 STATEMENT OF MEASUREMENT UNCERTAINTY _____________________________________ 2 ADMINISTRATIVE DATA ____________________________________________________________ 3 EUT DESCRIPTION __________________________________________________________________ 4 EUT MODEL DERIVED_______________________________________________________________ 4 TEST SUMMARY ____________________________________________________________________ 5 LOAD FOR MICROWAVE OVEN ______________________________________________________ 6 EUT EXERCISE SOFTWARE __________________________________________________________ 7 EQUIPMENT MODIFICATION ________________________________________________________ 7 EUT SAMPLE PHOTOS FOR MODEL P11043AP-YZ___________________________________ 8 TEST SYSTEM DETAILS ____________________________________________________________ 13 CONFIGURATION OF TESTED SYSTEM _____________________________________________ 14 ATTACHMENT 1 –RADIATION HAZARD TEST ______________________________________ 15 ATTACHMENT 2 – INPUT POWER MEASUREMENT __________________________________ 17 ATTACHMENT 3 – RF OUTPUT POWER MEASUREMENT _____________________________ 20 ATTACHMENT 4 – OPERATING FREQUENCY MEASUREMENT ________________________ 23 ATTACHMENT 5 – CONDUCTED EMISSION TEST RESULTS__________________________ 26 ATTACHMENT 6 - RADIATED EMISSION TEST RESULTS_____________________________ 30 FCC Test Report #: GUA-1401-11103-FCC Prepared for Guangdong Galanz Enterprises Co., Ltd. Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 1 of 33 List Attached Files Exhibit Type File Description File Name Test Report Test Report UHW11043001 _Test Report.pdf Operation Description Technical Description UHW11043001 _Operation Description.pdf External Photos External Photos UHW11043001 _External Photos Internal Photos Internal Photos UHW11043001 _Internal Photos Block Diagram Block Diagram UHW11043001 _Block Diagram.pdf Schematics Circuit Diagram UHW11043001 _Schematics.pdf ID Label/Location Label and Location UHW11043001 _Label & Location.pdf User Manual User Manual UHW11043001 _User’s Manual.pdf Test set-up photos Test set-up photos UHW11043001 _Test Set-up Photos FCC Test Report #: GUA-1401-11103-FCC Prepared for Guangdong Galanz Enterprises Co., Ltd. Prepared by ECMG Electronic Technical Testing Corp (Shenzhen). Page 2 of 33 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from ECMG Electronic Technical Testing Corp (Shenzhen). Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT).Without the permission of ECMG Electronic Technical Testing Corp (Shenzhen). Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. FCC Test Report #: GUA-1401-11103-FCC Prepared for Guangdong Galanz Enterprises …

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1. Radiation Hazard Test Setup 2. Input Power Test Setup 3. RF Output Power Test Setup 4. Operating Frequency Test Setup 5. Conducted Emission Test Setup 6. Radiated Emission Test Setup
