UHW9023001Microwave Oven

MODEL: P90W23YSL-V9 Microwave Oven Owner's Manual Please read these instructions carefully before installing and operating the oven. Keep them for further reference. Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference. SERIAL NO. 1 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. 2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. 3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: a. Door (bent). b. Hinges and latches (broken or loosened). c. Door seals and sealing surfaces. 4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. CONTENT PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY______ 1 IMPORTANT SAFETY INSTRUCTIONS _________________________________________________ 2 SPECIFICATIONS* _________________________________________________________________ 4 INSTALLATION ____________________________________________________________________ 4 RADIO INTERFERENCE_____________________________________________________________ 4 GROUNDING INSTRUCTIONS________________________________________________________ 4 MICROWAVE COOKING PRINCIPLES _________________________________________________ 2 BEFORE YOU CALL FOR SERVICE ___________________________________________________ 2 UTENSILS GUIDE __________________________________________________________________ 2 PART NAMES _____________________________________________________________________ 2 CONTROL PANEL __________________________________________________________________ 2 HOW TO SET THE OVEN CONTROLS _________________________________________________ 6 Setting the clock __________________________________________________________________ 7 Microwave cooking________________________________________________________________ 7 Weight defrost ___________________________________________________________________ 7 Multistage cooking ________________________________________________________________ 7 Auto Cook_______________________________________________________________________ 7 Child lock _______________________________________________________________________ 9 CLEANING AND CARE ______________________________________________________________ 9 2 IMPORTANT SAFETY INSTRUCTIONS When using electrical appliance basic safety precautions should be followed, including the following: WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. 3. Do not operate the oven when empty. 4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. 5. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use. 6. To reduce the risk of fire in the oven cavity: z When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition z Remove wire twist-ties from paper or plastic bags before placing bag in oven. z If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. z Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 7. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode. 8. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container. 9. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns. 10. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.. 11. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before cooking. 12. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns. 13. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil. 14. Utensils should be checked to ensure that they are suitable for use in microwave oven. 15. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy. 16. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose. 4 SPECIFICATIONS* Power Consumption: 2…

Text truncated - open the document above for the full version.

Original Web Site: www.galanz.com 25 Ronggui Nan Rd, Shunde E-Mail:[email protected] Foshan , Guangdong, China Phone : +86 0757-23612785 FAX : + 86 0757-23612537 AGENCY AUTHORIZATION LETTER FCC ID: UHW9023001 Date: Apr 09, 2007 To whom it may concern: We, the undersigned,hereby authorize ECMG to act on our behalf , as our agent ,in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to the matters. and any other lawful activity necessary to obtain such certification. Any act carried out by ECMG within the scope of this authorization shall have the same effecs as our own. This authorization shall expire 6 months from original date , if you have any question regarding the authorization , please don’t hesitate to contact us , thank you. Sincerely, Valley Wang & Guangdong Galanz Enterprise Phone : +86 0757-23612785 FAX : + 86 0757-23612537 E-Mail:[email protected]

Date: Apr 09 , 2007 Federal communications commission Authorization and Evaluation Division FCC ID: UHW9023001 Confidentiality Request Pursuant to section 0.457 and 0.459 of the commission’s rules,the applicant hereby requests confidential treatment of information accompanying this application as outline below: 1. Schematics 2. Block diagram 3. Operational description The above materials contain trade secrets and proprietary information not customarily released to the public,the public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Valley Wang & Guangdong Galanz Enterprise Phone : +86 0757-23612785 Fax : + 86 0757-23612537 E-Mail:[email protected]

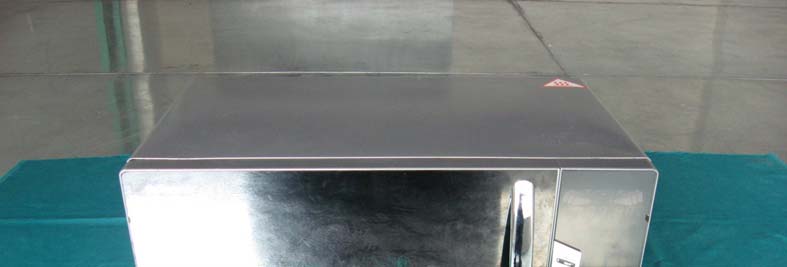

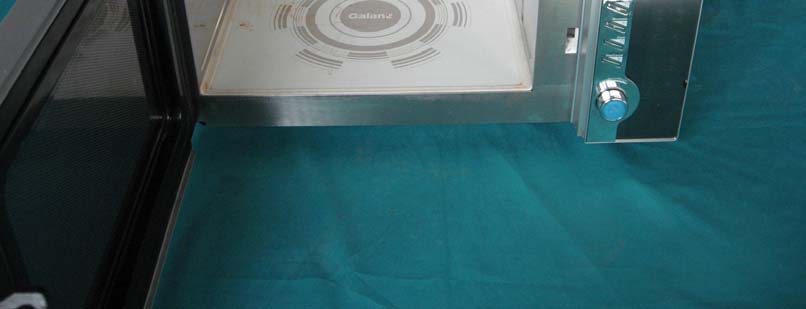

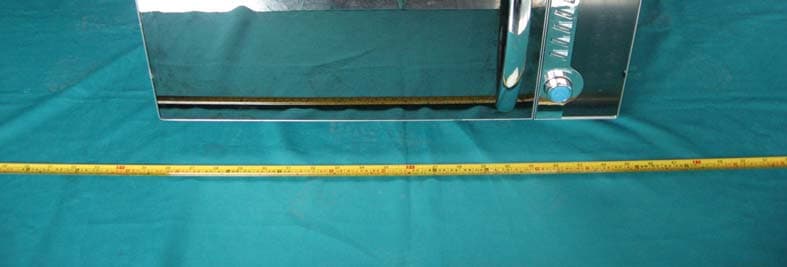

1 External Photos of EUT sample Photo 1- Front view of EUT Photo 2- Back view of EUT 2 Photo 3 – Inner view of EUT

Label & Location Proposed FCC Label Format: Dimention：Length x width = 170mm x 30mm Specifications: Text is white or black in color and is left justified ,Labels are printed in indelible ink on permanent adhesive backing or sile-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed FCC Label Location: location FCC Warning Statement: The Device complies with part 18 of the FCC rules,Operation is subject to the following conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received,including interference that may cause undersired operation .

1 External Photos of EUT sample Photo 1- Uncovered view of EUT Photo 2- Front view of AC Power filter board Photo 3 – Back view of AC Power filter board 2 Photo 4 –Front view of Main board Photo 5 – Back view of main board

670 National Avenue, Mountain View, CA 94043 Tel. (650) 988-0900 Fax (650) 988-6647 www.ecmg-global.com EMI Test Report On Model Name: Microwave oven Model Numbers: P90W23X-Z Brand Name: Galanz FCC ID: UHW9023001 Prepared for Guangdong Galanz Enterprises Co., Ltd According to FCC Part 18 Industrial, Scientific and Medical Equipment FCC/OST MP-5(1986) FCC methods of measurements of radio noise emission from industrial,scientific and medical equipment Test Report #: PSZ-0703-0364-FCC+ID Prepared by: King Su Reviewed by: Ivan Wen QC Manager: Paul Chen Test Report Released by: 2007, Apr 08 ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯ Paul Chen Date NVLAP Lab code: 200068-0 ISO/IEC 17025:1999, ISO 9002:1994 List Attached Files Exhibit Type File Description File Name Test Report Test Report UHW9023001 _Test report.pdf Operation Description Technical Description UHW9023001 _operation description.pdf External Photos External Photos UHW9023001 _External Photos Internal Photos Internal Photos UHW9023001 _Internal Photos Block Diagram Block Diagram UHW9023001 _Block Diagram.pdf Schematics Circuit Diagram UHW9023001 _Schematics.pdf ID Label/Location Label Artwork and Location UHW9023001 _Label & Location.pdf User Manual User Manual UHW9023001 _User Manual.pdf Test setup photos Test setup photos UHW9023001 _Test Setup Photos Test Location Tests performed at Galanz in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location: Guangdong Galanz Enterprises Co., Ltd 25 South Ronggui Rd., Shunde, Foshan, Guangdong, China. Tel: 86-757-23612785 Fax: 86-757-23612537 FCC Registration Number: 580210 Accreditation Bodies EMC Compliance Management Group is a fully accredited Test Laboratory for ITE, ISM, MIL-STD and Telecommunications Products. In compliance with the site registration requirements of Section 2.948 of the FCC Rules to perform EMI measurements for the general public. FCC Registration #: 894293. Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code # 200068-0. Table of Contents GOVERNMENT DISCLAIMER NOTICE ________________________ 1 REPRODUCTION CLAUSE _________________________________ 1 OPINIONS AND INTERPRETATIONS _________________________ 1 STATEMENT OF MEASUREMENT UNCERTAINTY ______________ 1 ADMINISTRATIVE DATA ___________________________________ 2 EUT DESCRIPTION _______________________________________ 2 TYPE OF DERIVER _______________________________________ 3 TEST SUMMARY _________________________________________ 4 LOAD FOR MICROWAVE OVENS____________________________ 5 EQUIPMENT MODIFICATION _______________________________ 5 EUT SAMPLE PHOTOS FOR MODEL P12034AP________________ 6 TEST SYSTEM DETAILS __________________________________ 10 CONFIGURATION OF TESTED SYSTEM _____________________ 11 ATTACHMENT 1 – RADIATION HAZARD TEST________________ 12 ATTACHMENT 2 – INPUT POWER MEASUREMENT ___________ 14 ATTACHMENT 3 – RF OUTPUT POWER MEASUREMENT_______ 16 ATTACHMENT 4 – OPERATING FREQUENCY MEASUREMENT __ 18 ATTACHMENT 5 - CONDUCTED EMISSION TEST RESULTS ____ 21 ATTACHMENT 6 - RADIATED EMISSION TEST RESULTS_____ 25-31 Test Report #: PSZ-0703-0364-FCC+ID Prepared for Guangdong Galanz Enterprises Co., Ltd. Prepared by EMC Compliance Management Group Page 1 of 28 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from EMC Compliance Management Group, 670 National Ave., Mountain View, CA 94043. Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT). Without the permission of EMC Compliance Management Group Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. Test Report #: PSZ-0703-0364-FCC+ID Prepared for Guangdong Galanz Enterprises Co., Ltd. Prepared by EMC Compliance Management Group Page 2 of 28 Administrative Data Test Sample : Microwave Oven Model Numbers : P90W23X-Z Model Tested : P90W23YSL-V9 Brand Name : Galanz Date Tested : 2007, April 2 th Applicant : Guangdong Galanz Enterprises Co., Ltd. 25 Ronggui Nan Rd., Shunde, Foshan, Guangdong, China. Telephone : 86-0757-23612785 Fax : 86-757-23612537 Manufacturer : Guangdong Galanz Enterprises Co., Ltd. 25 Ronggui Nan Rd., Shunde, Foshan, Guangdong, China. EUT Description Guangdong Galanz Enterprises Co., Ltd. model tested P90W23YSL-V9 (referred to the EUT in this report) is a Microwave Oven. Specifications: Power Consumption: 230V, 50Hz, 1400W(Microwave) Rated Microwave Power Output: 900W Operation Frequency: 2450MHz Magnetron Manufaturer Galanz Magnetron Model Number M24FA-410A Outside Dimensions: 291mm(H)×506mm(W)×405mm(D…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1. AC input power measurement 2． Conducted Emission Test 3. Operation frequency measurement 4.Radiated emission measurement 5. Radiation hazard test 6. RF output power measurement
