UHW9023003Microwave Oven

Microwave Microwave Oven INSTRUCTION’S MANUAL Model No.P9023AP-BM1 CAUTION: Carefully Read Instructions and Procedures for Safe Operation Date of Purchase: / / UPC CODE: 836321002450 Please save your original receipt as proof of purchase for warranty service １ SYL PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door-open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the : ① Door ( bent ), ② Hinges and latches ( broken or loosened ), ③ Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. CONTENTS IMPORTANT SAFETY INSTRUCTIONS ....................................................................................２ GROUNDING INSTRUCTIONS ................................................................................................... 3 UTENSILS GUIDE........................................................................................................................ 4 COOKING TECHNIQUES ............................................................................................................ 6 BEFORE YOU CALL FOR SERVICE ........................................................................................... 7 SPECIFICATIONS ........................................................................................................................ 7 PART NAMES ............................................................................................................................... 7 CONTROL PANEL......................................................................................................................８ HOW TO SET THE OVEN CONTROLS....................................................................................... 9 SPECIAL FEATURES................................................................................................................. 13 CLEANING AND CARE ..............................................................................................................17 2 IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 1. 3. This appliance must be grounded. Connect only to properly grounded outlet. See "grounding instructions” on page 3. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs and sealed containers -for example, closed glass jars- are able to explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. To reduce the risk of fire in the oven cavity: a. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord or shut off power at the fuse or circuit breaker panel. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 9. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to person: 3 a. Do not overheat the liquid. b. Stir the liquid both before and halfway through heating it. c. Do not use straight-sided containers with narrow necks. d. After heating, allow the container to stand in the microwave oven for a short time before removing the container. e. Use extreme care when inserting a spoon or other utensil into the container. 10. Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in microwave oven. 11. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before cooking. 12. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns. 13. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil. 14. Do not cover or block any openings on the appliance. 15. Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations. 16. Do not operate this appliance if it has a damaged cord or a plug, if it is not working properly or if it has been damaged or dropped. 17. Do not immerse cord or plug in water. Keep cord away from heated surface. Do not let cord hang over edge of table or counter. 18. Use only thermometers, whic…

Text truncated - open the document above for the full version.

ECMG January 24 2008 RE: ATCB FCC ID: UHW9023003 After a review of the submitted information, I have a few comments on the above referenced Application. 1) It appears that the test report is written by ECMG Worldwide, but the testing done at Guangdong Galanz Enterprises Co. For labs that do not appear to be accredited, we are required to internally quantify the facility and document certain information regarding the facility. However for this application there appears to be two companies involved (I.e. Guandong Galanz and ECMG. Therefore we need to understand the relationship to help us document this appropriately in our procedures. It is noted that ECMG (California location) used to appear accredited but was due for renewal 1/1/08 – but currently information can not be located to verify any status on this fact. The ECMG China location does not necessarily appear to be accredited either and it is uncertain of the relationship of this location to the California location. To clarify the relationship and to satisfy our internal procedures, can you kindly comment on the following: a) Is either facility 17025 Accredited (regardless of scope or agency this is done through)? b) is Guangdong Galanz Enterprises Co considered a subcontracted facility under ECMG’s 17025 accreditation if this exists, c) Is testing done by ECMG or Guangdong Galanz employees? If performed by Guandong employees is this witness tested by ECMG? d) Does ECMG’s quality system fall under their California’s location, or for purposes of 17025 is the China vs. California location considered separate locations with different quality systems that must be assessed separately? Answer：Guangdong Galanz Enterprises Co. Ltd is ECMG's subcontracted lab in Shunde. All testing done at Galanz , and we are onlooking when testing. The lab is a 17025 accredited lab that has the testing capabilities of Microwave Oven ,Please kindly see following certification. 2) What is the Magnetron Number of this microwave. Information regarding this was not found off hand in the application and the FCC ask that this information be present on the grant. Answer:The magnetron number is M24FB-210A,It was appeared at test report and the 731 form. Please kindly see the page 2/29 of the test report . 3) Rated output power is rated and model explains it is 900 Watts, while measured is only 616 Watts. This appears to be a large unexpected variance and makes the rating of 900 Watts suspect. Kindly review/explain. Answer : I have checked this equipment again , And found that the output power is OK. I will give notice to manufacture and confirmed again . 4) Kindly explain what the white box in the AC line is as shown in the test photos. Is this a filter? How does this device/box affect emissions measurements. Answer : The white box in the AC line is a power matching switch. 5) FYI....Generally the 731 form should also have rated power and frequency tolerance filled out for microwave ovens. Currently it appears power is 616 Watts, and frequency tolerance is 0.7%. Answer: Thanks for you FYI , I have added these information to it ,Please kindly see the revised 731 form. Ivan Wen/EMC Manager [email protected] 9th floor, Daqing Building, Chegong Temple, Shennan Road Shenzhen P.R.C. 518031 Tel: 86-755-8298-4733 Ext:812 Fax: 86-755-82984711 www.ecmg-global.com Skype ID: ecmgivan

Original Web Site: www.galanz.com 25 Ronggui Nan Rd, Shunde E-Mail:[email protected] Foshan , Guangdong, China Phone : +86 0757-23612785 FAX : + 86 0757-23612537 AGENCY AUTHORIZATION LETTER FCC ID: UHW Date: Jan 10, 08 To whom it may concern: We,the undersigned, hereby authorize ECMG of China to act on our behalf ,as our agent ,in the following matters related to the FCC approval of our agent ,in the following matters related to the FCC approval of our products: report submittal, related correspondence,the signing of all documents relating to the matter.and any other lawful activity necessary to obtain such certification.Any act carried out by ECMG within the scope of this authorization shall have the same effecs as our own. This authorization shall expire 6 months from original date ,if you have any question regarding the authorization ,please don,t hesitate to contact us ,thank you. Sincerely, Valley Wang & Guangdong Galanz Enterprise Phone : +86 0757-23612785 FAX : + 86 0757-23612537 E-Mail:[email protected]

Date: Jan 10, 2008 Federal communications commission Authorization and Evaluation Division FCC ID: UHW Confidentiality Request Pursuant to section 0.457 and 0.459 of the commission’s rules,the applicant hereby requests confidential treatment of information accompanying this application as outline below: 1. Schematics 2. Block diagram 3. Operational description The above materials contain trade secrets and proprietary information not customarily released to the public,the public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Valley Wang & Guangdong Galanz Enterprise Phone : +86 0757-23612785 Fax : + 86 0757-23612537 E-Mail:[email protected]

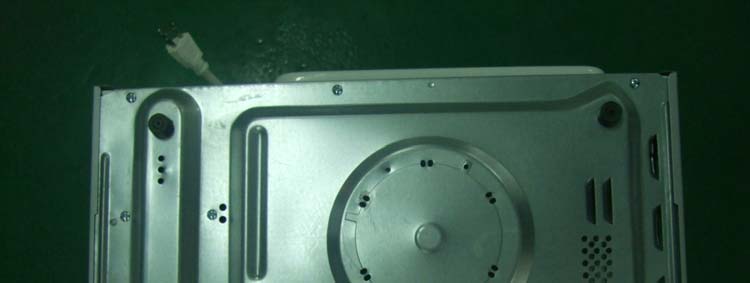

1 External Photo of EUT sample Photo 1- Front view of EUT Photo 2- Back view of EUT 2 Photo 3 –Side&Top view of EUT Photo 4 –Bottom view of EUT

Label & Location Proposed FCC Label Format: Dimention ：Length x width = 160mm x 50mm Specifications: Text is white or black in color and is left justified ,Labels are printed in indelible ink on permanent adhesive backing or sile-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed FCC Label Location: Location FCC Warning Statement: The Device complies with part 18 of the FCC rules,Operation is subject to the following conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received,including interference that may cause undersired operation .

1 Internal Photo of EUT sample Photo 1- Uncovered view of EUT Photo 2- Inside view of AC EUT 2 Photo 3 – Front view of main board Photo 4 – Back view of main board 3 Photo 5 – Front view of Power filter Photo 6 – Front view of Power filter

EMI Test Report On Model Name: Microwave oven Model Numbers: P9023X-Z Brand Name: Galanz FCC ID: UHW9023003 Prepared for Guangdong Galanz Enterprises Co. Ltd According to FCC Part 18 Industrial, Scientific and Medical Equipment FCC/OST MP-5(1986) FCC methods of measurements of radio noise emission from industrial,scientific and medical equipment Test Report#: PSZ-0801-0609-FCCID Prepared by: Eddy Chen Reviewed by: Ivan Wen QC Manager: Paul Chen Test Report Released by: 2008, Jan 10 ⎯⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯ Paul Chen Date List Attached Files Exhibit Type File Description File Name Test Report Test Report UHW9023003 _Test report.pdf Operation Description Technical Description UHW9023003 _operation description.pdf External Photos External Photos UHW9023003 _External Photos Internal Photos Internal Photos UHW9023003 _Internal Photos Block Diagram Block Diagram UHW9023003 _Block Diagram.pdf Schematics Circuit Diagram UHW9023003 _Schematics.pdf ID Label/Location Label and Location UHW9023003 _Label & Location.pdf User Manual User Manual UHW9023003 _User Manual.pdf Test setup photos Test setup photos UHW9023003 _Test Setup Photos Test Location Tests performed in a Certified ANSI Semi-Anechoic Chamber and Shielded Room. Test Site Location: Guangdong Galanz Enterprise Co. Ltd 25 South Ronggui Rd., Shunde, Foshan, Guangdong, China Tel : 86-755-23612785 Fax : 86-755-23612537 FCC Registration Number: 580210 Table of Contents GOVERNMENT DISCLAIMER NOTICE ___________________________________________ 1 REPRODUCTION CLAUSE ______________________________________________________ 1 OPINIONS AND INTERPRETATIONS_____________________________________________ 1 STATEMENT OF MEASUREMENT UNCERTAINTY ________________________________ 1 ADMINISTRATIVE DATA _______________________________________________________ 2 EUT DESCRIPTION _____________________________________________________________ 2 TYPE OF DERIVER _____________________________________________________________ 3 TEST SUMMARY _______________________________________________________________ 4 LOAD FOR MICROWAVE OVENS _______________________________________________ 5 EQUIPMENT MODIFICATION ___________________________________________________ 5 EUT SAMPLE PHOTOS FOR MODEL_____________________________________________ 6 TEST SYSTEM DETAILS _______________________________________________________10 CONFIGURATION OF TESTED SYSTEM ________________________________________10 ATTACHMENT 1 – RADIATION HAZARD TEST _________________________________11 ATTACHMENT 2 – INPUT POWER MEASUREMENT _____________________________13 ATTACHMENT 3 – RF OUTPUT POWER MEASUREMENT ________________________16 ATTACHMENT 4 – OPERATING FREQUENCY MEASUREMENT ___________________19 ATTACHMENT 5 - CONDUCTED EMISSION TEST RESULTS _____________________22 ATTACHMENT 6 - RADIATED EMISSION TEST RESULTS________________________26 Test Report #: PSZ-0801-0609-FCCID Prepared for Guangdong Galanz Enterprises Co. Ltd Prepared by ECMG Worldwide Certification Solution Inc. Page 1 of 29 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from ECMG Worldwide Certification Solution Inc., Opinions and Interpretations This test report relates to the abovementioned equipment under test (EUT). Without the permission of ECMG Worldwide Certification Solution Inc., Test Lab this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. Test Report #: PSZ-0801-0609-FCCID Prepared for Guangdong Galanz Enterprises Co. Ltd Prepared by ECMG Worldwide Certification Solution Inc. Page 2 of 29 Administrative Data Test Sample : Microwave oven Model Numbers : P9023X-Z Model Tested : P9023AP-BM1 Brand Name : Galanz Date Tested : 2008, Jan 10 Applicant : Guangdong Galanz Enterprises Co. Ltd 25Ronggui Nan Road, Shunde, Foshan, Guangdong, China. Telephone : 86-0757-23612785 Fax : 86-0757-23612537 Manufacturer : Guangdong Galanz Enterprises Co. Ltd 25Ronggui Nan Road, Shunde, Foshan, Guangdong, China. EUT Description Guangdong Galanz Enterprises Co. Ltd model tested EM923HYY (referred to the EUT in this report) is a Microwave Oven. Power Supply 120V AC , 60 Hz Rated Input Power 1350W Rated Output Power 900W Operation Frequency 2450MHz Magnetron Manufacturer Galanz Magnetron Model Number M24FB-210A Outside Dimensions (HxW×D) 13 3/4（W）X 13(D) X 8 7/16(H) in. Oven Capacity: 0.9 cu.ft Net Weight Approx. 34.4lbs. Test Report #: PSZ-0801-0609-FCCID Prepared for Guangdong Galanz Enterprises Co. Ltd Prepared by ECMG Worldwide Certification Solution Inc. Page 3 of 29 Type of Deriver P9023X-Z model designations: X=L,AL,EL,SL,TL,YL,P,AP,EP,SP,TP,ASL,ESL,TSL,YSL,ASP,A…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1. AC input power measurement 2． Conducted Emission Test 3. Operation frequency measurement 4.Radiated emission measurement 5. Radiation hazard test 6. RF output power measurement
