UHW90237Part 18 Consumer Device

JS1M0609-19214-004 标记 处数 更改单号 签 字 日期 说明书 SSD239A7U-PA0C0A (P90D23MXL-A7) 设 计 陈琴 标准化 谭银珠 图 样 标 记 数量 重量 比例 校 对 审 定 李志刚 审 核 王少云 S A 1:1 工 艺 日 期 2012-04-26 共 15 页 第 1 页 广东格兰仕微波炉电器制造有限公司 Model: P90D23MXL-A7 Microwave Oven User's manual Please read these instructions carefully before installing and operating the oven. Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference. SERIAL NO. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help JS1M0609-19214-004 标记 处数 更改单号 签 字 日期 说明书 SSD239A7U-PA0C0A (P90D23MXL-A7) 设 计 陈琴 标准化 谭银珠 图 样 标 记 数量 重量 比例 校 对 审 定 李志刚 审 核 王少云 S A 1:1 工 艺 日 期 2012-04-26 共 15 页 第 2 页 广东格兰仕微波炉电器制造有限公司 1. Do not attempt to operate this oven with the door-open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. 2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. 3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: a. Door (bent), b. Hinges and latches (broken or loosened), c. Door seals and sealing surfaces. 4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. CONTENT PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 2 IMPORTANT SAFETY INSTRUCTIONS ..............................................................................3 INSTALLATION GUIDE.........................................................................................................5 GROUNDING INSTRUCTIONS............................................................................................5 UTENSILS GUIDE ................................................................................................................6 COOKING TECHNIQUES.....................................................................................................7 SPECIFICATIONS ................................................................................................................8 PART NAMES .......................................................................................................................9 CONTROL PANEL ..............................................................................................................10 HOW TO SET THE OVEN CONTROLS ............................................................................. 11 Setting Digital Clock .................................................................................................... 11 Quick Start................................................................................................................... 11 Microwave Cooking..................................................................................................... 11 Multi Stage Cooking ....................................................................................................12 Time Defrost................................................................................................................13 Weight Defrost ............................................................................................................13 Auto Cook ...................................................................................................................13 Child Lock ...................................................................................................................14 CLEANING AND CARE ......................................................................................................15 P P R R E E C C A A U U T T I I O O N N S S T T O O A A V V O O I I D D P P O O S S S S I I B B L L E E E E X X P P O O S S U U R R E E T T O O E E X X C C E E S S S S I I V V E E M M I I C C R R O O W W A A V V E E E E N N E E R R G G Y Y JS1M0609-19214-004 标记 处数 更改单号 签 字 日期 说明书 SSD239A7U-PA0C0A (P90D23MXL-A7) 设 计 陈琴 标准化谭银珠 图 样 标 记 数量 重量 比例 校 对 审 定李志刚 审 核 王少云 SA 1:1 工 艺 日 期2012-04-26 共 15 页 第 3 页 广东格兰仕微波炉电器制造有限公司 When using electrical appliances, basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 5. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" on page 1. 6. This appliance must be grounded. Connect only to properly grounded outlet. See "grounding instructions " on page 3. 7. Install or locate this appliance only in accordance with the provided installation instructions. 8. Some products such as whole eggs and sealed containers -for example, closed glass jars- are able to explode and should not be heated in this oven. 9. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 10. As with any appliance, close supervision is necessary when used by children. 11. To reduce the risk of fire in…

Text truncated - open the document above for the full version.

Guangdong Galanz Enterprises Co., Ltd 25 South Ronggui Rd., Shunde, Foshan, Guangdong, China DATE 2012-05-04 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: UHW90237 Product Name: Microwave Oven Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Part list • Operational description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this / Day of 04/05/2012 / By: Valley.Wang Signature Printed Title: Vice director/CTSC On behalf of : Guangdong galanz Enterprises Co.,Ltd Telephone: 86-757-23612785

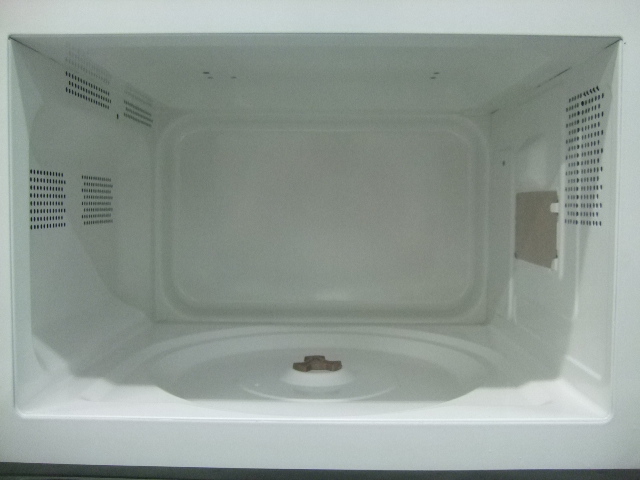

External Photos of EUT Sample 1. Front and Top View of EUT 2. Rear View of EUT 3. Door Open View of EUT

Label of P90D23MXL-A7 FCC ID:UHW90237 P90D23MXL-A7 VAC:120 Hz:60 PHASE:1 WIRE:3 WATTS:1350 AMPS:12OPERATION FREQUENCY:2450MHz HOUSEHOLD MICROWAVE OVENSERIAL: MANUFACTURED: MADE IN CHINA Label Location for P90D23MXL-A7 Back board Rating label

Internal Photos of EUT Sample 1. Uncovered View from Right Side of EUT 2. Uncovered View from Top Side of EUT 3. Front View of Main Board 4. Back View of Main Board 5. Front View of AC Power Filter Board 6. Back View of AC Power Filter Board 7. View of Magnetron

FCC CFR47 PART 18 SUBPART C ISM EQUIPMENT TEST REPORT FOR MICROWAVE OVEN Model: P90D23(Y)-(Z) (Testing case: P90D23MXL-A7) Magnetron Model: Galanz, M24FB-610A Brand Name: Galanz Test Report No.: 12CA04263-01 FCC ID: UHW90237 Prepared for GUANGDONG GALANZ ENTERPRISE (GROUP)CO.,LTD. 25 RONGGUI NAN ROAD, RONGGUI SHUNDE, GUANGDONG P.R.C.528305 ACCORDING TO FCC PART 18 INDUSTRIAL, SCIENTIFIC AND MEDICAL EQUIPMENT & FCC/0ST MP-5(1986) FCC METHODS OF MEASUREMENTS OF RADIO NOISE EMISSION FROM INDUSTRIAL, SCIENTIFIC AND MEDICAL EQUIPMENT Prepared By: Daomen Guan Reviewed By: Yanhan Lu QC Manager: Valley.Wang Test Report Released By _____________________ _29/04/2012_________________ Name Date Page 1 of 36 List Attached Files Exhibit Type File Description File Name Te s t re p o r t Te s t re p o r t UHW90237 -Test report .pdf Operation Description Operational Description UHW90237 -Operational description .pdf External Photos External Photos UHW90237 -External photos .pdf Internal Photos Internal Photos UHW90237 -Internal photos .pdf Block Diagram Block Diagram UHW90237 -Block diagram .pdf Schematics Diagram Schematics Diagram UHW90237 -Schematics .pdf ID Label/ Location ID Label/ Location UHW90237 -label & location .pdf User Manual User Manual UHW90237 -User manual .pdf Test setup Photos Test setup Photos UHW90237 -Test setup photos .pdf Part List Part List UHW90237 - Part list .pdf Page 2 of 36 Test Location Tests performed at Galanz in a certified Ansi Semi-Anechoic Chamber and Shielded Room. Test Site Location EMC Laboratory Guangdong Galanz Enterprises Co., Ltd 25 South Ronggui Rd., Shunde, Foshan, Guangdong, China. Tel: 86-757-23612785 Fax: 86-757-23612537 In compliance with the site registration requirements of section 2.948 of the FCC rules to perform EMI measurements for the general public. FCC Registration Number: 580210 Page 3 of 36 Table of Contents GOVERNMENT DISCLAIMER NOTICE-----------------------------------------------4 REPRODUCTION CAUSE------------------------------------------------------------------4 OPINIONS AND INTERPRETATIONS---------------------------------------------------4 STATEMENT OF MEASUREMENT UNCERTAINTY--------------------------------4 ADMINISTRATIVE DATA- -----------------------------------------------------------------5 EUT DESCRIPTION--------------------------------------------------------------------------5 TYPE OF DERIVER------------------------------------------------------------------------6 TEST SUMMARY------------------------------------------------------------------------------7 LORD FOR MWO-----------------------------------------------------------------------------8 EQUIPMENT MODIFICATION-----------------------------------------------------------8 EUT SAMPLE PHOTOS FOR MODEL--------------------------------------------------9 TEST SYSTEM DETAILS------------------------------------------------------------------14 CONFIGURATION OF TESTED SYSTEM--------------------------------------------15 ATTACHMENT 1- RADIATION HAZARD TEST------------------------------------16 ATTACHMENT 2-INPUT POWER MEASUREMENT------------------------------19 ATTACHMENT 3-RF OUTPUT POWER MEASUREMENT----------------------22 ATTACHMENT 4- OPERATING FREQUENCY MEASUREMENT-------------25 ATTACHMENT 5-CONDUCTED EMISSION TEST RESULTS------------------28 ATTACHMENT 6-RADIATED EMISSION TEST RESULTS----------------------33 Page 4 of 36 GOVERNMENT DISCLAIMER NOTICE When government drawing, specification or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States government thereby incurs no responsibility nor any obligation whatsoever, and the fact that the Government might have formulated, furnished or in any way supplied the said drawing, specification or other data, is not to be regarded implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights to permission to manufacture, use or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of the document must be done in full. No single part of the document may be reproduced without permission from EMC Laboratory of Guangdong Galanz Enterprises Co., Ltd Opinions and Interpretations This test report relates to the above mentioned equipment under test (EUT). Without permission of EMC Laboratory of Guangdong Galanz Enterprises Co., Ltd, this report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. The manufacturer has sole responsibility of continued compliance of the device. Statement of Measurement Uncertainty The data and results referenced in the document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. Page 5 of 36 Administrative Data Test Sample Microwave oven Model Numbers P90D23(Y)-(Z) Model Tested P90D23MXL-A7 Brand Name Galanz Date Tested April 26, 2012 to April 27, 2012 Applicant Guangdong Galanz Enterprises Co., Ltd. 25 ronggui nan Rd., Shunde, Foshan, Guangdong , China Telephone 86-757-23612785 Fax 86-757-23612537 Manufacturer Guangdong Galanz Enterprises Co., Ltd. 25 ronggui nan Rd., Shunde, Foshan, Guangdong , China EUT DESCRIPTION Guangdong Galanz Enterprises Co., Ltd. Model tested P90D23MXL-A7 (Refer to the EUT in this report) is a Microwave Oven. Specifications: Power consumption 120Vac 60Hz, 1350W(Microwave) Output 900W Operation frequency 2450Hz Magnetron brand Galanz Magnetron number M24FB-610A Outside dimensions(HxWxD) 12×19 5/6×15 5/9in. Cavity dimensions(HxWxD) 8 11/16×13 3/8×12 5/8 in. Capacity 0.81cu.ft Cook…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1. Radiation Hazard Test Setup 2. Input Power Test Setup 3. RF Output Power Test Setup 4. Operating Frequency Test Setup 5. Conducted Emission Test Setup 6. Radiated Emission Test Setup
